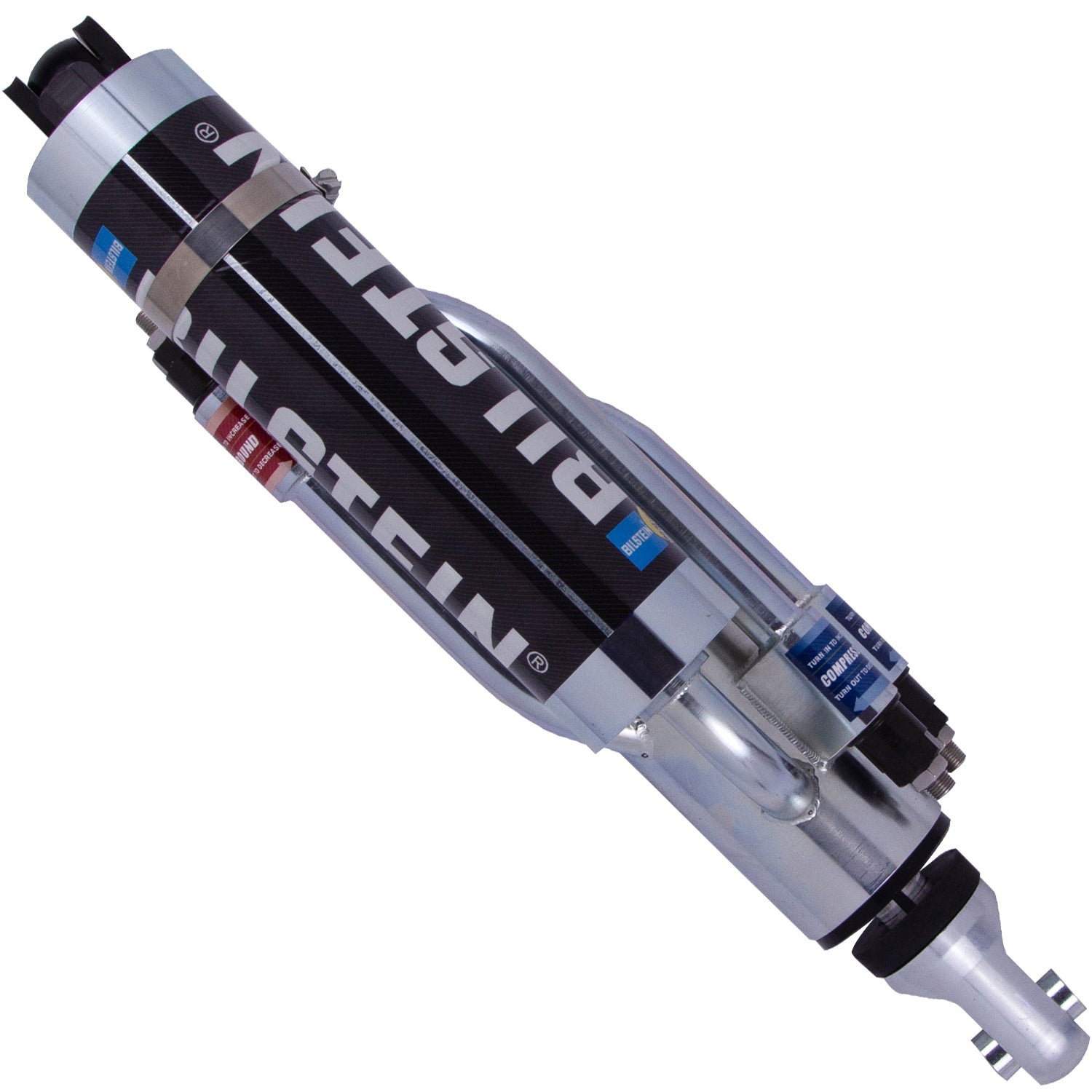

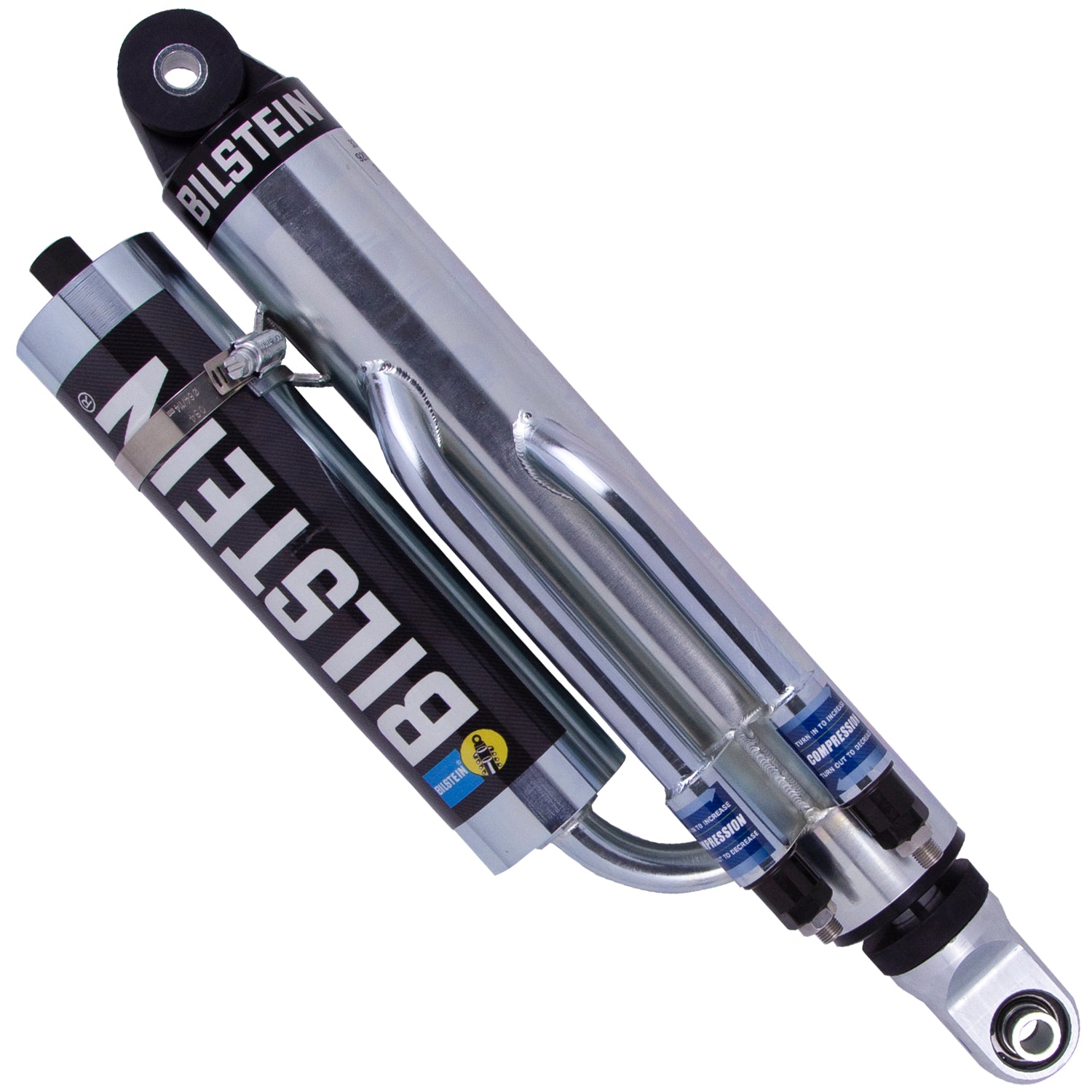

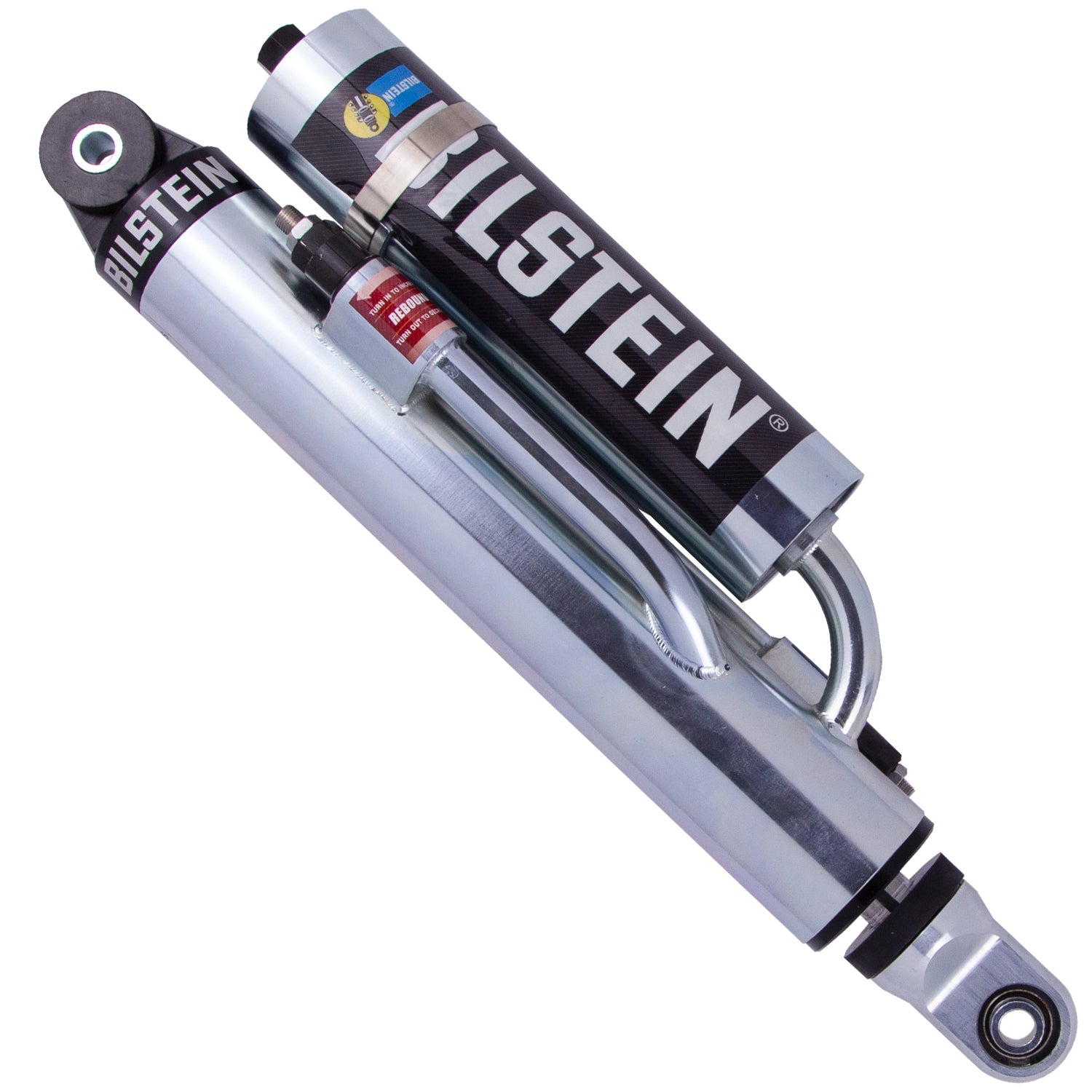

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
M 9200 (Bypass) - Suspension Shock Absorber |
| Description_EXT |
60mm Monotube Shock Absorber |
| Description_INV |
60mm, 3-Tube, 8" Stroke, Right, Stand |
| Description_LAB |
M 9200 (Bypass) - Suspension Shock Absorber |
| Description_MKT |
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_SHO |
Shock |
| Extended Length (IN) Rounded |
26 |
| Reservoir |
Yes |
| Collapsed Length (IN) |
17.50 |
| Compression @0.52m/s |
Custom |
| Collapsed Length (IN) Rounded |
18 |
| Rebound @0.52m/s |
Custom |
| Body Diameter (ID) |
60mm |
| Extended Length (IN) |
25.50 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Series |
M 9200 (Bypass) |
| Extended Length (MM) |
647.7 |
| Lower Mount Type |
Eye .5x1.5in |
| Mount Type |
Eye-to-Eye |
| Finish |
Zinc Plated |
| Title |
Bilstein Shock Absorbers |
| Upper Mount Type |
Eye .5x1.5in |
| Collapsed Length (MM) |
444.5 |
| Internal Design |
Monotube |
| Spring Seat Included |
No |
| Body Design |
3-Tube Bypass Screw Top |
| Optional Reservoir Clamp |
N/A |
| Position |
Right |
| Boot Included |
N/A |
| Length |
9.0000 |
| Width |
12.0000 |
| Height |
34.0000 |
| Weight |
30.0000 |
