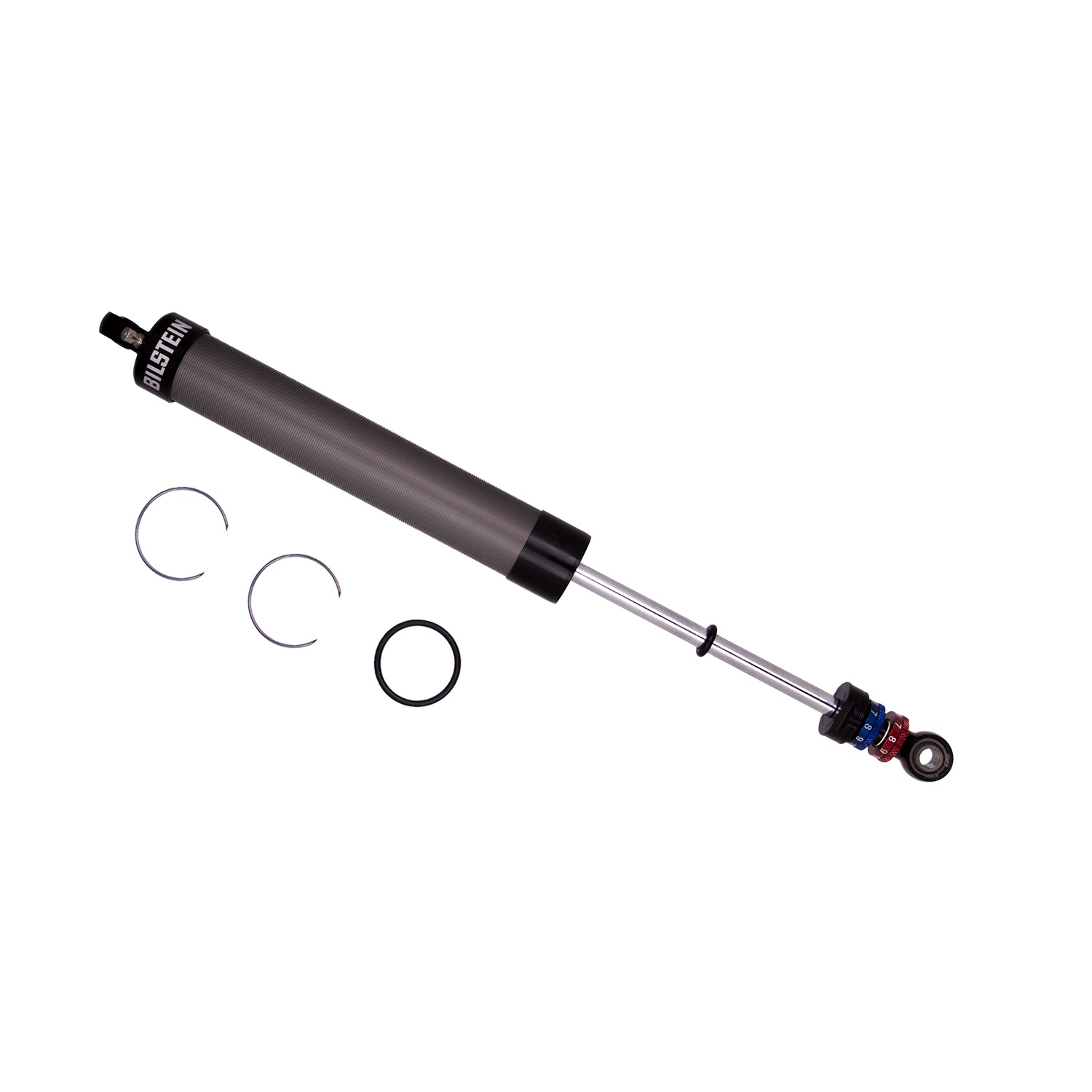

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
AS2 Series - Suspension Shock Absorber |
| Description_LAB |
AS2 Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
AS2-D90D0, 9", DIGRESSIVE, DBL. ADJ. |
| Description_MKT |
Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability. |
| Description_SHO |
Shock |
| Body Design |
Threaded Body Screw Top (Coilover) |
| Title |
Bilstein Shock Absorbers |
| Lower Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
15.98 |
| Extended Length (IN) |
23.70 |
| Piston Type |
Digressive |
| Series |
AS2 Series |
| Extended Length (MM) |
602.0 |
| Upper Mount Type |
1/2in Heim |
| Body Diameter (ID) |
46mm |
| Internal Design |
Monotube |
| Boot Included |
No |
| Valving Identifier |
Digressive Dry Kit (no valving) |
| Collapsed Length (MM) |
406.0 |
| Adjustable Damping |
Double Adjustable - Compression and Rebound |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Body Material |
Aluminum |
| Finish |
Clear Anodized |
| Spring Seat Included |
No |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
