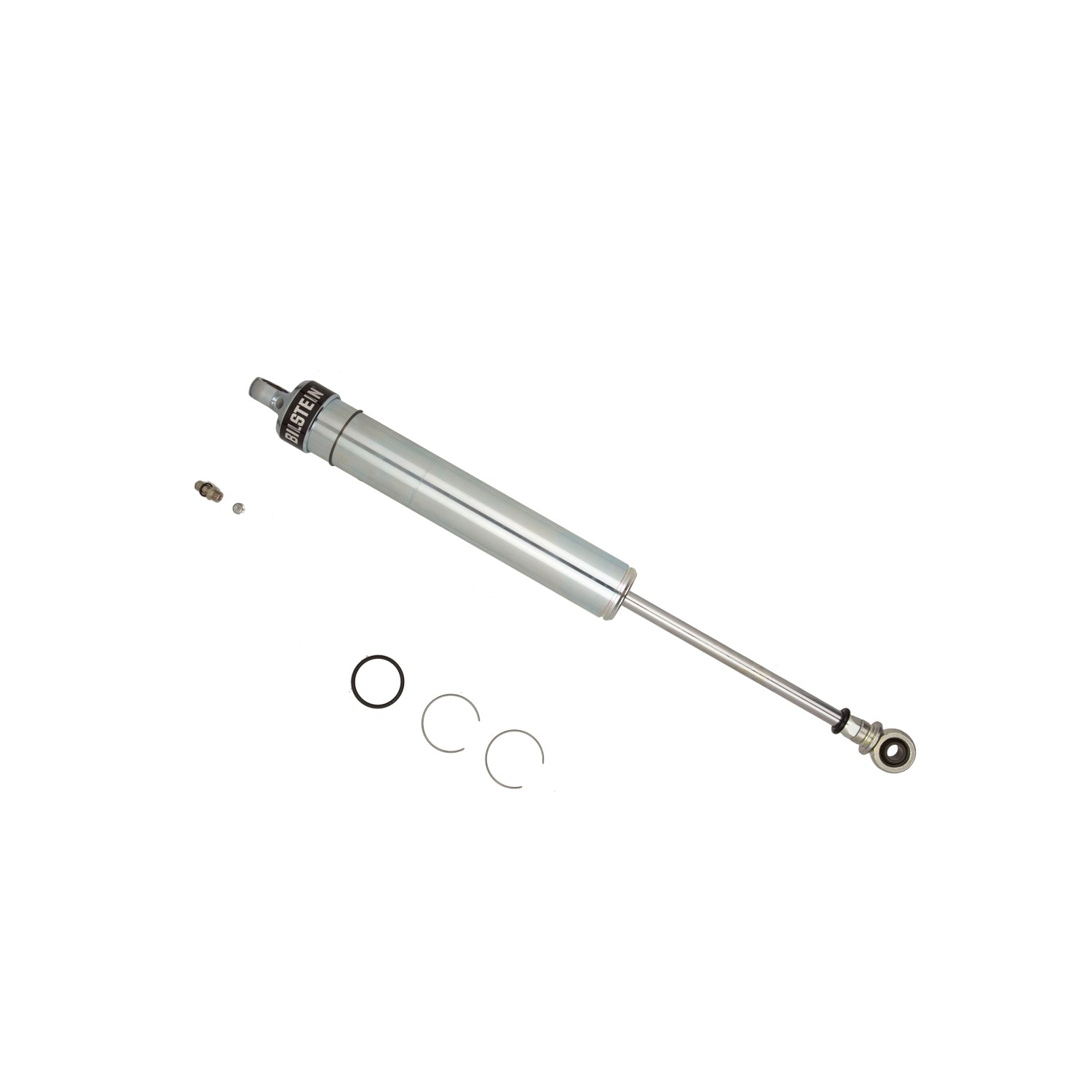

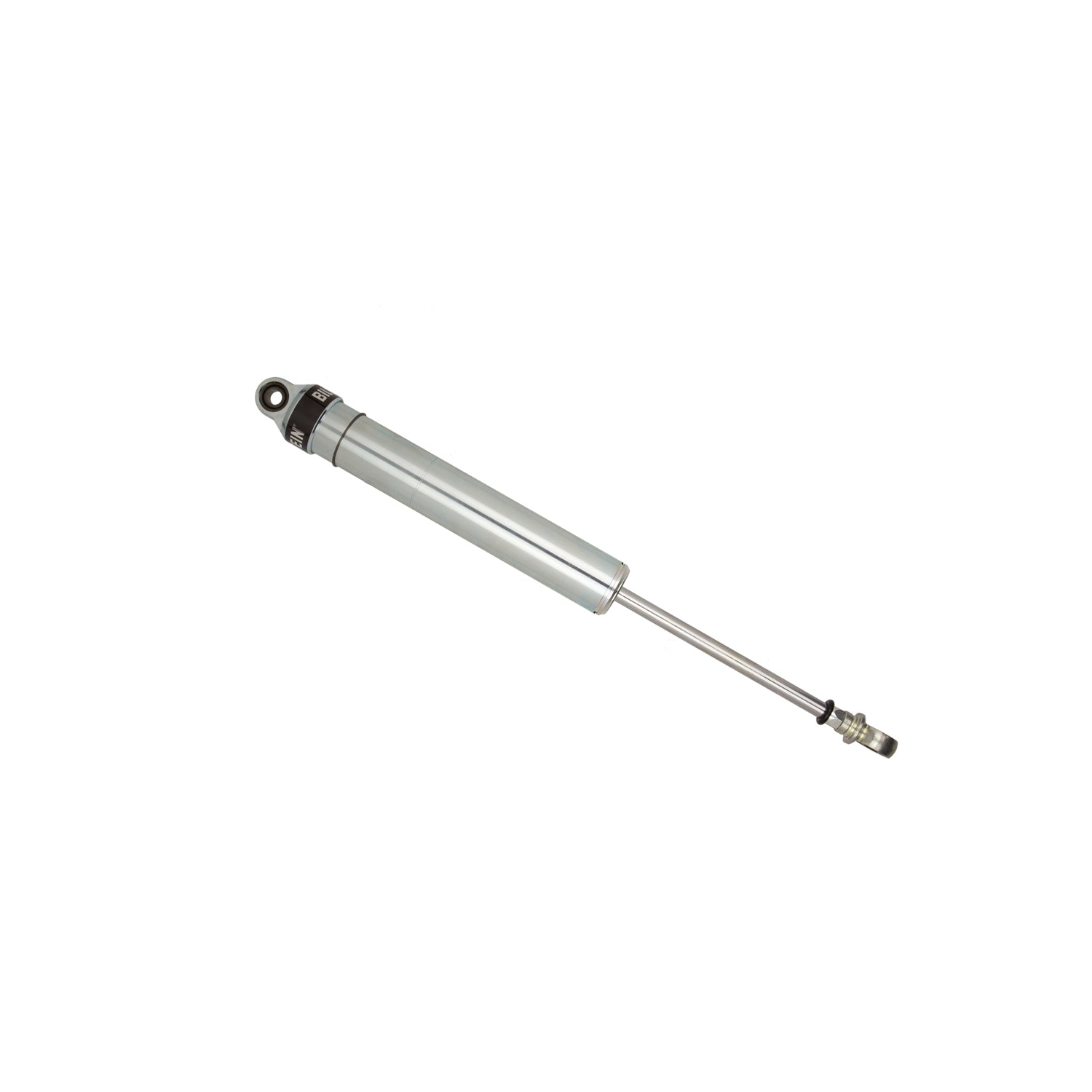

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
SNS2 Series - Suspension Shock Absorber |
| Description_LAB |
SNS2 Series - Suspension Shock Absorber |
| Description_INV |
SNS2-D90N0, 9", Digressive, Take Apart |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_MKT |
Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability. |
| Description_SHO |
Shock |
| Collapsed Length (MM) |
384.0 |
| Valving Identifier |
Digressive Dry Kit (no valving) |
| Adjustable Damping |
Non-Adjustable |
| Boot Included |
No |
| Internal Design |
Monotube |
| Body Material |
Steel |
| Body Design |
Smooth Body Screw Top (Non-coilover) |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Finish |
Zinc Plated |
| Title |
Bilstein Shock Absorbers |
| Collapsed Length (IN) |
15.12 |
| Spring Seat Included |
No |
| Extended Length (IN) |
23.90 |
| Upper Mount Type |
1/2in Heim |
| Extended Length (MM) |
607.0 |
| Lower Mount Type |
1/2in Heim |
| Body Diameter (ID) |
46mm |
| Series |
SNS2 Series |
| Piston Type |
Digressive |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
4.0000 |
