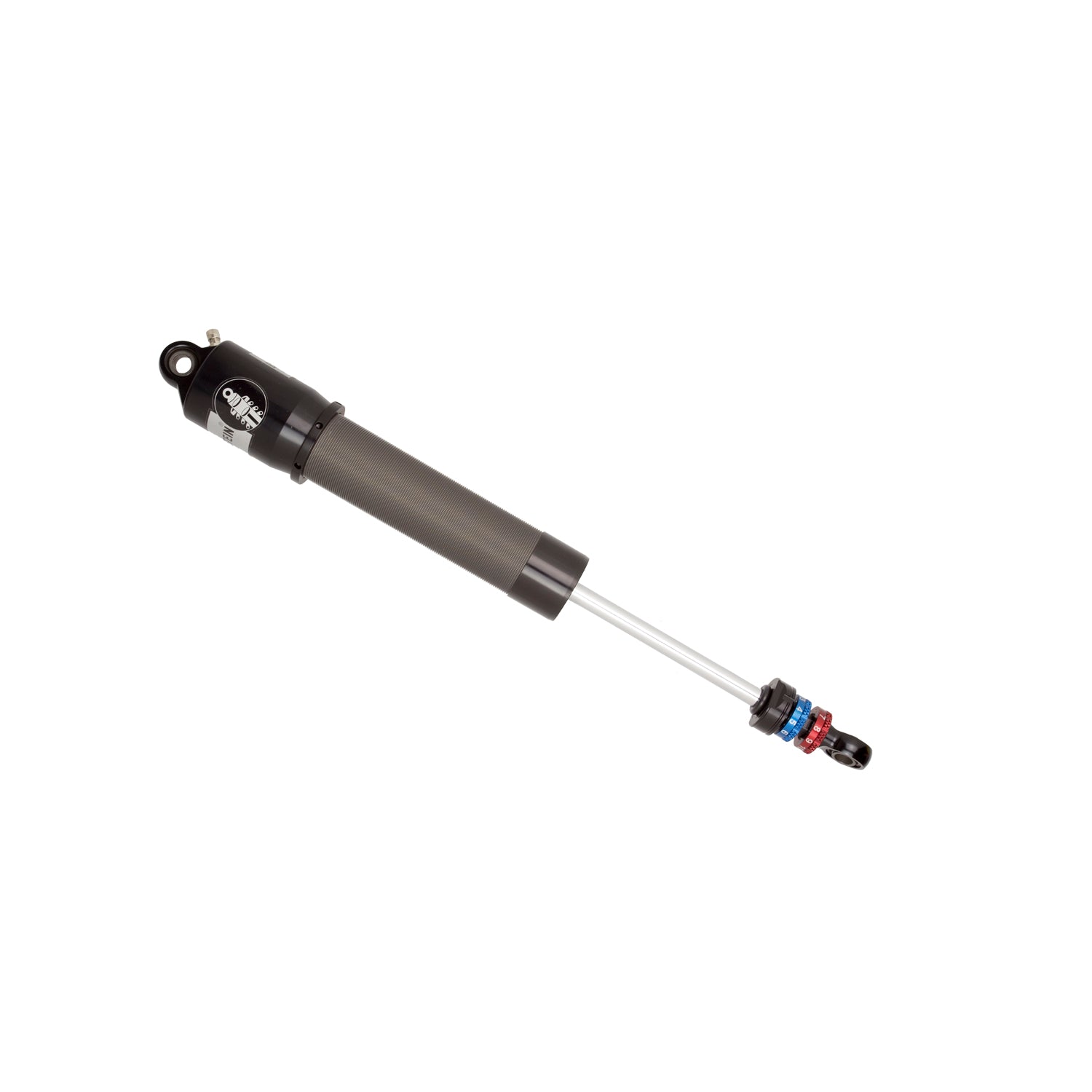

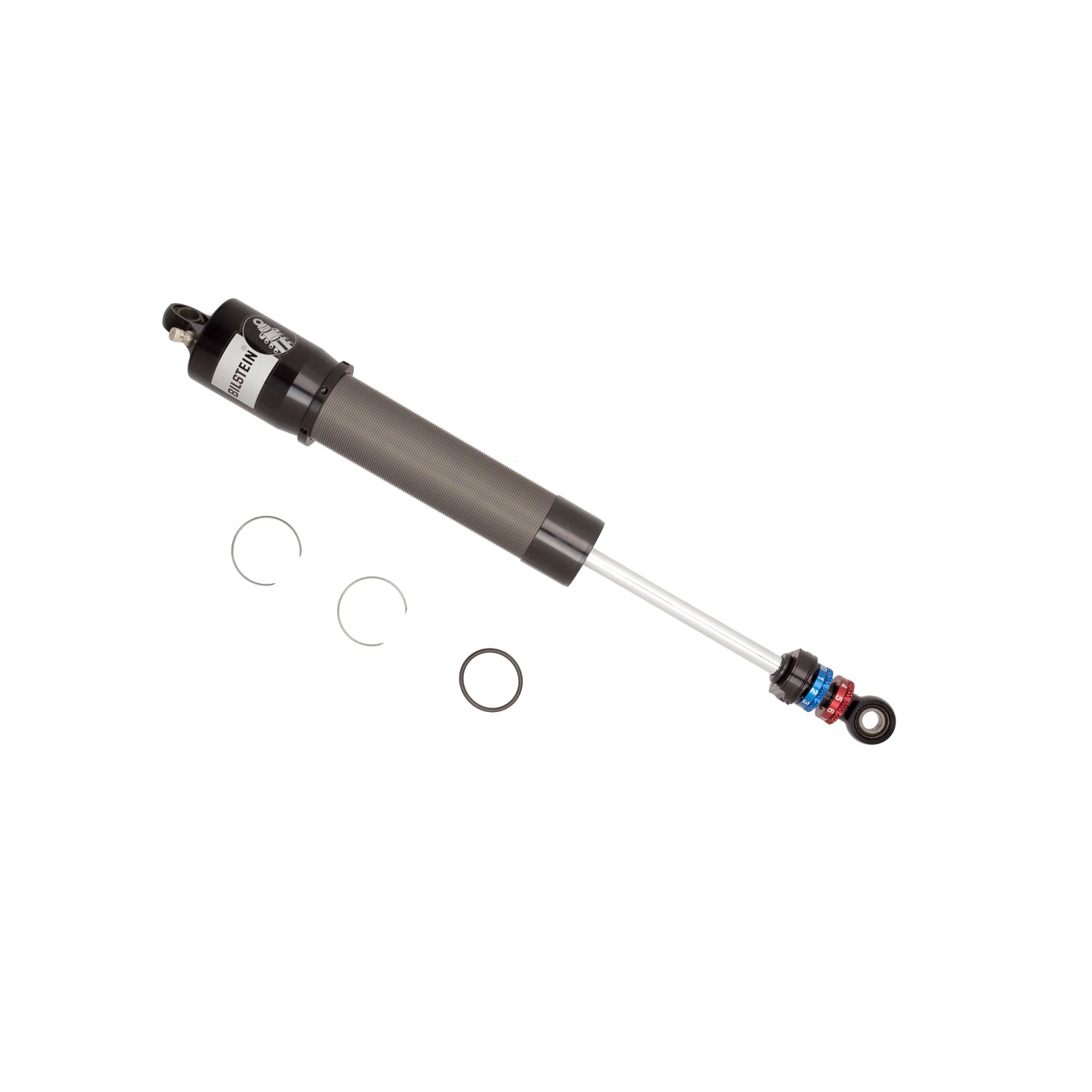

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
XVA-L70D0, 7", Linear, Dbl. Adjustable |
| Description_SHO |
Shock |
| Valving Identifier |
Linear Dry Kit (no valving) |
| Adjustable Damping |
Double Adjustable - Compression and Rebound |
| Internal Design |
Monotube |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Lower Mount Type |
1/2in Heim |
| Finish |
Clear Anodized |
| Spring Seat Included |
No |
| Collapsed Length (MM) |
369.7 |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
14.56 |
| Body Material |
Aluminum |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Title |
Bilstein Shock Absorbers |
| Extended Length (MM) |
524.4 |
| Piston Type |
Linear |
| Extended Length (IN) |
20.65 |
| Body Diameter (ID) |
46mm |
| Series |
XVA Series |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
