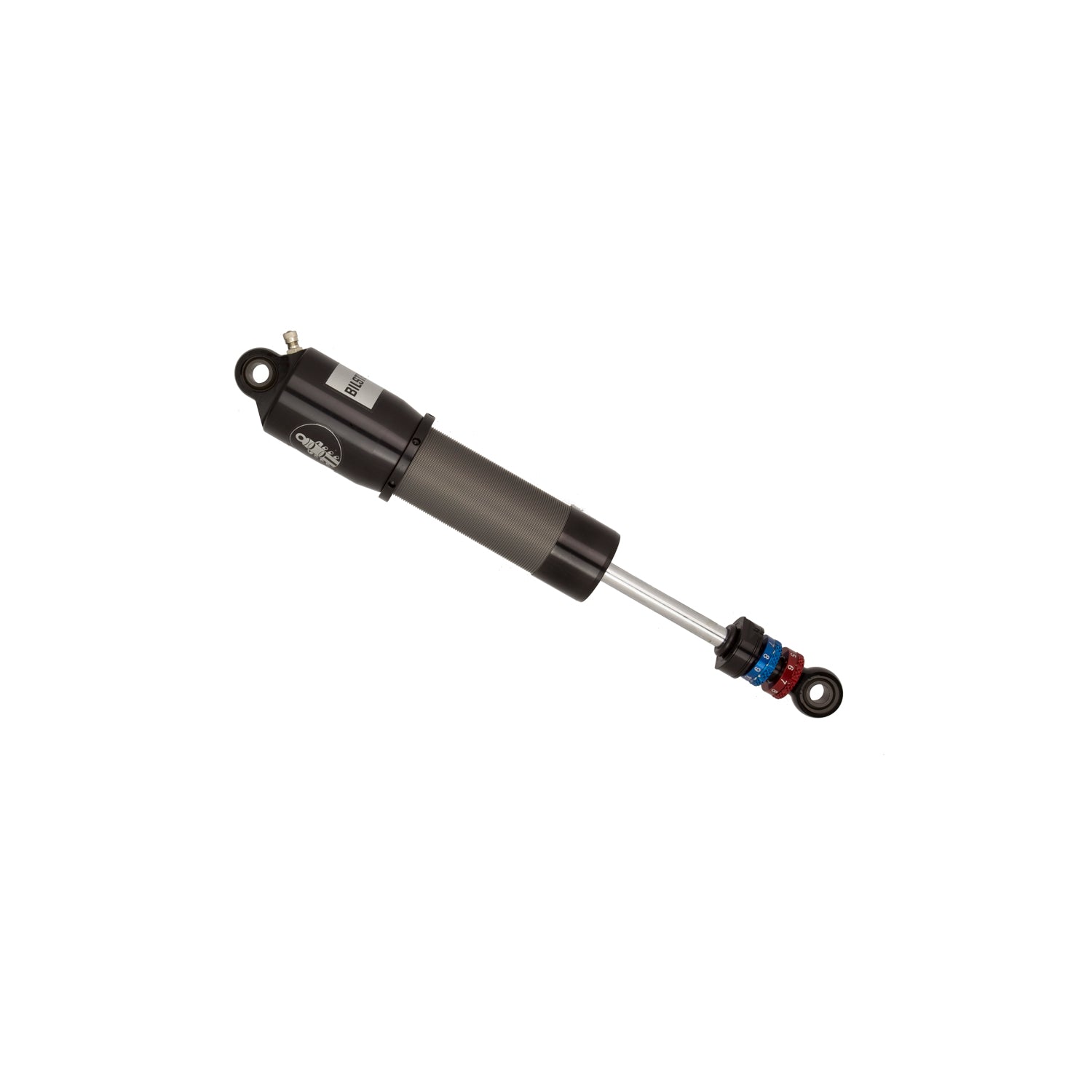

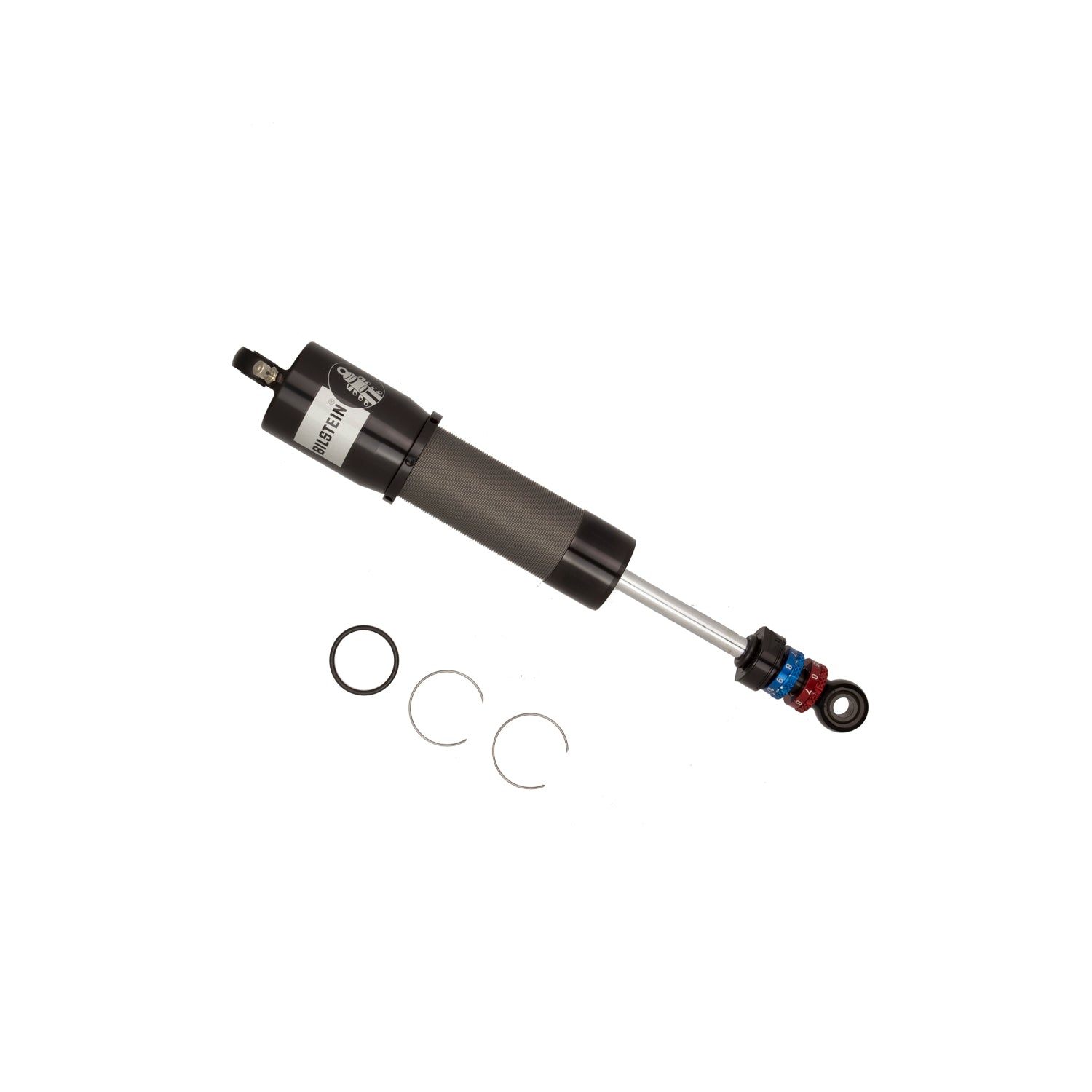

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_INV |
XVA-L50D0, 5", Linear, Dbl. Adjustable |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Boot Included |
No |
| Valving Identifier |
Linear Dry Kit (no valving) |
| Series |
XVA Series |
| Internal Design |
Monotube |
| Collapsed Length (MM) |
323.5 |
| Finish |
Clear Anodized |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Body Material |
Aluminum |
| Title |
Bilstein Shock Absorbers |
| Lower Mount Type |
1/2in Heim |
| Piston Type |
Linear |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Spring Seat Included |
No |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
12.74 |
| Extended Length (IN) |
16.93 |
| Extended Length (MM) |
429.9 |
| Body Diameter (ID) |
46mm |
| Adjustable Damping |
Double Adjustable - Compression and Rebound |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
22.0000 |
| Weight |
3.0000 |
