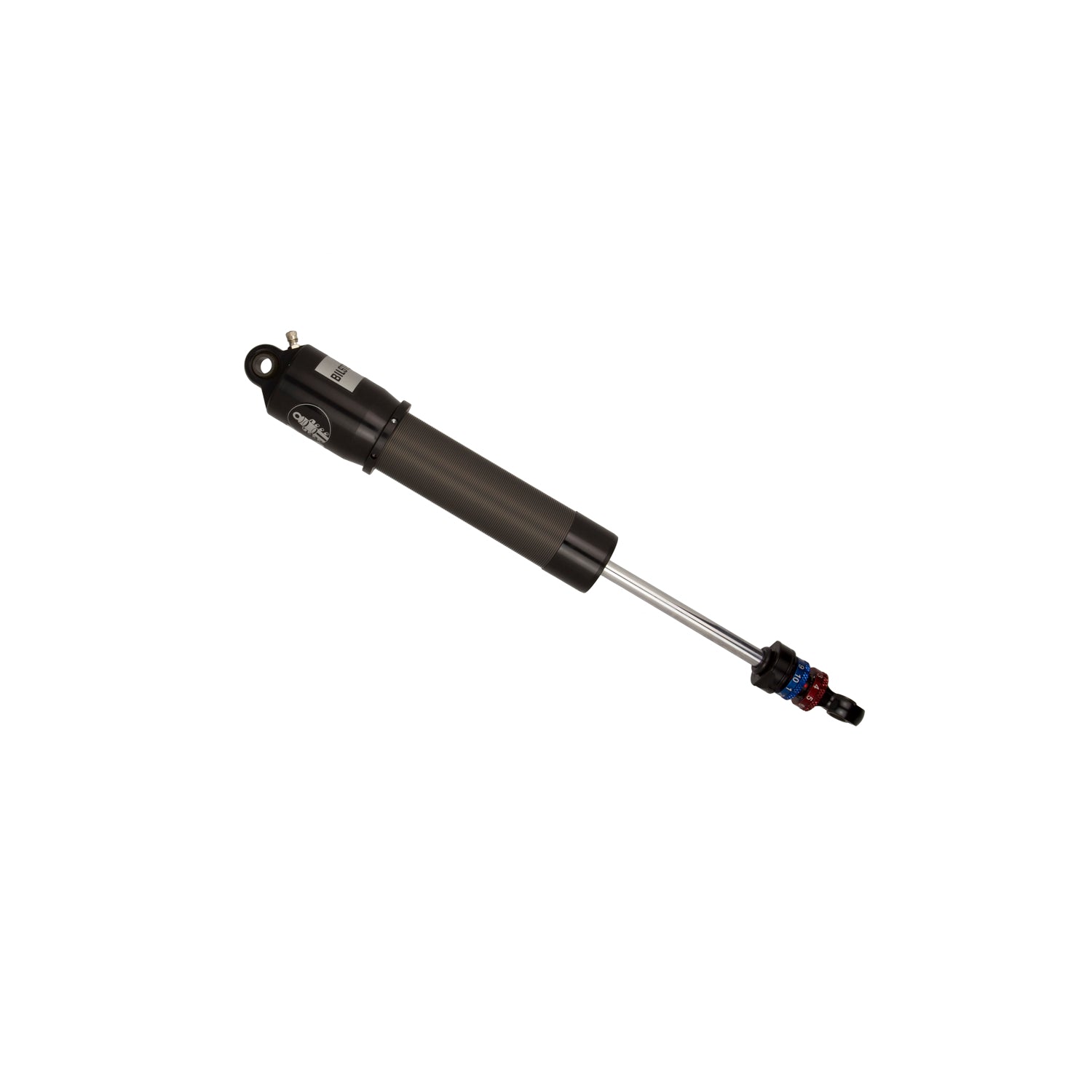

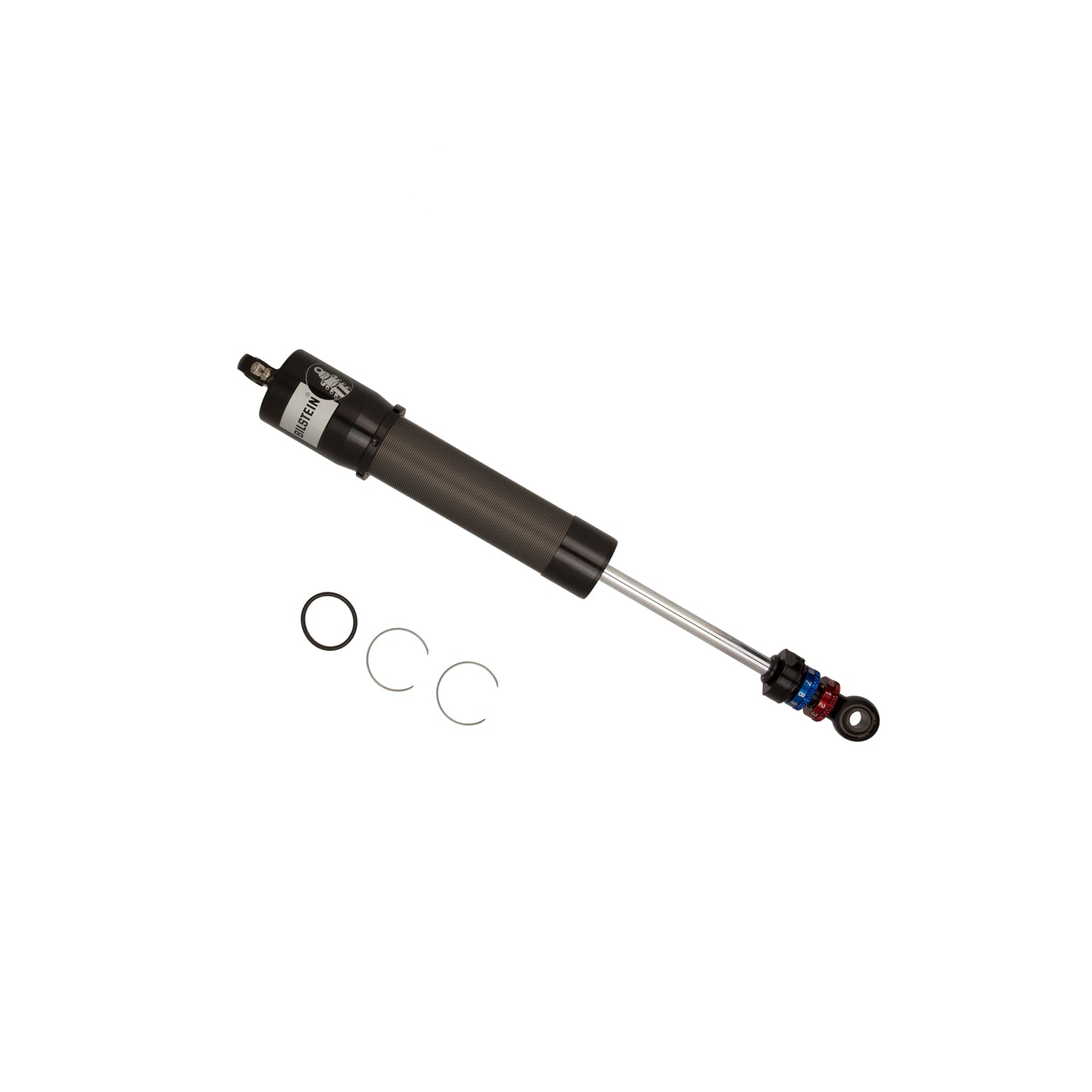

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
XVA-D70D0, 7", Digressive, Dbl. Adj. |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Body Diameter (ID) |
46mm |
| Adjustable Damping |
Double Adjustable - Compression and Rebound |
| Internal Design |
Monotube |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Lower Mount Type |
1/2in Heim |
| Extended Length (MM) |
524.4 |
| Body Material |
Aluminum |
| Collapsed Length (MM) |
369.7 |
| Finish |
Clear Anodized |
| Title |
Bilstein Shock Absorbers |
| Extended Length (IN) |
20.65 |
| Spring Seat Included |
No |
| Series |
XVA Series |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
14.56 |
| Valving Identifier |
Digressive Dry Kit (no valving) |
| Boot Included |
No |
| Piston Type |
Digressive |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
