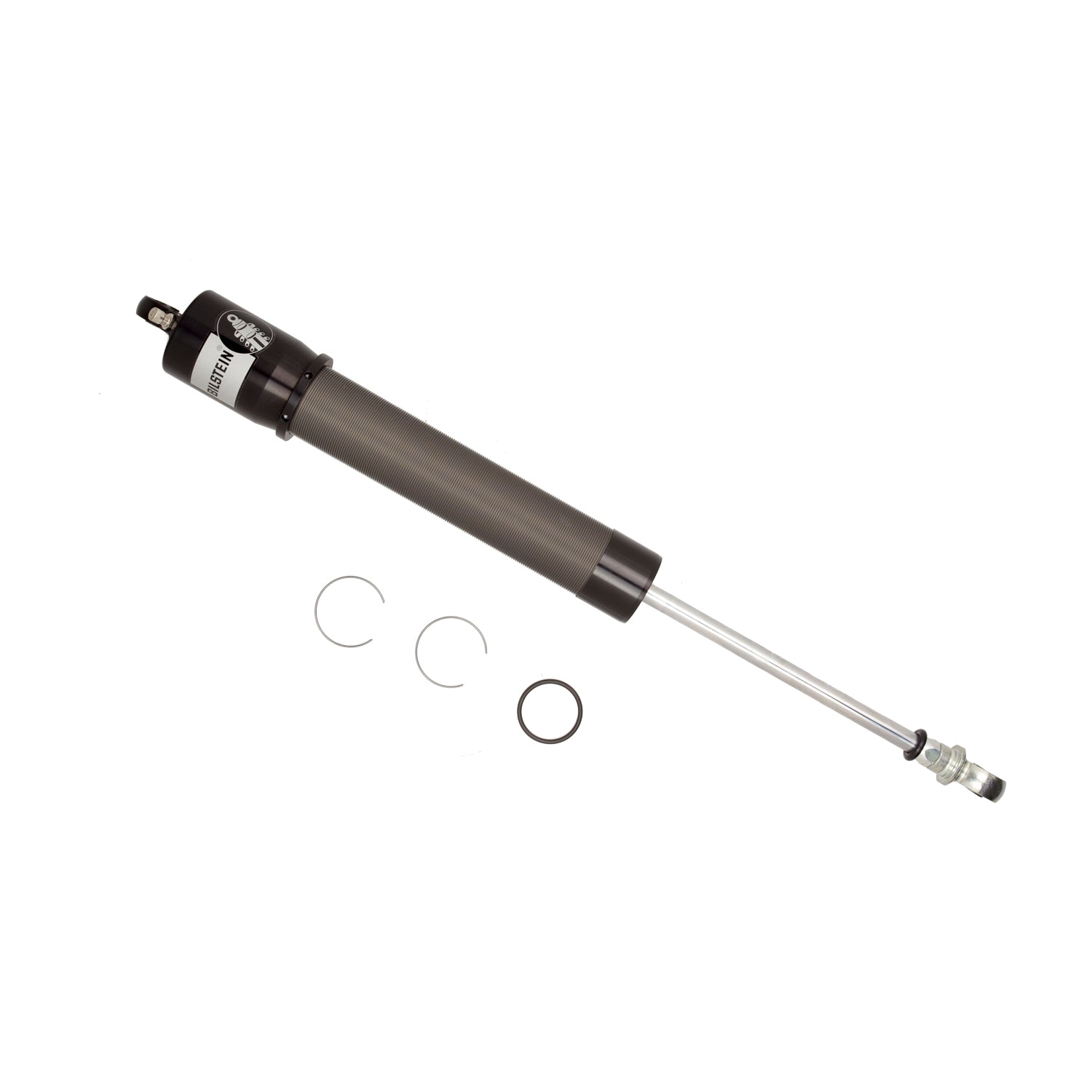

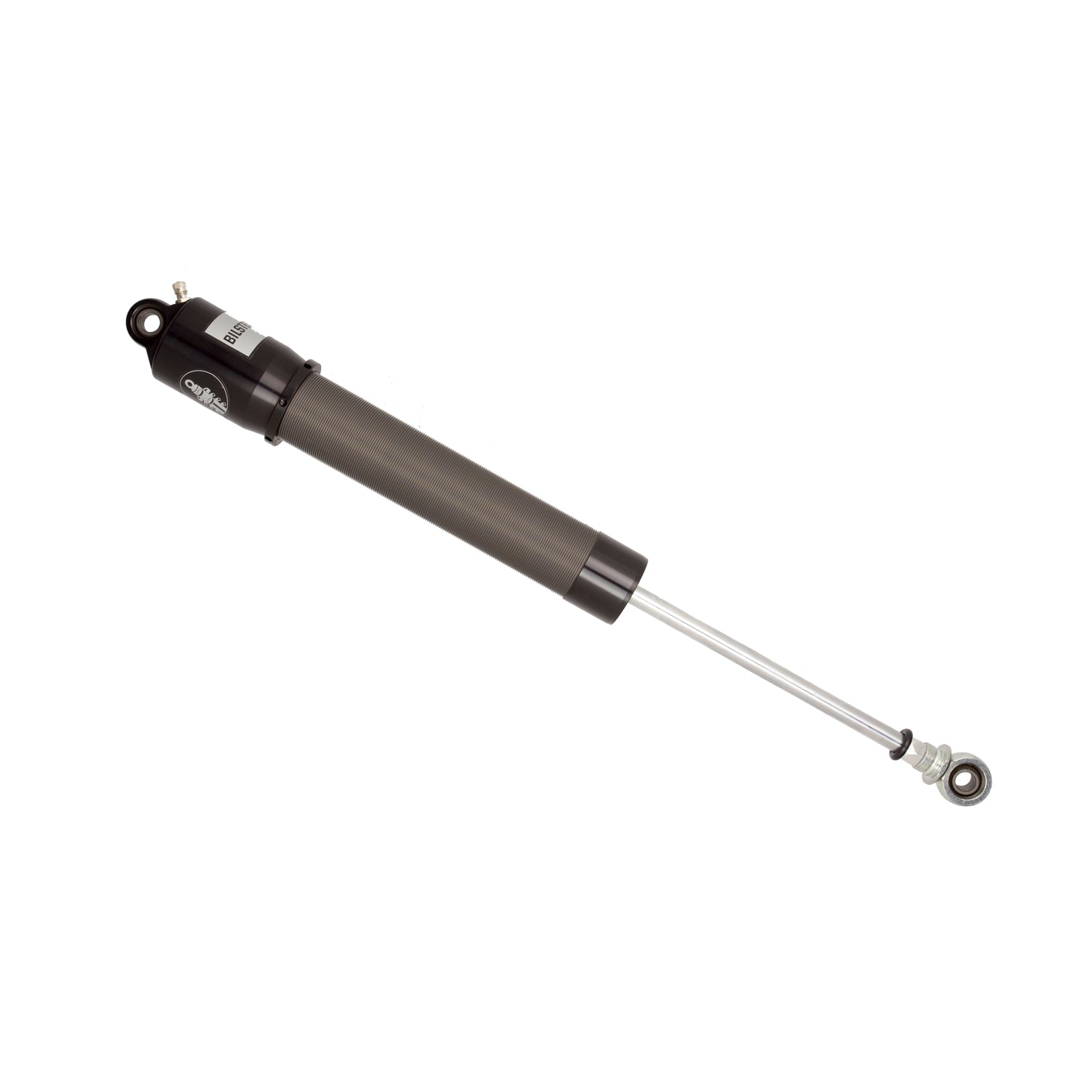

Bilstein 33-255286 XVA Series - Suspension Shock Absorber
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
Description_ASM | No Applications |
Description_DEF | Suspension Shock Absorber |
Description_EXT | 46mm Monotube Shock Absorber |
Description_DES | XVA Series - Suspension Shock Absorber |
Description_LAB | XVA Series - Suspension Shock Absorber |
Description_INV | XVA-D10N0, 10", Digre., Non-Adjustable |
Description_MKT | Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
Description_SHO | Shock |
Spring Seat Included | No |
Series | XVA Series |
Boot Included | No |
Extended Length (IN) | 25.69 |
Finish | Clear Anodized |
Collapsed Length (IN) | 16.38 |
Upper Mount Type | 1/2in Heim |
Body Material | Aluminum |
Valving Identifier | Digressive Dry Kit (no valving) |
Body Design | Threaded Body Large Bulb Screw Top (Coilover) |
Title | Bilstein Shock Absorbers |
California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
Piston Type | Digressive |
Body Diameter (ID) | 46mm |
Collapsed Length (MM) | 416.0 |
Lower Mount Type | 1/2in Heim |
Extended Length (MM) | 652.5 |
Adjustable Damping | Non-Adjustable |
Internal Design | Monotube |
Length | 3.0000 |
Width | 3.0000 |
Height | 27.0000 |
Weight | 3.0000 |
