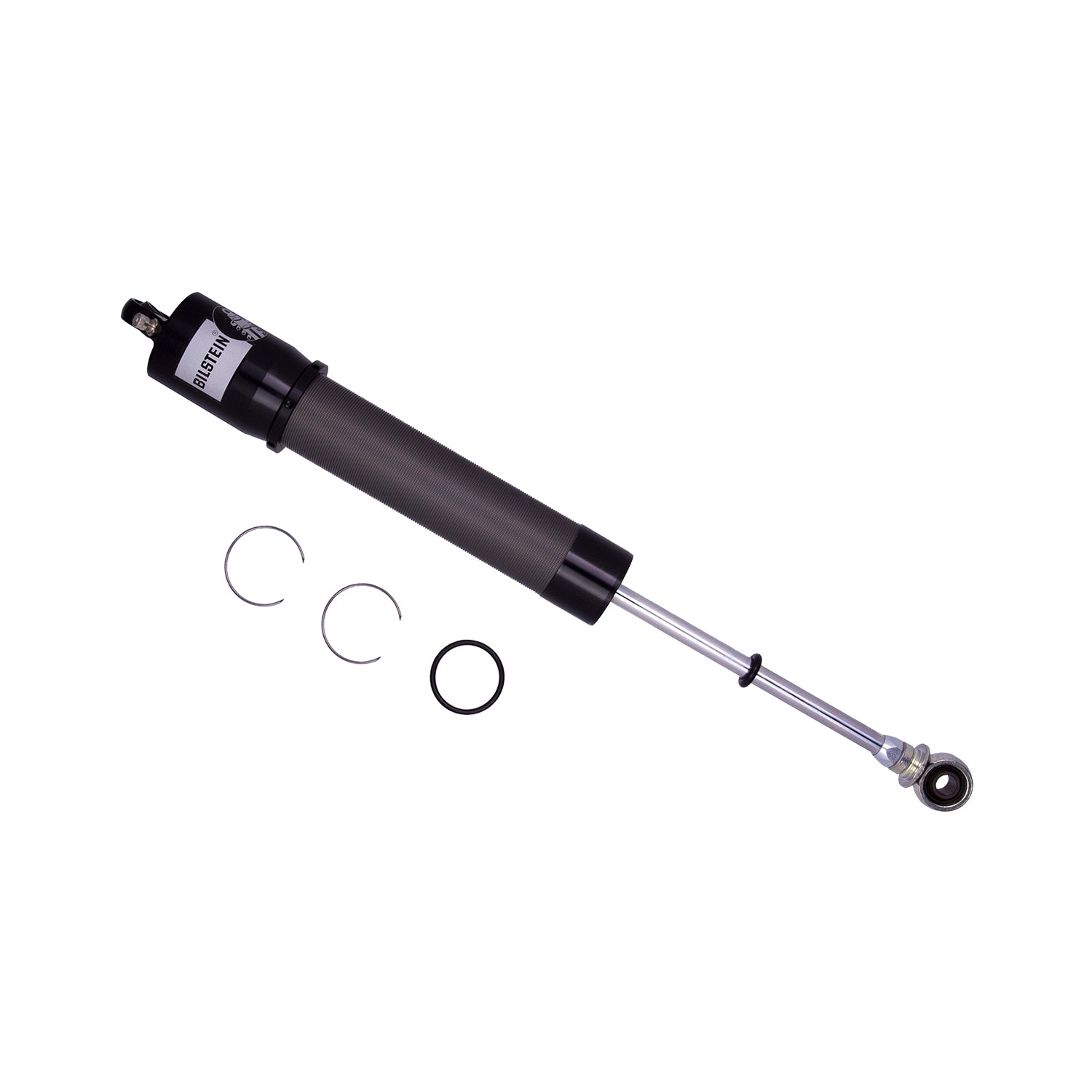

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_INV |
XVA-L80N0, 8", Linear, Non-Adjustable |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Collapsed Length (IN) |
14.59 |
| Lower Mount Type |
1/2in Heim |
| Piston Type |
Linear |
| Internal Design |
Monotube |
| Extended Length (MM) |
564.5 |
| Series |
XVA Series |
| Adjustable Damping |
Non-Adjustable |
| Finish |
Clear Anodized |
| Body Diameter (ID) |
46mm |
| Boot Included |
No |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Upper Mount Type |
1/2in Heim |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Body Material |
Aluminum |
| Valving Identifier |
Linear Dry Kit (no valving) |
| Spring Seat Included |
No |
| Collapsed Length (MM) |
370.5 |
| Title |
Bilstein Shock Absorbers |
| Extended Length (IN) |
22.22 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
