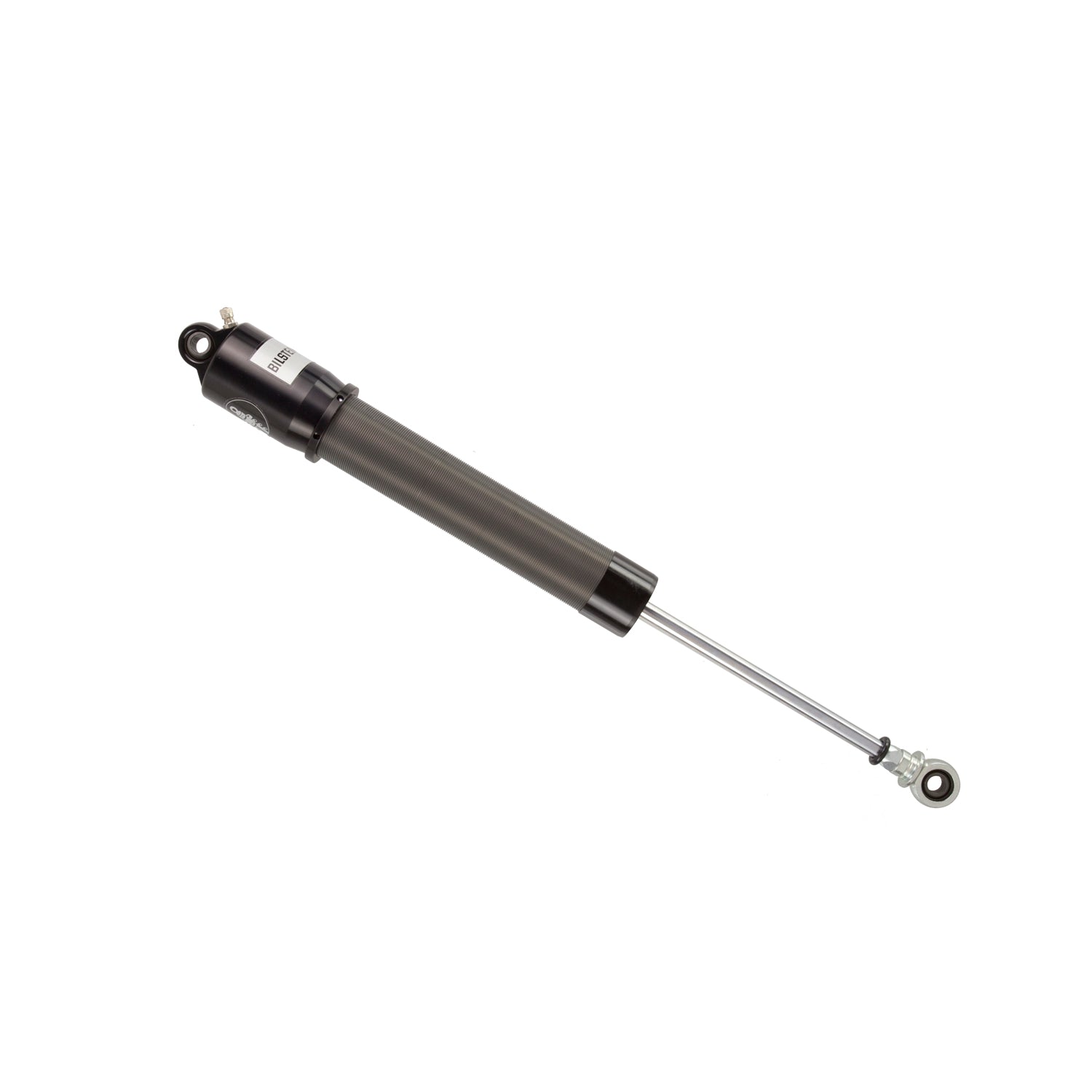

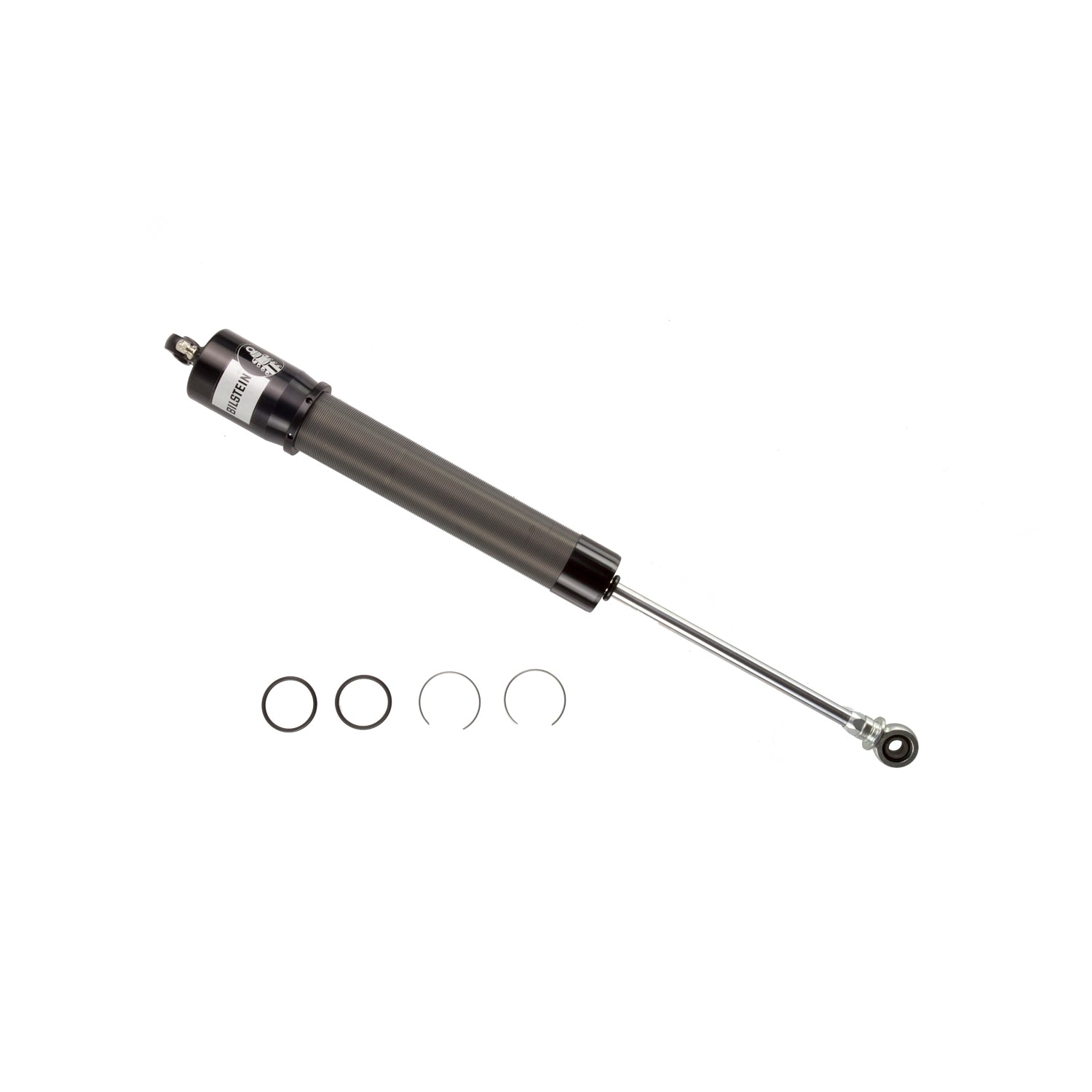

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVA Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
XVA-L10N0-B, 10", Linear, Non-Adjustable |
| Description_LAB |
XVA Series - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Collapsed Length (IN) |
15.96 |
| Finish |
Clear Anodized |
| Body Design |
Threaded Body Large Bulb Screw Top (Coilover) |
| Title |
Bilstein Shock Absorbers |
| Boot Included |
No |
| Spring Seat Included |
No |
| Upper Mount Type |
1/2in Heim |
| Series |
XVA Series |
| Valving Identifier |
Linear Dry Kit (no valving) |
| Body Material |
Aluminum |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Piston Type |
Linear |
| Lower Mount Type |
1/2in Heim |
| Internal Design |
Monotube |
| Collapsed Length (MM) |
405.5 |
| Extended Length (IN) |
25.47 |
| Adjustable Damping |
Non-Adjustable |
| Extended Length (MM) |
647.0 |
| Body Diameter (ID) |
46mm |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
3.0000 |
