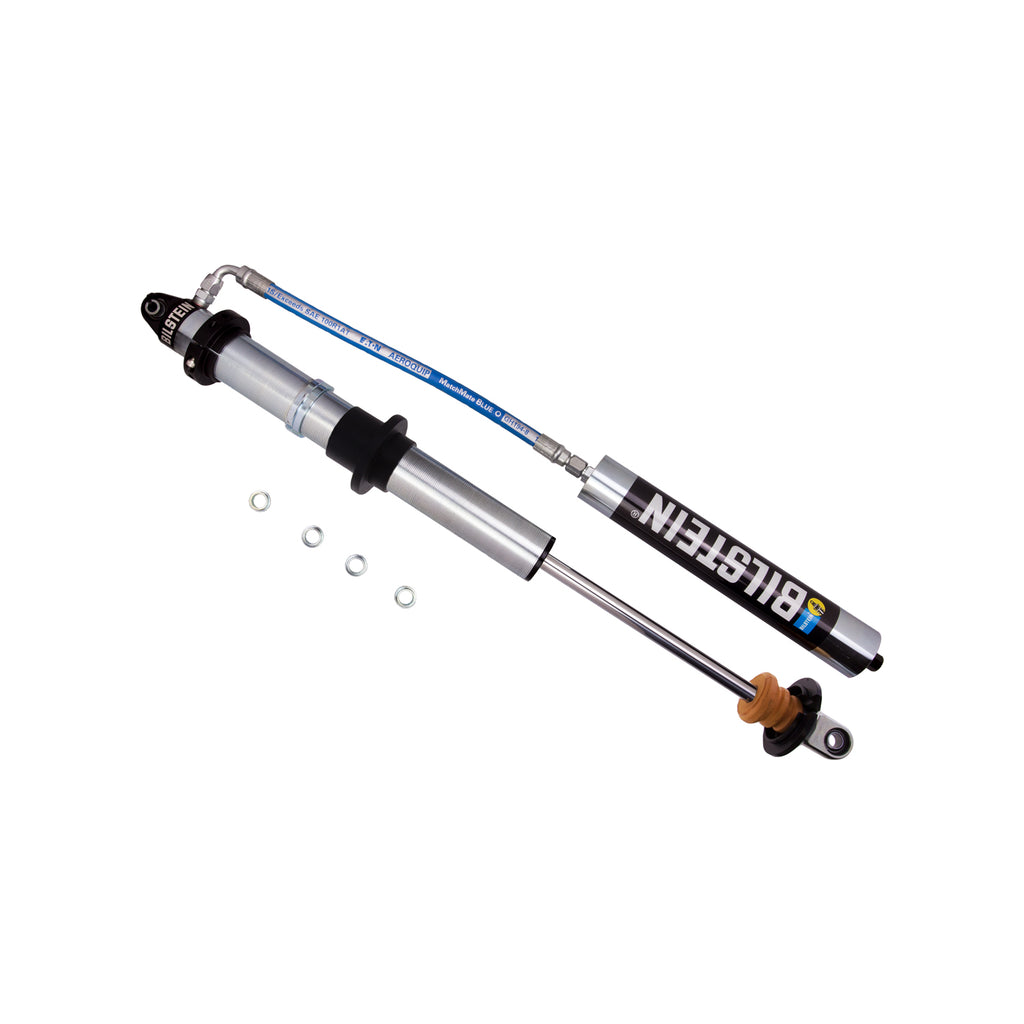

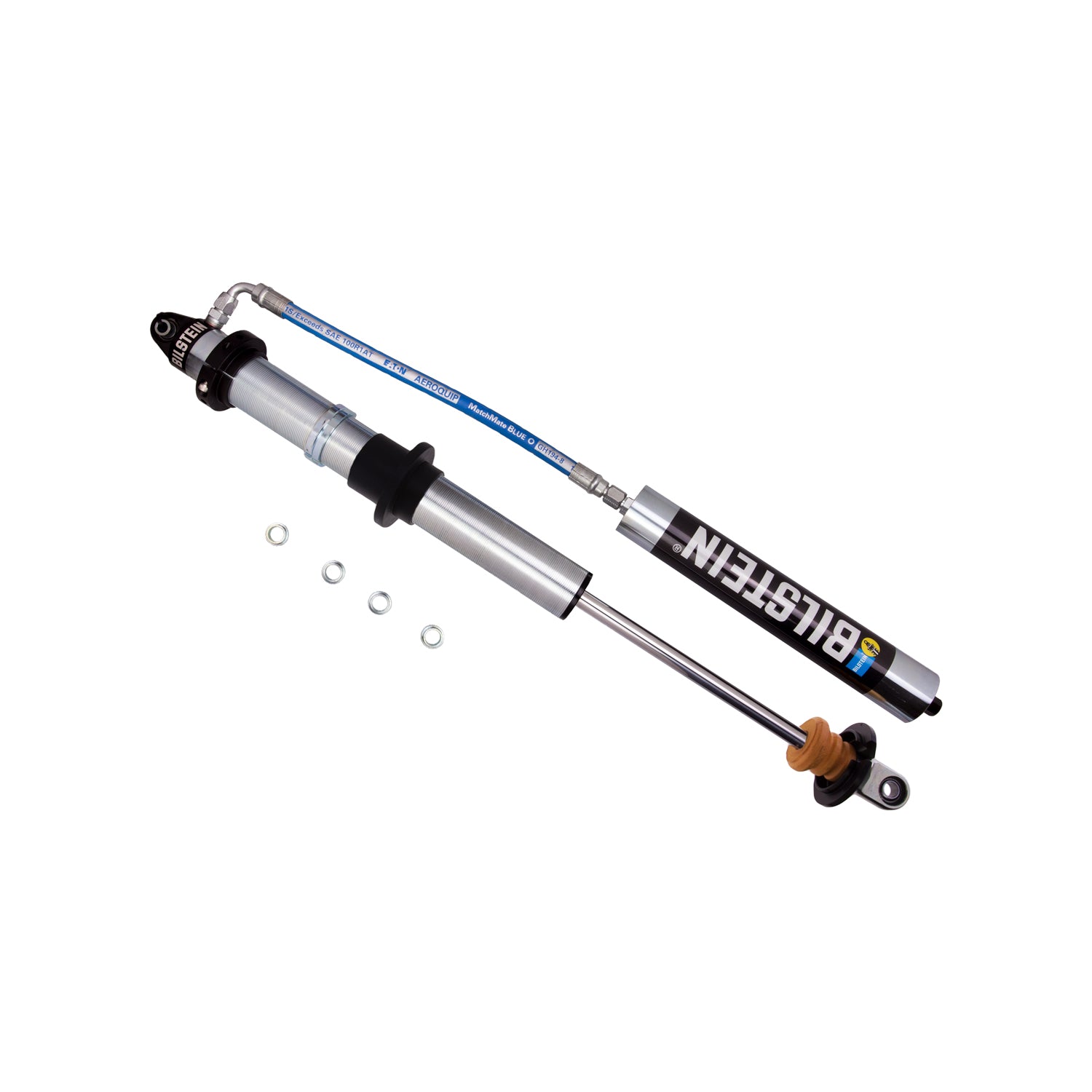

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_EXT |
60mm Monotube Shock Absorber |
| Description_DES |
M 9200 (Coilover) - Suspension Shock Absorber |
| Description_INV |
60mm Coilover, 16", 255/100, 9200 Series |
| Description_MKT |
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance. |
| Description_LAB |
M 9200 (Coilover) - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Reservoir |
Yes |
| Optional Reservoir Clamp |
N/A |
| Internal Design |
Monotube |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Mount Type |
Eye-to-Eye |
| Spring Seat Included |
No |
| Finish |
Zinc Plated |
| Collapsed Length (MM) |
673.1 |
| Collapsed Length (IN) Rounded |
27 |
| Body Design |
Threaded Body (Coilover) |
| Boot Included |
N/A |
| Extended Length (IN) Rounded |
43 |
| Collapsed Length (IN) |
26.50 |
| Extended Length (IN) |
42.50 |
| Title |
Bilstein Shock Absorbers |
| Series |
M 9200 (Coilover) |
| Compression @0.52m/s |
1000 |
| Upper Mount Type |
Eye .5x1.5in |
| Extended Length (MM) |
1079.5 |
| Rebound @0.52m/s |
2550 |
| Lower Mount Type |
Eye .5x1.5in |
| Body Diameter (ID) |
60mm |
| Length |
5.0000 |
| Width |
8.0000 |
| Height |
36.0000 |
| Weight |
26.0000 |
