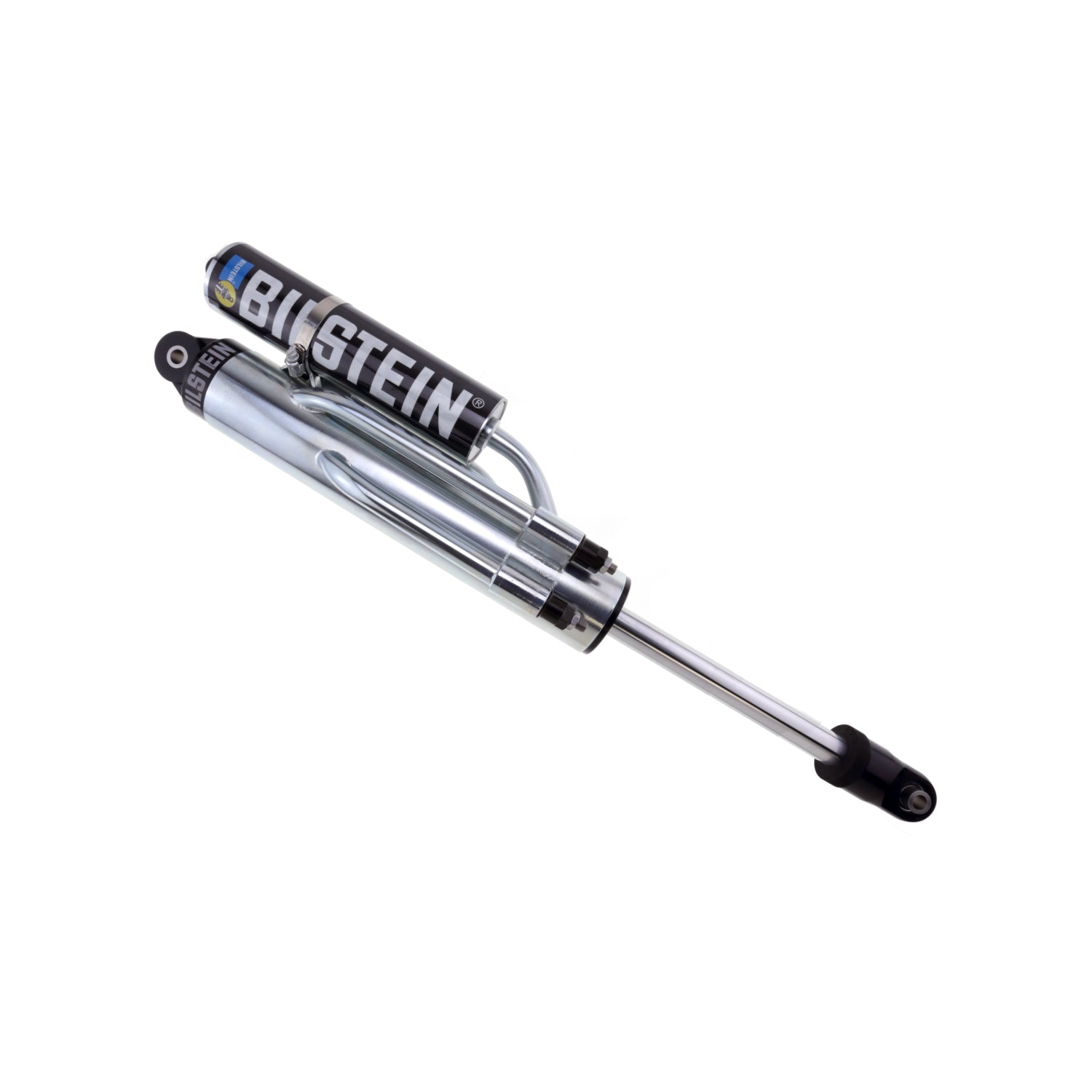

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DES |
M 9200 (Bypass) - Suspension Shock Absorber |
| Description_DEF |
Suspension Shock Absorber |
| Description_INV |
70mm (3.0"), 4 Tube Bypass, 10" Stroke |
| Description_EXT |
70mm Monotube Shock Absorber |
| Description_LAB |
M 9200 (Bypass) - Suspension Shock Absorber |
| Description_MKT |
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_SHO |
Shock |
| Compression @0.52m/s |
Custom |
| Reservoir |
Yes |
| Lower Mount Type |
Eye .5x1.5in |
| Body Diameter (ID) |
70mm |
| Mount Type |
Eye-to-Eye |
| Optional Reservoir Clamp |
N/A |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (MM) |
495.3 |
| Extended Length (MM) |
749.3 |
| Title |
Bilstein Shock Absorbers |
| Extended Length (IN) Rounded |
30 |
| Extended Length (IN) |
29.50 |
| Collapsed Length (IN) Rounded |
20 |
| Boot Included |
N/A |
| Body Design |
4-Tube Bypass Screw Top |
| Upper Mount Type |
Eye .5x1.5in |
| Collapsed Length (IN) |
19.50 |
| Finish |
Zinc Plated |
| Series |
M 9200 (Bypass) |
| Rebound @0.52m/s |
Custom |
| Spring Seat Included |
No |
| Internal Design |
Monotube |
| Length |
5.0000 |
| Width |
8.0000 |
| Height |
36.0000 |
| Weight |
24.0000 |
