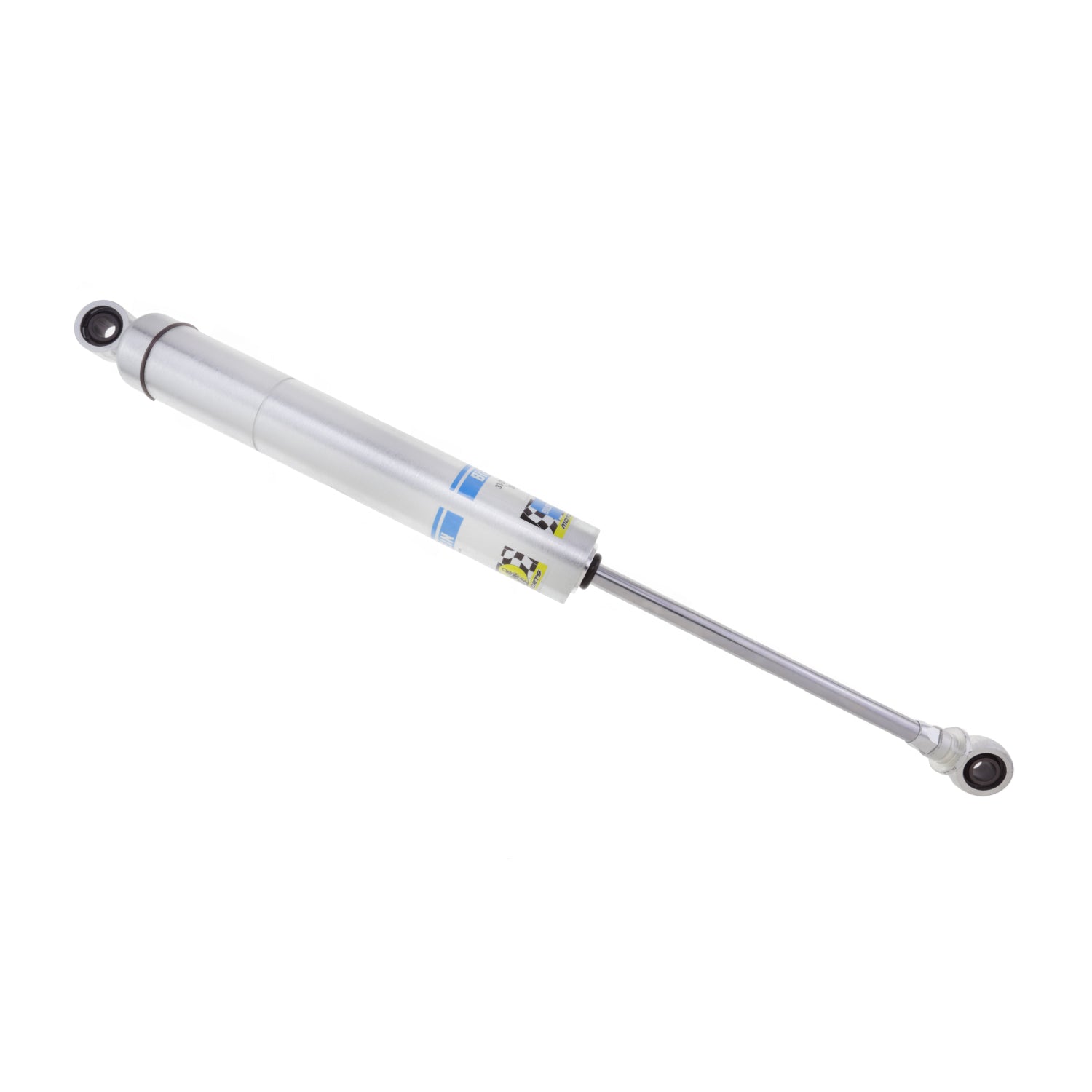

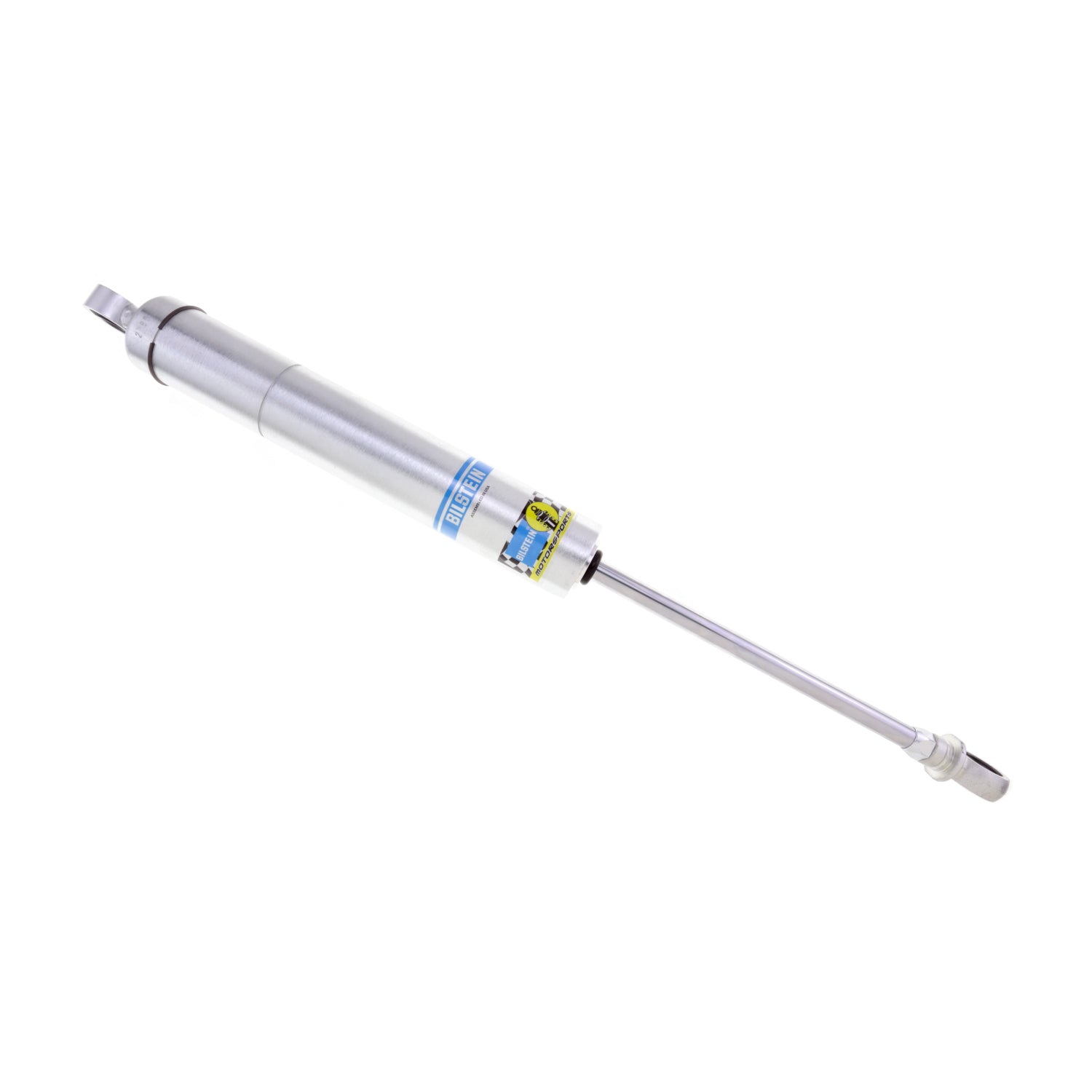

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
SZ Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
S9Z-2080 9" STD. BODY STEEL |
| Description_LAB |
SZ Series - Suspension Shock Absorber |
| Description_MKT |
Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability. |
| Description_SHO |
Shock |
| Adjustable Damping |
Non-Adjustable |
| Lower Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
14.88 |
| Piston Type |
Digressive |
| Body Diameter (ID) |
46mm |
| Extended Length (MM) |
597.5 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Boot Included |
No |
| Spring Seat Included |
No |
| Finish |
Zinc Plated |
| Valving Identifier |
2080 |
| Title |
Bilstein Shock Absorbers |
| Body Design |
Smooth Body (Non-coilover) |
| Upper Mount Type |
1/2in Heim |
| Internal Design |
Monotube |
| Compression @0.26m/s |
1335 |
| Extended Length (IN) |
23.52 |
| Series |
SZ Series |
| Collapsed Length (MM) |
378.0 |
| Body Material |
Steel |
| Rebound @0.26m/s |
260 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
4.0000 |
