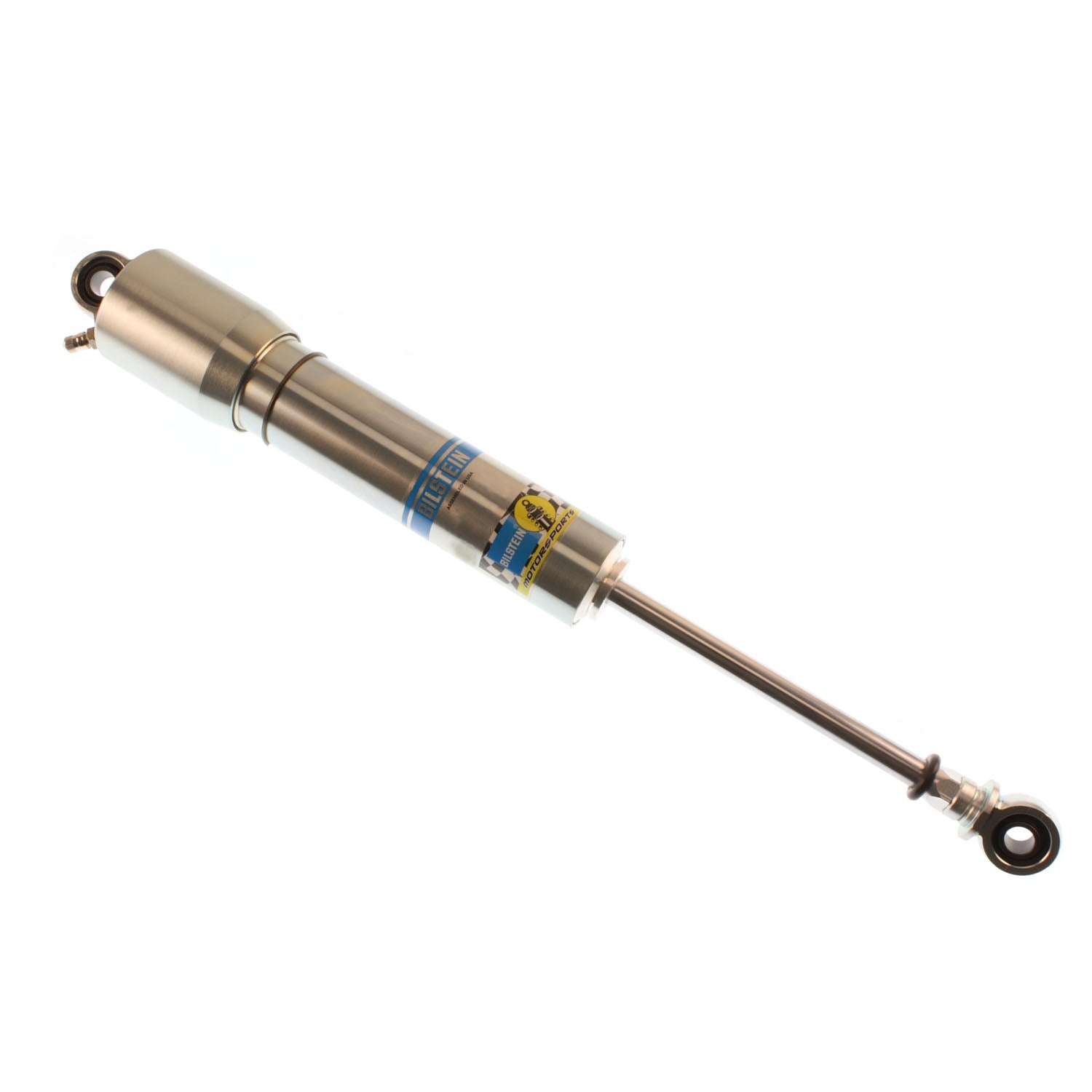

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVS-S Series - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
Motorsports 7.5" XVS, Schrader, ACV, 4-2 |
| Description_LAB |
XVS-S Series - Suspension Shock Absorber |
| Description_MKT |
Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Compression @0.52m/s |
900 |
| Internal Design |
Monotube |
| Lower Mount Type |
1/2in Heim |
| Extended Length (MM) |
575.5 |
| Spring Seat Included |
No |
| Rebound @0.52m/s |
1820 |
| Boot Included |
No |
| Valving Identifier |
ACV 4-2S |
| Extended Length (IN) |
22.66 |
| Upper Mount Type |
1/2in Heim |
| Finish |
Zinc Plated |
| Collapsed Length (IN) |
15.24 |
| Collapsed Length (MM) |
387.0 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Title |
Bilstein Shock Absorbers |
| Position |
Rear Right |
| Series |
XVS-S Series |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
7.0000 |
