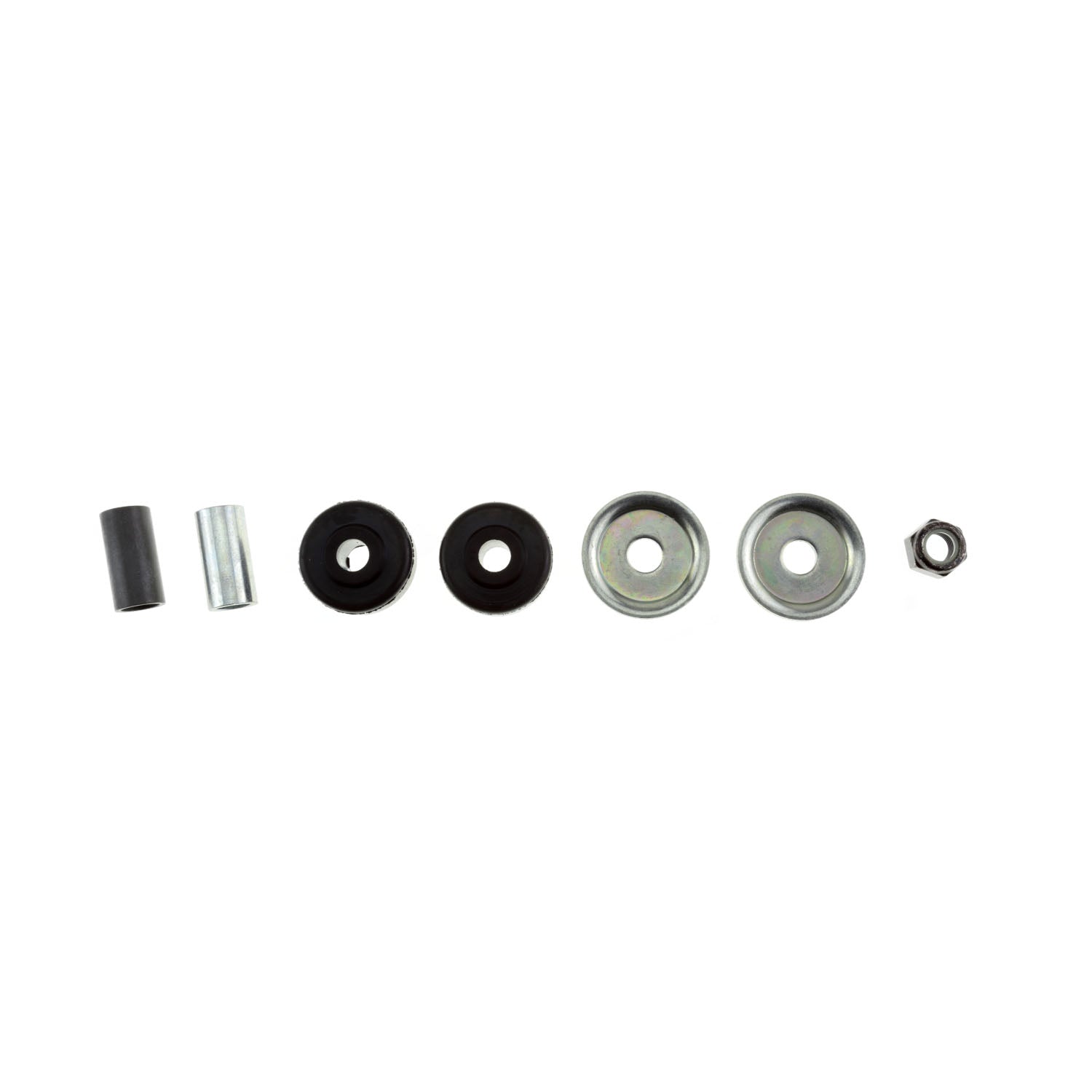

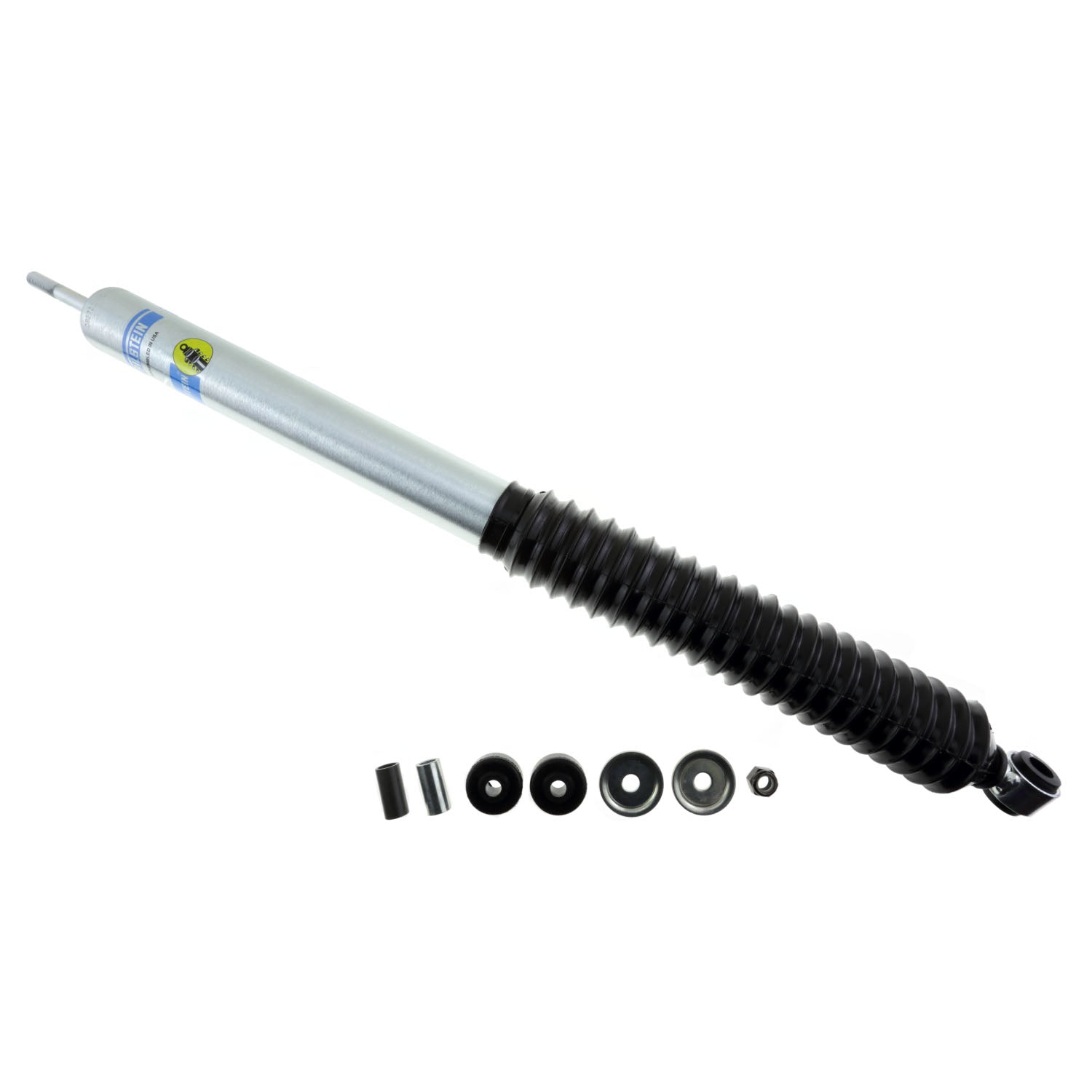

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
B8 5125 - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
Lifted Truck; B8 5125; 295mm Stroke |
| Description_LAB |
B8 5125 - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders. |
| Spring Seat Included |
No |
| Extended Length (IN) |
29.38 |
| Series |
B8 5125 |
| Finish |
Zinc Plated |
| Extended Length (IN) Rounded |
29 |
| Rebound @0.52m/s |
2500 |
| Boot Included |
Black Bellows |
| Collapsed Length (IN) |
17.89 |
| Collapsed Length (IN) Rounded |
18 |
| Upper Mount Type |
Stem |
| Body Design |
Smooth Body (Non-Coilover) |
| Lower Mount Type |
Eye 5/8in |
| Title |
Bilstein Shock Absorbers |
| Extended Length (MM) |
746.3 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir |
No |
| Mount Type |
Stem-to-Eye |
| Adjustable Damping |
Non-Adjustable |
| Collapsed Length (MM) |
454.3 |
| Internal Design |
Monotube |
| Body Diameter (ID) |
46mm |
| Compression @0.52m/s |
650 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
6.0000 |
