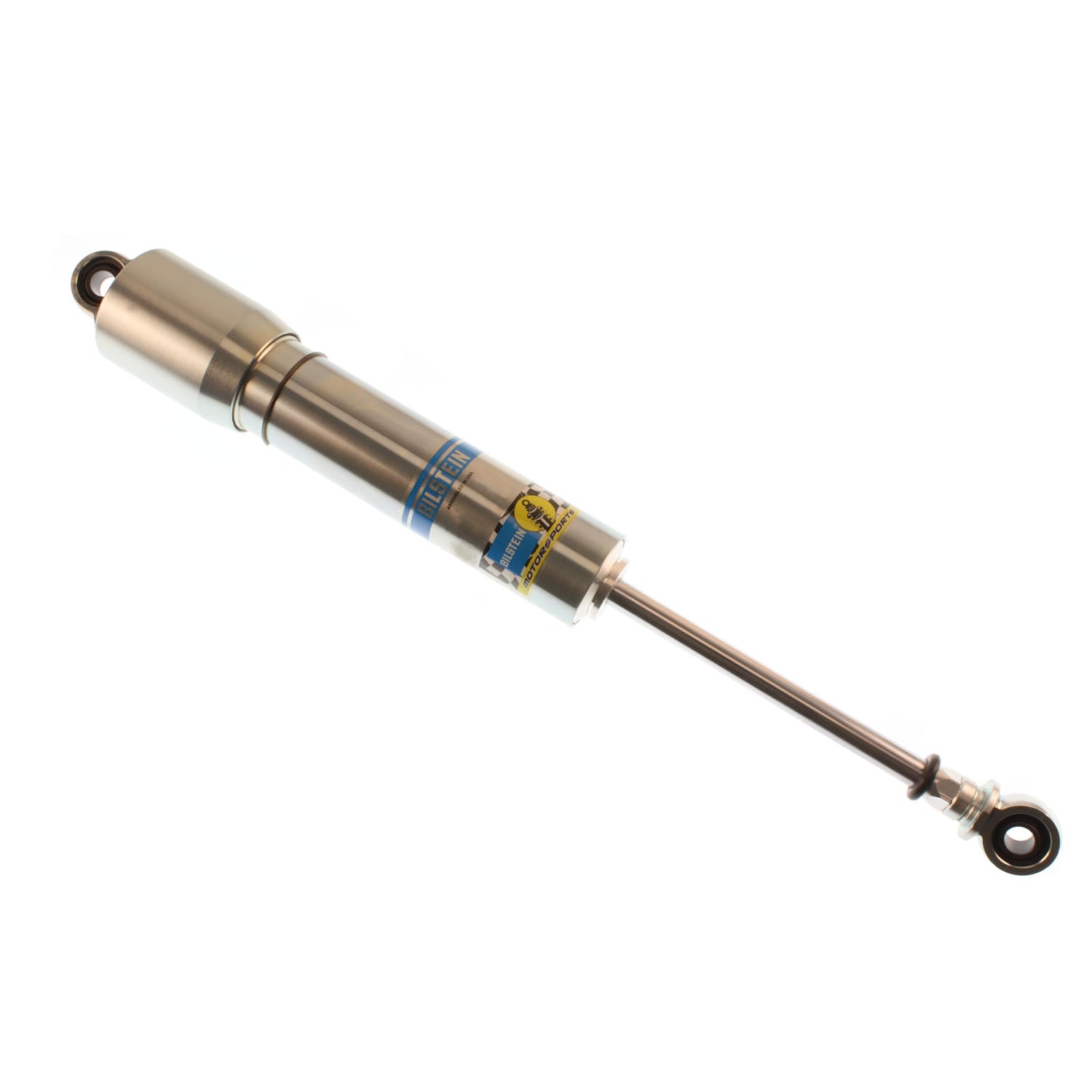

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DES |
XVS Series - Suspension Shock Absorber |
| Description_DEF |
Suspension Shock Absorber |
| Description_LAB |
XVS Series - Suspension Shock Absorber |
| Description_INV |
Motorsports 7.5" XVS, 4-2S Valving, ACV |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_MKT |
Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Boot Included |
No |
| Title |
Bilstein Shock Absorbers |
| Collapsed Length (MM) |
387.0 |
| Body Design |
Smooth Body (Non-Coilover) |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Finish |
Zinc Plated |
| Series |
XVS Series |
| Upper Mount Type |
1/2in Heim |
| Collapsed Length (IN) |
15.24 |
| Piston Type |
Linear |
| Compression @0.52m/s |
900 |
| Spring Seat Included |
No |
| Lower Mount Type |
1/2in Heim |
| Internal Design |
Monotube |
| Extended Length (MM) |
575.5 |
| Valving Identifier |
4-2S |
| Rebound @0.52m/s |
1820 |
| Body Diameter (ID) |
46mm |
| Extended Length (IN) |
22.66 |
| Body Material |
Steel |
| Adjustable Damping |
Non-Adjustable |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
5.0000 |
