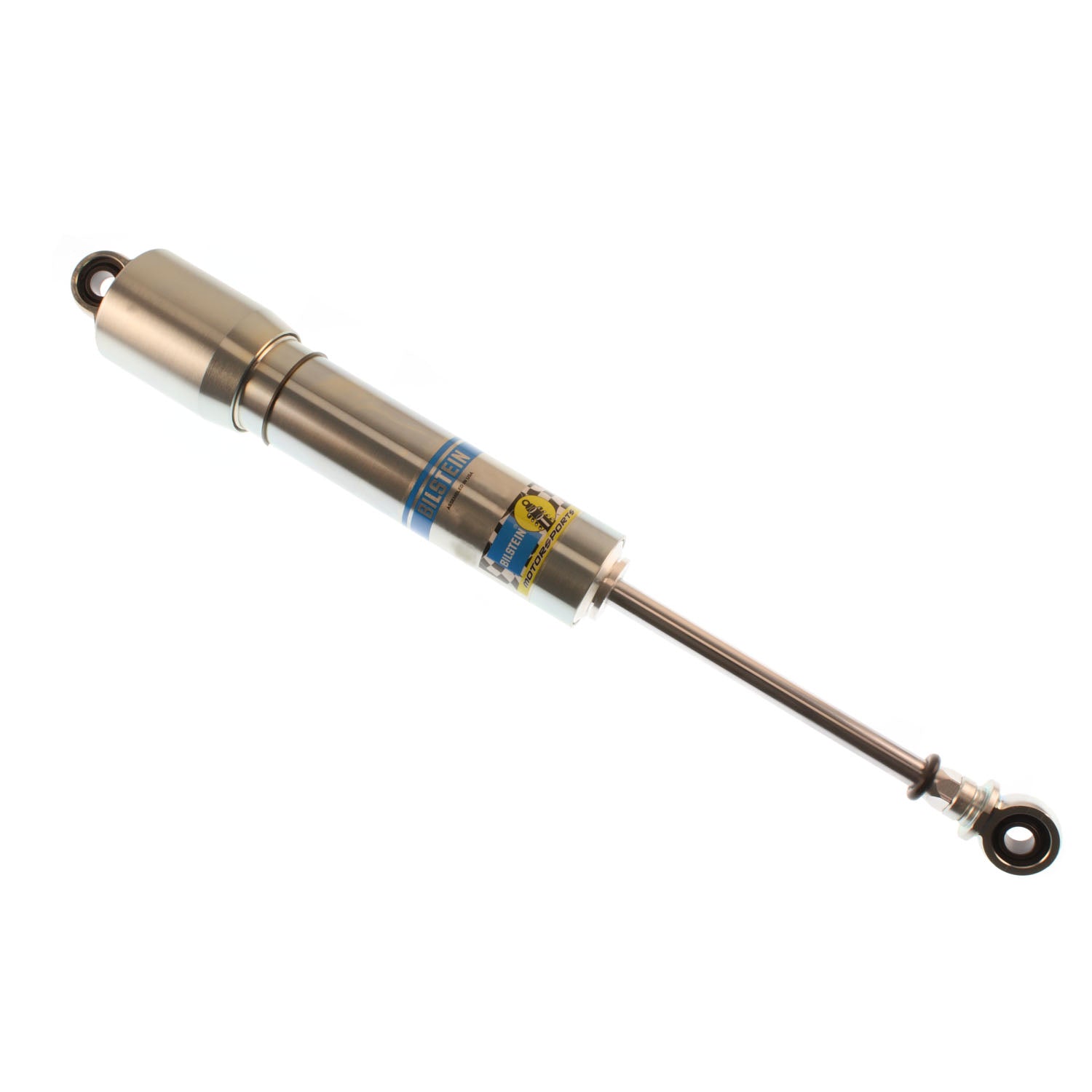

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DES |
XVS Series - Suspension Shock Absorber |
| Description_DEF |
Suspension Shock Absorber |
| Description_INV |
Motorsports 7" XVS, 10-2COB Valving |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_LAB |
XVS Series - Suspension Shock Absorber |
| Description_MKT |
Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance. |
| Description_SHO |
Shock |
| Body Diameter (ID) |
46mm |
| Adjustable Damping |
Non-Adjustable |
| Piston Type |
Digressive |
| Internal Design |
Monotube |
| Spring Seat Included |
No |
| Body Design |
Smooth Body (Non-Coilover) |
| Title |
Bilstein Shock Absorbers |
| Body Material |
Steel |
| Rebound @0.52m/s |
2795 |
| Collapsed Length (MM) |
339.0 |
| Collapsed Length (IN) |
13.35 |
| Upper Mount Type |
1/2in Heim |
| Extended Length (IN) |
20.04 |
| Compression @0.52m/s |
790 |
| Series |
XVS Series |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Extended Length (MM) |
509.0 |
| Finish |
Zinc Plated |
| Valving Identifier |
10-2COB |
| Lower Mount Type |
1/2in Heim |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
5.0000 |
