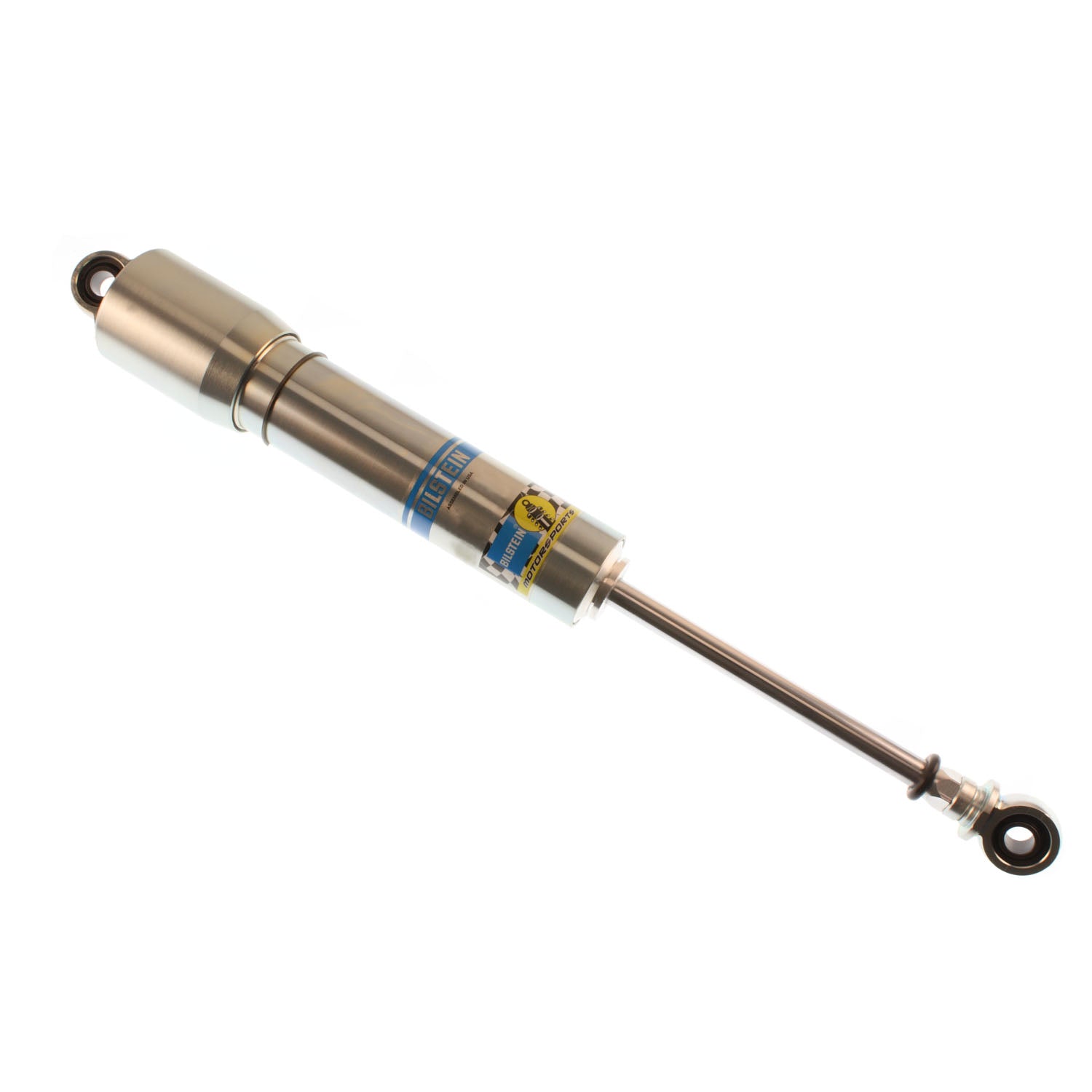

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
XVS Series - Suspension Shock Absorber |
| Description_LAB |
XVS Series - Suspension Shock Absorber |
| Description_INV |
Motorsports 7" XVS, 8-2COB Valving |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_SHO |
Shock |
| Description_MKT |
Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance. |
| Title |
Bilstein Shock Absorbers |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Body Design |
Smooth Body (Non-Coilover) |
| Body Material |
Steel |
| Valving Identifier |
8-2COB |
| Rebound @0.52m/s |
2340 |
| Spring Seat Included |
No |
| Boot Included |
No |
| Collapsed Length (MM) |
339.0 |
| Finish |
Zinc Plated |
| Piston Type |
Digressive |
| Extended Length (IN) |
20.04 |
| Internal Design |
Monotube |
| Body Diameter (ID) |
46mm |
| Lower Mount Type |
1/2in Heim |
| Compression @0.52m/s |
815 |
| Collapsed Length (IN) |
13.35 |
| Upper Mount Type |
1/2in Heim |
| Adjustable Damping |
Non-Adjustable |
| Series |
XVS Series |
| Extended Length (MM) |
509.0 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
27.0000 |
| Weight |
5.0000 |
