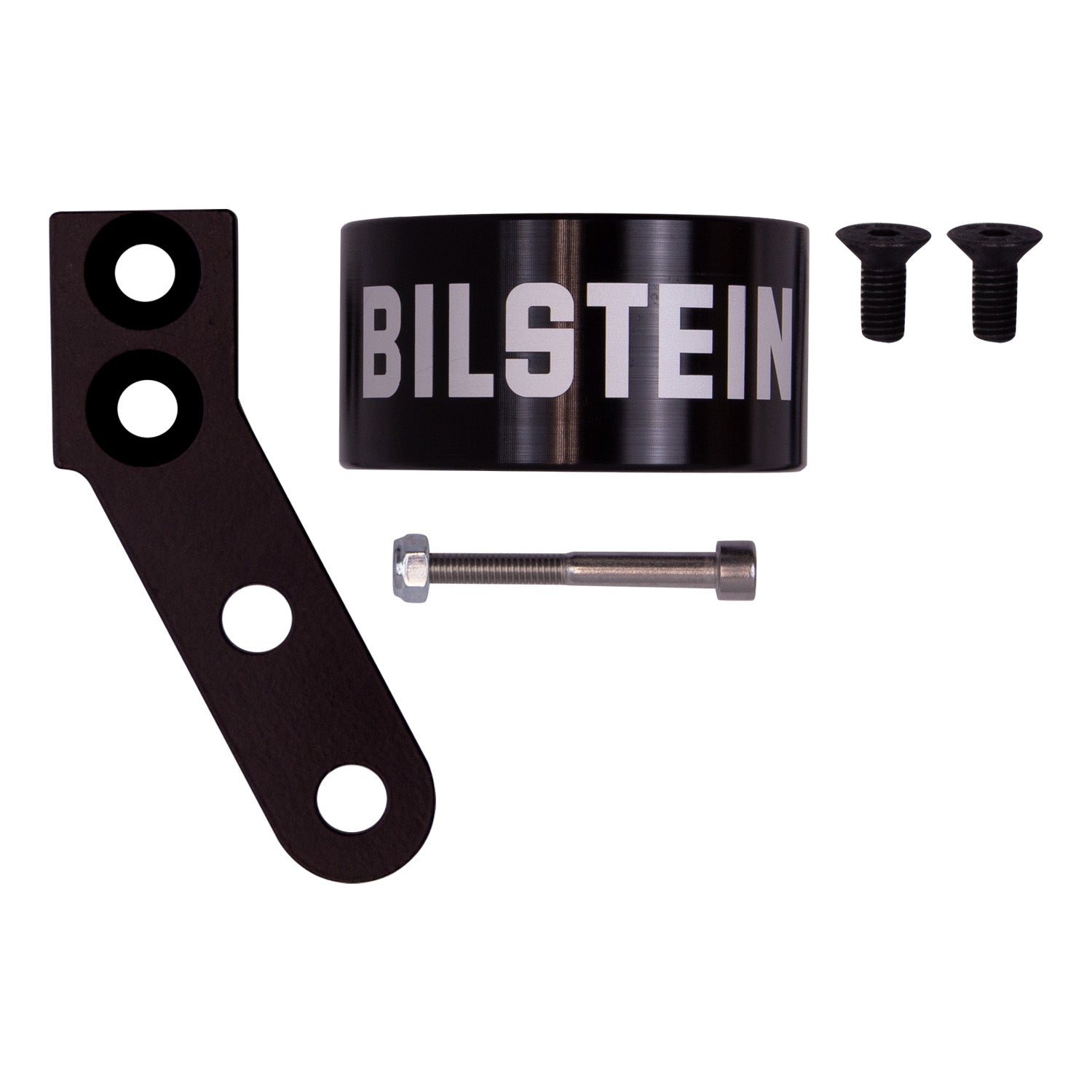

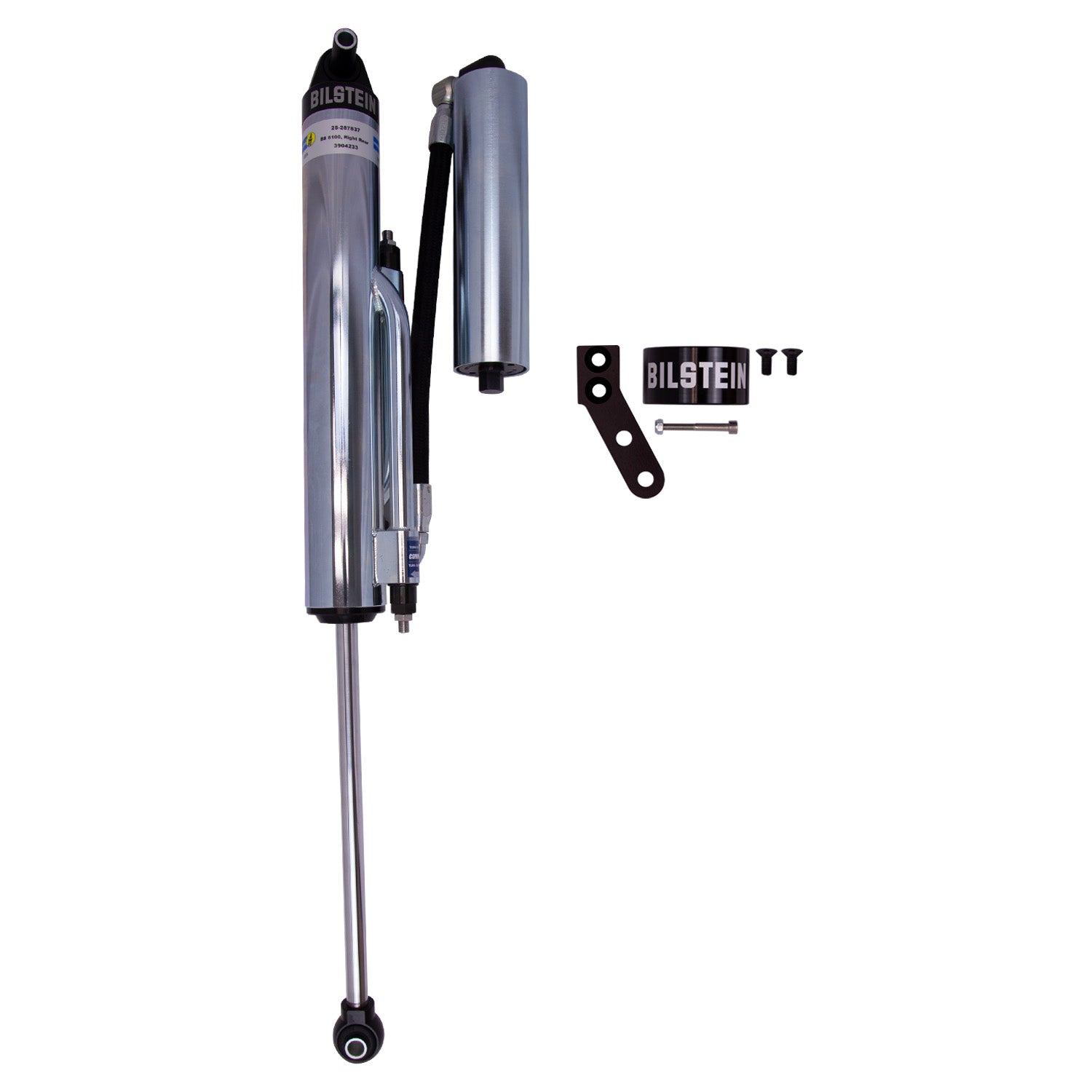

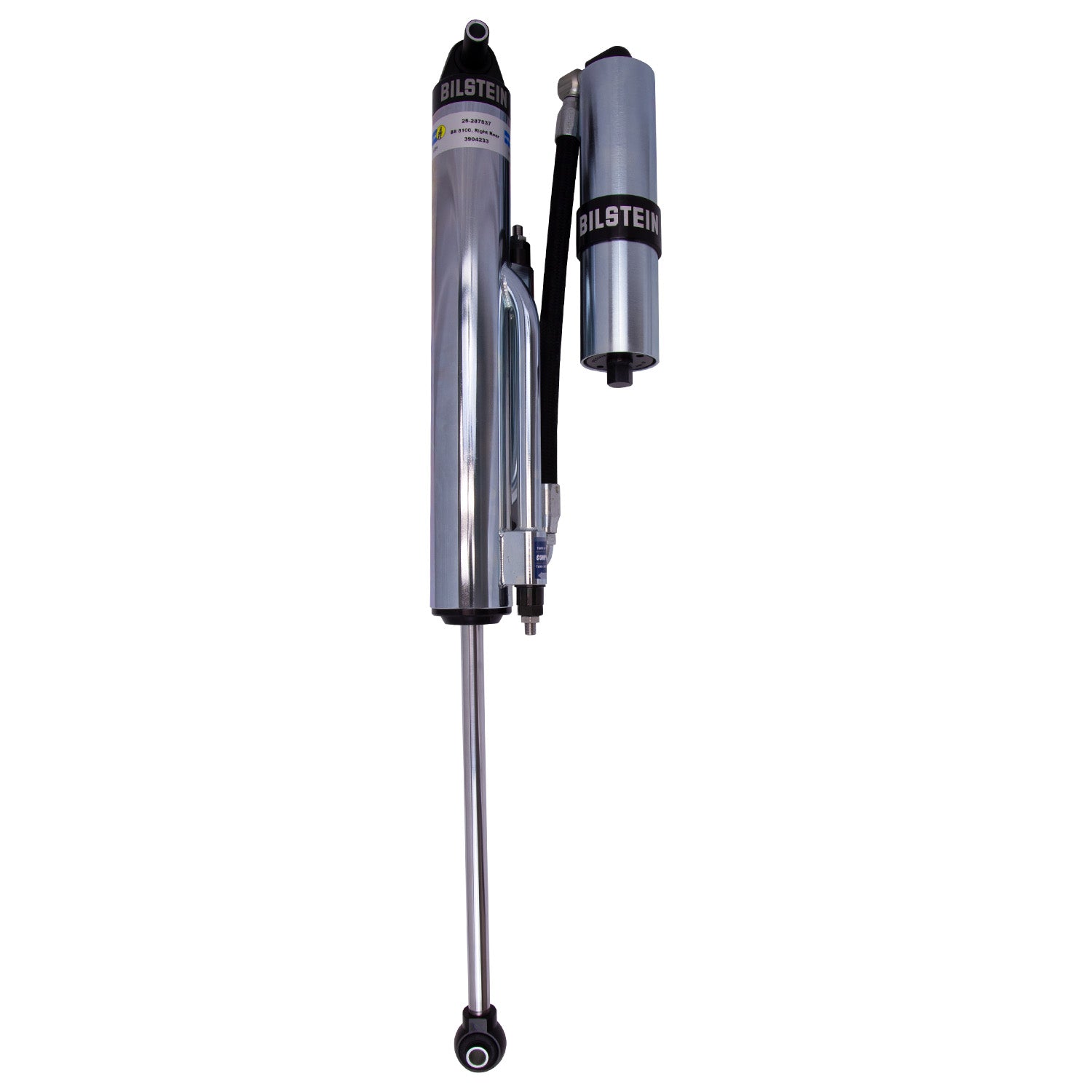

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature ΓÇ£Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Specifications:
Description_ASM | Jeep Wrangler 2023-2018 |
Description_DEF | Suspension Shock Absorber |
Description_DES | B8 8100 (Bypass) - Suspension Shock Absorber |
Description_EXT | 60mm Shock Absorber |
Description_INV | Jeep JL 4 Door,'18-,RR,3.5" Lift,B8 8100 |
Description_LAB | B8 8100 (Bypass) - Suspension Shock Absorber |
Description_MKT | Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature ΓÇ£Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
Description_SHO | Shock |
Title | Bilstein Shock Absorbers |
Body Design | Bypass Body (Non-Coilover) |
Extended Length (IN) | 32.01 |
Series | B8 8100 (Bypass) |
Collapsed Length (IN) | 19.49 |
Body Diameter (ID) | 60mm |
Lower Mount Type | Eye 12.8mm |
Extended Length (MM) | 813.0 |
Upper Mount Type | Eye 12.8mm |
Reservoir | Yes |
Adjustable Damping | Double Adjustable - Compression and Rebound |
Internal Design | Monotube |
California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
Collapsed Length (MM) | 495.0 |
Finish | Zinc Plated |
Boot Included | No |
Spring Seat Included | No |
Length | 9.0000 |
Width | 12.0000 |
Height | 34.0000 |
Weight | 22.0000 |
