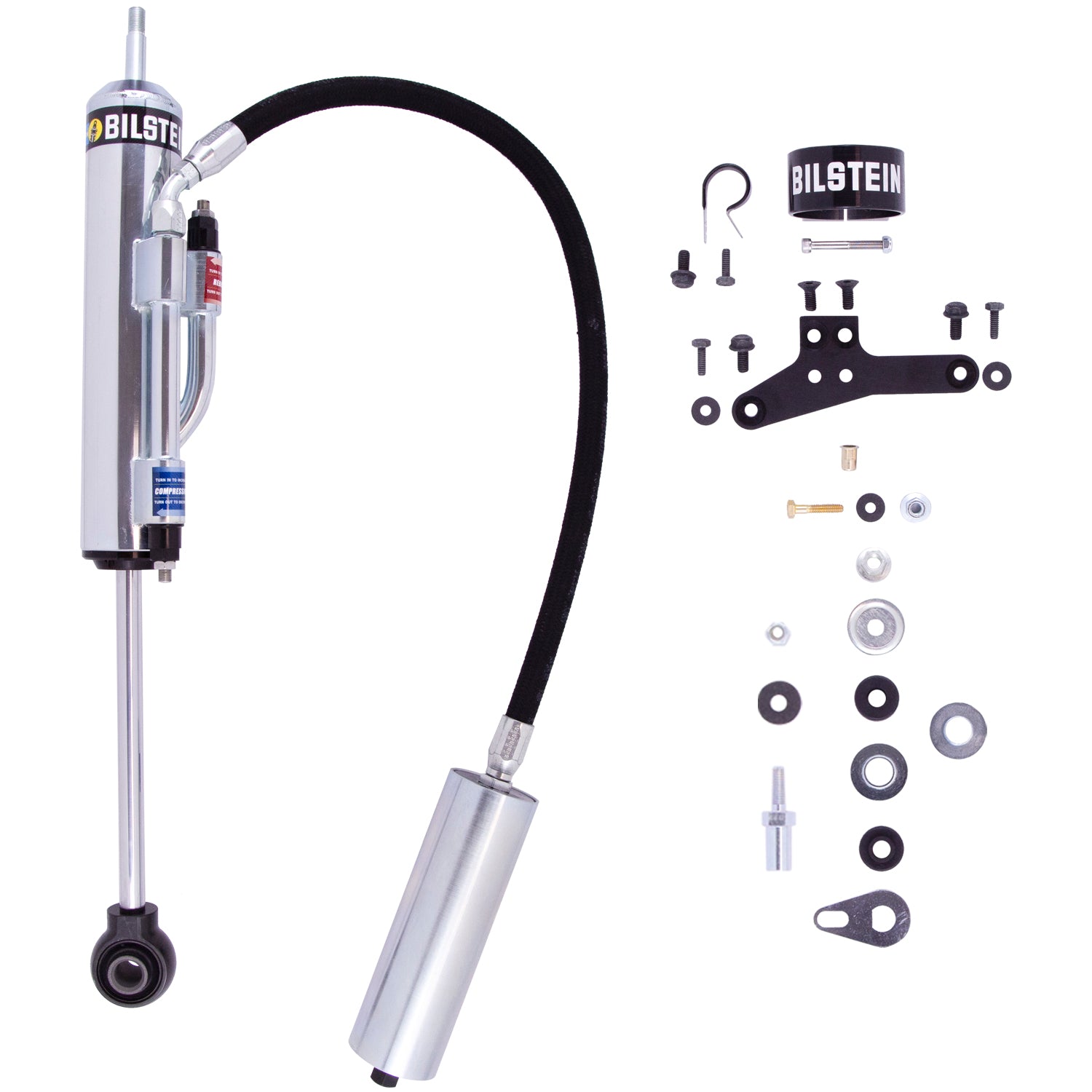

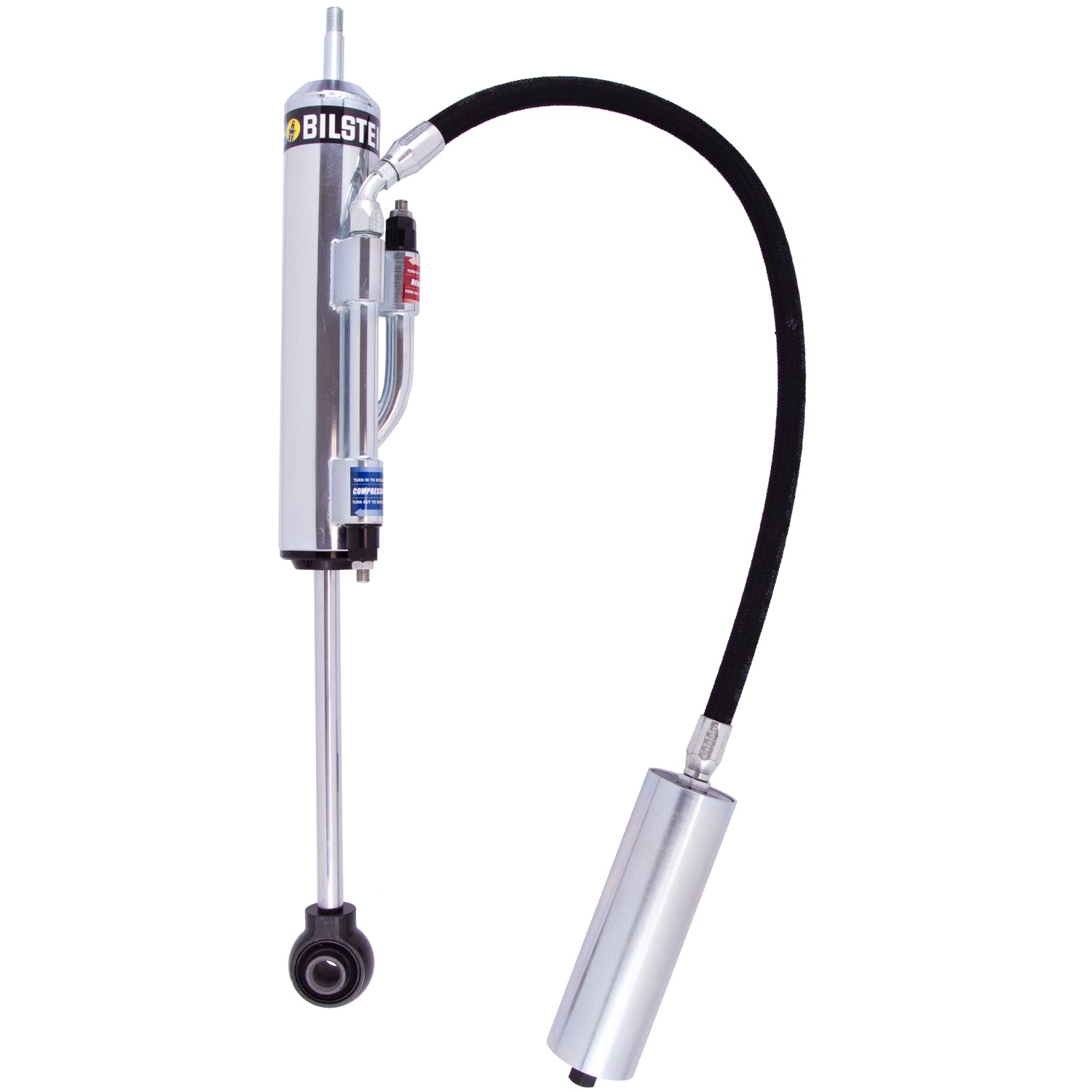

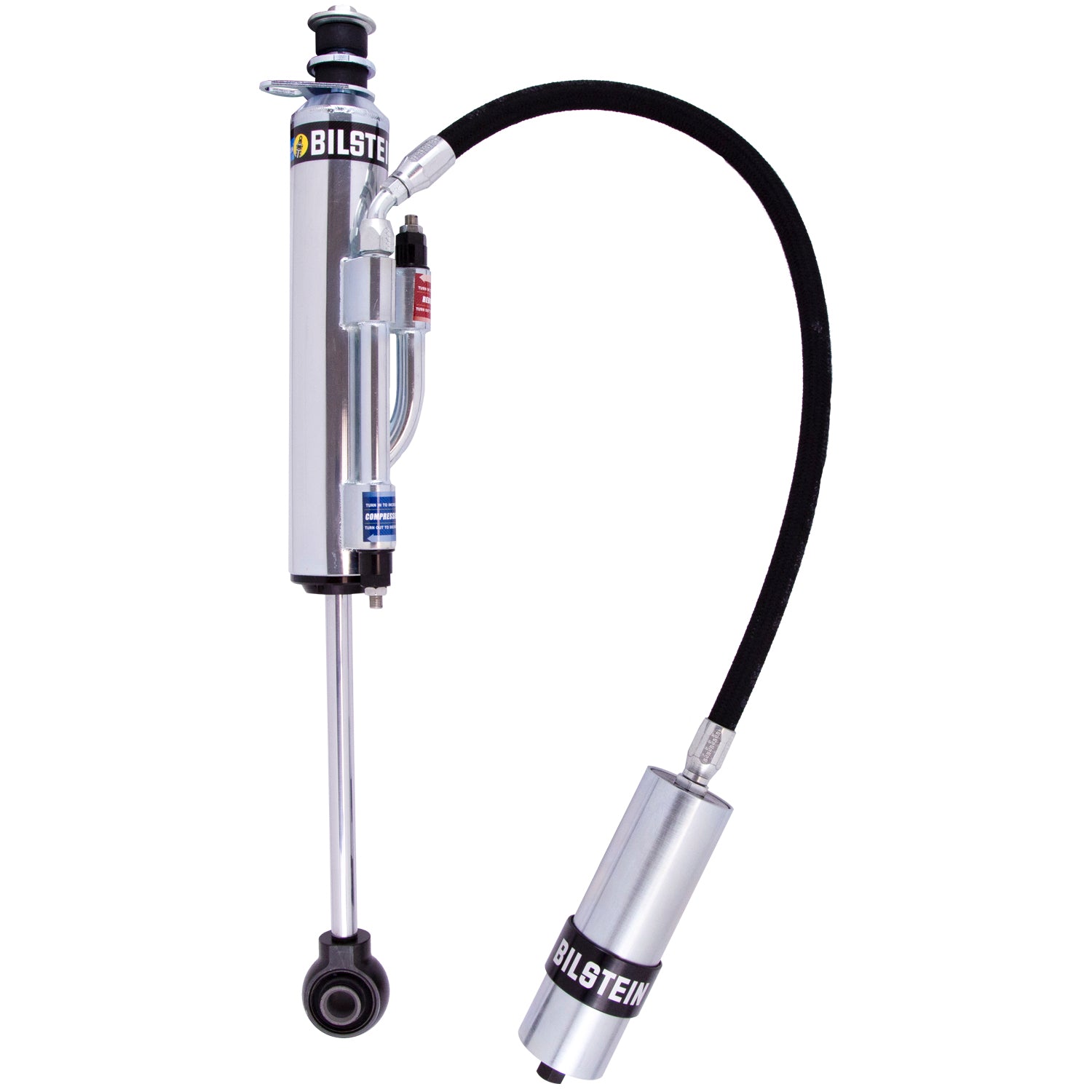

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature ΓÇ£Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Specifications:
| Description_ASM |
Lexus GX460 2023-2010, GX470 2009-2003, Toyota 4Runner 2023-2003 |
| Description_DEF |
Suspension Shock Absorber |
| Description_EXT |
60mm Shock Absorber |
| Description_DES |
B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_INV |
Toyota 4Runner 4x4 '10-; LR; 8100 Bypass |
| Description_MKT |
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature ΓÇ£Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| Description_LAB |
B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_SHO |
Shock |
| Series |
B8 8100 (Bypass) |
| Spring Seat Included |
No |
| Body Design |
Bypass Body (Non-Coilover) |
| Finish |
Zinc Plated |
| Extended Length (IN) |
24.09 |
| Title |
Bilstein Shock Absorbers |
| Boot Included |
No |
| Upper Mount Type |
Stem |
| Extended Length (MM) |
612.0 |
| Collapsed Length (MM) |
374.0 |
| Body Diameter (ID) |
60mm |
| Collapsed Length (IN) |
14.72 |
| Lower Mount Type |
Eye 19.3mm |
| Adjustable Damping |
Double Adjustable - Compression and Rebound |
| Internal Design |
Monotube |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir |
Yes |
| Length |
6.0000 |
| Width |
14.0000 |
| Height |
32.0000 |
| Weight |
20.0000 |
