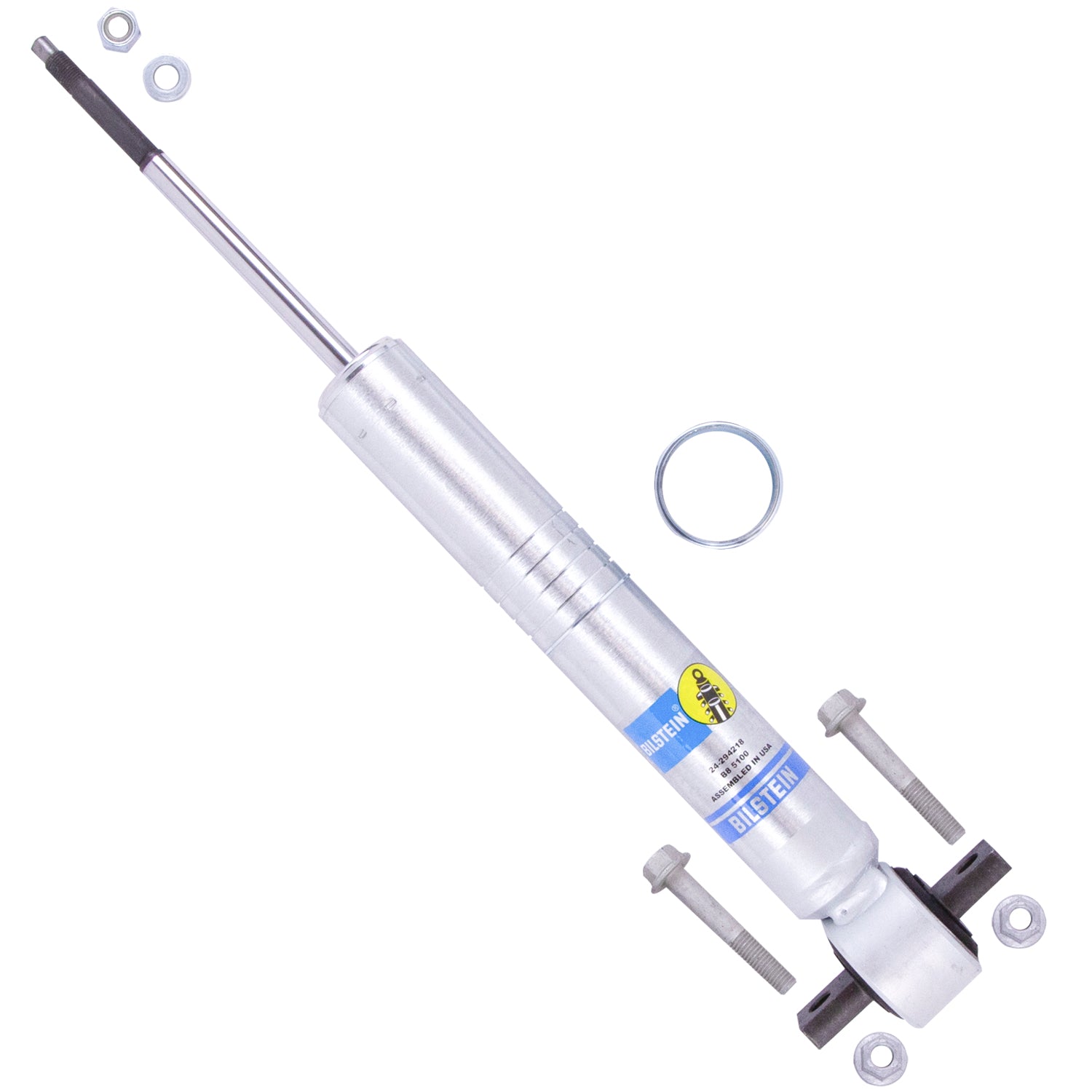

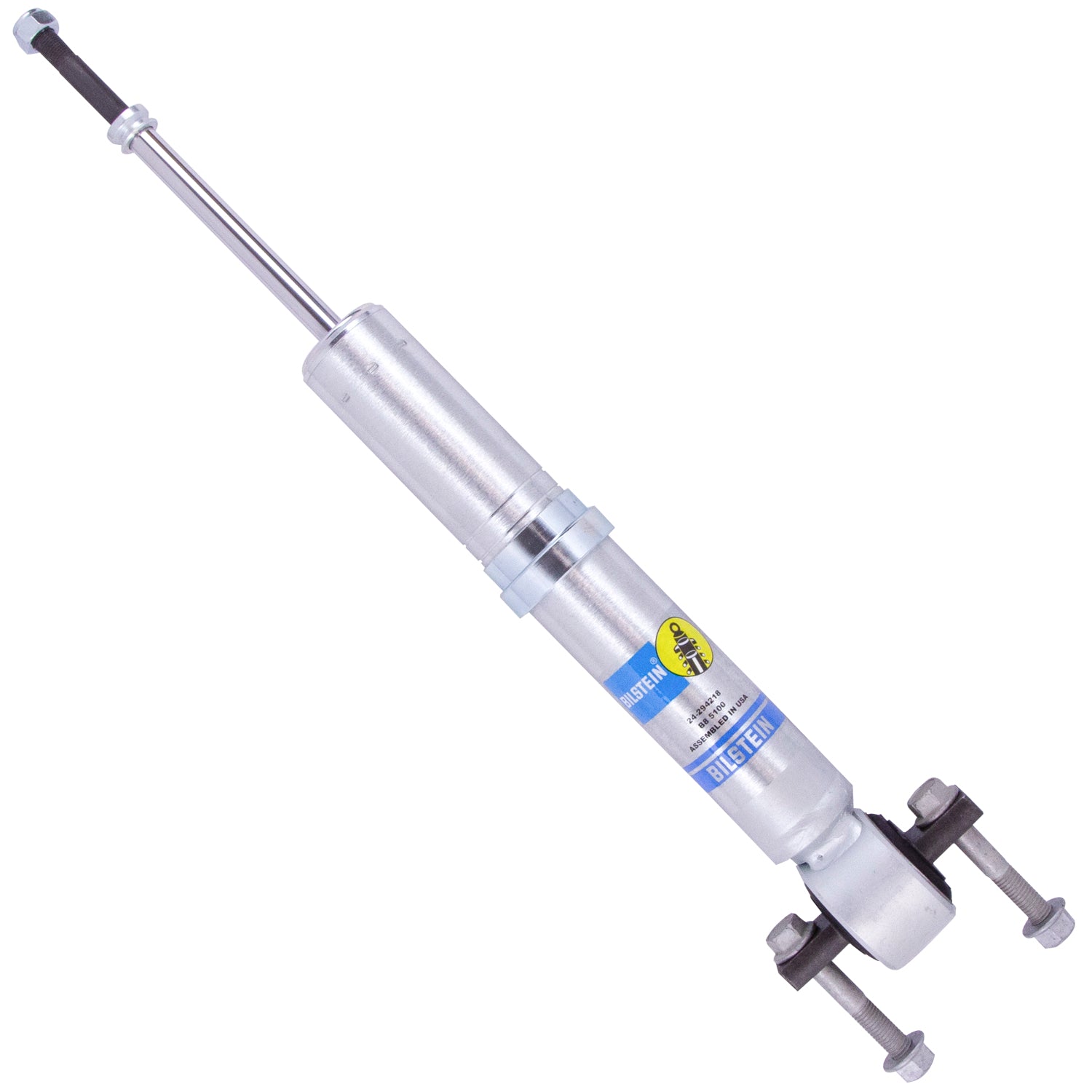

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications:
| Description_ASM |
Ford Ranger 2022-2019 |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_MKT |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| Description_LAB |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_INV |
Ford Ranger 19+; F; 0-2.5" lift; B8 5100 |
| Description_SHO |
Shock |
| Lower Mount Type |
Crossbar |
| Internal Design |
Monotube |
| Adjustable Damping |
Non-Adjustable |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Body Diameter (ID) |
46mm |
| Reservoir |
No |
| Title |
Bilstein Shock Absorbers |
| Finish |
Zinc Plated |
| Extended Length (MM) |
489.2 |
| Collapsed Length (MM) |
370.5 |
| Series |
B8 5100 (Ride Height Adjustable) |
| Upper Mount Type |
Stem |
| Body Design |
Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) |
14.59 |
| Spring Seat Included |
No - Reuse OEM |
| Extended Length (IN) |
19.26 |
| Boot Included |
No |
| Length |
4.0000 |
| Width |
4.0000 |
| Height |
27.0000 |
| Weight |
8.0000 |
