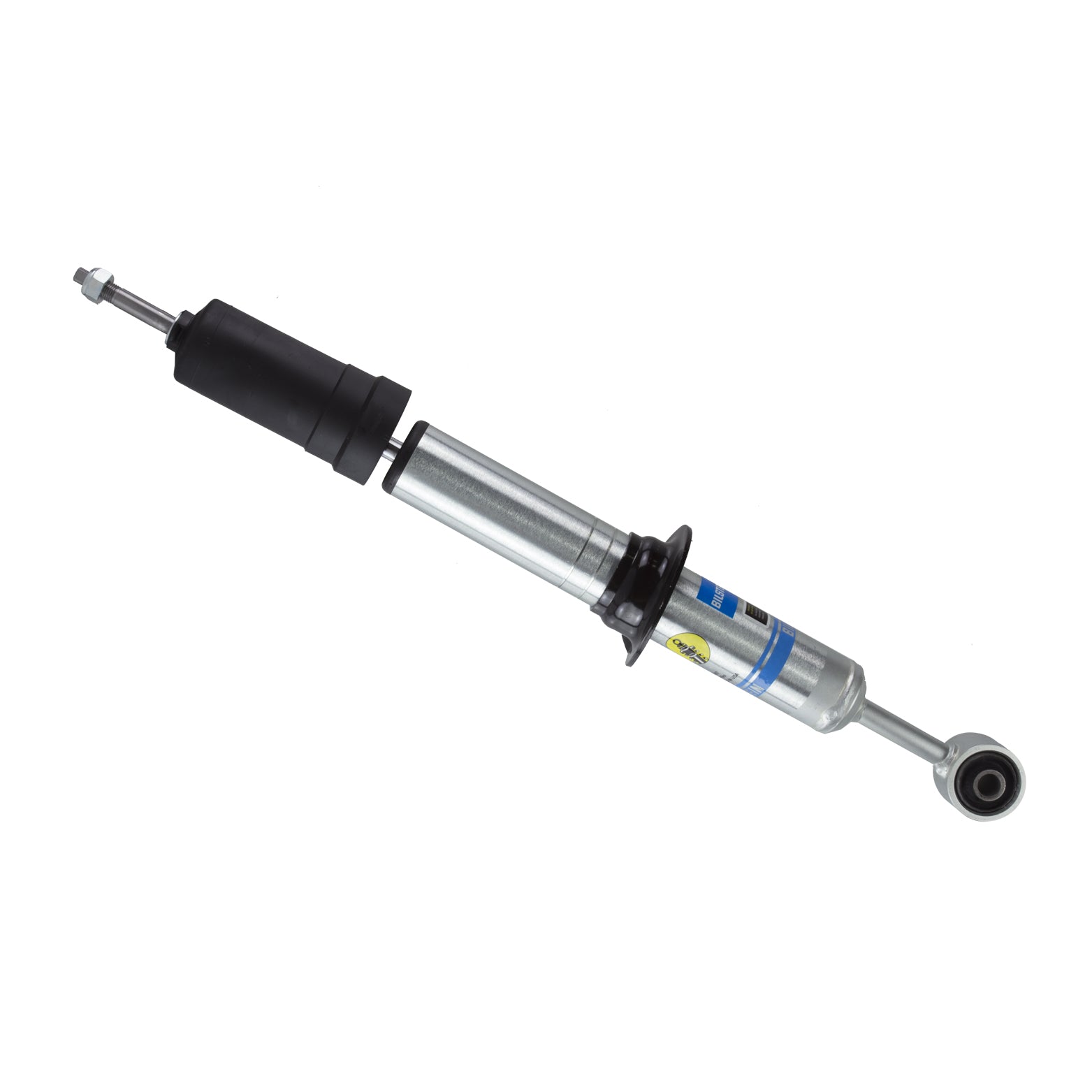

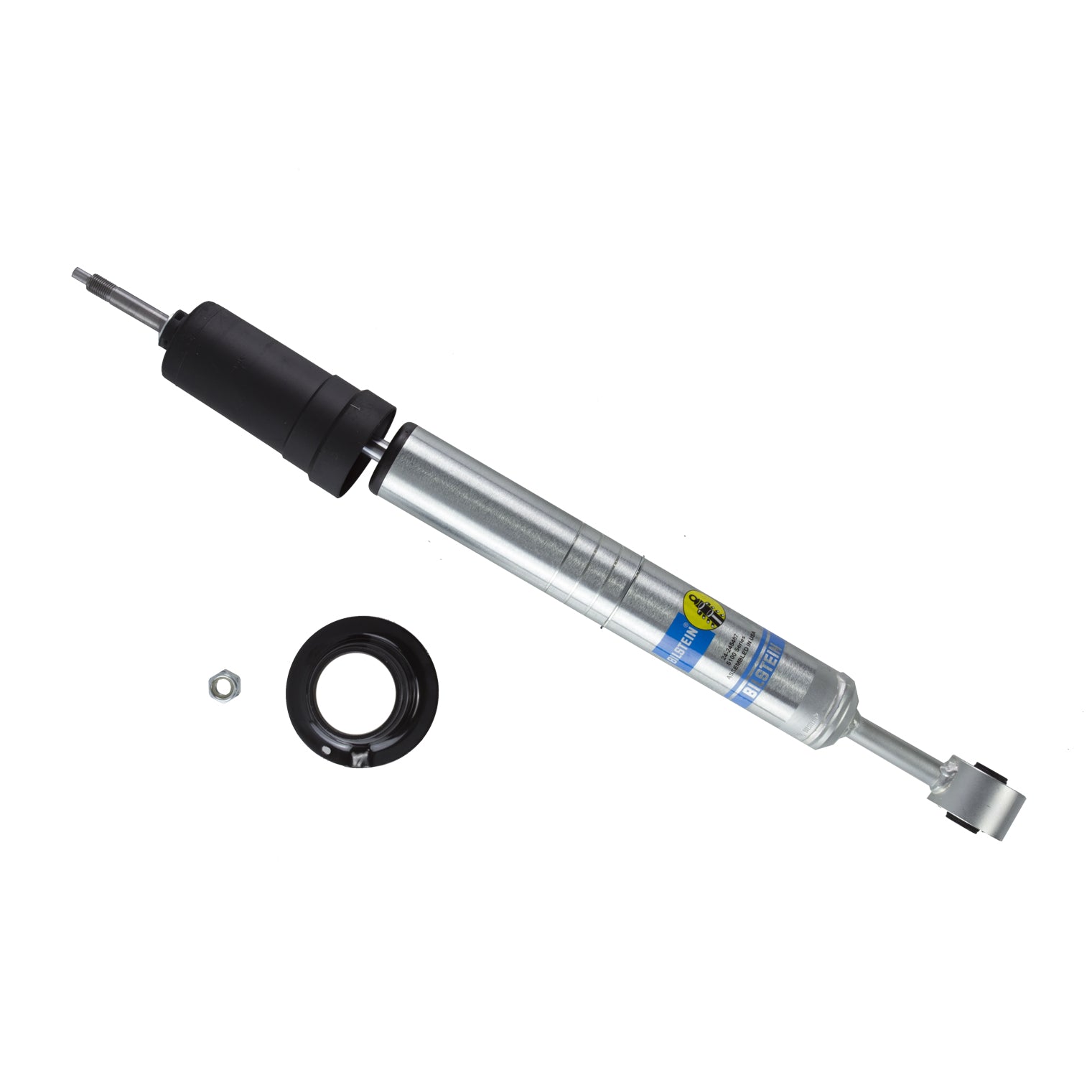

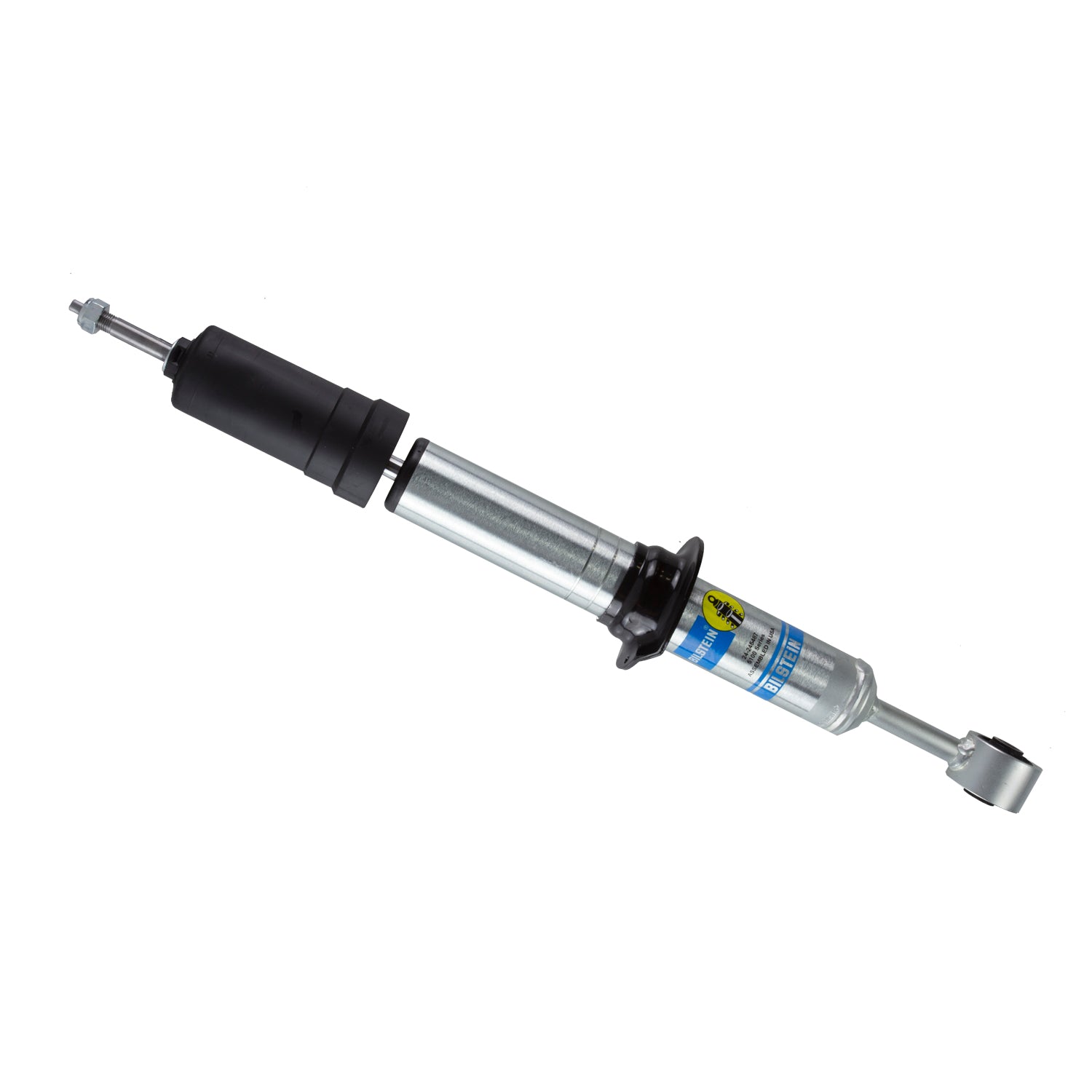

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications:
| Description_ASM |
No Applications |
| Description_DEF |
Suspension Shock Absorber |
| Description_DES |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_EXT |
46mm Monotube Shock Absorber |
| Description_INV |
Toyota Hilux 4WD; '05+; F; B8 5100; 2.5" |
| Description_LAB |
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_MKT |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| Description_SHO |
Shock |

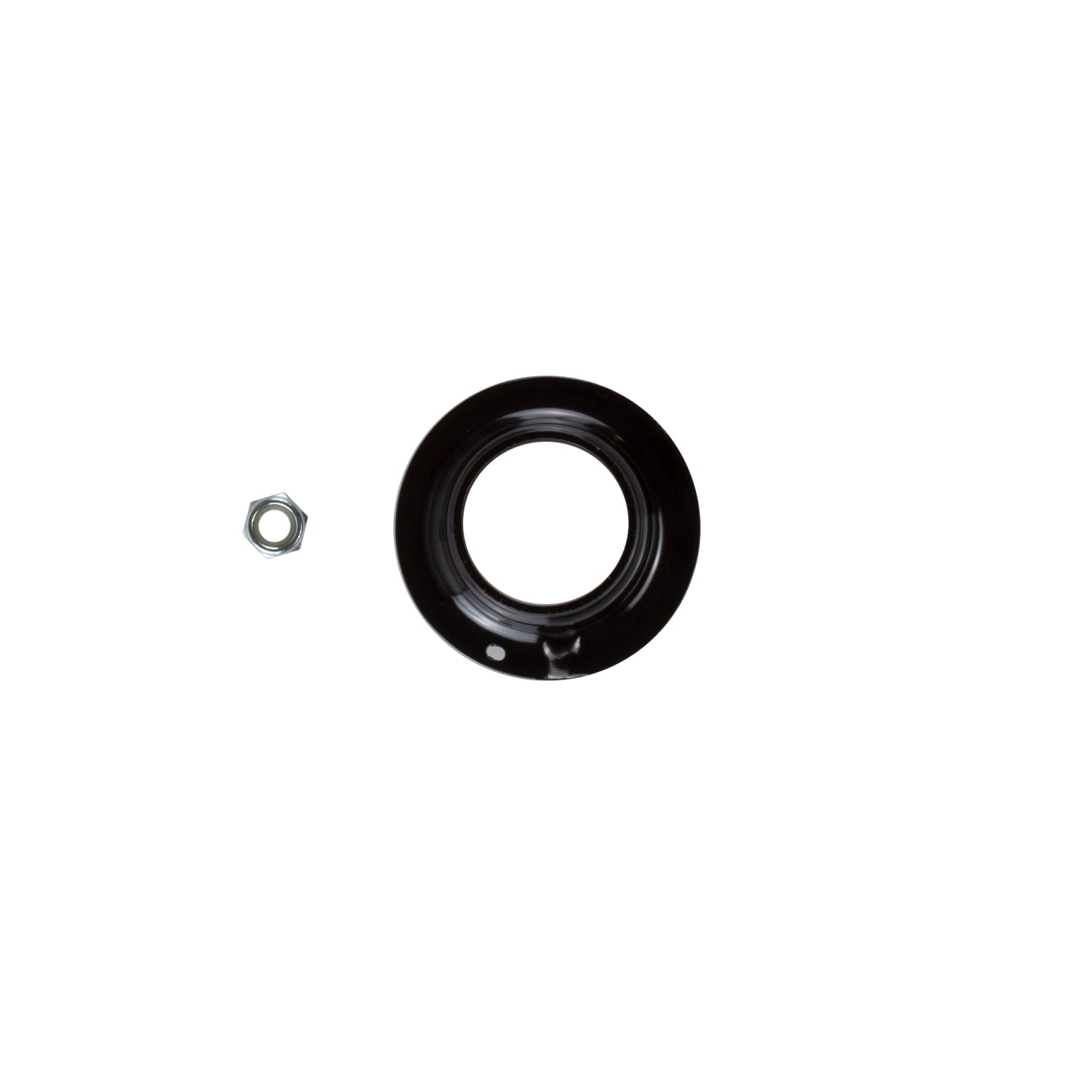

| Spring Seat Included |
Yes |
| Adjustable Damping |
Non-Adjustable |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (MM) |
432.0 |
| Reservoir |
No |
| Finish |
Zinc Plated |
| Boot Included |
Black Straight |
| Internal Design |
Monotube |
| Series |
B8 5100 (Ride Height Adjustable) |
| Body Design |
Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) |
46mm |
| Collapsed Length (IN) |
17.00 |
| Upper Mount Type |
Stem |
| Extended Length (IN) |
22.55 |
| Title |
Bilstein Shock Absorbers |
| Lower Mount Type |
Eye 14.1mm |
| Extended Length (MM) |
573.0 |
| Length |
4.0000 |
| Width |
4.0000 |
| Height |
27.0000 |
| Weight |
6.0000 |
