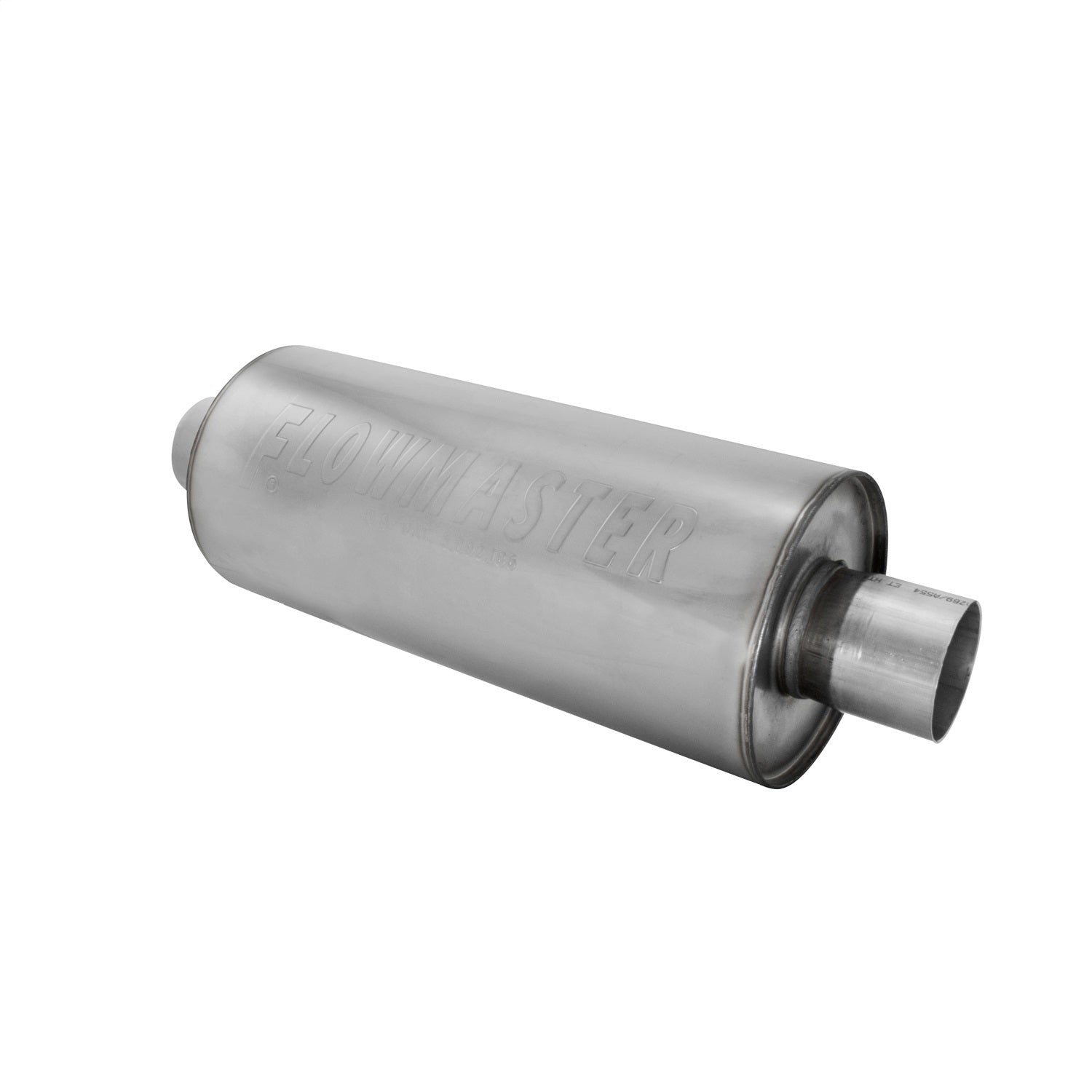

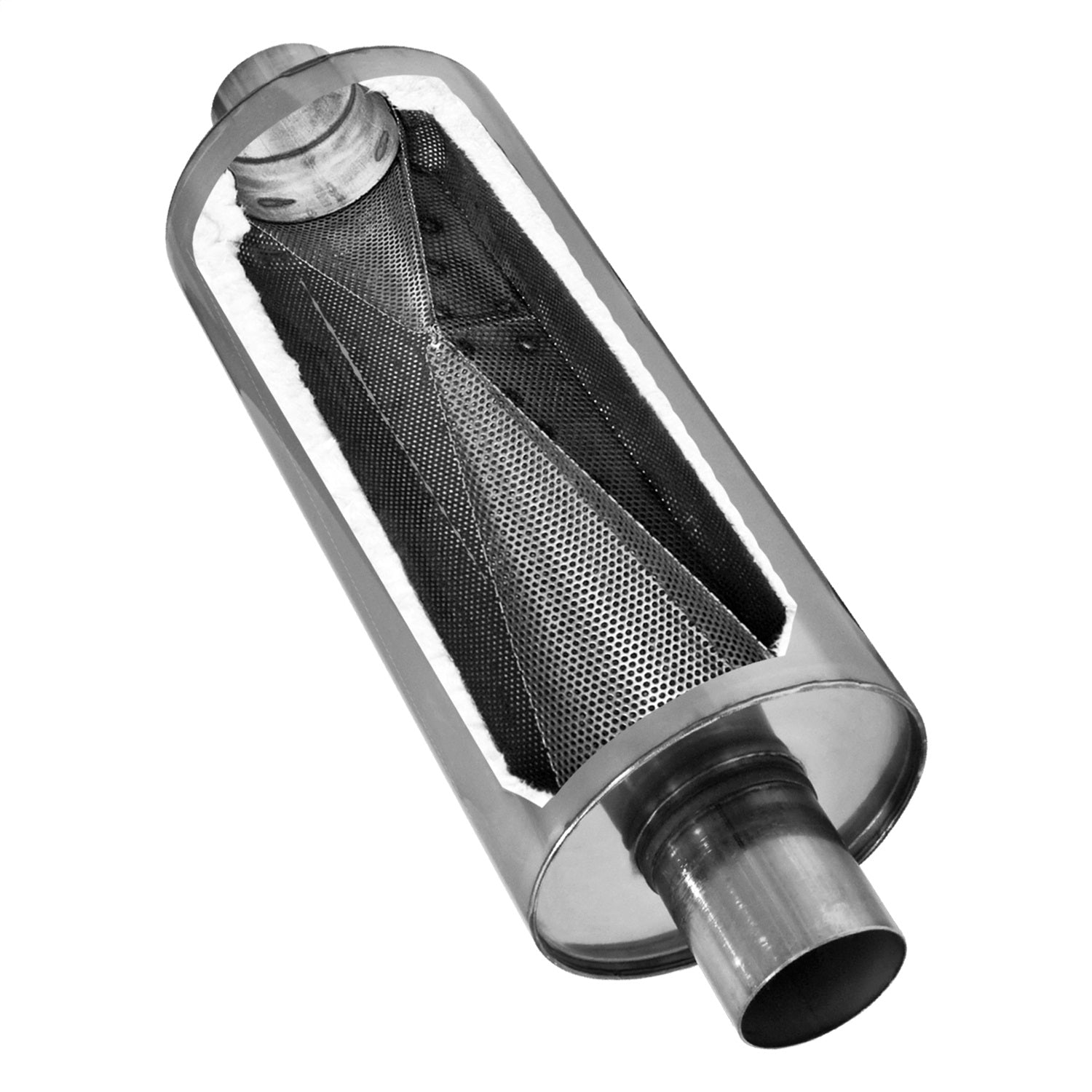

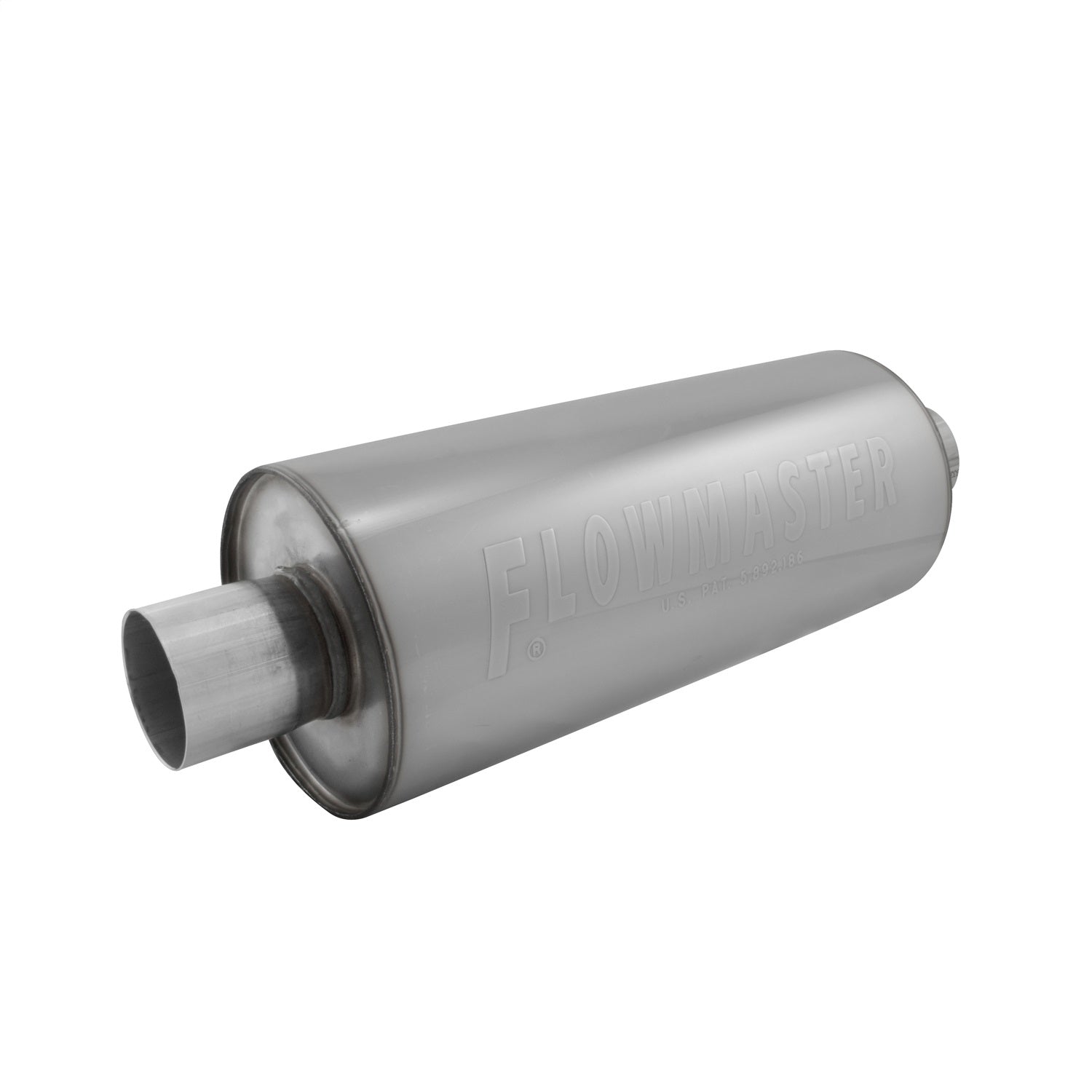

dBX series mufflers - this Laminar Flow internal configuration muffler features the revolutionary HP core design delivering excellent sound control for a wide variety of engine types where vehicle under-chassis space is limited. Utilizing cool shell technology to minimize radiant heat from the muffler body, they are perfect for sport compact imports as well as muscle cars and other performance applications. Constructed with 409S stainless steel internal components and wrapped with a proprietary insulation material and finally a polishable 304 stainless steel casing, these mufflers are as attractive as they are functional delivering a moderate to aggressive tone.
Specifications:
| Description_ASC |
Universal Muffler - Not a direct fit. Some adaptation required. |
| Description_DEF |
Exhaust Muffler |
| Description_EXT |
dBX Muffler; 2.25 in. Inlet/Outlet; 409 Stainless Internal Components; 304 Stainless Case; |
| Description_DES |
Flowmaster DBX Muffler |
| Description_FAB |
Stainless 304s Polishable Case |
| Description_FAB |
Limited Lifetime Warranty |
| Description_FAB |
Great for Street Rods/Customs/Lowrider/SportTrucks |
| Description_FAB |
Patented Laminar Flow Technology |
| Description_FAB |
Cool Shell for Reduced Radiant Heat |
| Description_FAB |
Compact Design |
| Description_FAB |
Internal Components Are 409s Stainless |
| Description_FAB |
409 Stainless Steel Internal Construction |
| Description_FAB |
Race Proven Design |
| Description_SHO |
Muffler |
| Description_INV |
DBX 2.25 IN/2.25 OUT 14 IN. 304S |
| Description_MKT |
dBX series mufflers - this Laminar Flow internal configuration muffler features the revolutionary HP core design delivering excellent sound control for a wide variety of engine types where vehicle under-chassis space is limited. Utilizing cool shell technology to minimize radiant heat from the muffler body, they are perfect for sport compact imports as well as muscle cars and other performance applications. Constructed with 409S stainless steel internal components and wrapped with a proprietary insulation material and finally a polishable 304 stainless steel casing, these mufflers are as attractive as they are functional delivering a moderate to aggressive tone. |
| Finish |
Natural |
| Body Length (in) |
14 |
| Overall Length (In) |
20 |
| Body Height |
6.000 in. |
| Emission Code |
5 |
| Muffler Series |
dBX Series |
| Inlet Diameter |
2.250 in. |
| Body Height (in) |
6 |
| Body Width (in) |
6 |
| Fitment |
Universal |
| Inlet Inside Diameter |
2.250 in. |
| Main Piping Diameter |
2.250 in. |
| Inlet Type |
Single Center |
| Inlet Outside Diameter |
2.250 in. |
| Outlet Diameter |
2.500 in. |
| Automotive Item Grade |
High Performance |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds), Nickel (Metallic) |
| California Proposition 65 Required |
Yes |
| Color |
Stainless Steel |
| Material |
409 Stainless Steel |
| Sound Level |
Moderate Sound |
| Body Width |
6.000 in. |
| Title |
Flowmaster 12414310 DBX Muffler - 2.25 Center In / 2.25 Center Out - Moderate Sound |
| Outlet Position |
Center |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Body Length |
14.000 in. |
| Overall Length |
18.000 in. |
| Shape |
Round |
| California Proposition 65 Chemical Name 1 |
Nickel (metallic) |
| Brand |
Flowmaster |
| Inlet Connection Type |
Pipe Connection |
| Inlet Diameter (in) |
2.25 |
| Muffler Type |
Laminar Flow |
| Outlet Diameter (in) |
2.25 |
| Product Type |
Street Mufflers |
| Reversible |
No |
| Vehicle Type |
4/6 CYL Engine, Classic Muscle Car, Late Model Muscle Car, Street Rod, Street/Strip, Truck/SUV |
| Warning |
California Proposition 65 |
| WARNING CA Proposition 65 |
Yes |
| California Proposition 65 Chemical Name 2 |
Chromium (hexavalent compounds) |
| Outlet Outside Diameter |
2.250 in. |
| Tip Quantity |
0 |
| Inlet Position |
Center |
| Outlet Type |
Single Center Outlet |
| Outlet Connection Type |
Pipe Connection |
| Type of Muffler |
Laminar Flow |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
21.0000 |
| Weight |
7.0000 |
