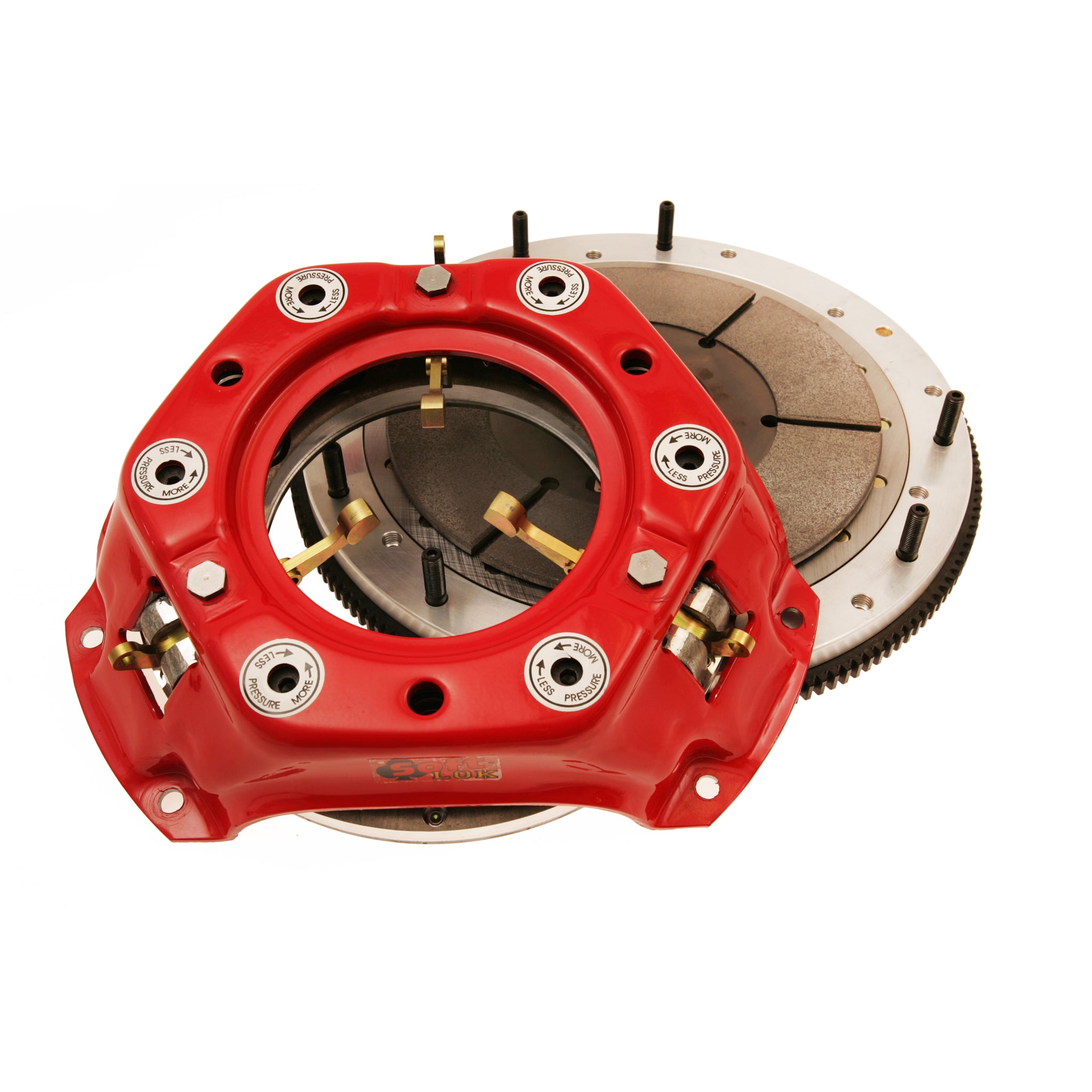

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_ASM |
Dodge: Challenger 70 - 71 7 L Engine, Dodge: Charger 66 - 71 7 L Engine, Dodge: Coronet 66 - 71 7 L Engine, Plymouth: Barracuda 68 - 71 7 L Engine, Plymouth: Belvedere 66 - 69 7 L Engine, Plymouth: Cuda 70 - 71 7 L Engine, Plymouth: Fury 66 - 66 7 L Engine, Plymouth: GTX 68 - 71 7 L Engine, Plymouth: Road Runner 68 - 71 7 L Engine, Plymouth: Satellite 66 - 67 7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Mopar: 6 Bolt Crank: 10 X 1-3/16 X 18 Spl HCF 130T |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok: Aluminum: Mopar: 6 Bolt Crank: 10 X 1-3/16 X 18 Spl HCF 130T |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Disc Style |
Solid Hub |
| Flywheel Material |
Aluminum |
| Hub Style |
Solid |
| Clutch Usage |
Drag Racing |
| Engine Balance |
Internal Balance |
| Spline |
1 3/16In. x 18 |
| Ring Gear |
130 tooth |
| Number of Discs |
Single |
| Throwout Bearing Style |
Standard |
| Engine |
1964-1999 SBC/BBC |
| Disc Material |
Sintered Iron |
| Disc Diameter |
10In. |
| Racing Application |
Drag Racing |
| Pilot Bushing Material |
N/A |
| Make |
Chrysler |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Hardware Included |
Yes |
| Pilot Bushing Included |
No |
| Flywheel Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
