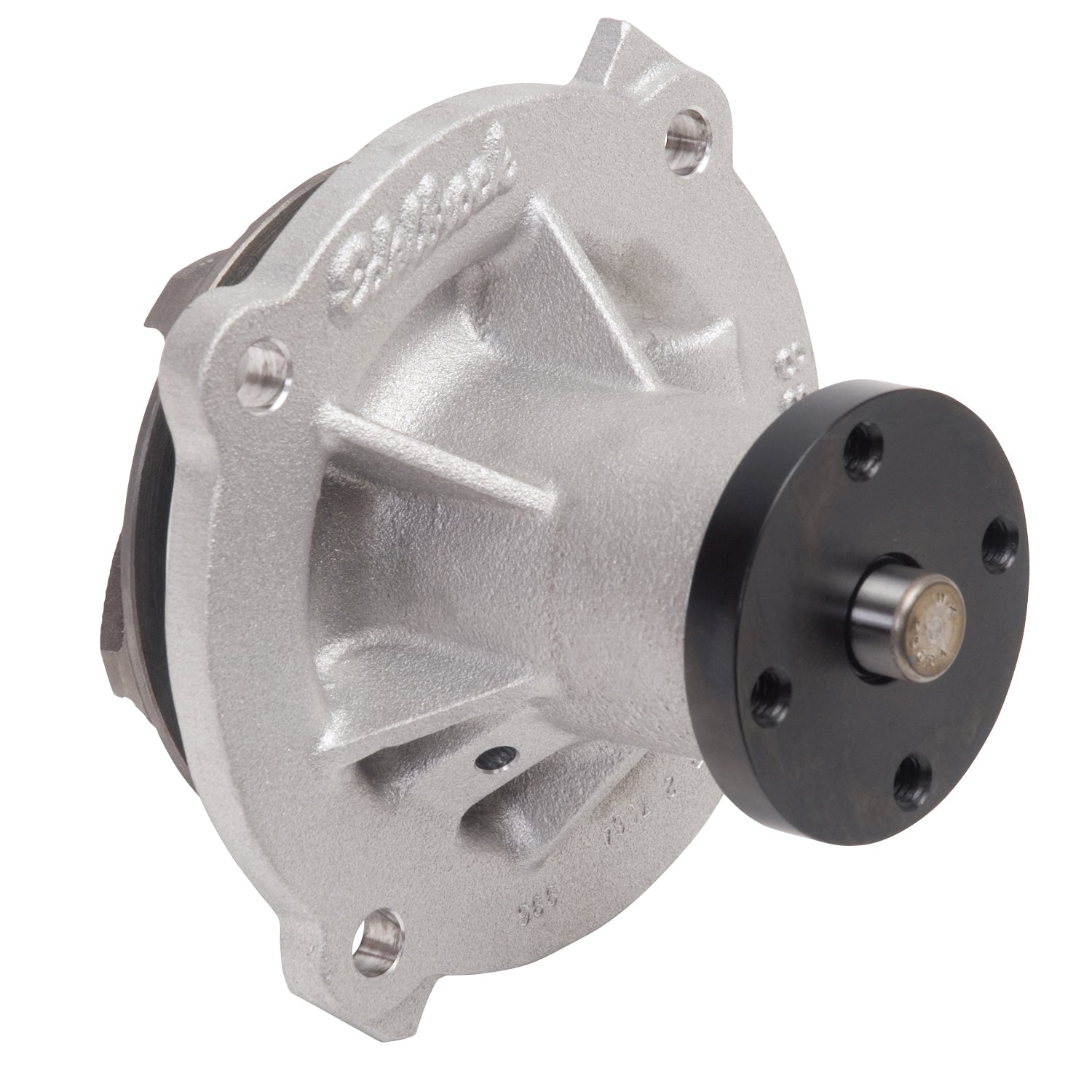

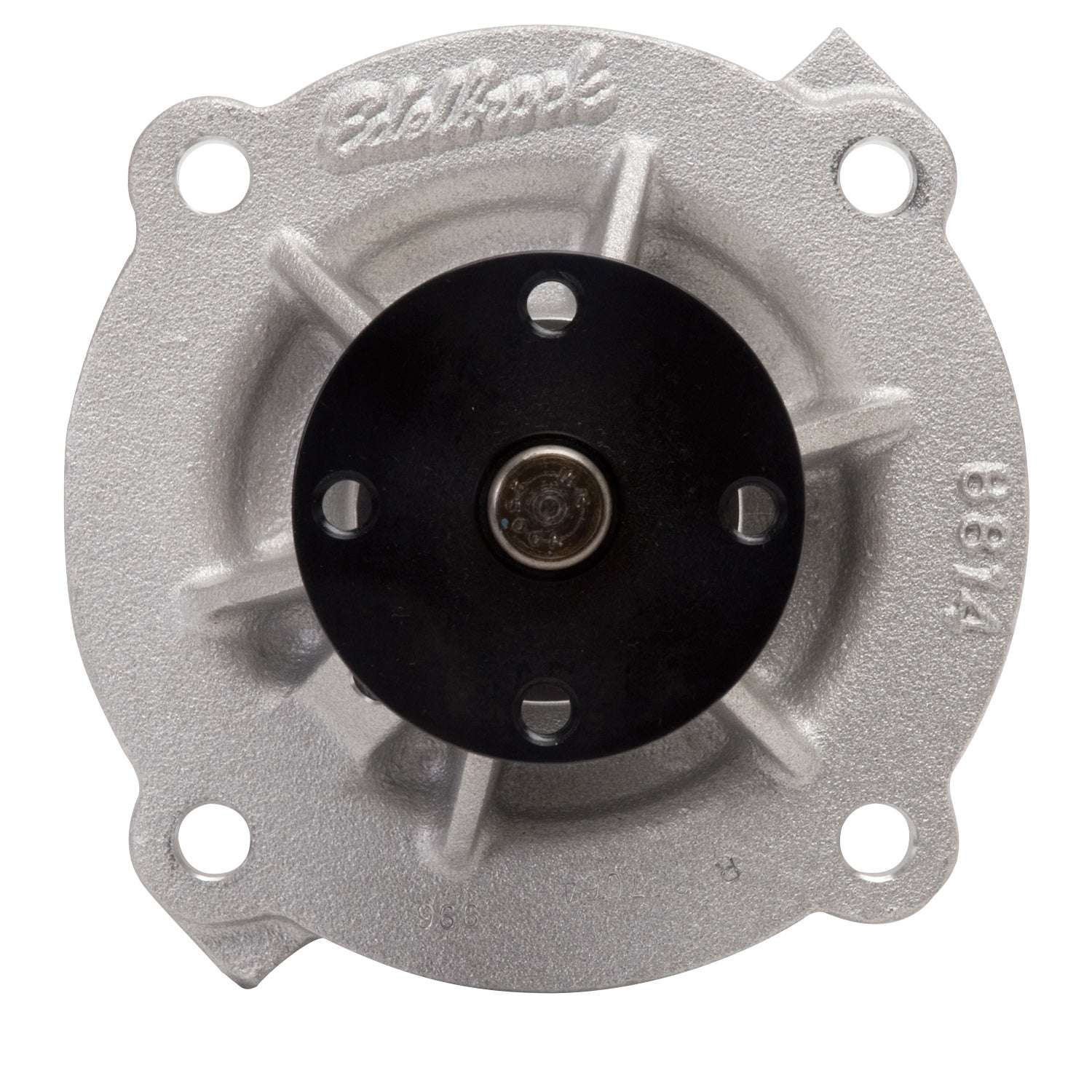

Edelbrock #8814 Water Pump for Big-Block Chrysler 361-440 1958-79 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications:
| Description_ABR |
Water Pump |
| Description_ASM |
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_ASM |
Chrysler:Gen II HEMI:426 (7.0L) |
| Description_DEF |
Engine Water Pump |
| Description_EXT |
Edelbrock #8814 Water Pump Big for Block Chrysler 361-440 1958-79 Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_MKT |
Edelbrock #8814 Water Pump for Big-Block Chrysler 361-440 1958-79 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_INV |
Water Pump Big Block Chrysler 361-440 |
| Description_LAB |
Water Pump #8814 For 1958-79 BB Chrysler 361-440, Standard Rotation, Satin |
| Description_TRA |
The Victor series are heavy duty water pumps for both street and racing applications |
| Description_TRA |
These pumps are a direct replacement for the original equipment pump to provide compatibility with all accessories and pulleys. |
| Description_TRA |
It offers weight savings along with increased durability and cooling potential. It is a standard rotation water pump for Chrysler Wedge (B & RB), 426 Hemi and Big-Block engines |
| Description_TRA |
DO NOT use on engines converted to a serpentine belt pulley system |
| Description_TRA |
Installation is the same as for original equipment water pumps. Therefore, please consult your service manual for specific procedures. |
| Description_TRA |
CAUTION: Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing. Check closely for any interference with drive belts |
| Description_TRA |
some filing for clearance may be necessary with some applications. Verify that the radiator fan is properly balanced. Imbalanced fans can cause severe damage and/or injury and will void your warranty. |
| Water Pump Drive Type |
V-Belt |
| Impeller Vane Quantity |
6 |
| Hub Hole Quantity |
6 |
| Installation Warnings |
Yes |
| Housing Material |
Aluminum |
| Thermostat And Housing Included |
No |
| Mounting Hole Quantity |
4 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Impeller Material |
Powdered Metal |
| Includes Back Housing |
No |
| Related Cooling Fan Components |
No |
| Casting Number |
8814 |
| Mounting Hardware Included |
No |
| Fan Clutch Included |
No |
| Impeller Rotation |
Standard |
| Hub Height |
3.070 |
| Pulley Included |
No |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
14.0000 |
| Weight |
5.0000 |
