Edelbrock 19014 Avs2 500 Cfm Carburetor

2 sold in last 8 days
Edelbrock
ds_BDVJ_19014
Out of stock
Carburetor
$845.56
customers are viewing this product
Advanced Clutch 4214004 4 Pad Rigid Race Disc
Advanced Clutch 4214004 4 Pad Rigid Race Disc
$215.23
McLeod Racing 6440607 Original Street Twin: Steel: Mopar: 1964-03 340 to 440: 6 Bolt: 1-1/8x26: 130T
McLeod Racing 6440607 Original Street Twin: Steel: Mopar: 1964-03 340 to 440: 6 Bolt: 1-1/8x26: 130T
$1,553.19

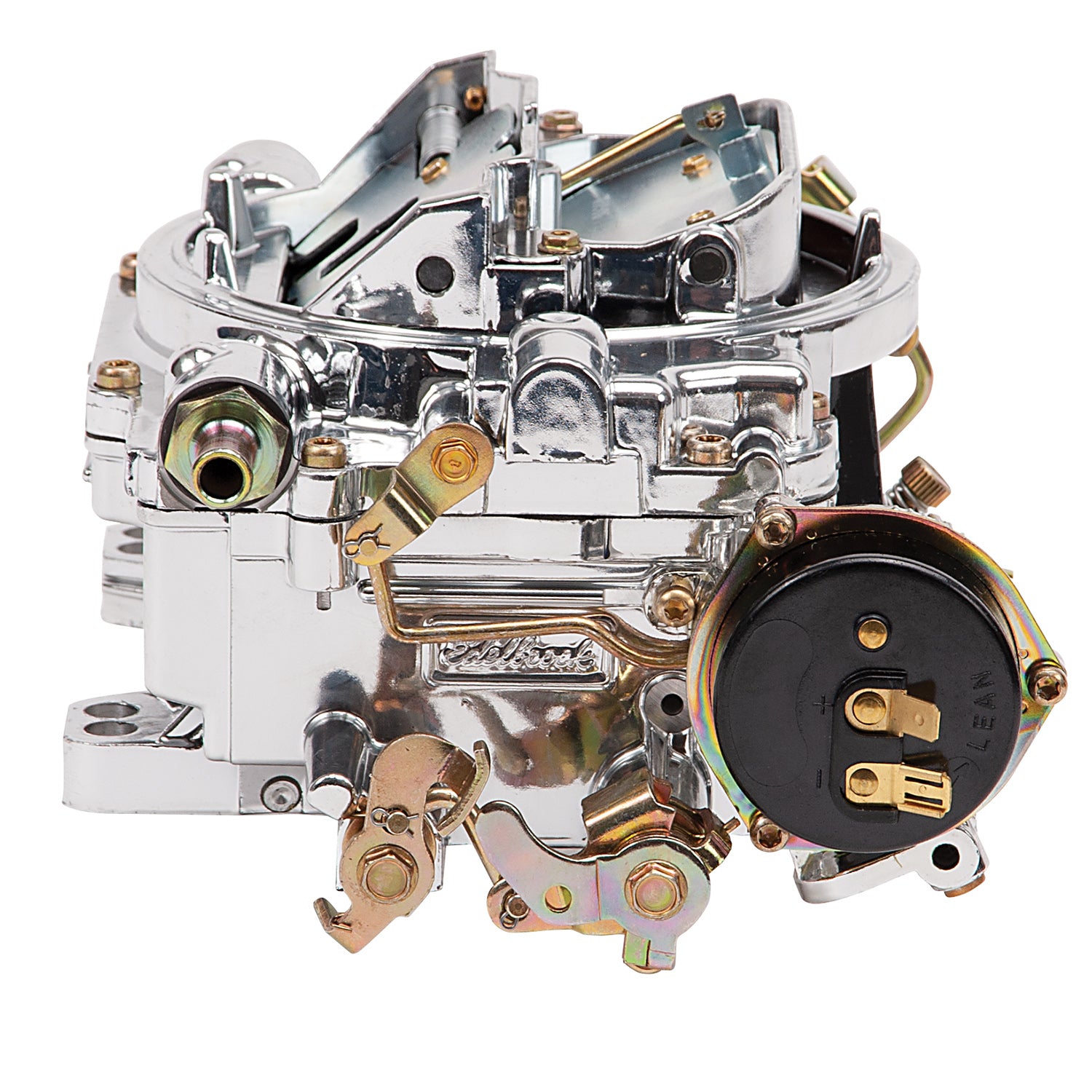

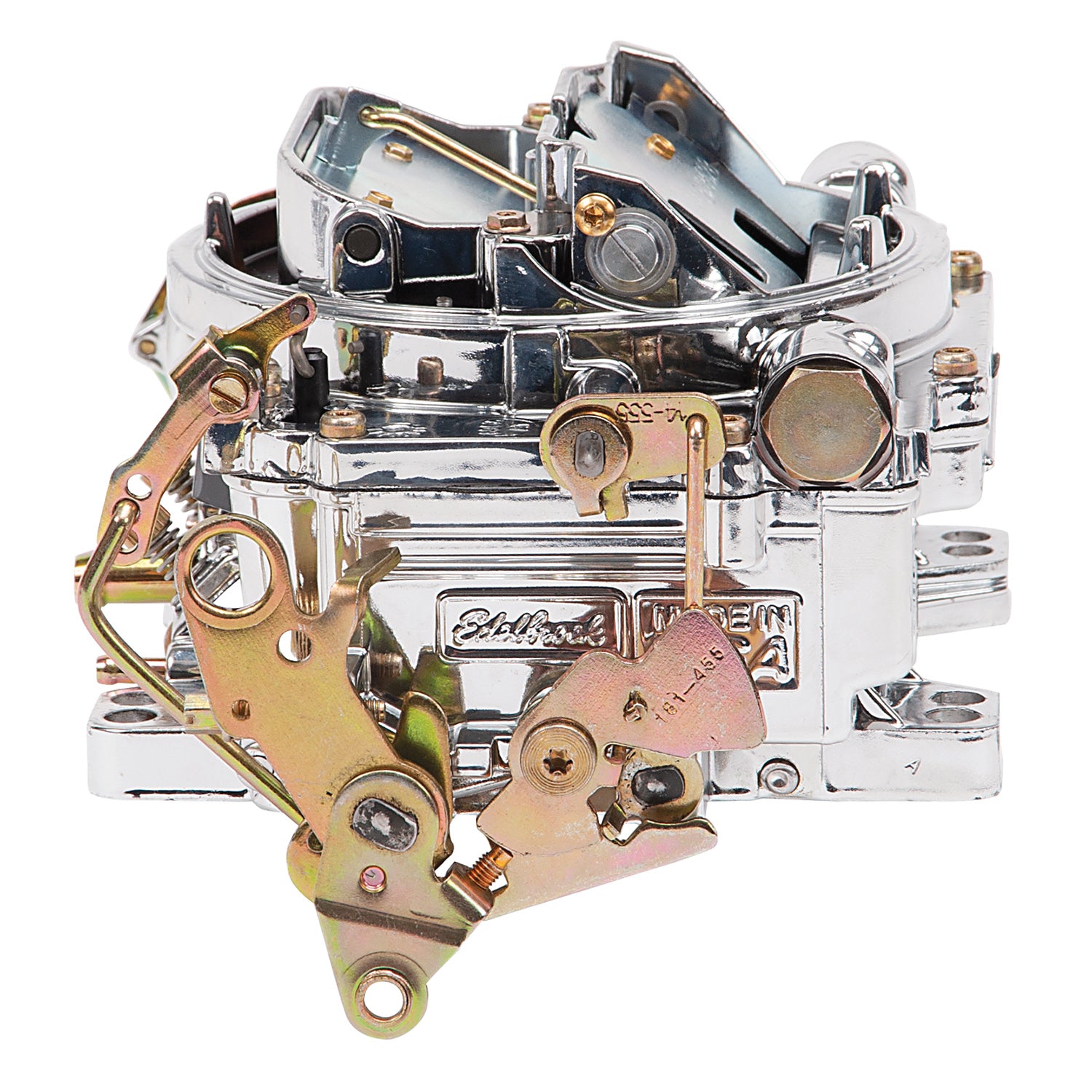

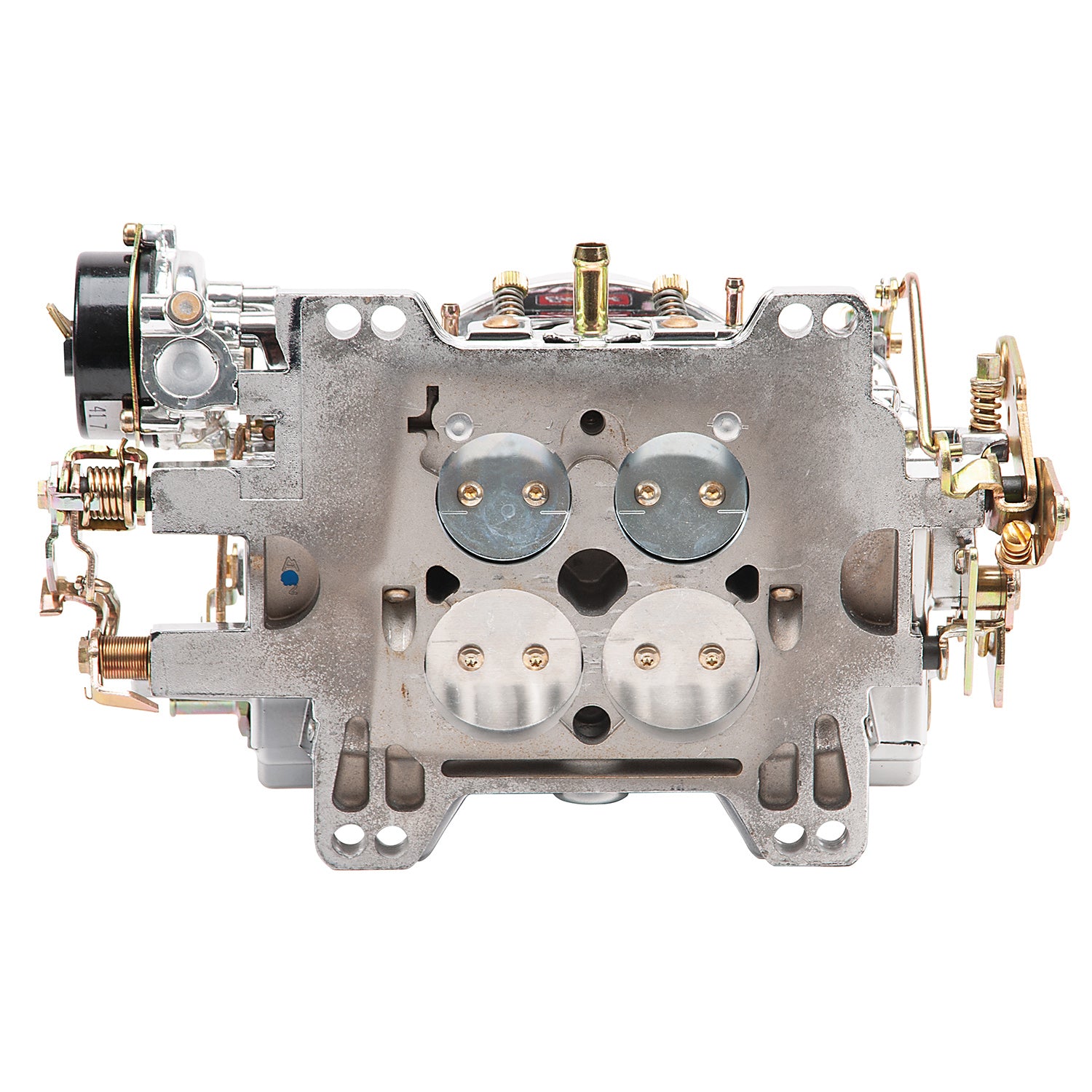

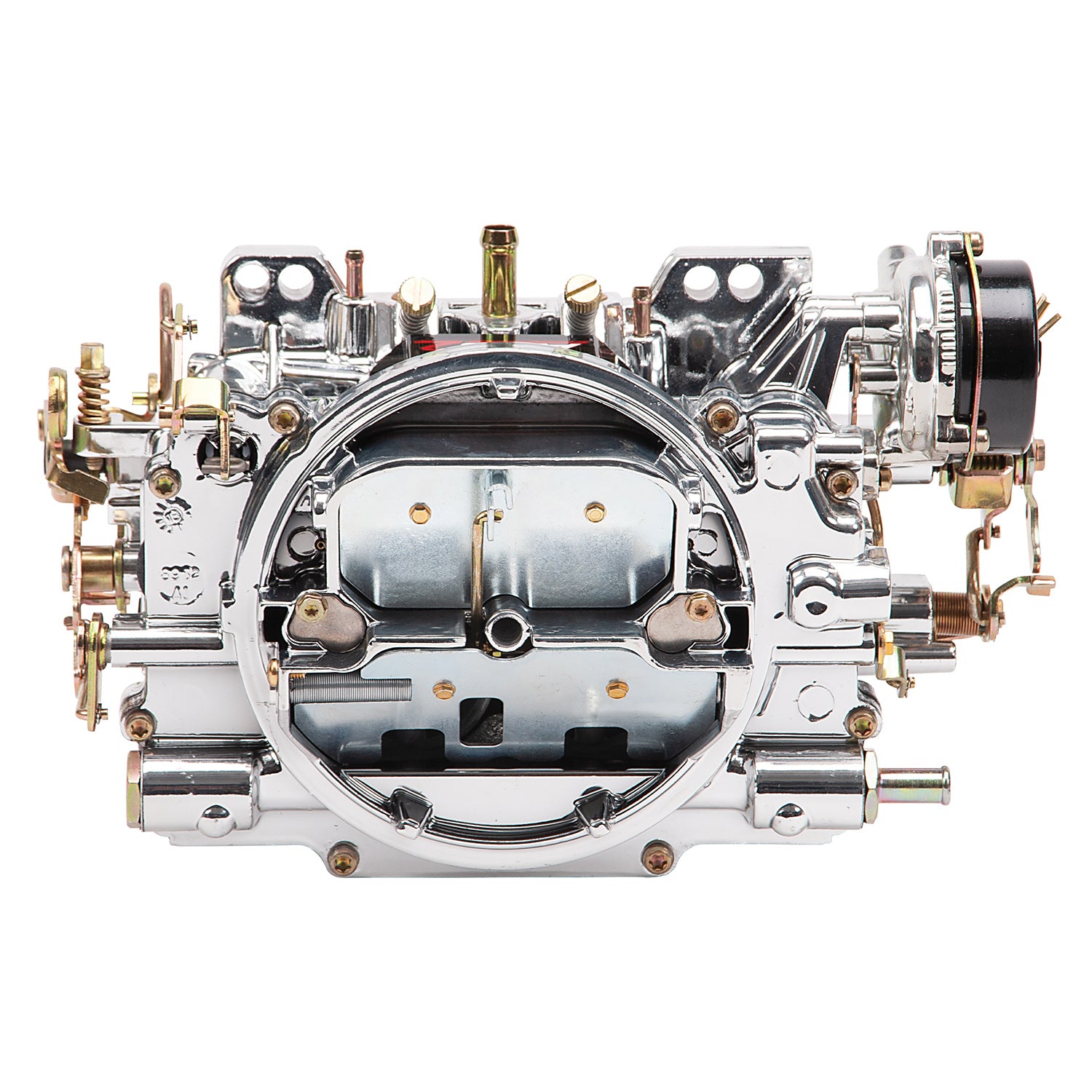

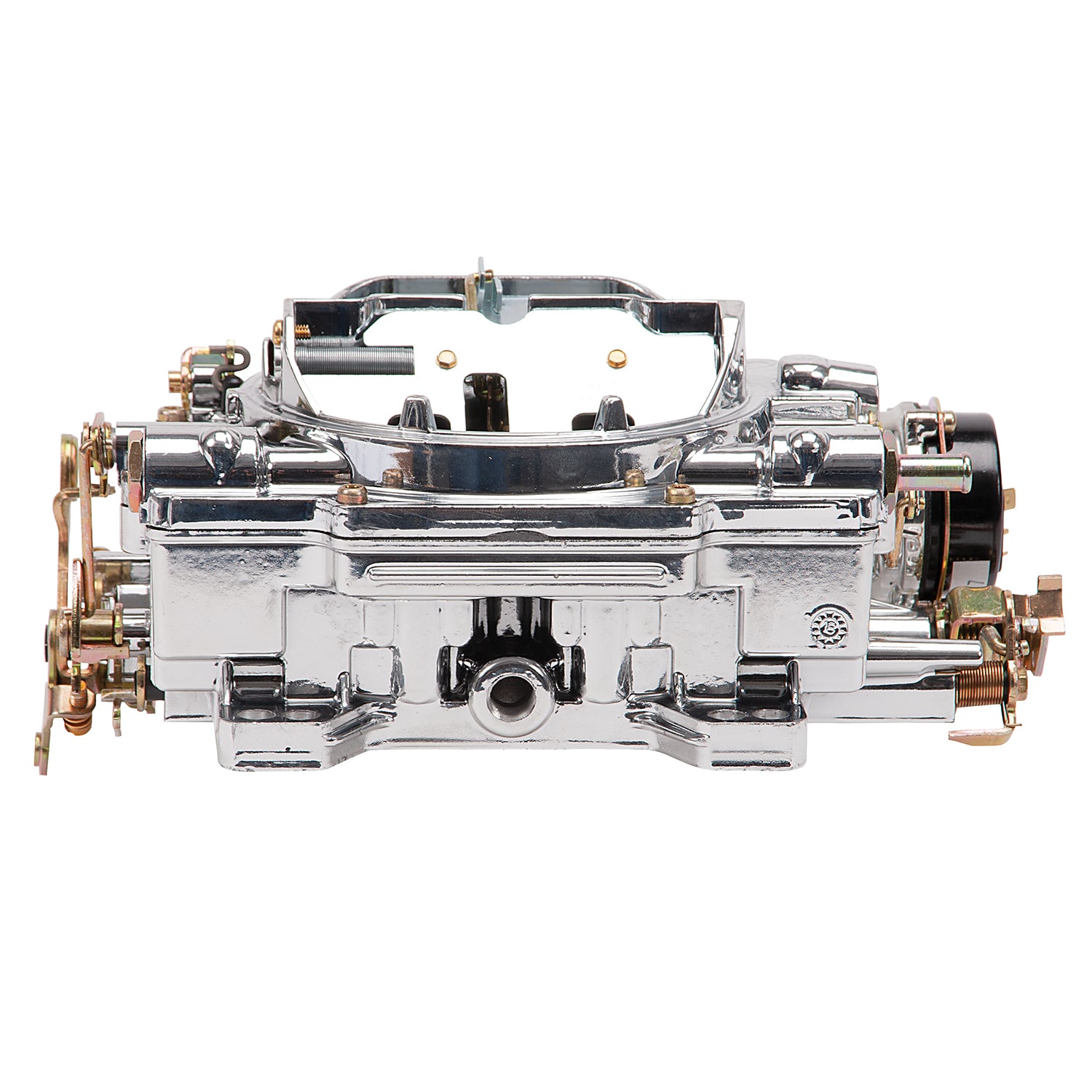

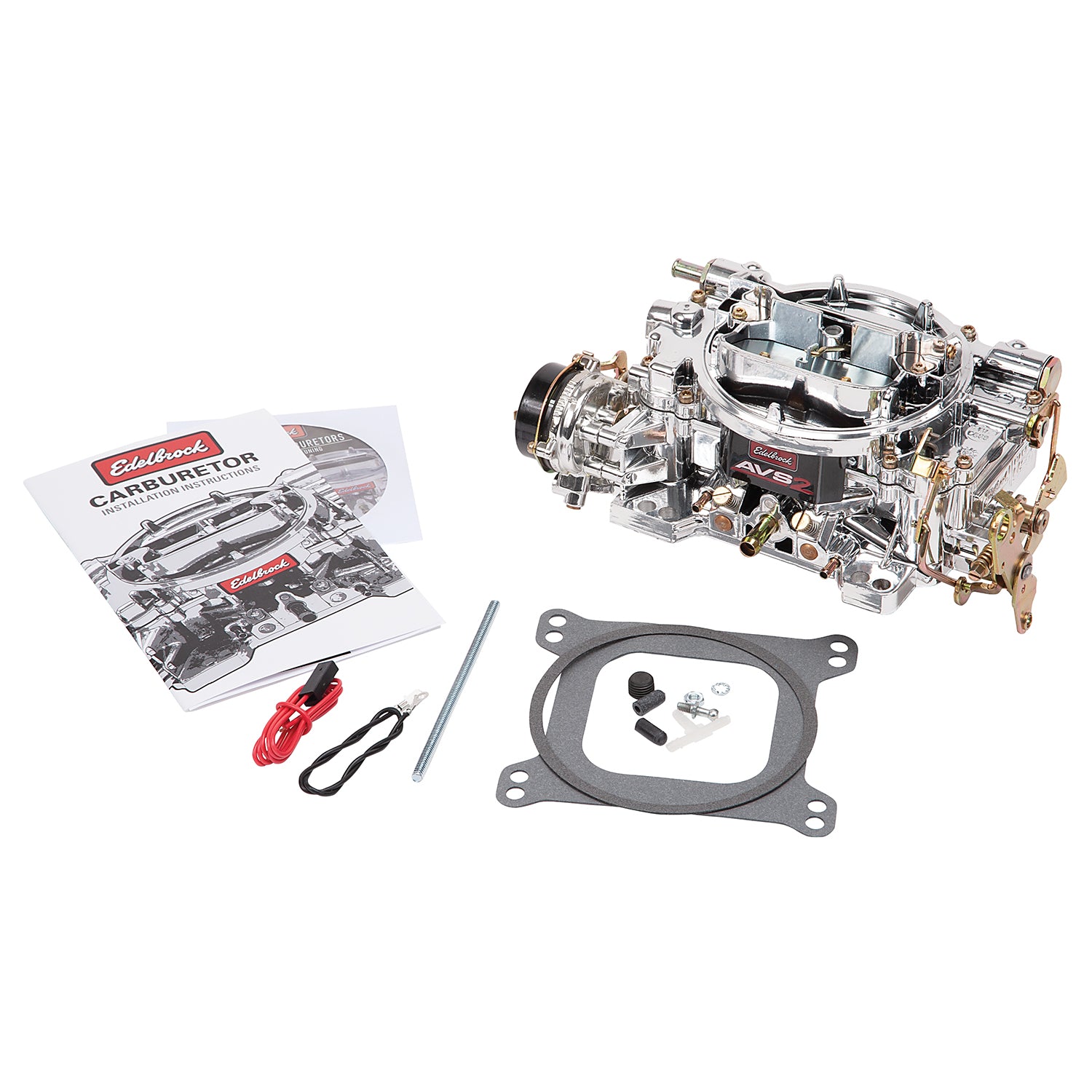

Edelbrock 19014 Avs2 500 Cfm Carburetor
Details

The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19014 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Specifications:

Description_ABR CARB
Description_DEF Carburetor
Description_LAB AVS2 Carburetor #19014 500 CFM With Electric Choke, EnduraShine Finish (Non-EGR)
Description_EXT The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.
Description_MKT The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19014 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
Description_INV Edelbrock AVS2 500 cfm Carburetor
Description_TRA Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000
Description_TRA Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.
Description_TRA The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
Description_TRA You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds
Recommended Use For Single Carb Applications
Metering Rod Size .070 x .052
Choke Type Electric
Secondary Jet Diameter 0.095
Gasket Or Seal Included Yes
Main Venturi Diameter 1.19
Finish EnduraShine
EGR Port No
Series AVS2
Bore Diameter Primary Bore 1.44; Secondary Bore 1.6875
Flange Shape Square
Material Aluminum
Barrel Quantity 4 Barrel
Booster Type annular
Maximum Flow Rating 500
Body Height 3.25
Spring Force 5" Hg (Orange)
Condition New
Primary Jet Diameter 0.095
RGL WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Length 7.0000
Width 7.0000
Height 13.0000
Weight 11.0000
