| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |
Engine Camshaft |
| Description_DES |

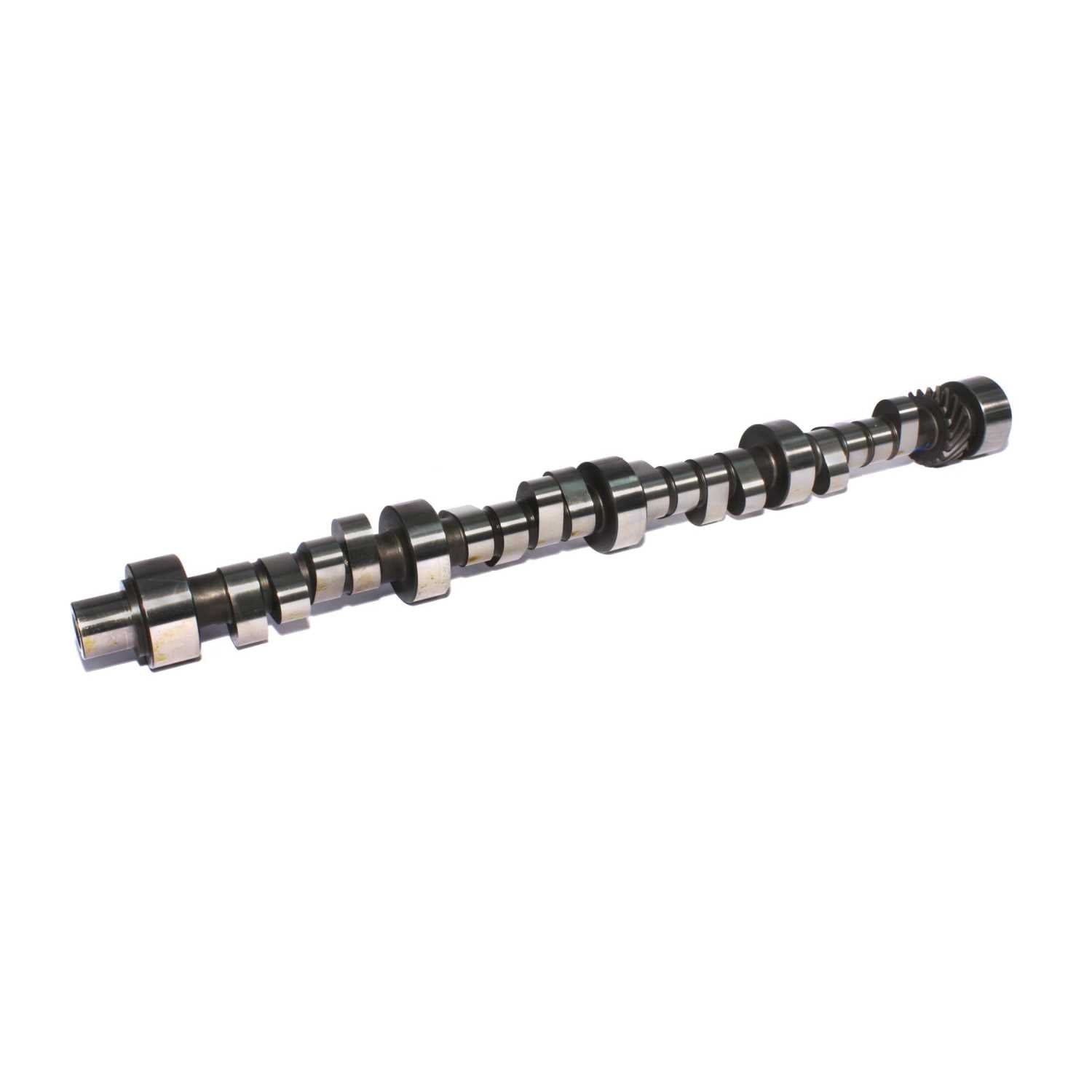

Xtreme Energy 248/254 Solid Roller Cam for Chrysler 273-360 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_INV |
XE 248/254 Solid Rollr Cam Chrys 273-360 |
| Description_EXT |
3300+ stall with 10:1 compression. Strong top end with a racey idle. |
| Description_MKT |
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_SHO |
XE 248/254 SRlrChrLA |
| Description_SHP |
None |
| Lifters Included |
No |
| Lifter Type |
Solid Roller |
| Title |
Xtreme Energy 248/254 Solid Roller Cam for Chrysler 273-360 |
| Exhaust Valve Lift |
0.582 |
| Usage |
Street/Performance |
| Camshaft Series |
Xtreme Energy |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| K-Kit Upgrade |
K20-740-9 |
| Assembly Lubricant Included |
No |
| Lobe Separation |
110 |
| Camshaft Material |
Billet Steel |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Amazon ASIN |
B000P5B8RY |
| Grind Number |
XR286R |
| Cam and Lifter Kit Upgrade |
CL20-740-9 |
| Camshaft Gear Attachment |
1-Bolt |
| Basic Operating RPM Range |
2,800-6800 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exemption Reason |
N/A |
| C.A.R.B. E.O. Number |
N/A |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Cam Type |
Solid Roller |
| Intake Duration at .050 Inch Lift |
248 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Valve Springs Required |
Yes |
| Advertised Exhaust Duration |
292 |
| Intake Valve Lift |
0.576 |
| Advertised Intake Duration |
286 |
| Exhaust Duration at .050 inch Lift |
254 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
10.0000 |
