| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |
Engine Camshaft |
| Description_DES |

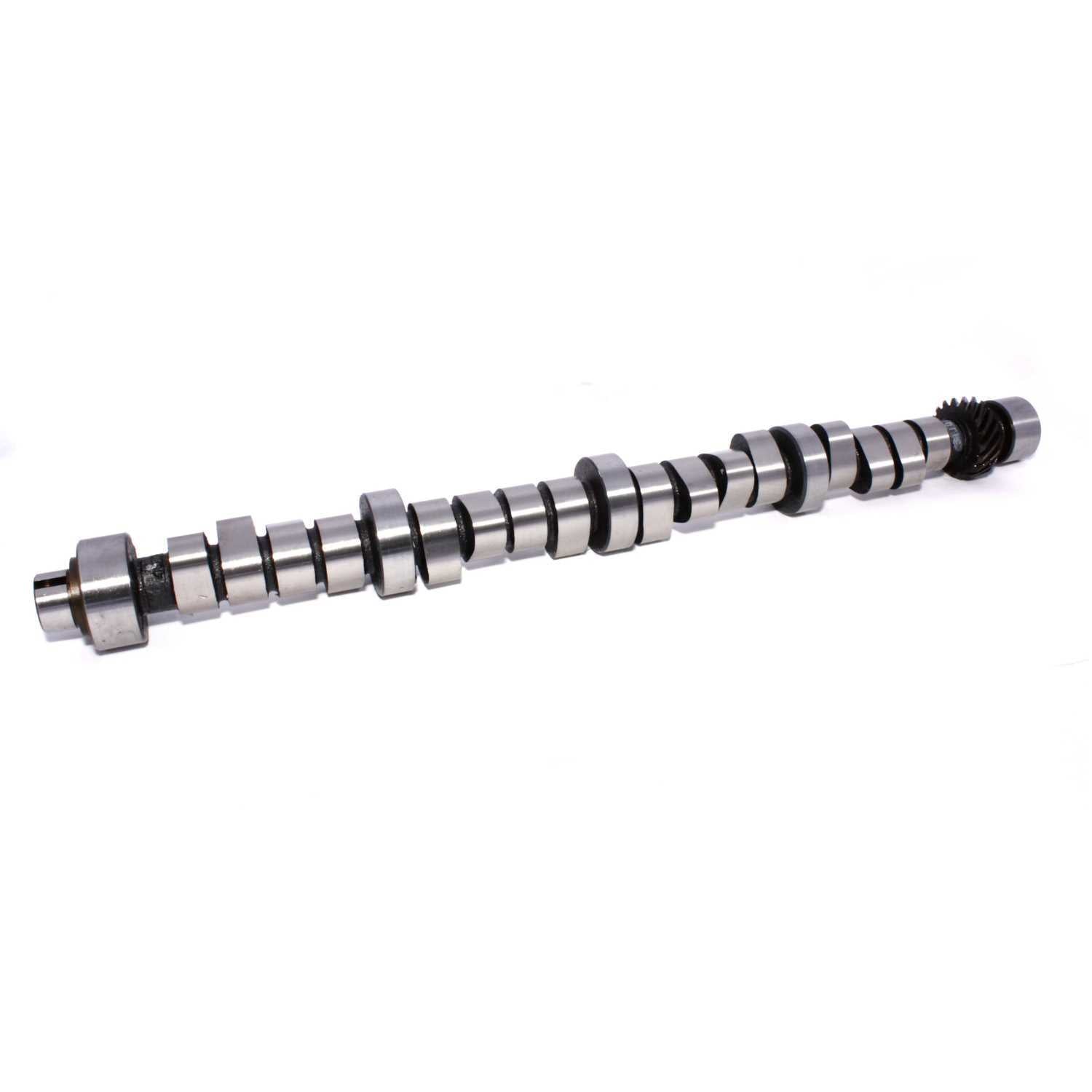

Magnum 262/262 Solid Roller Cam for Chrysler 273-360 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_INV |
Mag 262/262 S-Rlr Cam Chrysler 273-360 |
| Description_EXT |
Max effort street roller. 10:1+ compression with 750 CFM carb on aftermarket intake. 4.30-4.88 gear suggested with 4000-4500+ converter. Headers. |
| Description_SHO |
Mag 262/262SRlrChrLA |
| Description_MKT |
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. |
| Description_SHP |
None |
| Camshaft Gear Attachment |
1-Bolt |
| C.A.R.B. E.O. Number |
N/A |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Amazon ASIN |
B000P595GU |
| Exhaust Duration at .050 inch Lift |
262 |
| C.A.R.B. Exemption Reason |
N/A |
| Cam Type |
Solid Roller |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lifters Included |
No |
| Valve Springs Required |
Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Intake Valve Lift |
0.575 |
| Basic Operating RPM Range |
4,000-7200 |
| SK-Kit Upgrade |
SK20-702-9 |
| Lobe Separation |
110 |
| Grind Number |
308R |
| Lifter Type |
Solid Roller |
| Camshaft Series |
Magnum |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Advertised Exhaust Duration |
308 |
| Advertised Intake Duration |
308 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| K-Kit Upgrade |
K20-702-9 |
| Cam and Lifter Kit Upgrade |
CL20-702-9 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Exhaust Valve Lift |
0.575 |
| Camshaft Material |
Billet Steel |
| Assembly Lubricant Included |
No |
| Title |
Magnum 262/262 Solid Roller Cam for Chrysler 273-360 |
| Usage |
Street/Strip |
| Intake Duration at .050 Inch Lift |
262 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
10.0000 |
