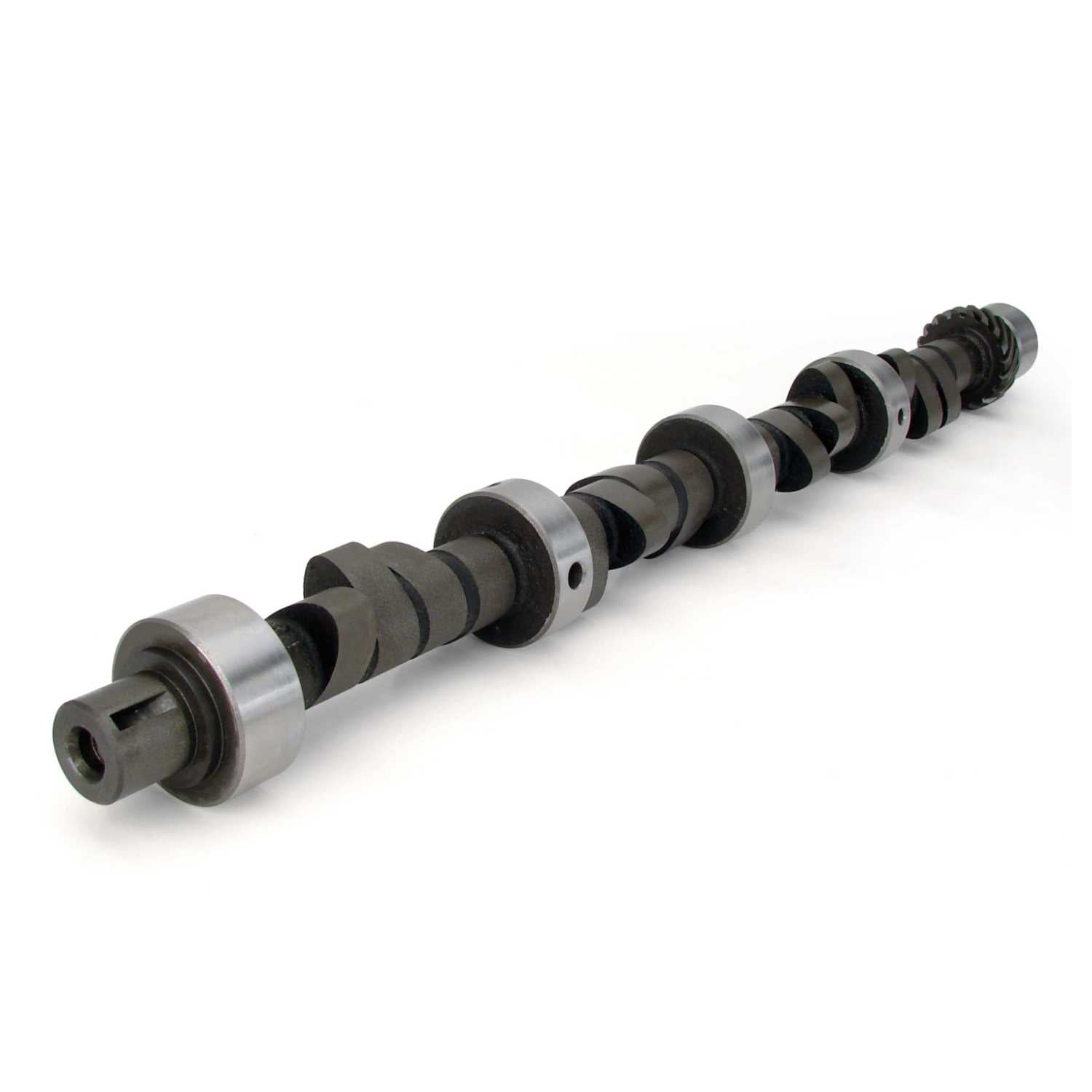

COMP Cams 20-244-4 Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360

2 sold in last 8 days
COMP Cams
ds_BDQQ_20-244-4
Out of stock
Engine Camshaft
$347.36
customers are viewing this product
Ram Clutch 60-2300 Pro Street Dual Disc
Ram Clutch 60-2300 Pro Street Dual Disc
$3,229.85
Edelbrock 12382 Fuel Bowl Gasket Pair
Edelbrock 12382 Fuel Bowl Gasket Pair
$16.51
COMP Cams 20-244-4 Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360
Details

Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb.

Specifications:

Description_ASM Fits Chrysler 273, 318, 340 and 360 LA
Description_DEF Engine Camshaft
Description_DES Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360
Description_KEY 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Description_INV Mag 253/253 H-Flat Cam Chrysler 273-360
Description_EXT Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb.
Description_SHP None
Description_SHO Mag 253/253 HFTChrLA
Amazon ASIN B000P5DCJ6
Assembly Lubricant Included Yes
Valve Springs Required Yes
Basic Operating RPM Range 3,500-6,800
Engine Family Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Intake Valve Lift 0.525
Title Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360
Advertised Intake Duration 305
Camshaft Material Cast Iron
Grind Number 305H
Camshaft Gear Attachment 1-Bolt
Intake Duration at .050 Inch Lift 253
Advertised Exhaust Duration 305
C.A.R.B. Exempt for On-Road Vehicles? No
Exhaust Duration at .050 inch Lift 253
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? Yes, but must be a race/competition only vehicle.
K-Kit Upgrade K20-244-4
Cam and Lifter Kit Upgrade CL20-244-4
Cam Type Hydraulic Flat Tappet
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exemption Reason N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? Yes, but must meet tailpipe emission standards for year of vehicle.
Camshaft Series Magnum
Lifter Type Hydraulic Flat Tappet
Usage Street/Strip
Exhaust Valve Lift 0.525
Lobe Separation 110
California Proposition 65 WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Lifters Included No
C.A.R.B. E.O. Number N/A
SK-Kit Upgrade SK20-244-4
Length 3.0000
Width 3.0000
Height 23.0000
Weight 9.0000
