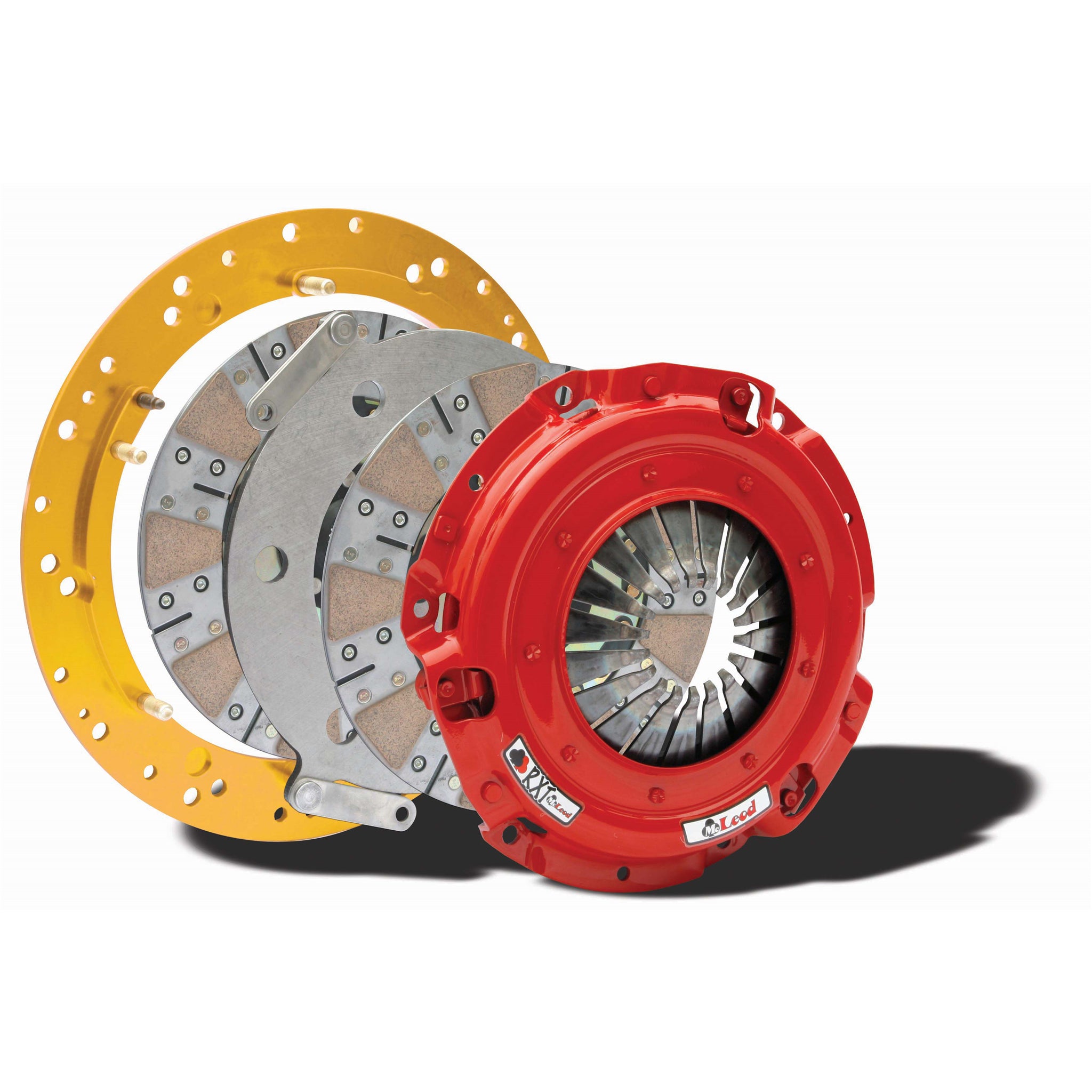

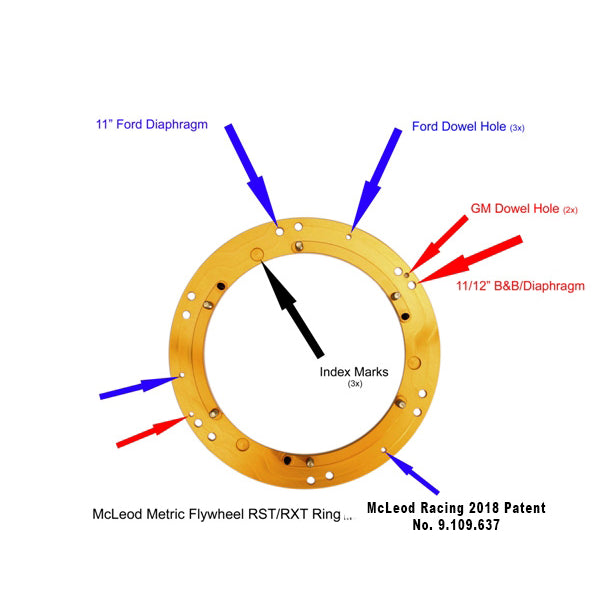

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars
Specifications:
| Description_ASC |
NOTE: 2011-Up Factory Flywheel with 9 Bolt pressure Plate Pattern will not work with this clutch! Please call McLeod Tech Line for more info 714-630-2764 |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT:9.687" Dia. Disc:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/4x14 |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars |
| Description_INV |
Clutch Kit |
| Description_EXT |
RXT:9.687" Dia. Disc:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/4x14:Must use with internalhydraulic bearing. |
| Description_SHO |
Clutch Kit |
| Flywheel Material |
N/A |
| Engine |
GM 1997-04 LS1/LS6 |
| Ring Gear |
N/A |
| Engine 2 |
Ford 2001-17 4.6L/5.0L/5.4L |
| Additional Counter Weight Kit Required |
No |
| Number of Discs |
Double |
| Engine Balance |
Neutral |
| Pilot Bushing Included |
No |
| Make |
GM, Ford |
| Clutch Patterns 2 |
11In. Mustang with Dowel Pins |
| Alignment Tool Included |
Yes |
| Hub Style |
Solid |
| Throwout Bearing Included |
No |
| Pilot Bushing Material |
N/A |
| Hardware Included |
Yes |
| Disc Diameter |
9.687In. |
| Throwout Bearing Style |
Standard |
| Flywheel Included |
No |
| Clutch Patterns |
11In./12In. Borg & Beck with Dowel Pins and 10mm Bolts |
| Disc Style |
Full Face |
| Disc Material |
Organic |
| Torque Rating |
1000 Ft. Lbs. |
| Spline |
1-1/4 x 14 |
| Pressure Plate Style |
Diaphragm |
| Clutch Usage |
Street/Strip |
| Length |
5.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
26.0000 |
