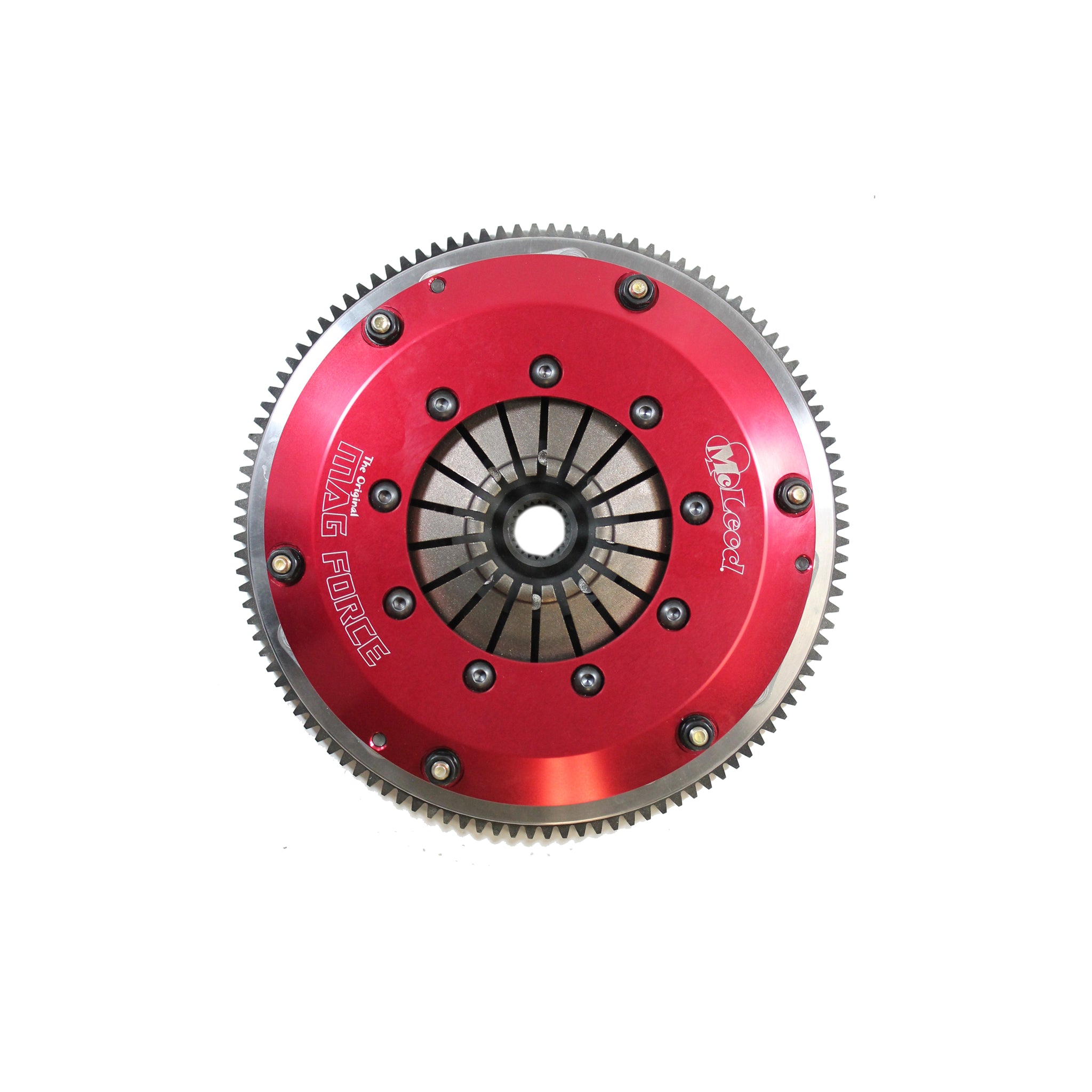

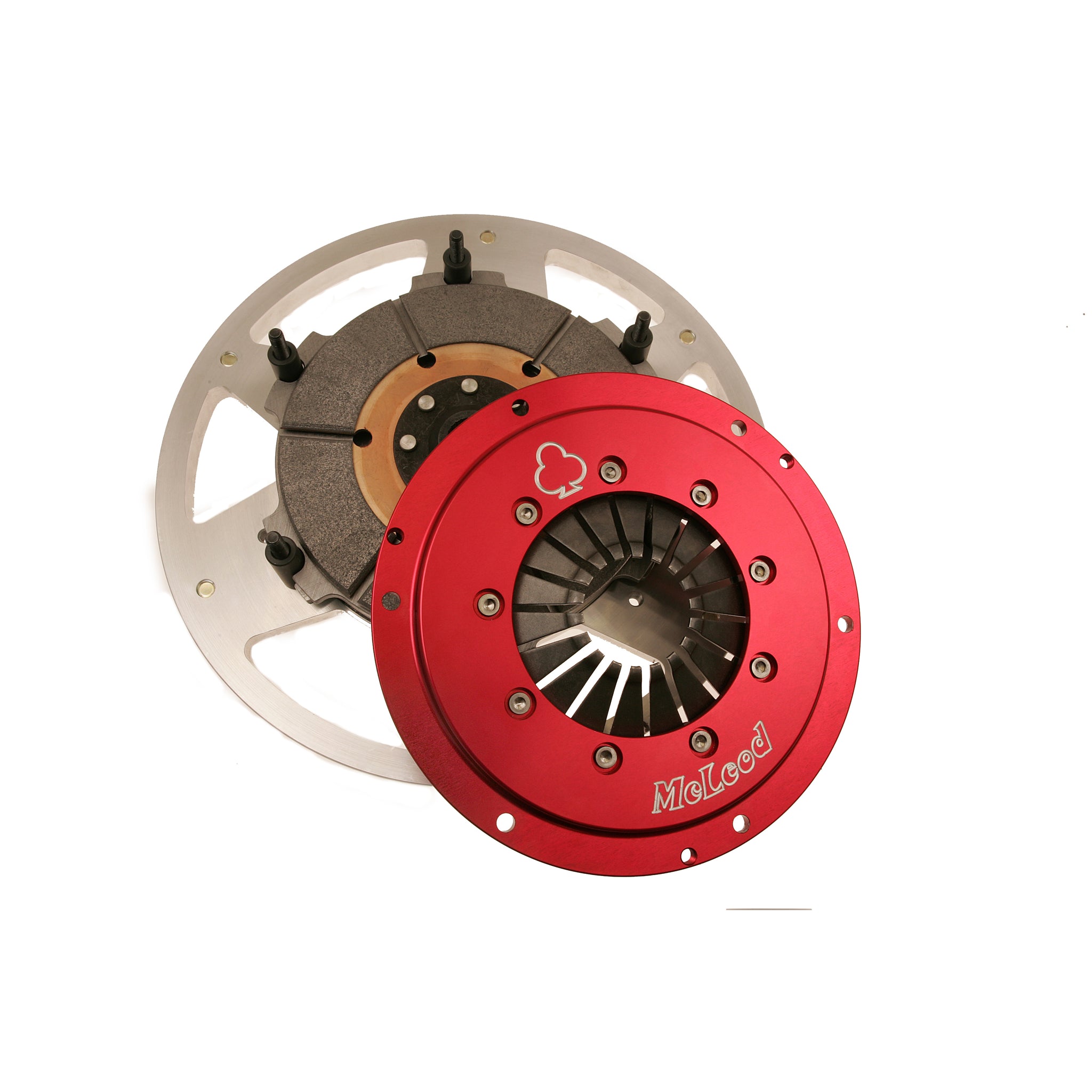

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force:Double Disc:Steel:Pin Drive:1974-02 13B Turbo: 1x23 Metric |
| Description_EXT |
Mag Force:Double Disc:Steel:Pin Drive:1974-02 13B Turbo: 1x23 Metric |
| Description_INV |
Clutch Kit |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Flywheel Included |
Yes |
| Torque Rating |
900 Ft. Lbs. |
| Pressure Plate Style |
Diaphragm |
| Spline |
1 x 23 Metric |
| Make |
Mazda |
| Clutch Usage |
Drag Racing |
| Clutch Patterns |
Proprietery McLeod Mag Force |
| Disc Style |
Segmented |
| Throwout Bearing Style |
Standard |
| Hardware Included |
Yes |
| Hub Style |
Solid |
| Additional Counter Weight Kit Required |
N/A |
| Disc Material |
Sintered Iron |
| Pilot Bushing Material |
N/A |
| Pilot Bushing Included |
No |
| Alignment Tool Included |
Yes |
| Number of Discs |
Double |
| Throwout Bearing Included |
No |
| Disc Diameter |
8In. |
| Flywheel Material |
Steel |
| Engine Balance |
Neutral |
| Ring Gear |
NO RING GEAR |
| Engine |
13B Rotary Turbo |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
