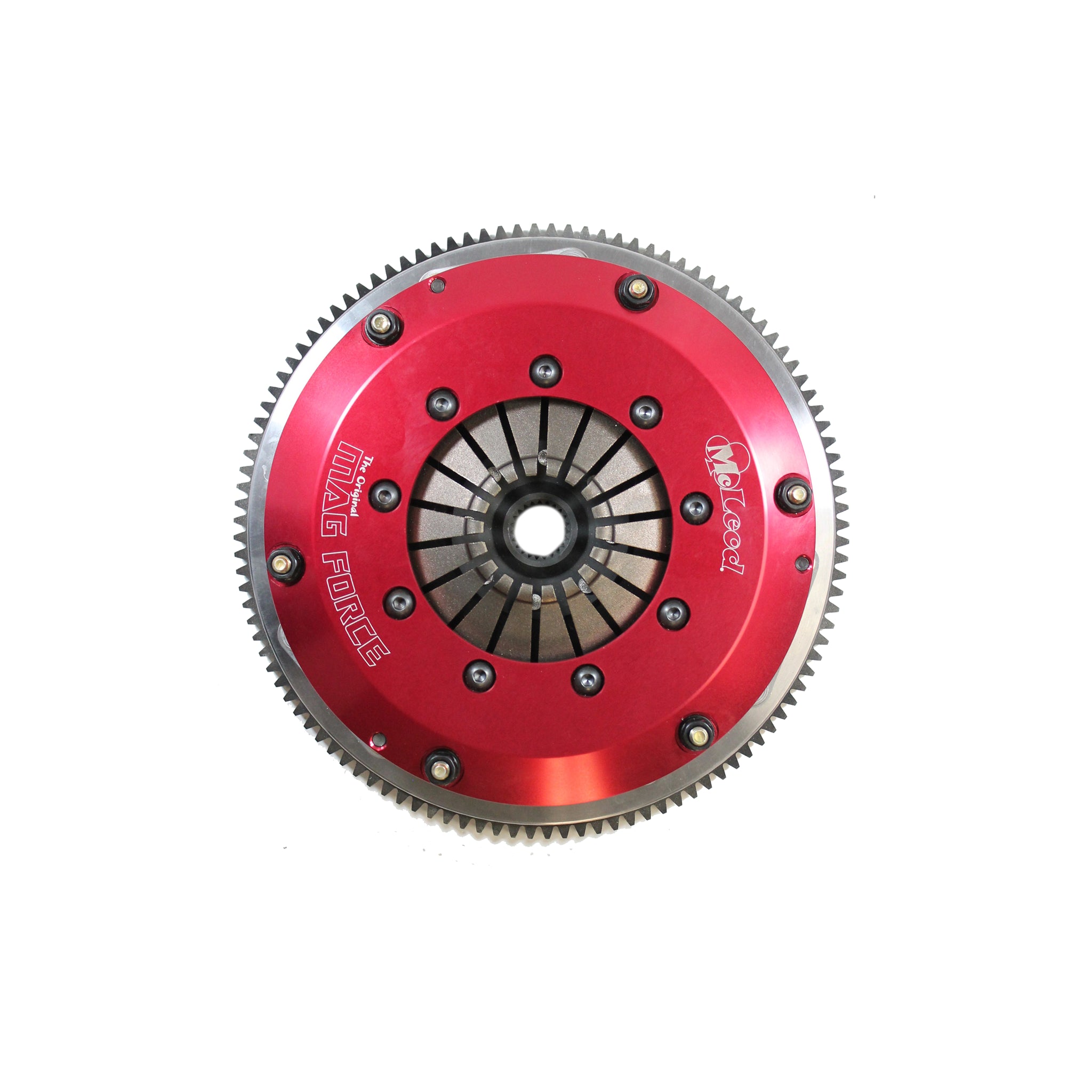

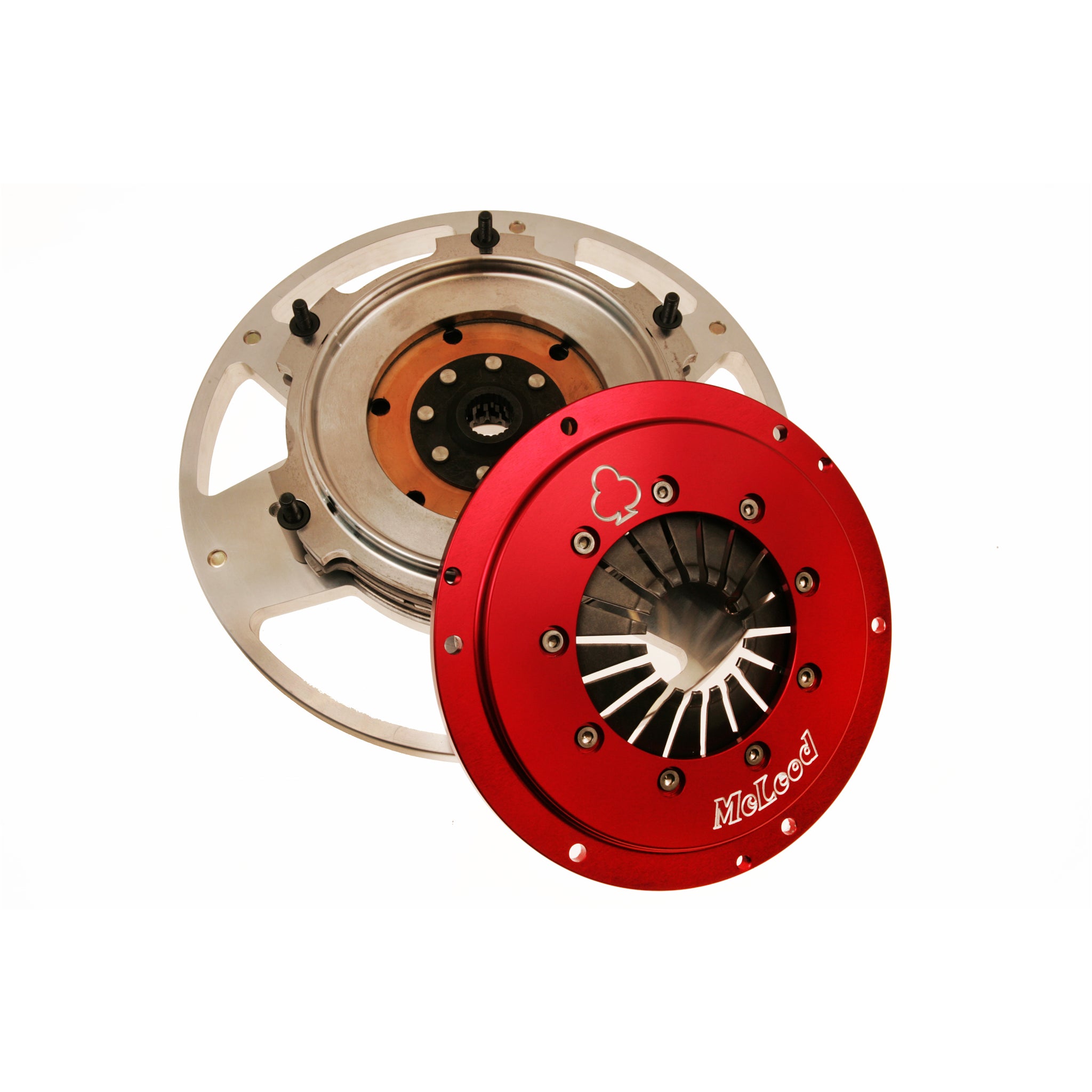

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Double Disc: Pin Drive: Ford: 1996-04 4.6L: 8 Bolt: 1-1/16x10: 164T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Double Disc: Pin Drive: Ford: 1996-04 4.6L: 8 Bolt Crank: 1-1/16x10: 164T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Hardware Included |
Yes |
| Pilot Bushing Material |
N/A |
| Disc Diameter |
8In. |
| Flywheel Material |
Aluminum |
| Racing Application |
Road Race & Slalom Racing |
| Throwout Bearing Included |
No |
| Flywheel Included |
Yes |
| Make |
Ford |
| Number of Discs |
Double |
| Engine |
1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank |
| Clutch Usage |
Drifting |
| Disc Material |
Sintered Iron |
| Spline |
1 1/16In. x 10 |
| Engine Balance |
Internal Balance |
| Pilot Bushing Included |
No |
| Throwout Bearing Style |
Standard |
| Disc Style |
Puck Style |
| Alignment Tool Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
22.0000 |
