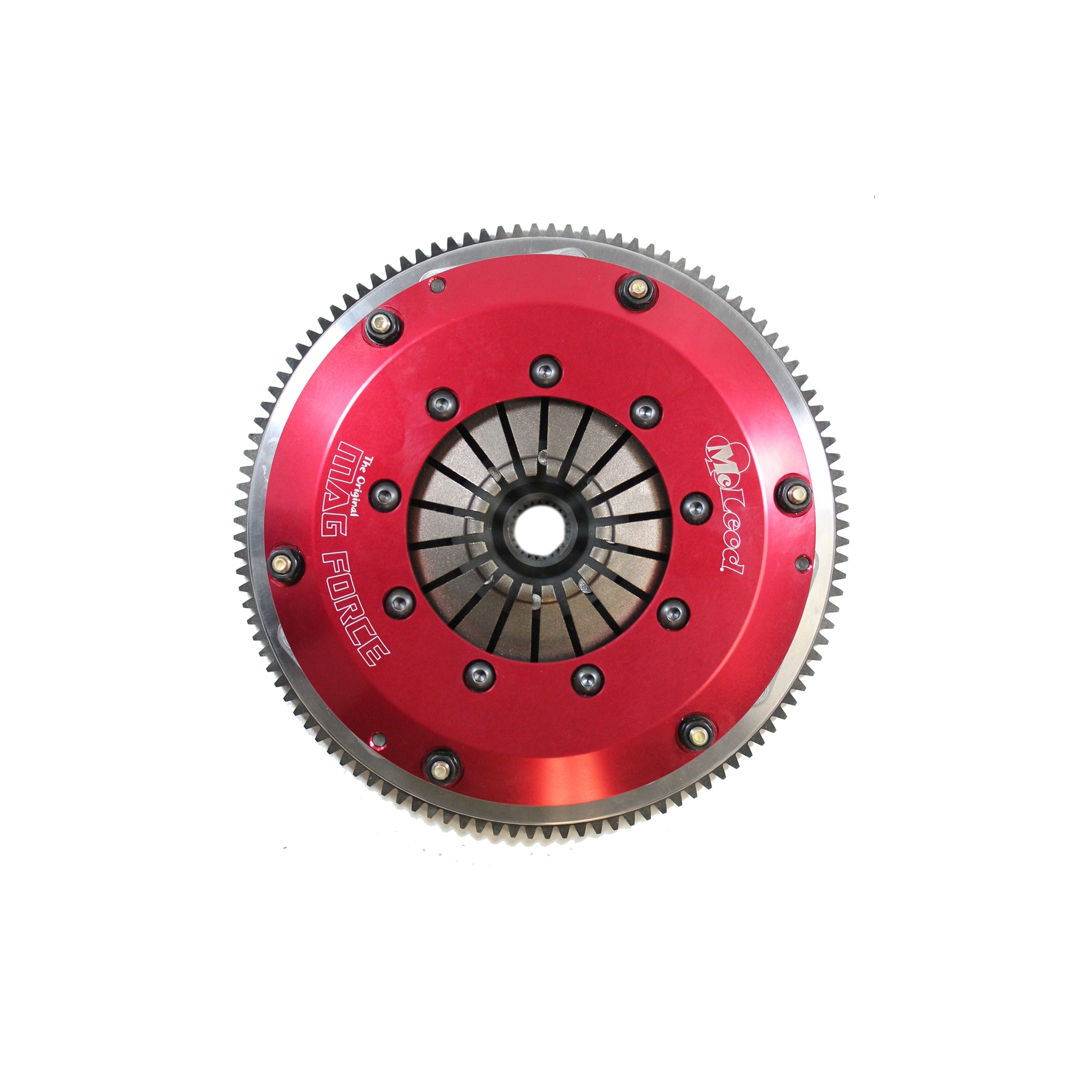

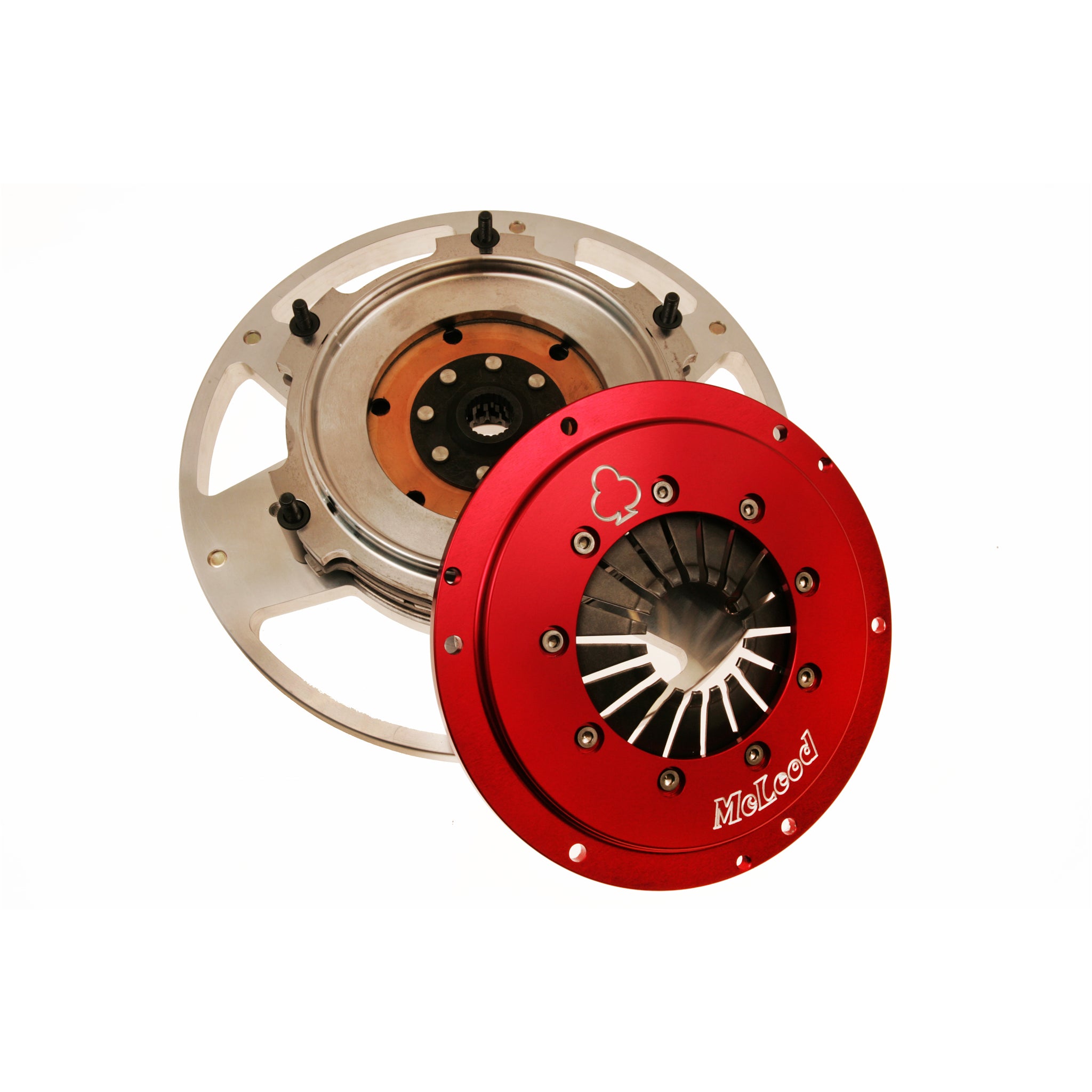

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Double Disc: Pin Drive: Ford: 1963-95 SBF: 1-1/8x10: 164T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Double Disc: Pin Drive: Ford: 1963-95 SBF: 1-1/8x10: 164T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Flywheel Included |
Yes |
| Disc Style |
Segmented |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Balance |
Internal Balance |
| Make |
Ford |
| Spline |
1-1/8 x 10 |
| Ring Gear |
164 tooth |
| Throwout Bearing Included |
No |
| Engine Balance |
For External Balance use 563333 Kit |
| Disc Material |
Sintered Iron |
| Engine |
1964-1995 SBF |
| Racing Application |
Road Race & Slalom Racing |
| Flywheel Material |
Aluminum |
| Hardware Included |
Yes |
| Disc Diameter |
8In. |
| Racing Application 2 |
Drifting |
| Pilot Bushing Included |
No |
| Throwout Bearing Style |
Standard |
| Pilot Bushing Material |
N/A |
| Alignment Tool Included |
Yes |
| Number of Discs |
Double |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
25.0000 |
