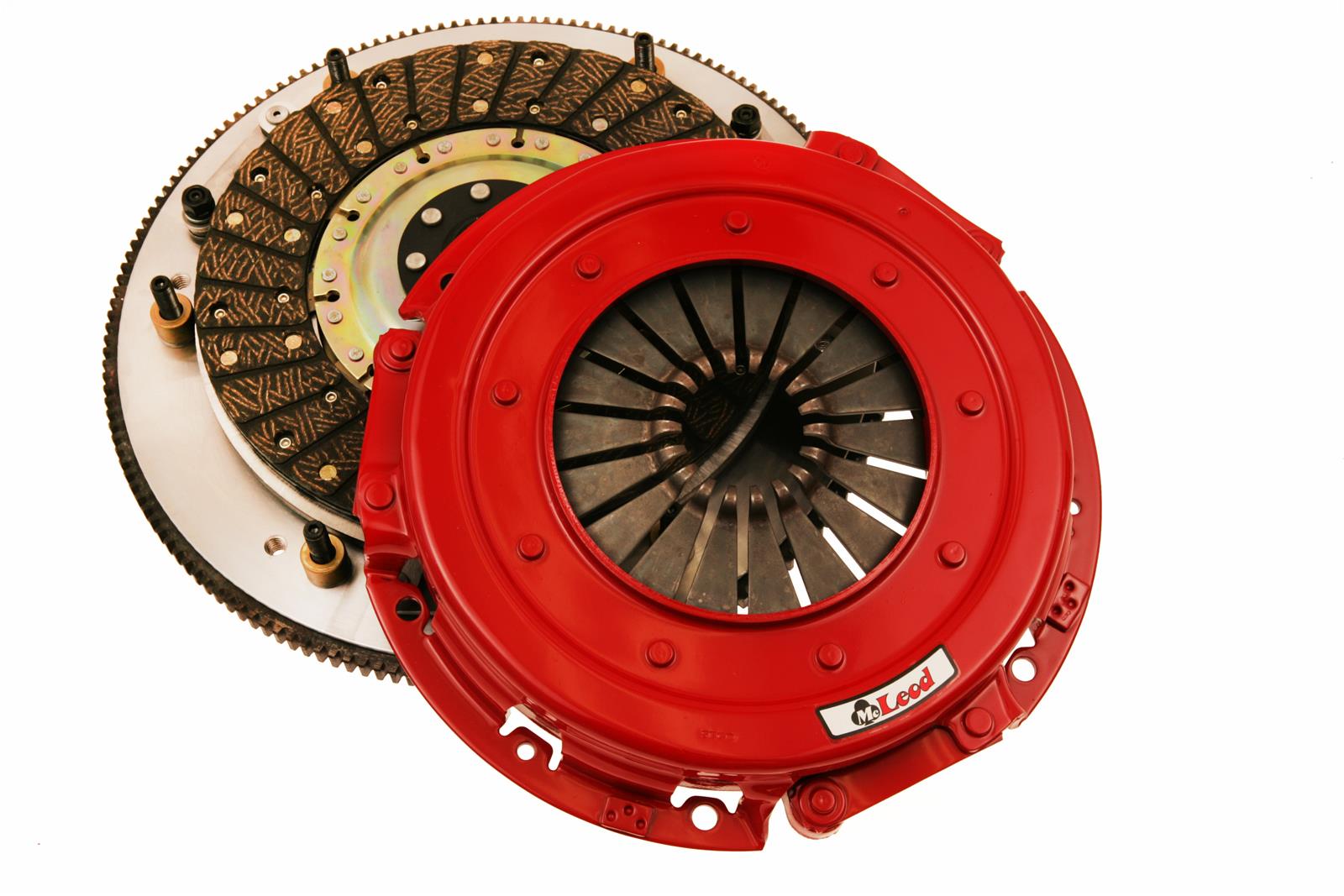

In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!
Specifications:
| Description_DES |
Original Street Twin: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 1-3/8x10 |
| Description_DEF |
Transmission Clutch Kit |
| Description_INV |
Clutch Kit |
| Description_EXT |
Original Street Twin: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 1-3/8x10 |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_MKT |
In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing! |
| Description_SHO |
Clutch Kit |
| External Balance Weight Kit |
560222 |
| Disc Diameter |
10.5In. |
| Application |
Chevrolet 1955-85 SBC; 1970-2006 BBC |
| Hardware Included |
Yes |
| Pilot Bushing Included |
No |
| Flywheel Included |
Yes |
| Flywheel Material |
Steel |
| Make |
Chevrolet |
| Pilot Bushing Material |
N/A |
| Ring Gear |
168T |
| Alignment Tool Included |
Yes |
| Disc Material |
Ceramic/Ceramic |
| Horsepower Rating |
1200 |
| NOTE 2: |
This unit comes with a aftermarket spline input-shaft that is not standard for this application. For more info please call McLeod Tech at 714-630-2764 |
| NOTE: |
The Clutch will not work with mechanical linkage. You must run our internal hydraulic bearing. Give McLeod Tech a call at 714-630-2764 for more info. |
| Number of Discs |
Double |
| Pressure Plate Style |
Diaphragm |
| Spline |
1-3/8 x 10 |
| Throwout Bearing Included |
No |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
50.0000 |
