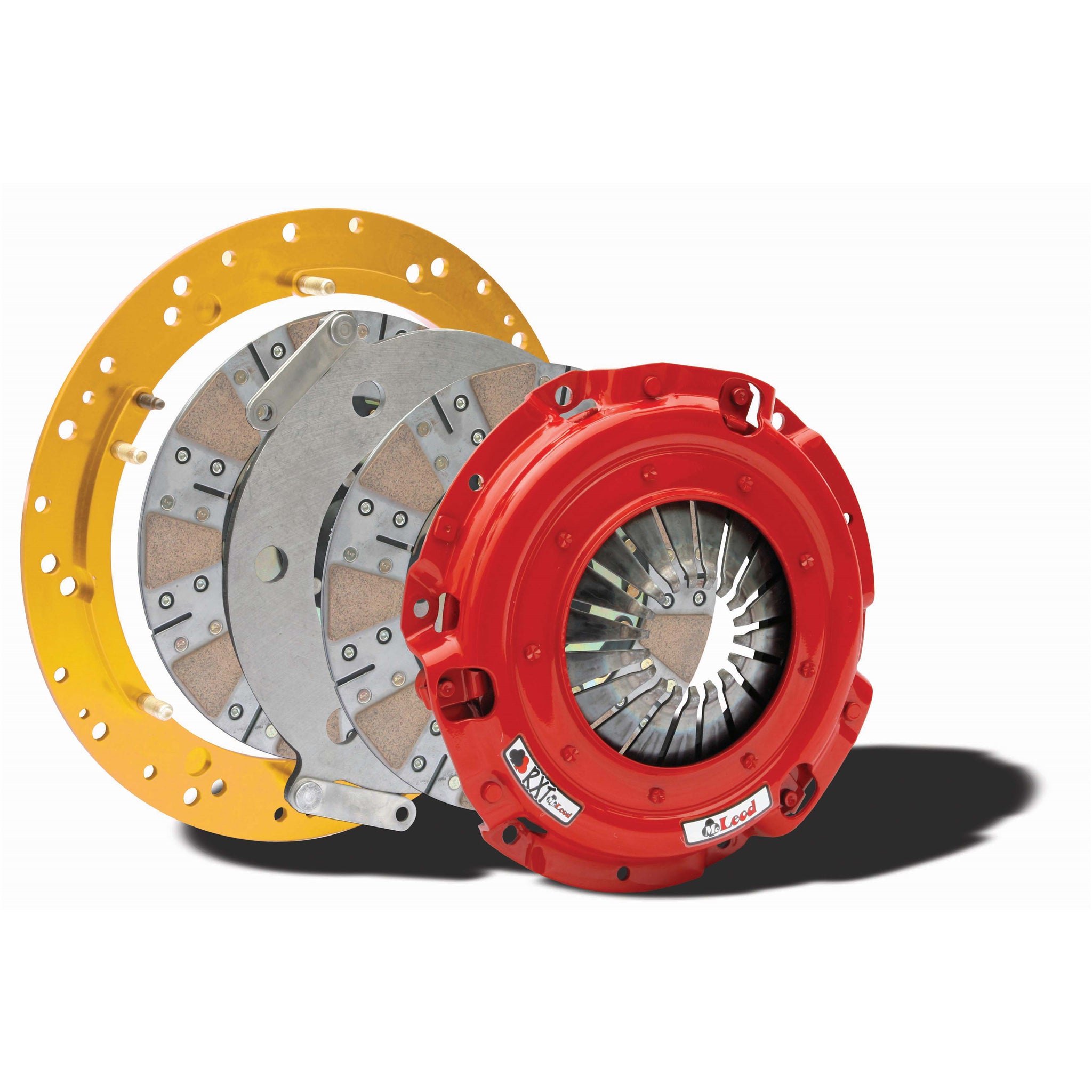

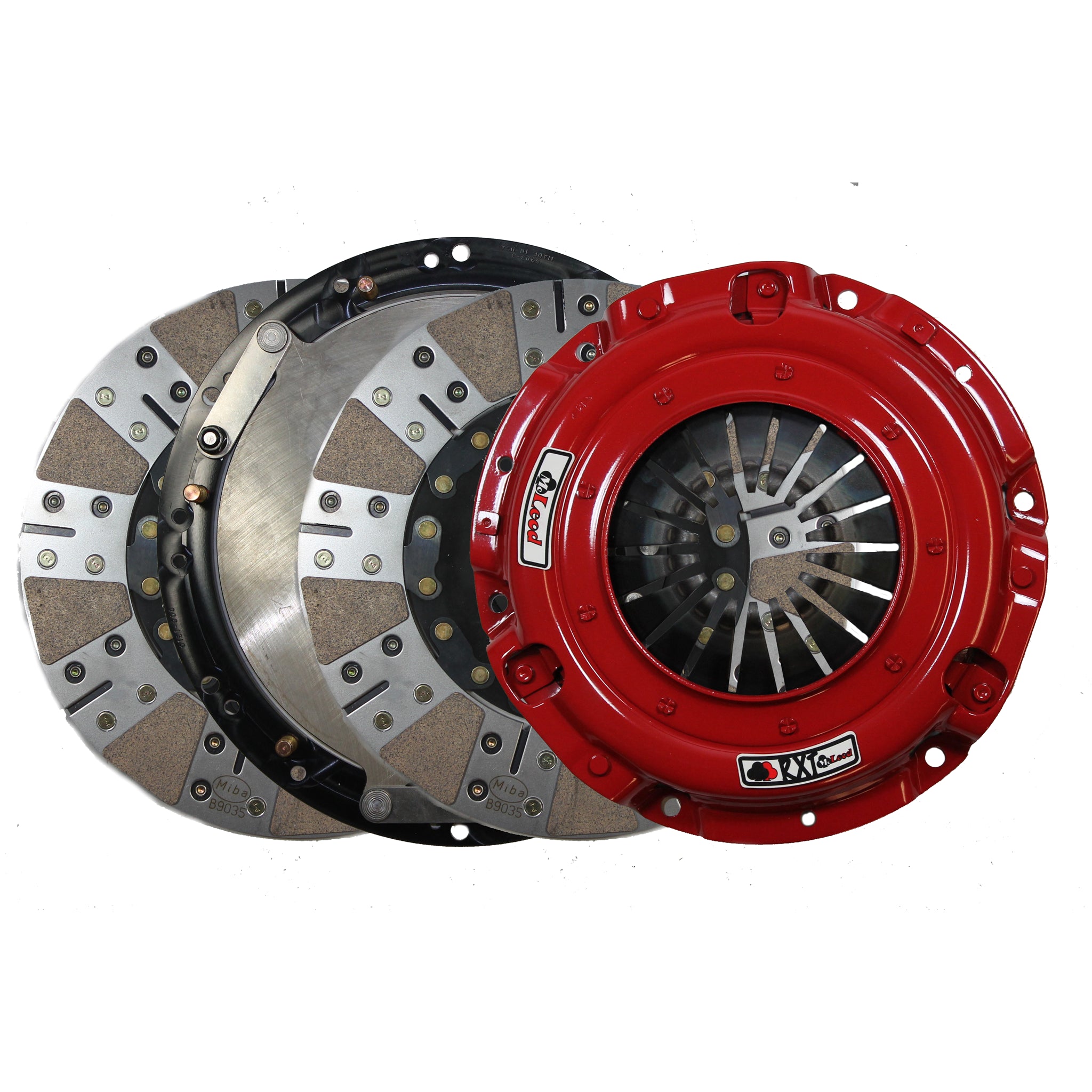

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT Twin Disc: Aluminum Flywheel: Chevrolet: 2009-Up LS-X 9 Bolt: 168T: 1-1/8x26 |
| Description_EXT |
RXT Twin Disc: Aluminum Flywheel: Chevrolet: 2009-Up LS-X 9 Bolt Crank: 168T: 1-1/8x26: RETRO FIT APPLICATIONS ONLY! |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Flywheel Material |
Aluminum |
| Ring Gear |
168 tooth |
| Hardware Included |
Yes |
| Flywheel Included |
Yes |
| Disc Diameter |
9-11/16In. |
| Engine |
2010-2013 LS9 6.2L |
| Pilot Bushing Material |
N/A |
| Pressure Plate Style |
Diaphragm |
| Number of Discs |
Double |
| NOTE: |
This clutch kit is for retro fit applications only! Will not fit original car with LS9 engine. |
| Spline |
1 1/8In. x 26 |
| Throwout Bearing Style |
Standard |
| Alignment Tool Included |
Yes |
| Make |
Chevrolet |
| Clutch Patterns |
RST/RXT Steel Adapter Plate Pattern |
| Throwout Bearing Included |
No |
| Pilot Bushing Included |
No |
| Horsepower Rating |
1000 |
| Engine Balance |
Internal Balance |
| Disc Material |
Ceramic |
| Hub Style |
Solid |
| Clutch Usage |
Street |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
42.0000 |
