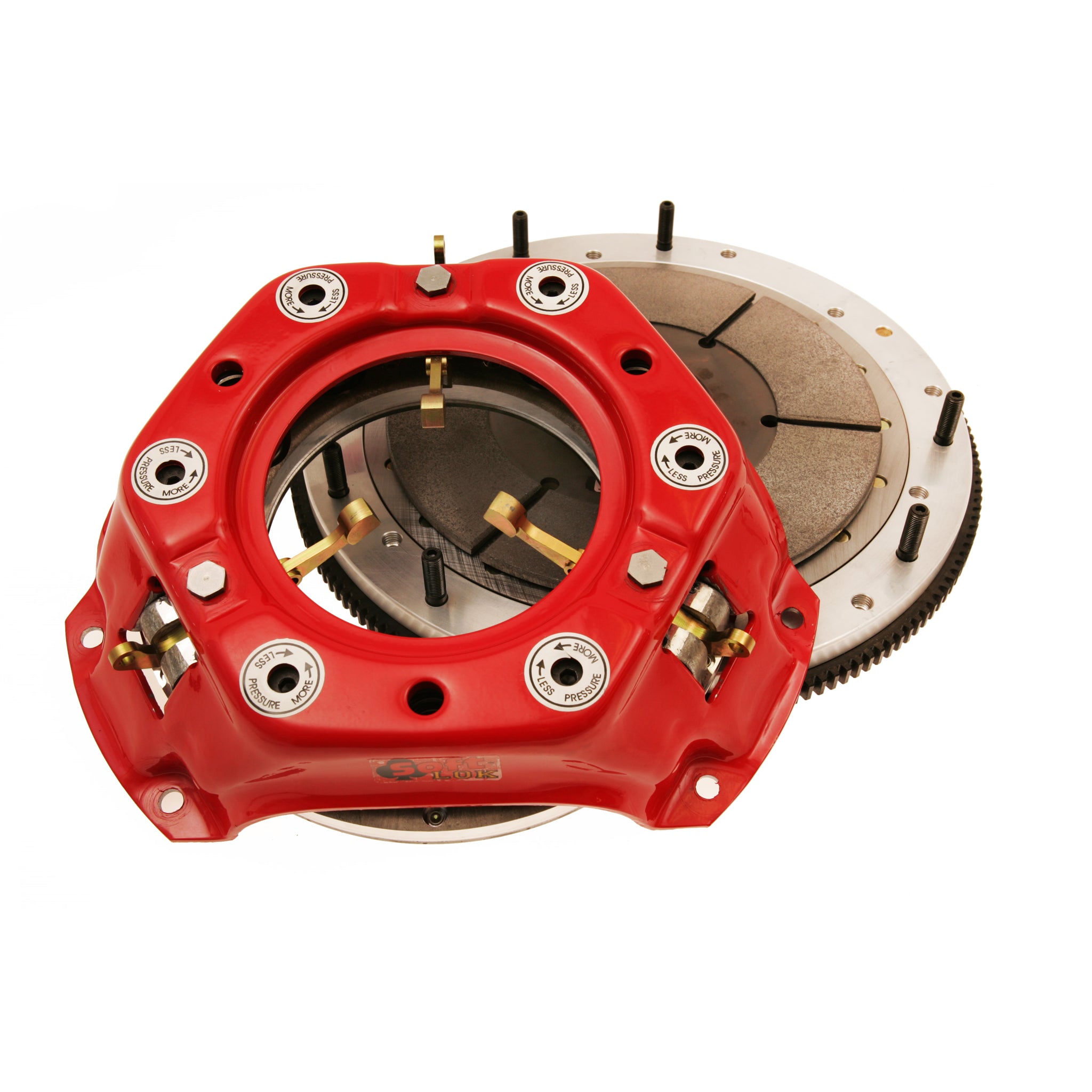

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum Flywheel: Ford: 302/351: 11 X 1-3/16 X 18: 164T |
| Description_EXT |
Soft Lok: Aluminum Flywheel: Ford: 302/351: 11 X 1-3/16 X 18: 164T |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Throwout Bearing Style |
Standard |
| Hub Style |
Solid |
| Alignment Tool Included |
Yes |
| Engine Balance |
Internal Balance |
| Ring Gear |
164 tooth |
| Pilot Bushing Included |
No |
| Make |
Ford |
| Engine |
1964-1995 SBF |
| Number of Discs |
Single |
| Racing Application |
Drag Racing |
| Hardware Included |
Yes |
| Throwout Bearing Included |
No |
| Pilot Bushing Material |
N/A |
| Flywheel Material |
Aluminum |
| Disc Diameter |
11In. |
| Counter Weight Kit |
Use 563333 for External Balance |
| Disc Material |
Sintered Iron |
| Flywheel Included |
Yes |
| Spline |
1 3/16In. x 18 |
| Disc Style |
Solid Hub |
| Clutch Usage |
Drag Racing |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
