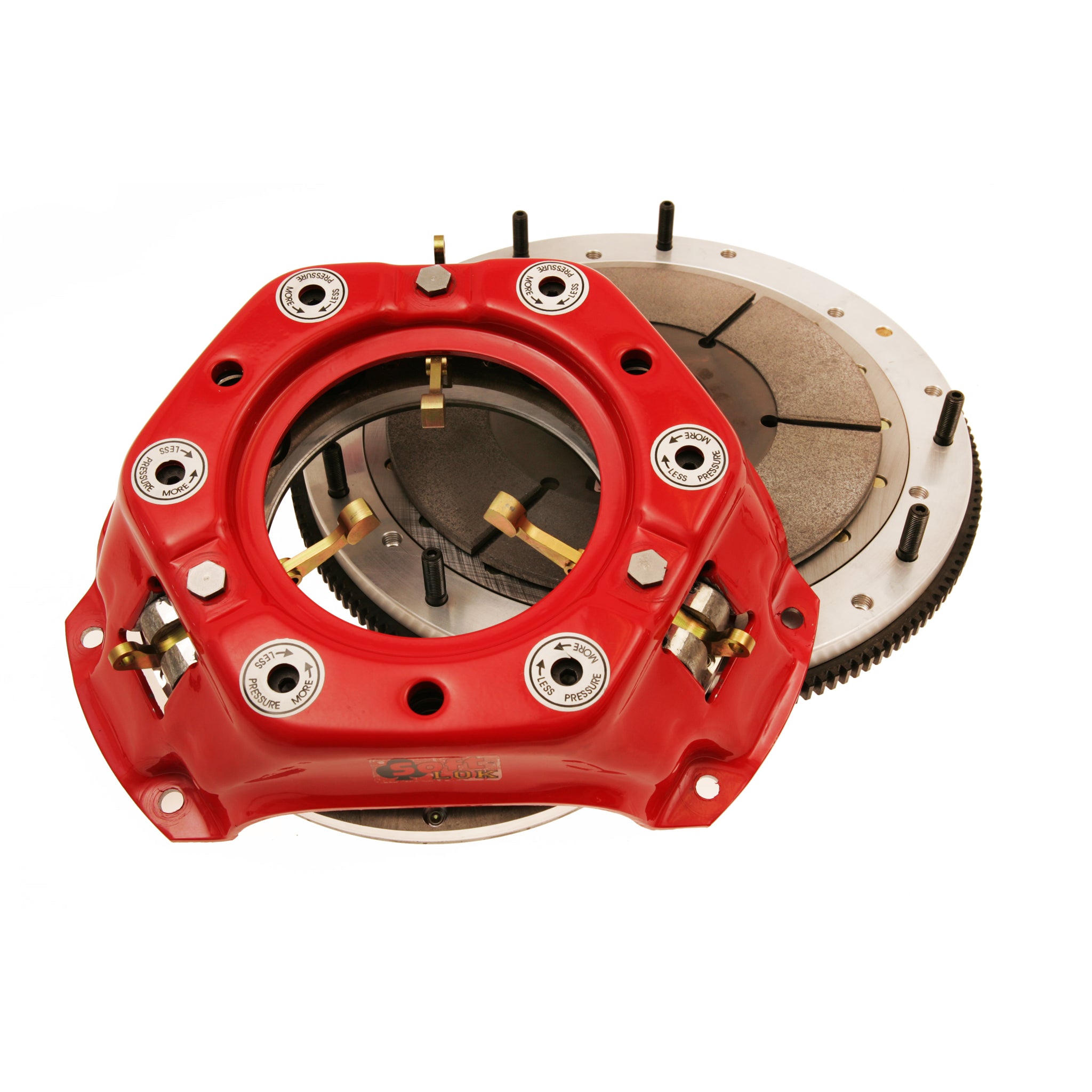

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_ASM |
Chevrolet: Blazer 87 - 87 5 L Engine, Chevrolet: Blazer 87 - 92 5.7 L Engine, Chevrolet: C10 86 - 86 5 L Engine, Chevrolet: C10 86 - 86 5.7 L Engine, Chevrolet: C1500 88 - 92 5 L Engine, Chevrolet: C1500 88 - 92 5.7 L Engine, Chevrolet: C20 86 - 86 5 L Engine, Chevrolet: C20 86 - 87 5.7 L Engine, Chevrolet: C2500 88 - 92 5 L Engine, Chevrolet: C2500 88 - 92 5.7 L Engine, Chevrolet: C30 86 - 86 5.7 L Engine, Chevrolet: C35 86 - 92 5.7 L Engine, Chevrolet: C3500 88 - 92 5.7 L Engine, Chevrolet: Camaro 86 - 92 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine, Chevrolet: Corvette 86 - 92 5.7 L Engine, Chevrolet: G10 86 - 90 5 L Engine, Chevrolet: G10 86 - 90 5.7 L Engine, Chevrolet: G20 86 - 90 5 L Engine, Chevrolet: G20 86 - 90 5.7 L Engine, Chevrolet: G30 86 - 90 5.7 L Engine, Chevrolet: K10 86 - 86 5 L Engine, Chevrolet: K10 86 - 86 5.7 L Engine, Chevrolet: K1500 88 - 92 5 L Engine, Chevrolet: K1500 88 - 92 5.7 L Engine, Chevrolet: K20 86 - 86 5.7 L Engine, Chevrolet: K2500 88 - 92 5 L Engine, Chevrolet: K2500 88 - 92 5.7 L Engine, Chevrolet: K30 86 - 86 5.7 L Engine, Chevrolet: K3500 88 - 92 5.7 L Engine, Chevrolet: K5 Blazer 86 - 86 5 L Engine, Chevrolet: K5 Blazer 86 - 86 5.7 L Engine, Chevrolet: P20 86 - 89 5.7 L Engine, Chevrolet: P30 86 - 92 5.7 L Engine, Chevrolet: R10 87 - 87 5 L Engine, Chevrolet: R10 87 - 87 5.7 L Engine, Chevrolet: R20 87 - 88 5 L Engine, Chevrolet: R20 87 - 88 5.7 L Engine, Chevrolet: R20 Suburban 87 - 88 5.7 L Engine, Chevrolet: R2500 89 - 89 5.7 L Engine, Chevrolet: R30 87 - 88 5.7 L Engine, Chevrolet: R3500 89 - 91 5.7 L Engine, Chevrolet: Suburban 87 - 92 5.7 L Engine, Chevrolet: V10 87 - 87 5 L Engine, Chevrolet: V10 87 - 87 5.7 L Engine, Chevrolet: V10 Suburban 87 - 88 5.7 L Engine, Chevrolet: V1500 Suburban 89 - 90 5.7 L Engine, Chevrolet: V20 87 - 87 5.7 L Engine, Chevrolet: V20 Suburban 87 - 88 5.7 L Engine, Chevrolet: V30 87 - 88 5.7 L Engine, Chevrolet: V3500 89 - 91 5.7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok HCF Chevrolet 1986-92 350 1Pc Seal 10X 1-3/8 X 10 168T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok HCF Chevrolet 1986-92 350 1Pc Seal 10X 1-3/8 X 10 168T |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Disc Diameter |
10In. |
| Racing Application |
Drag Racing |
| Flywheel Included |
Yes |
| Make |
Chevrolet |
| Flywheel Material |
Aluminum |
| Number of Discs |
Single |
| Hub Style |
Solid |
| Ring Gear |
153 tooth |
| Engine Balance |
Internal Balance |
| Engine |
1986-1992 305 & 350 |
| Spline |
1 3/8In. x 10 |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
