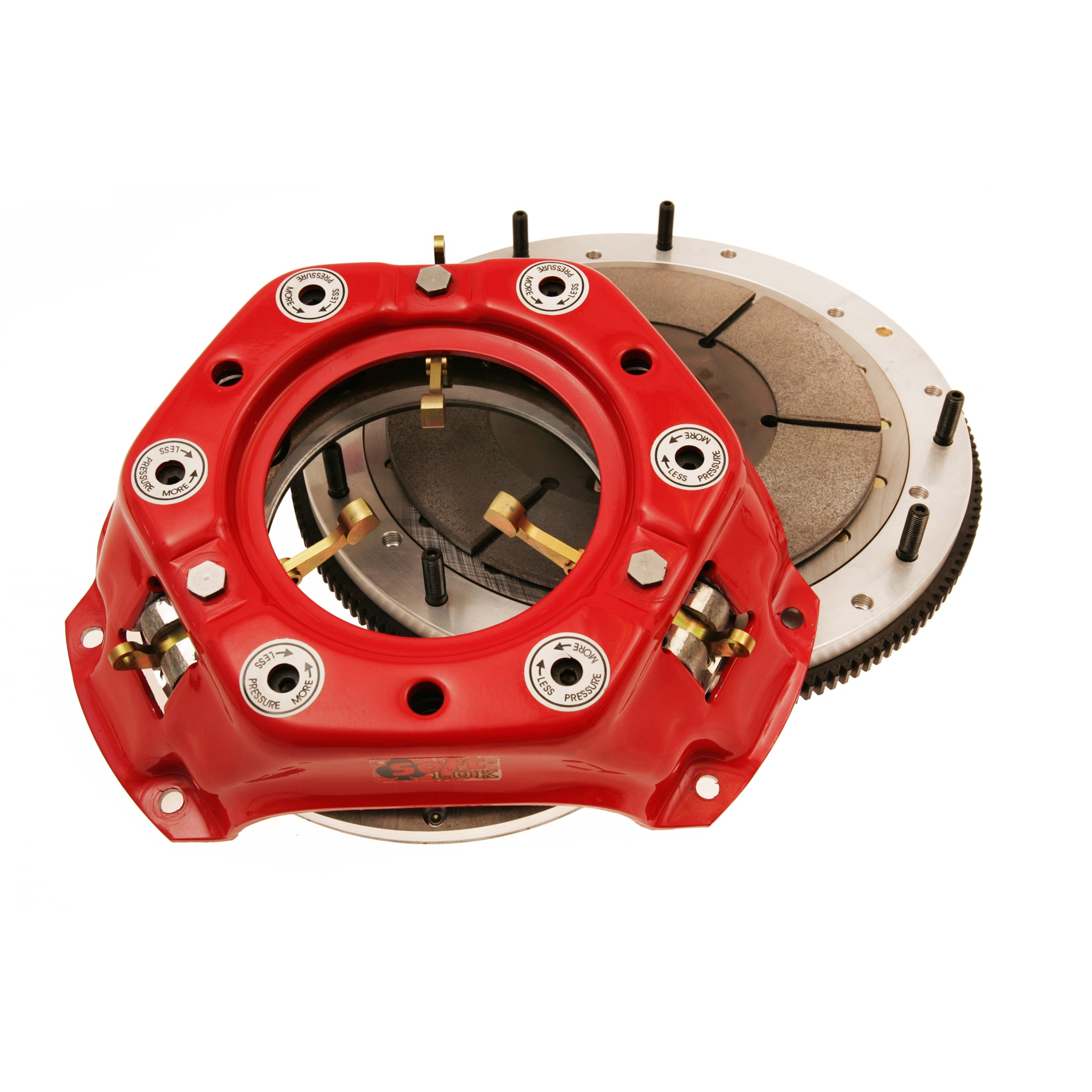

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum Flywheel: Chevrolet: 10 X 1-1/8 X 26: 153T: HCF |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok: Aluminum Flywheel: Chevrolet: 10 X 1-1/8 X 26: 153T: HCF |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Clutch Usage |
Drag Racing |
| Number of Discs |
Single |
| Spline |
1 1/8In. x 26 |
| Disc Style |
Solid Hub |
| Throwout Bearing Style |
Standard |
| Alignment Tool Included |
Yes |
| Hub Style |
Solid |
| Hardware Included |
Yes |
| Disc Material |
Sintered Iron |
| Flywheel Material |
Aluminum |
| Engine Balance |
Internal Balance |
| Pilot Bushing Included |
No |
| Ring Gear |
153 tooth |
| Engine |
1955-85 SBC 2pc Seal |
| Racing Application |
Drag Racing |
| Flywheel Included |
Yes |
| Pilot Bushing Material |
N/A |
| Make |
Chevrolet |
| Disc Diameter |
10In. |
| Throwout Bearing Included |
No |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
