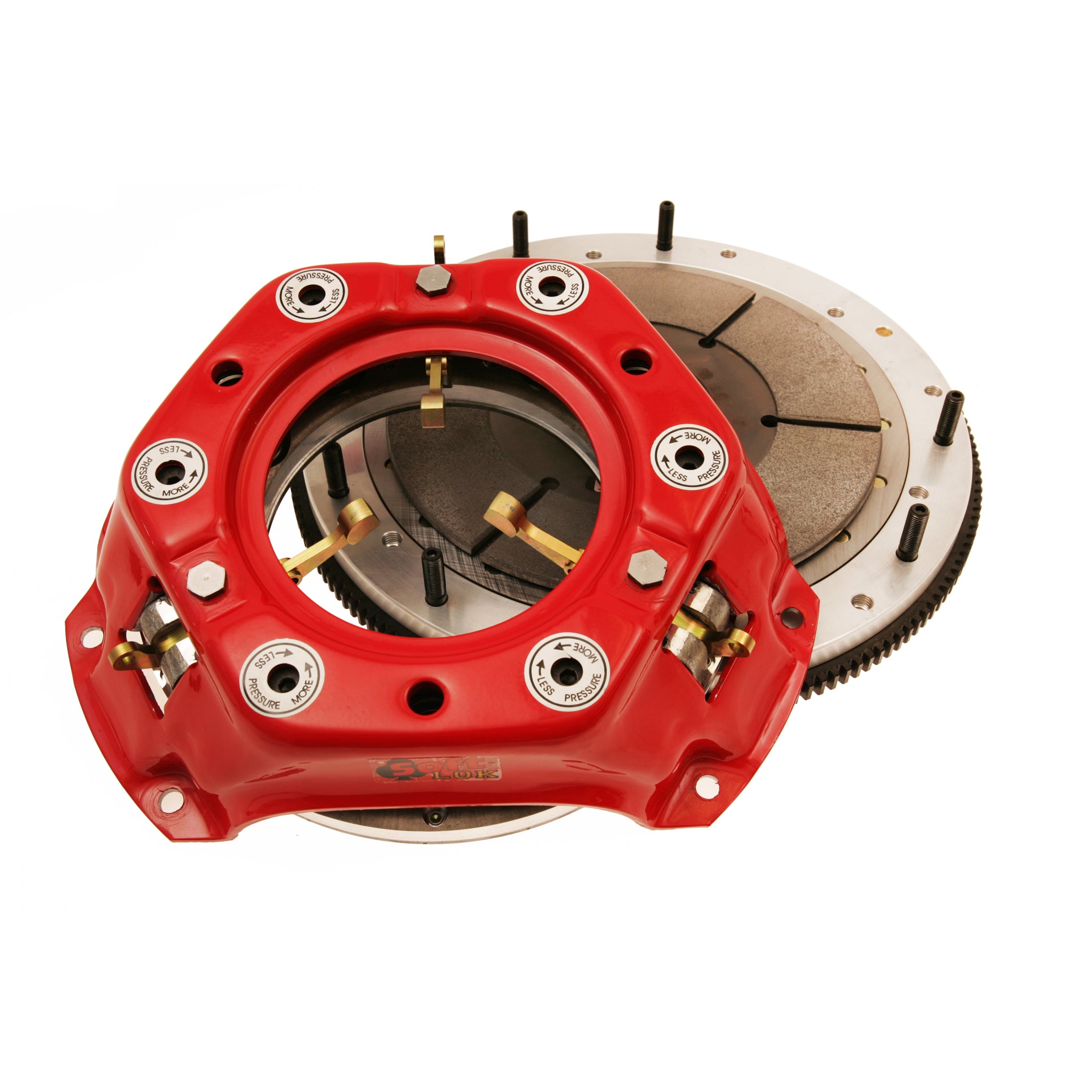

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Chevrolet: 11 X 1-1/8 X 26 Spl HCF 168T |
| Description_EXT |
Soft Lok: Aluminum: Chevrolet: 11 X 1-1/8 X 26 Spl HCF 168T |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Disc Material |
Sintered Iron |
| Disc Style |
Solid Hub |
| Flywheel Included |
Yes |
| Spline |
1 3/8In. x 10 |
| Alignment Tool Included |
Yes |
| Flywheel Material |
Aluminum |
| Number of Discs |
Single |
| Pilot Bushing Included |
No |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Ring Gear |
168 tooth |
| Engine |
1955-85 SBC 2pc Seal |
| Clutch Usage |
Drag Racing |
| Engine Balance |
Internal Balance |
| Racing Application |
Drag Racing |
| Throwout Bearing Style |
Standard |
| Pilot Bushing Material |
N/A |
| Hub Style |
Solid |
| Disc Diameter |
11In. |
| Throwout Bearing Included |
No |
| Make |
Chevrolet |
| Hardware Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
