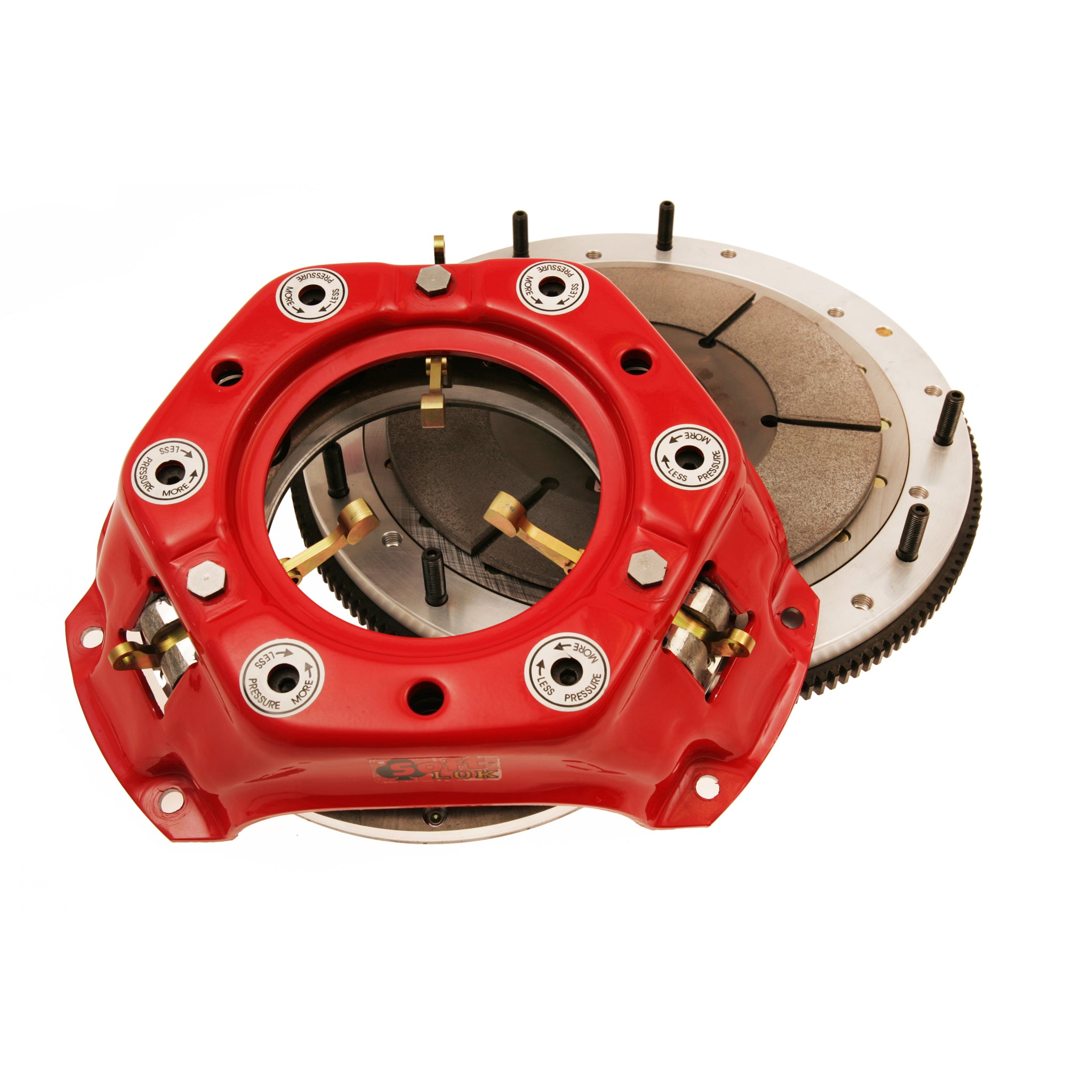

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Chevrolet: 11 X 1-1/8 X 10 Spl HCF 168T |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok: Aluminum: Chevrolet: 11 X 1-1/8 X 10 Spl HCF 168T |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Engine 2 |
1970-1990 BBC 2pc Seal |
| Flywheel Material |
Aluminum |
| Engine |
1955-85 SBC 2pc Seal |
| Ring Gear |
168 tooth |
| Flywheel Included |
Yes |
| Hardware Included |
Yes |
| Pilot Bushing Included |
No |
| Disc Diameter |
11In. |
| Throwout Bearing Included |
No |
| Pilot Bushing Material |
N/A |
| Racing Application |
Drag Racing |
| Spline |
1 1/8In. x 10 |
| Make |
Chevrolet |
| Alignment Tool Included |
Yes |
| Engine Balance |
Internal Balance |
| Hub Style |
Solid |
| Disc Material |
Sintered Iron |
| Disc Style |
Solid Hub |
| Throwout Bearing Style |
Standard |
| Engine 3 |
1991-Up BBC 1pc Seal |
| Number of Discs |
Single |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
