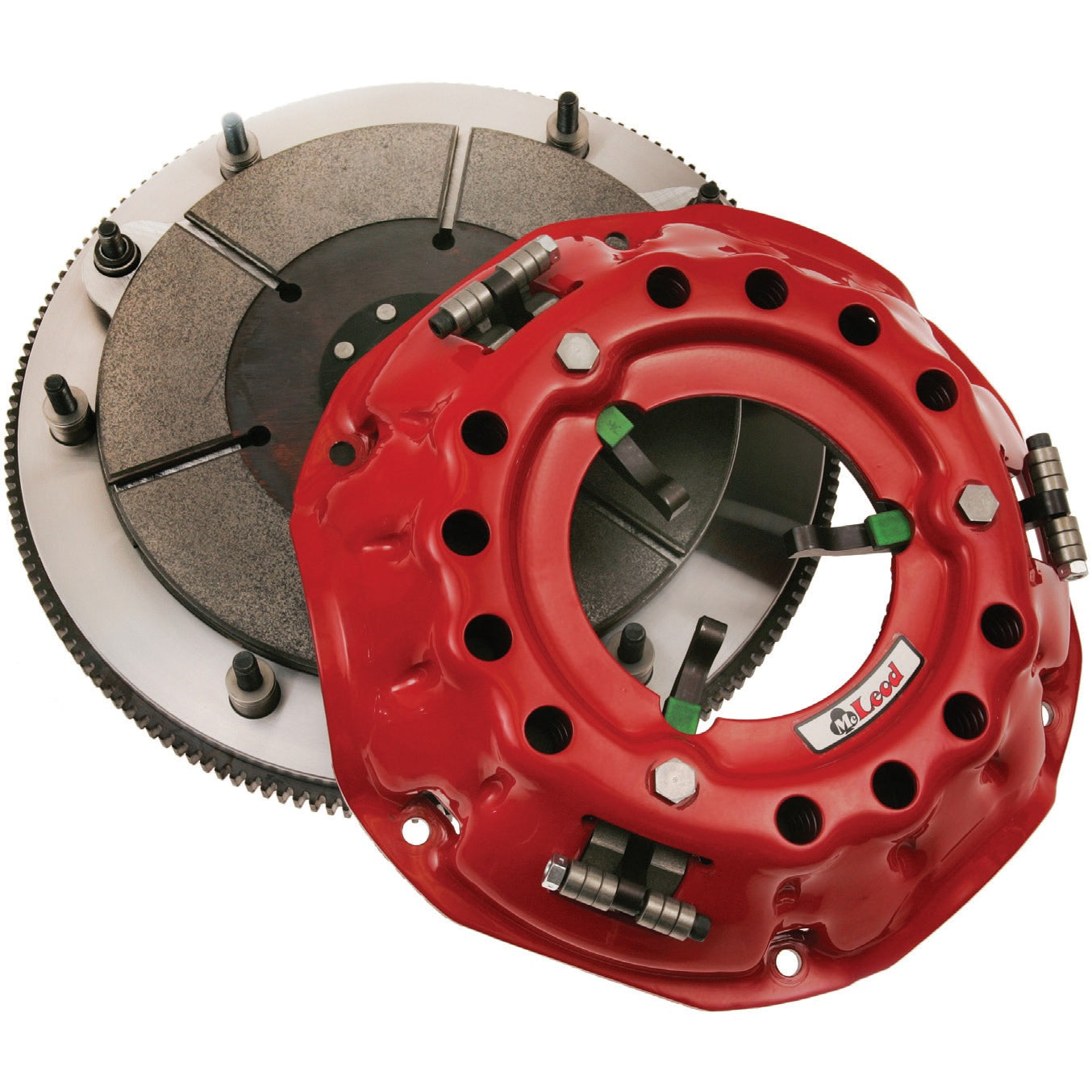

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
4400 Series Truck Pull: Ford: 1969-78 BBF 429-460: 1-1/16 x 10: 180T |
| Description_EXT |
4400 Series Truck Pull: Ford: 1969-78 BBF 429-460: 1-1/16 x 10: 180T |
| Description_INV |
Clutch Kit |
| Description_FAB |

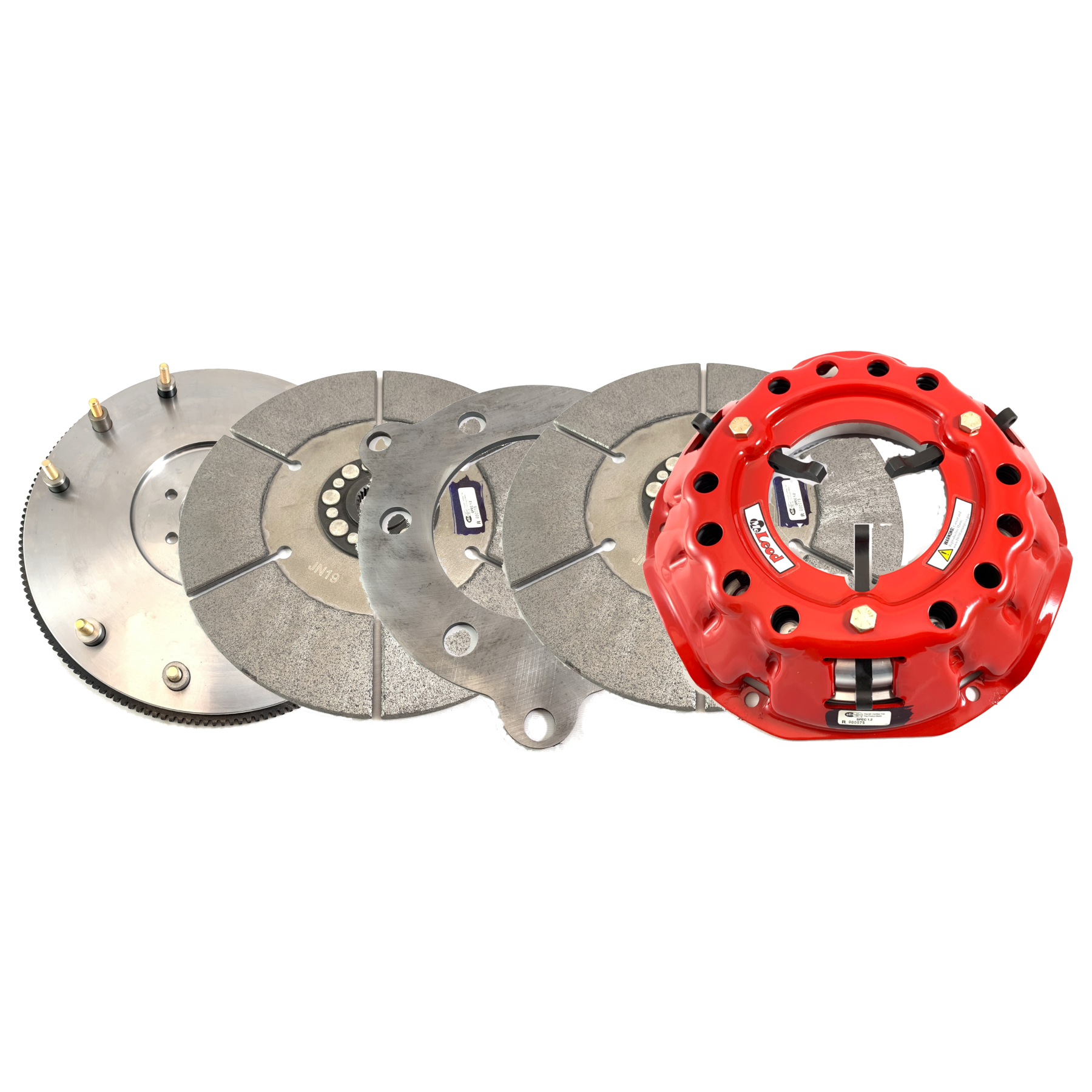

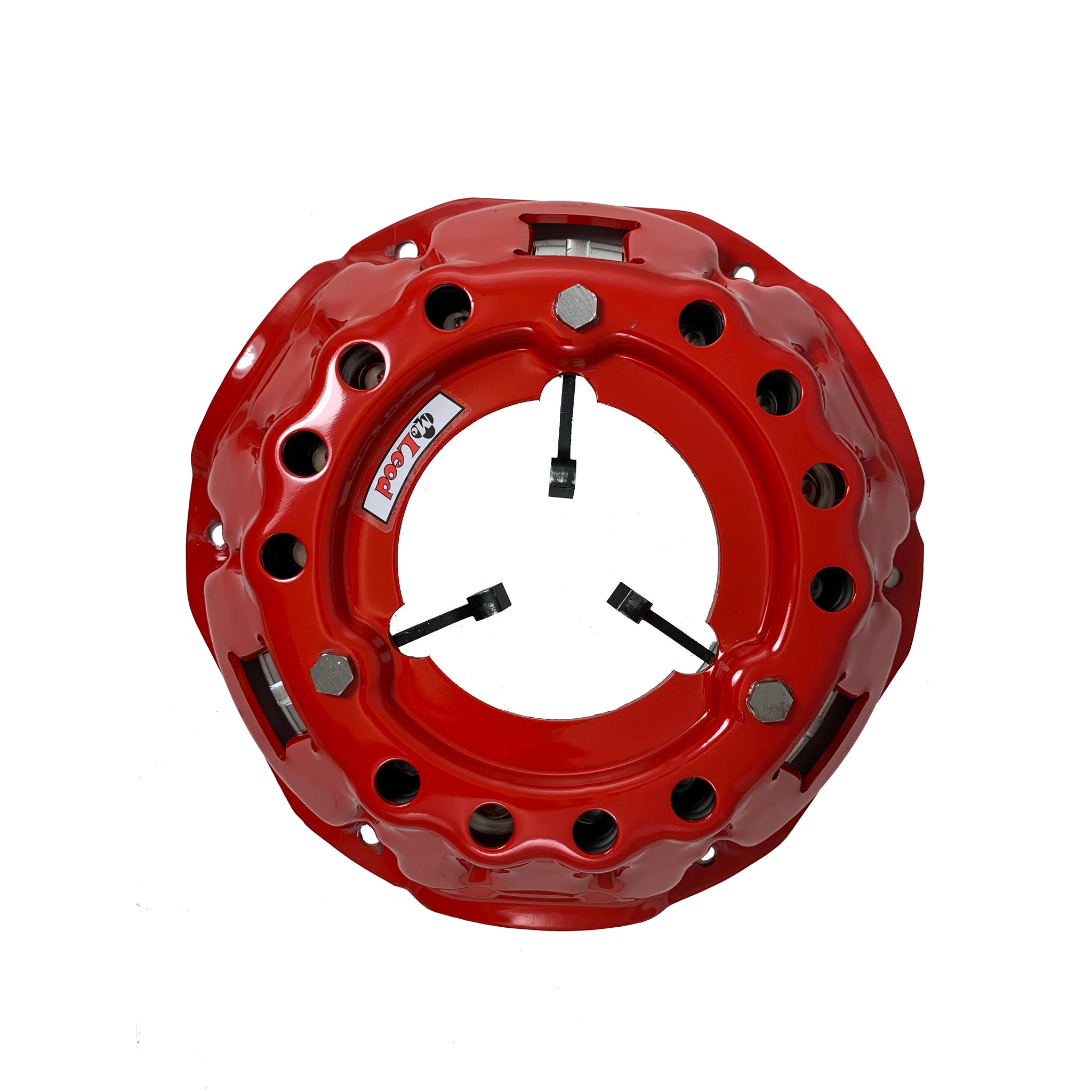

McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. |
| Counter Weight Kit |
563333 (Sold Separately) |

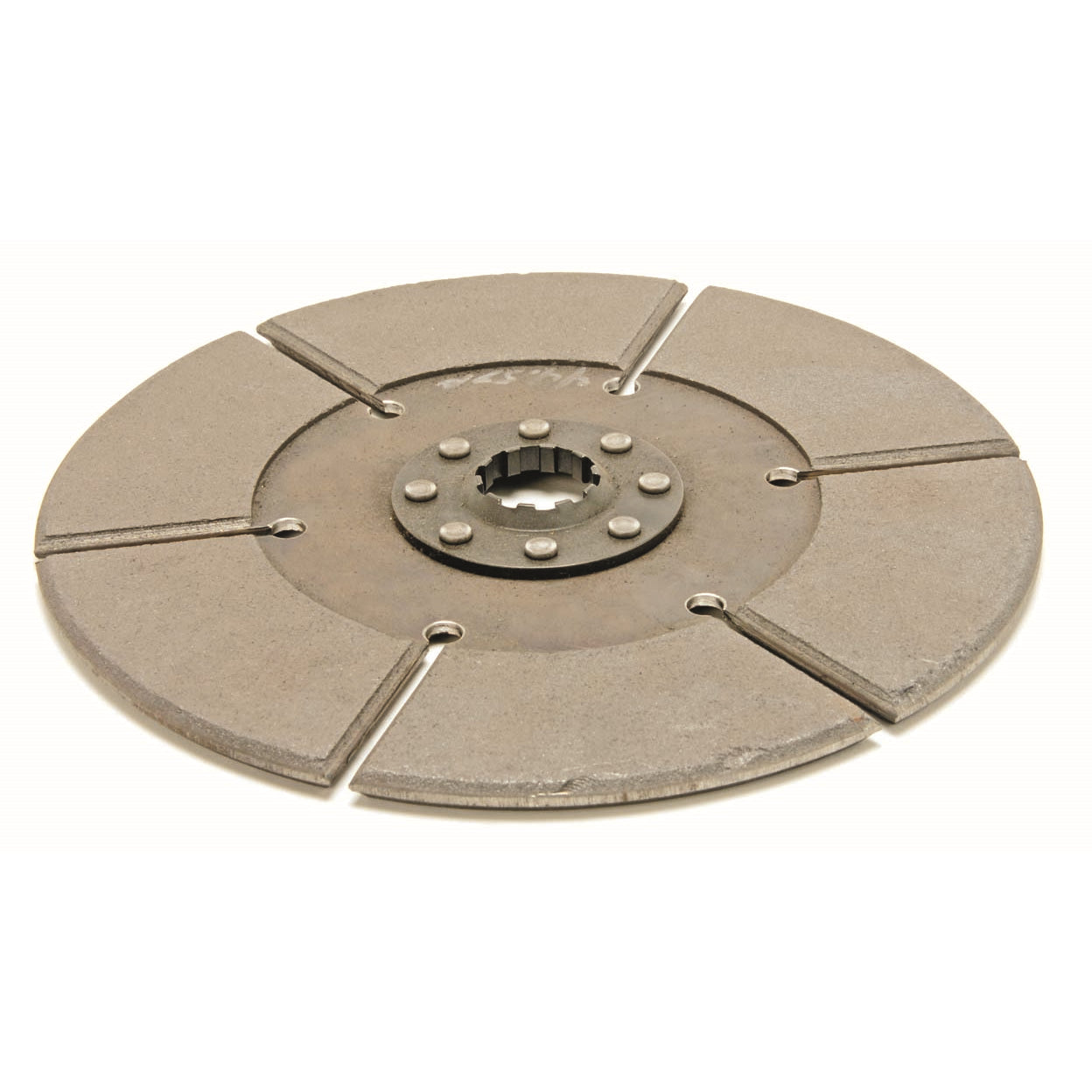

| Disc Material |
5191 Sintered Iron |
| Counter-weighted Lever |
Adjustable |
| Engine 1 |
1969-1999 BBF 429-460 |
| Ring Gear |
180T |
| Engine Balance |
0 Balance |
| Flywheel Material |
Billet Steel |
| Casting Material (Donut) |
Billet Aluminum with Steel Heat Shield |
| Lever Material |
Billet Steel |
| Disc Diameter |
10.5In. |
| Input-shaft Spline |
1-1/16 x 10 |
| Application |
Truck Pull |
| Make |
Ford |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
65.0000 |
