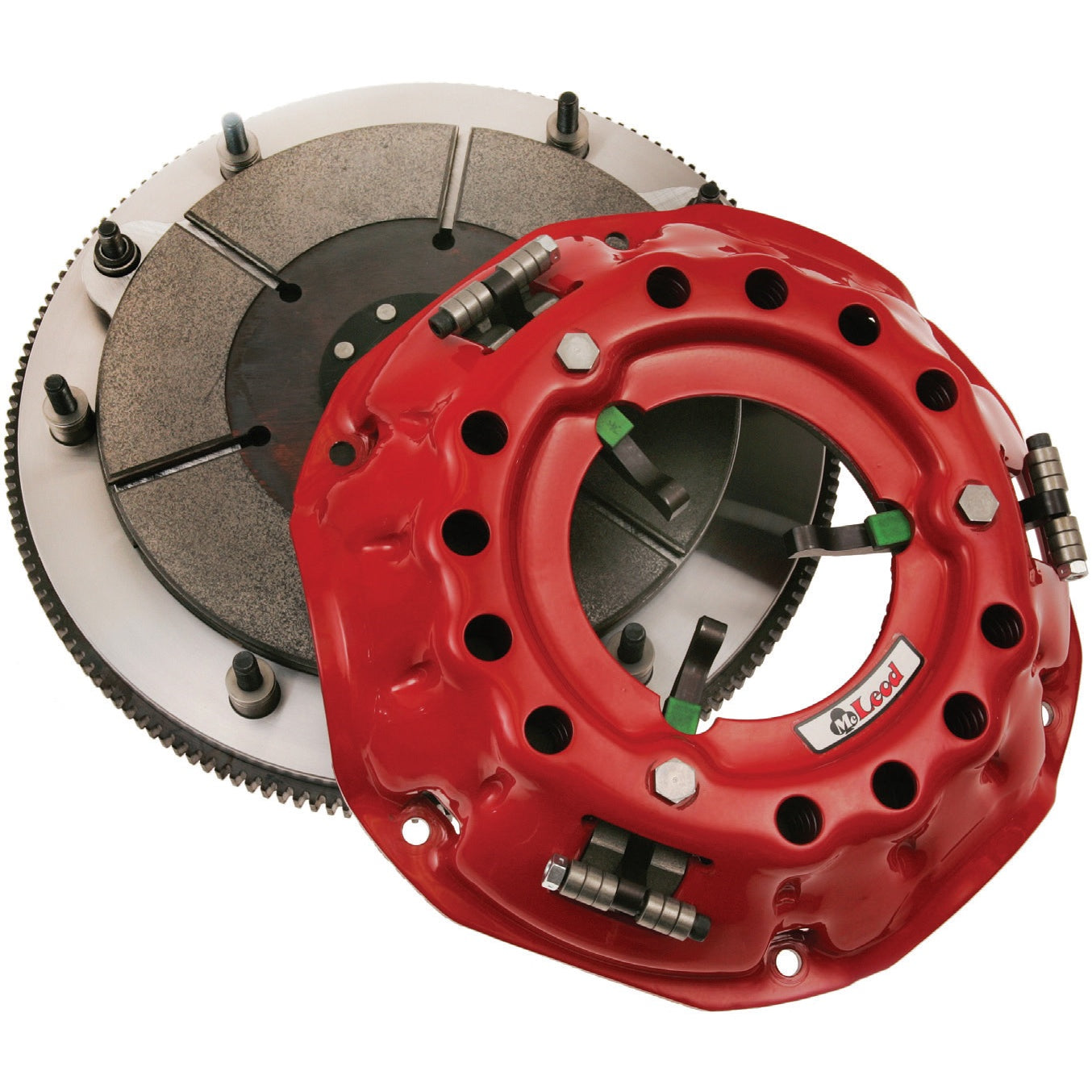

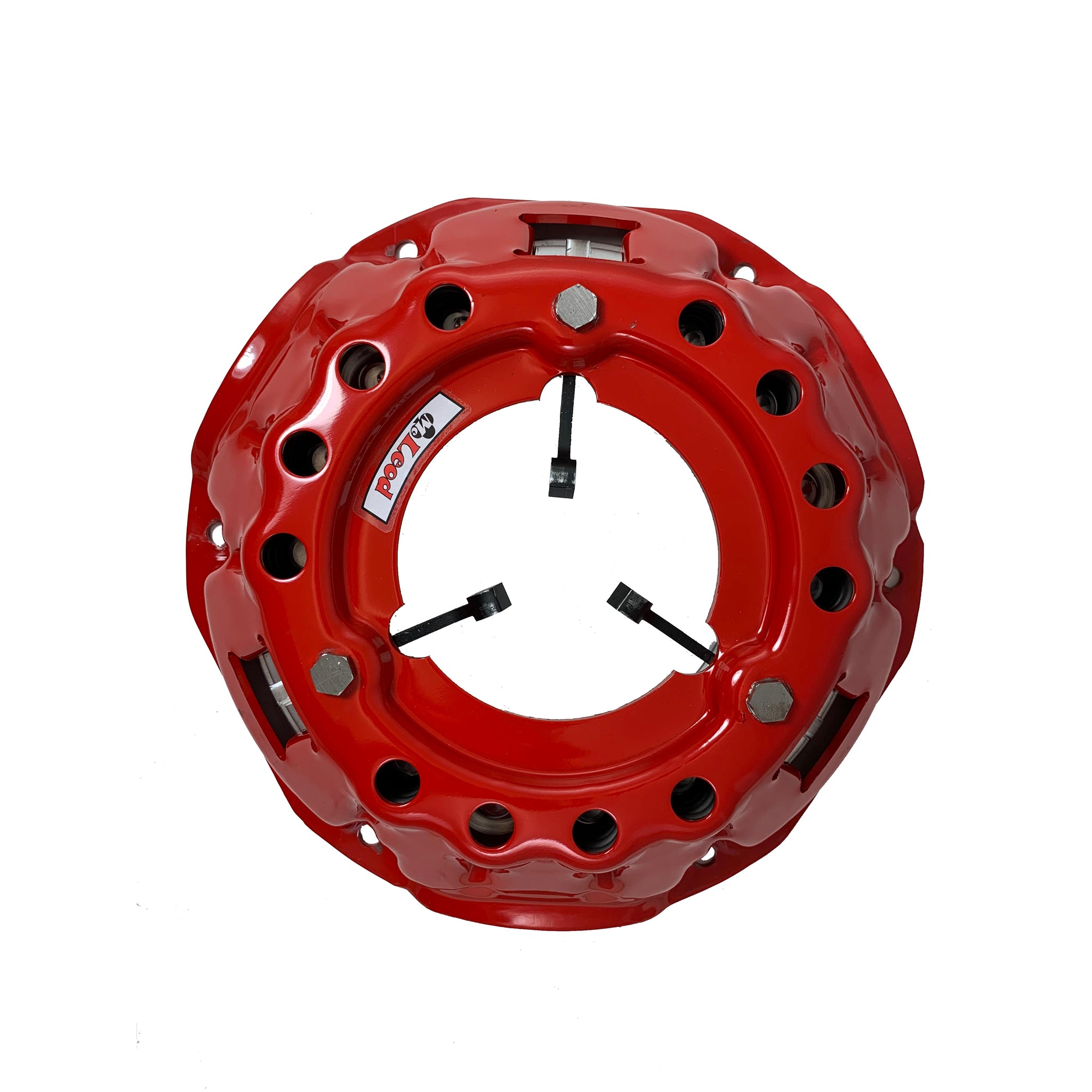

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
4400 Series Truck Pull: Mopar: 1964-99: 318 to 440 6 Bolt Crank: 1 x 23: 130T |
| Description_INV |
Clutch Kit |
| Description_EXT |
4400 Series Truck Pull: Mopar: 1964-99: 318 to 440 6 Bolt Crank: 1 x 23: 130T |
| Description_FAB |

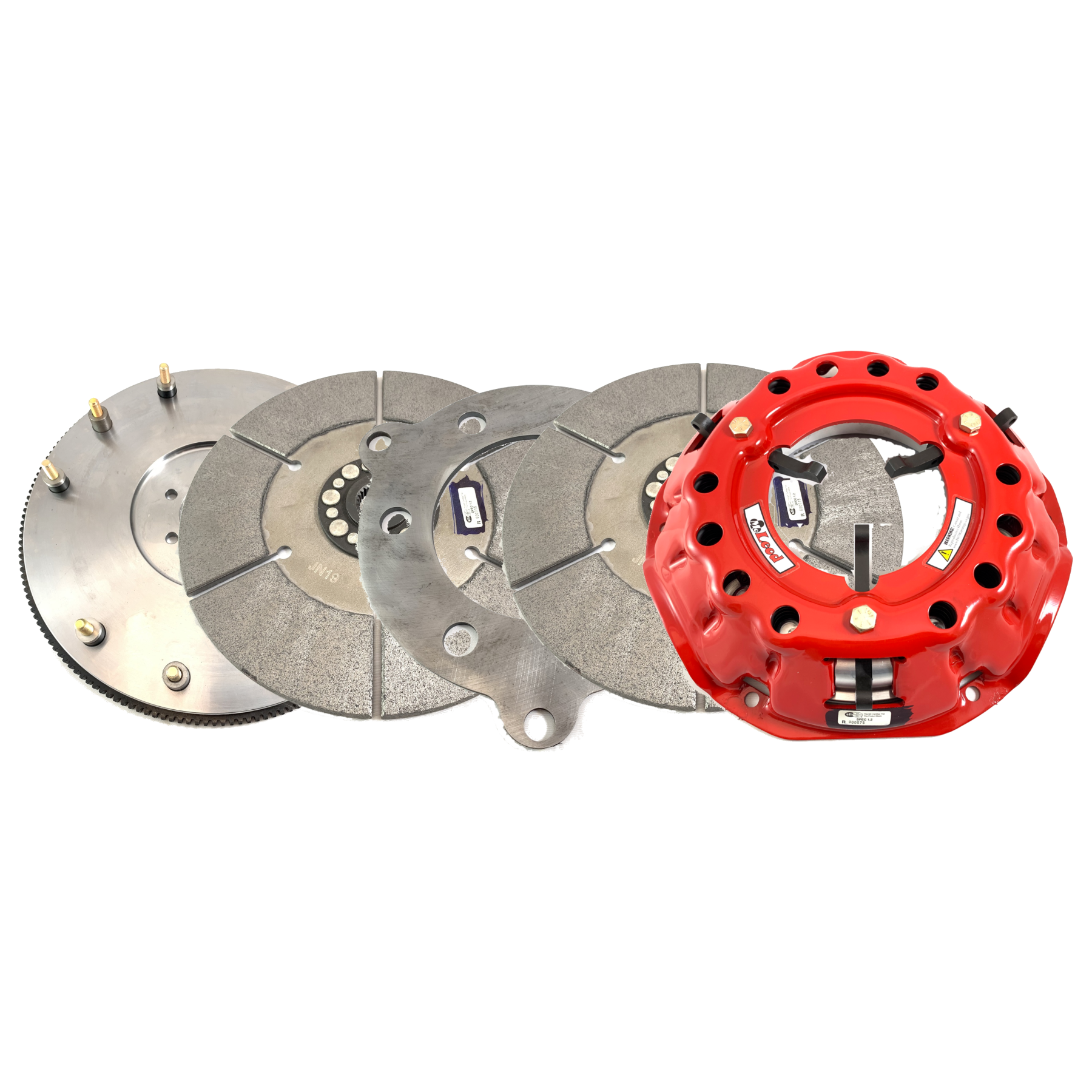

McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. |
| Lever Material |
Billet Steel |
| Counter Weight Kit |
564111 (Sold Separately) |
| Make |
Mopar |
| Counter-weighted Lever |
Adjustable |

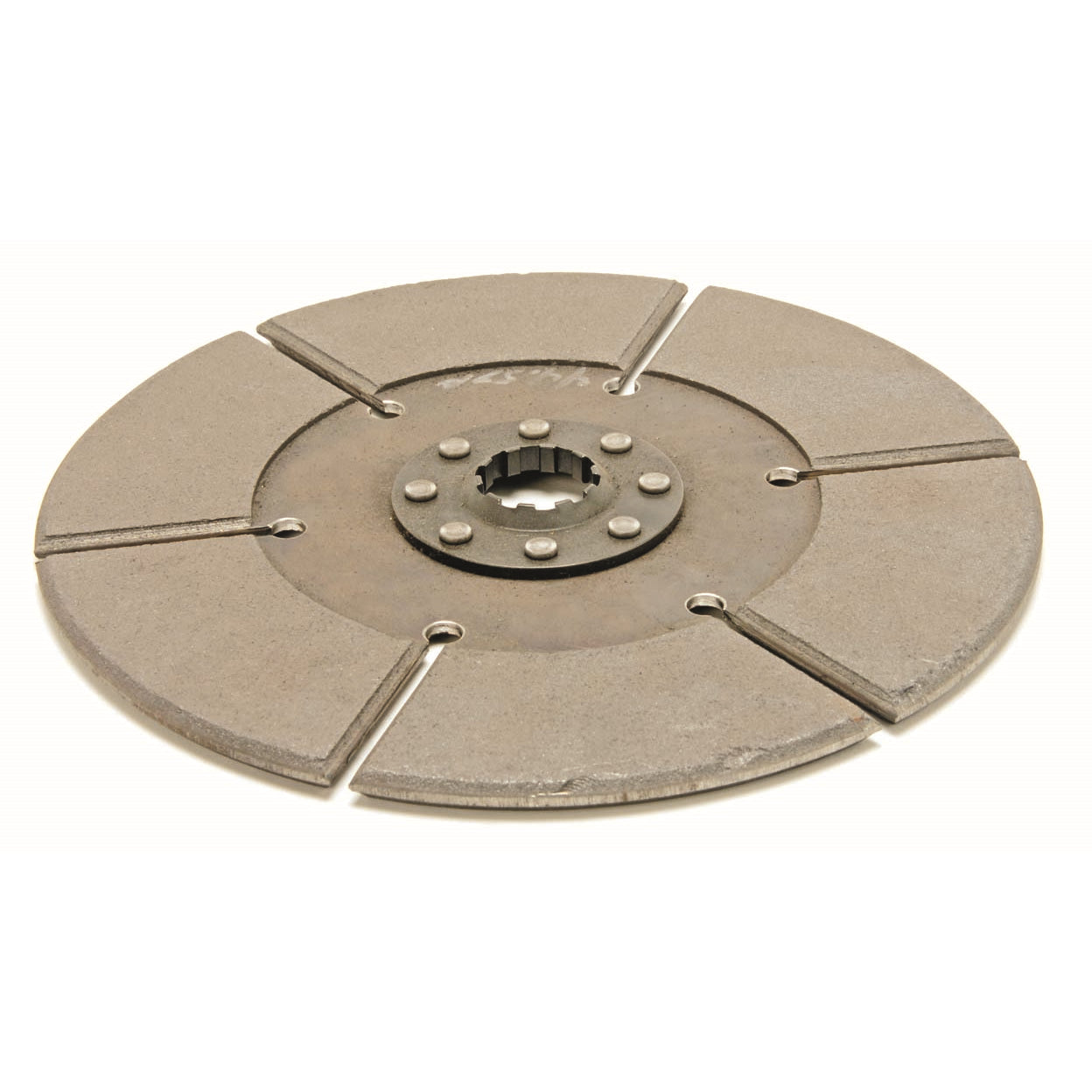

| Disc Material |
5191 Sintered Iron |
| Engine 1 |
1964-1999 SBC 318-440 |
| Ring Gear |
130T |
| Application |
Truck Pull |
| Input-shaft Spline |
1 x 23 |
| Flywheel Material |
Billet Steel |
| Engine Balance |
0 Balance |
| Disc Diameter |
10.5In. |
| Casting Material (Donut) |
Billet Aluminum with Steel Heat Shield |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
65.0000 |
