Hedman Hedders 69020 67-87 C10/C20 SB CHEVY PICKUP (2WD); 1-3/4 in. MID-LENGTH TUBES- UNCOATED

Name: Hedman Hedders 69020 67-87 C10/C20 SB CHEVY PICKUP (2WD); 1-3/4 in. MID-LENGTH TUBES- UNCOATED
Brand: Hedman Hedders
Price: 570.94 CAD
Availability: InStock

2 sold in last 8 hours

$570.94

Guaranteed Fitment

Always the correct part

Added Value

Performance matched parts

In-House Experts

We know our products

Nationwide Delivery

Economy shipping

Quantity

Subtotal: $570.94

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

67-87 C10/C20 Trucks with SB Chevy; Standard Uncoated Hedders; 1-3/4" Tube Dia.; 3" Coll.; MID-LENGTH Design

Specifications:

Description_ASM	1975-1986 Chevrolet C10 CID 283, 1975-1986 Chevrolet C10 CID 327, 1975-1986 Chevrolet C10 CID 350, 1975-1986 Chevrolet C10 CID 400, 1967-1974 Chevrolet C10 Pickup CID 283, 1967-1974 Chevrolet C10 Pickup CID 327, 1967-1974 Chevrolet C10 Pickup CID 350, 1967-1974 Chevrolet C10 Pickup CID 400, 1967-1986 Chevrolet C10 Suburban CID 283, 1967-1986 Chevrolet C10 Suburban CID 327, 1967-1986 Chevrolet C10 Suburban CID 350, 1967-1986 Chevrolet C10 Suburban CID 400, 1975-1986 Chevrolet C20 CID 283, 1975-1986 Chevrolet C20 CID 327, 1975-1986 Chevrolet C20 CID 350, 1975-1986 Chevrolet C20 CID 400, 1967-1974 Chevrolet C20 Pickup CID 283, 1967-1974 Chevrolet C20 Pickup CID 327, 1967-1974 Chevrolet C20 Pickup CID 350, 1967-1974 Chevrolet C20 Pickup CID 400, 1967-1986 Chevrolet C20 Suburban CID 283, 1967-1986 Chevrolet C20 Suburban CID 327, 1967-1986 Chevrolet C20 Suburban CID 350, 1967-1986 Chevrolet C20 Suburban CID 400, 1975-1986 Chevrolet C30 CID 283, 1975-1986 Chevrolet C30 CID 327, 1975-1986 Chevrolet C30 CID 350, 1975-1986 Chevrolet C30 CID 400, 1967-1974 Chevrolet C30 Pickup CID 283, 1967-1974 Chevrolet C30 Pickup CID 327, 1967-1974 Chevrolet C30 Pickup CID 350, 1967-1974 Chevrolet C30 Pickup CID 400, 1987 Chevrolet R10 CID 283, 1987 Chevrolet R10 CID 327, 1987 Chevrolet R10 CID 350, 1987 Chevrolet R10 CID 400, 1987 Chevrolet R10 Suburban CID 283, 1987 Chevrolet R10 Suburban CID 327, 1987 Chevrolet R10 Suburban CID 350, 1987 Chevrolet R10 Suburban CID 400, 1987 Chevrolet R20 CID 283, 1987 Chevrolet R20 CID 327, 1987 Chevrolet R20 CID 350, 1987 Chevrolet R20 CID 400, 1987 Chevrolet R20 Suburban CID 283, 1987 Chevrolet R20 Suburban CID 327, 1987 Chevrolet R20 Suburban CID 350, 1987 Chevrolet R20 Suburban CID 400, 1987 Chevrolet R30 CID 283, 1987 Chevrolet R30 CID 327, 1987 Chevrolet R30 CID 350, 1987 Chevrolet R30 CID 400, 1975-1978 GMC C15 CID 283, 1975-1978 GMC C15 CID 327, 1975-1978 GMC C15 CID 350 ...See Application Guide for Additional Fitments
Description_DEF	Exhaust Header
Description_DES	67-87 C10/C20 SB CHEVY PICKUP (2WD); 1-3/4 in. MID-LENGTH TUBES- UNCOATED
Description_FAB	Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
Description_FAB	The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
Description_FAB	Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Description_FAB	Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Description_FAB	Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Description_FAB	Proud To Say, Made In The USA, Since 1954!
Description_EXT	67-87 C10/C20 Trucks with SB Chevy; Standard Uncoated Hedders; 1-3/4" Tube Dia.; 3" Coll.; MID-LENGTH Design
Description_INV	HEDMAN GM CAR HEADERS-UNCOATED
Description_SHO	HEADERS, UNCOATED
Air Conditioning	Yes
Air Conditioning Notes	70-Up: LARGE compressor needs bracket 20110; SMALL compressor, modify OE bracket
Automatic Transmission - Column	Yes
Automatic Transmission - Floor	Yes
Bolts/Studs Included	Yes
California Proposition 65	WARNING: Cancer. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included	No
Chassis Compatibility	NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment	3 in.
Collector Bolts Included	Yes
Collector Diameter	3 in.
Collector Size	3 in.
Collector Style	BALL and SOCKET Style (Gasketless)
Contents	headers, header gaskets, Reducers (exhaust adapters), header and collector bolts
Crossover Pipe Included	No
Cylinder Head	Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Cylinder Head Port Shape	Rectangle
E.O. #	No
Emissions Notes	Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine	Chevy SB 283-400 (Gen 1) 1958-86
Exhaust System Dia	2-1/2 in.
Finish	Uncoated
Finish Type	Uncoated Mild steel
Flange Style	Standard
Flange Thickness	0.3125 in.
Gasket Or Seal Included	Yes
Header Construction	MILD STEEL- Standard-Duty
Header Fasteners Included	Yes
Header Finish	Uncoated
Header Material	Mild Steel
Header Port Shape	Rectangle
Header Style	Mid-Length Tube
Installation Hardware Included	Yes
Manual Transmission - Column	No
Manual Transmission - Floor	Yes
Material	Mild Steel
Materials	Mild Steel 16g Tubes; 5/16 in. Head Flanges; 1/4 in. Collector Flanges
Motor Mounts Included	No
Mounting Hardware Included	Yes
Notes	67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD

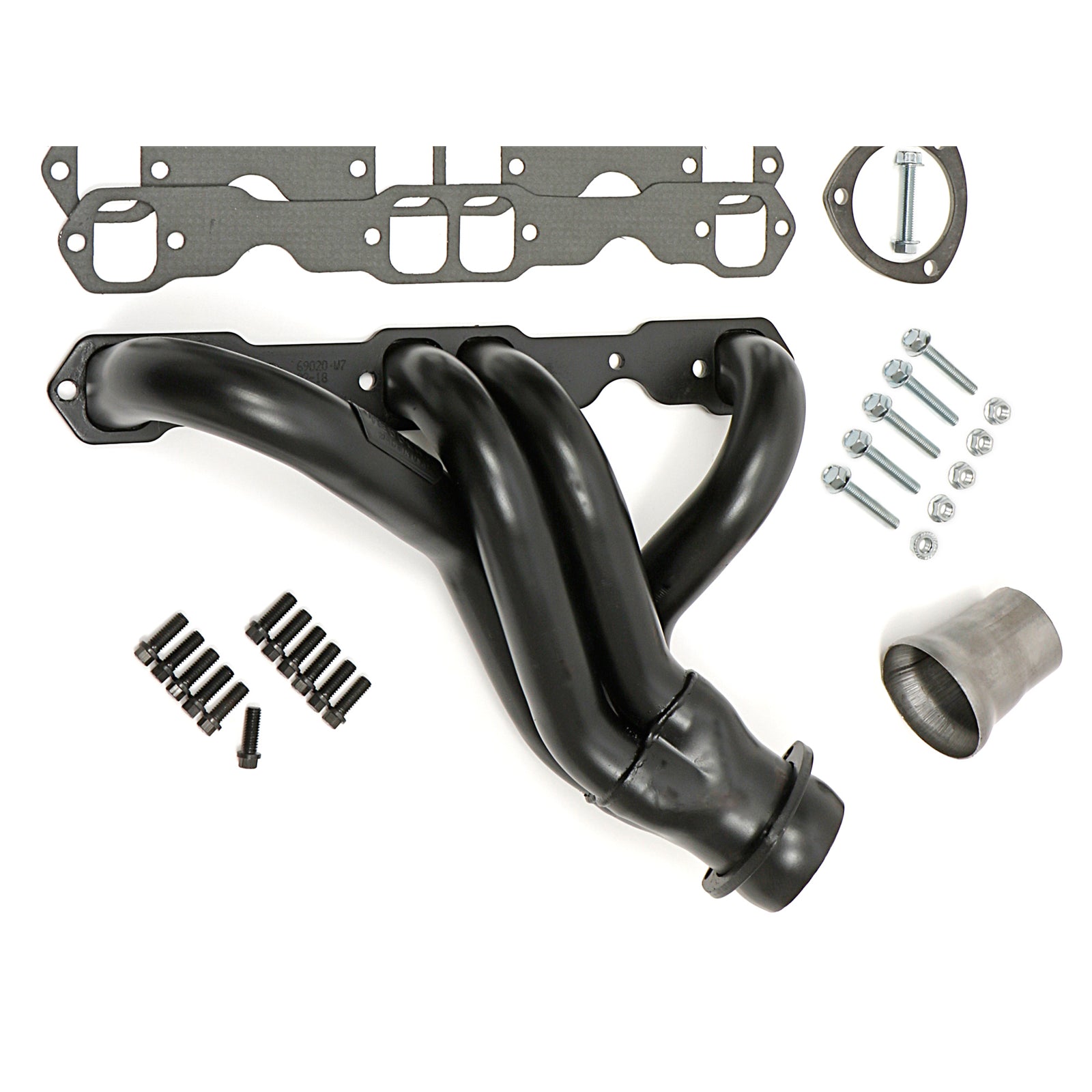

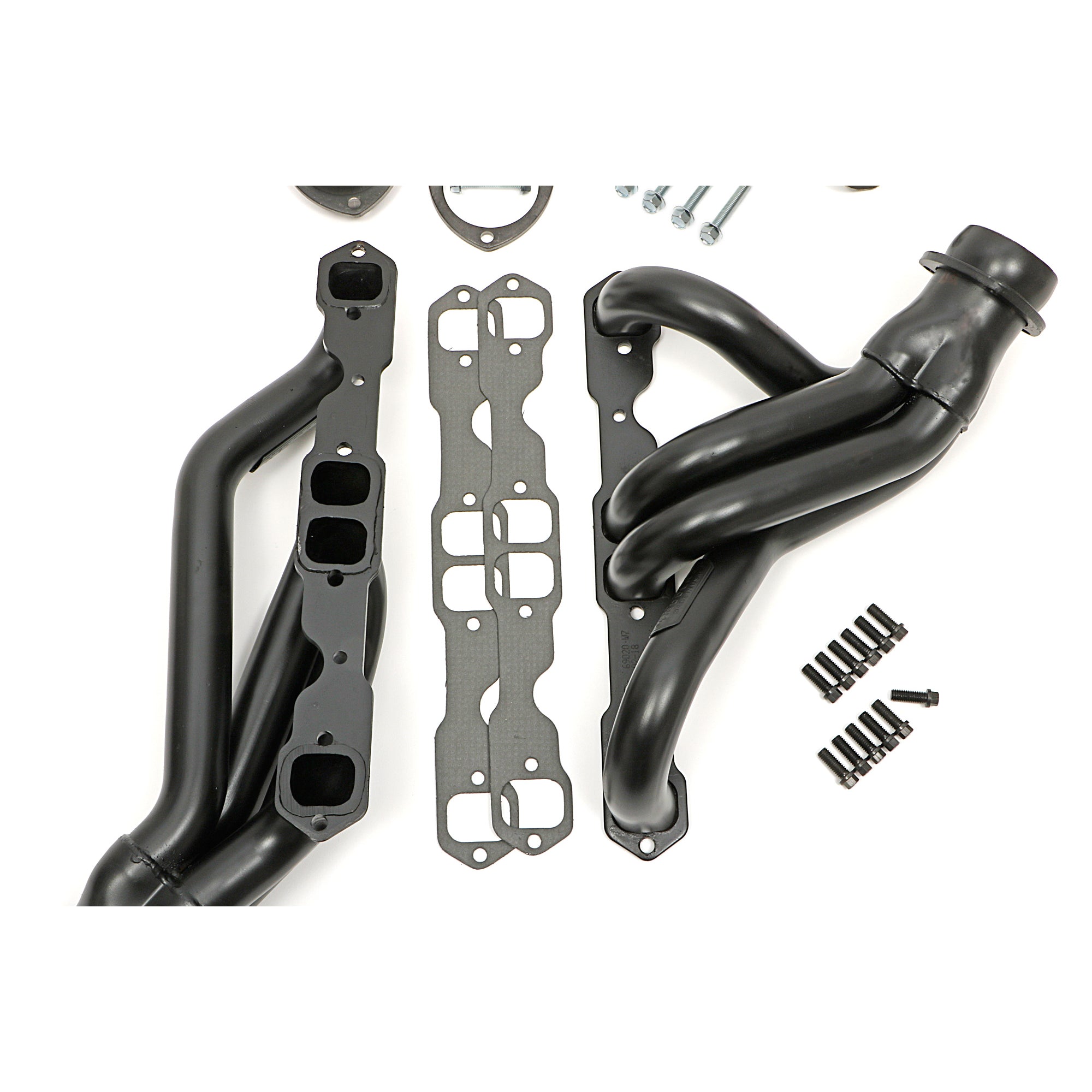

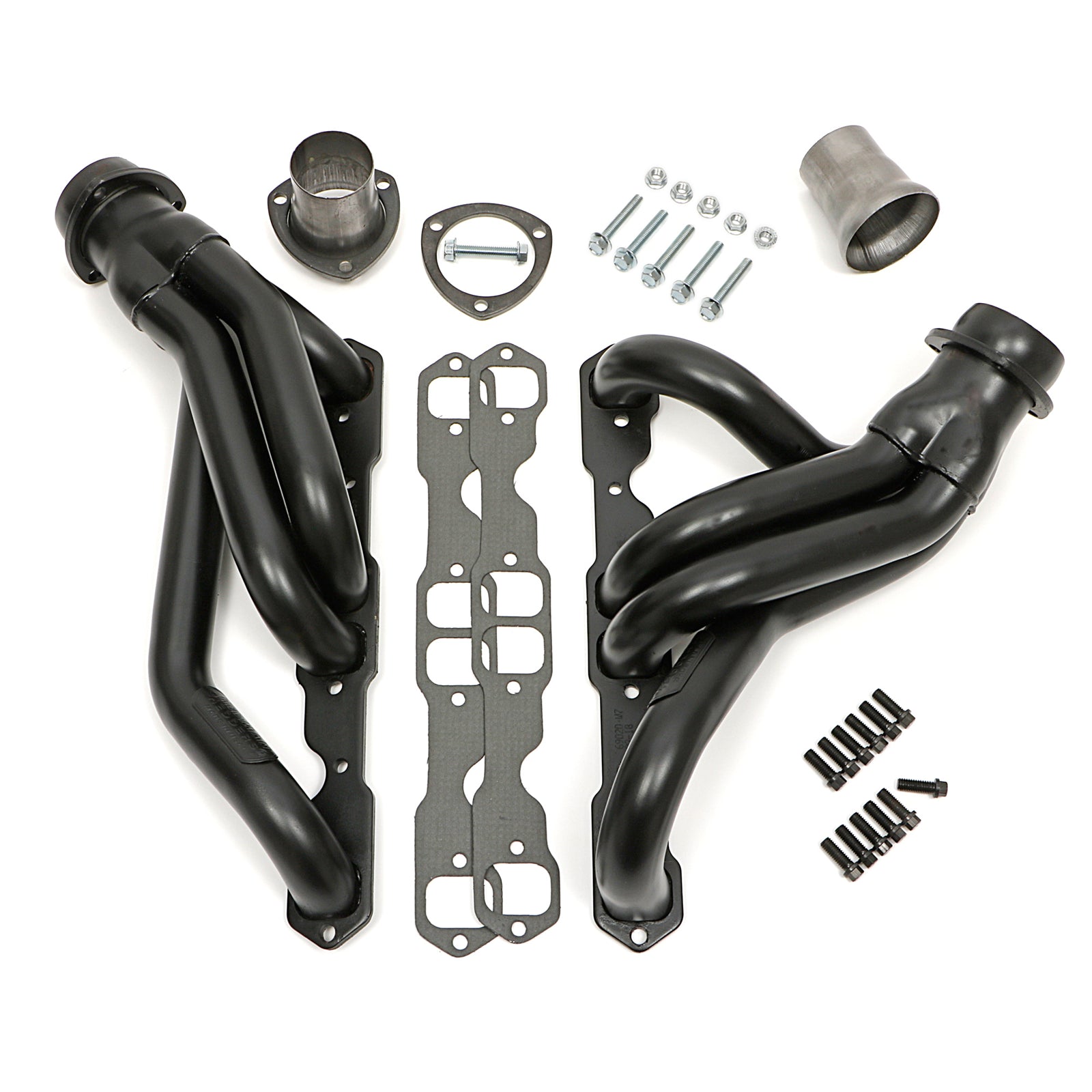

Package Contents	Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape	Rectangle
Power Steering	Yes
Primary Tube Diameter (in)	1.75 in.
Primary Tube Gauge	16g
Product Details	The short, compact design of these headers allows truck builder to raise the exhaust system higher for maximum ground clearance. This set is uncoated. For the added protection of HTC coating, please refer to part number 69026.
Quantity	Sold as a pair.
Reducer Outlet Size	2-1/2 in.
Reducers Included	Yes
Replacement Gasket	27560
Replacement Head Flange Gasket	27560
Special Engine Notes	Designed for use with the SB Chevy engine located in the factory position.
Title	HEDMAN HEDDERS 67-87 C10/C20 TRUCKS WITH SB CHEVY; STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Transmission Compatibility	Manual Trans. must Use TailShaft style crossmember or modify factory crossmember
Tube Design	Standard
Tube Diameter	1-3/4 in.
Tube Length	Mid-Length Tubes
Tube Material Thickness	16g
Tube Size	1-3/4 in.
Tube Style	Mid-Length
Tuned	No
Variations	69026
Weld-Up	No
with A.I.R. System	No
with EGR	No
Y-Pipe Included	No
Length	8.0000
Width	17.0000
Height	39.0000
Weight	25.0000
