Hedman Hedders, along with its Hedman Husler race header division, have been building quality headers in the USA since 1954! Hedman has manufactured long and mid-length tube headers for Ford Mustangs for decades, so designing a good fitting, great performing set of headers for popular LS engine swaps is nothing new.

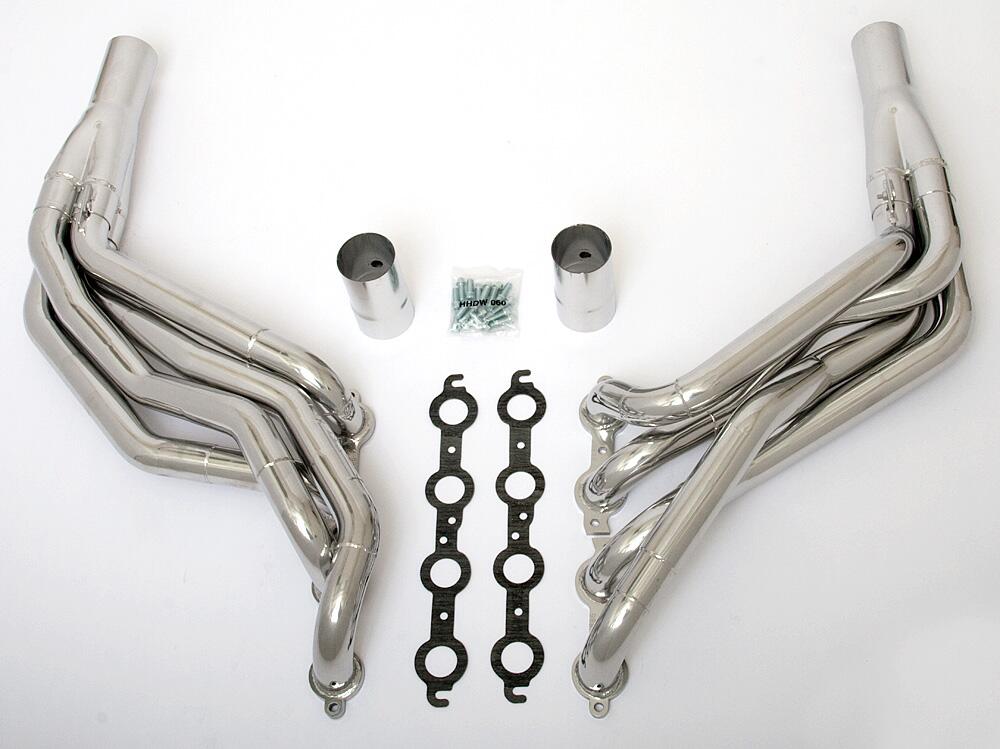

These STEPPED long tube LS swap headers fit 1982-1993 Ford Fox Body cars (Ford Mustang, Mercury Capri). They have a mild steel construction, and use smooth flowing, 1-7/8 in. x 2 in. diameter STEPPED TUBES that provide higher torque across the entire RPM range. The smaller tube diameter at the exhaust port increases back-pressure at low-RPM to improve low-end torque from the line, or out of the corner, while the larger diamter tube segment produces more torque as you reach Wide-Open throttle.
The stout 3/8" header flanges ensure a great seal that will resist warping, and the high-flow 3 in. race collectors ensure unimpeded exhaust flow for maximum performance.
These headers have Hedman's durable, HTC polished-silver ceramic-metallic finish that withstands exhaust temperatures up to 1400 degrees F and won't "blue" like chrome. Hedman Husler confidently backs these headers with a One year warranty.
Specifications:
| Description_ASM |
Ford Mustang GL 5.3 1982 , Ford Mustang GL 4.8 1982 , Ford Mustang GT 4.8 1983 to 1993 , Ford Mustang GT 5.3 1983 to 1993 , Mercury Capri 5 5.3 1986 , Mercury Capri 5 4.8 1986 , Mercury Capri RS 5.3 1982 to 1985 , Mercury Capri RS 4.8 1982 to 1985 |
| Description_DEF |
Exhaust Header |
| Description_DES |
LS IN 82-93 FORD FOX BODY HEADERS; 1-7/8 X 2 IN. DIA, STEPPED LONG-HTC |
| Description_INV |
HUSLER LS IN FOX BODY SWAP HEADER-SILVER |
| Description_EXT |
Headers For Installing An LS Engine into 1982-93 FORD FOX Body (Cougar, Mustang, Thunderbird); 1-7/8 in. x 2 in. Diameter, Stepped Long Tube; 3 in. Slip-on Collector- HTC Polished-Silver Ceramic Coated, Mild Steel Construction |
| Description_MKT |
Hedman Hedders, along with its Hedman Husler race header division, have been building quality headers in the USA since 1954! Hedman has manufactured long and mid-length tube headers for Ford Mustangs for decades, so designing a good fitting, great performing set of headers for popular LS engine swaps is nothing new.
These STEPPED long tube LS swap headers fit 1982-1993 Ford Fox Body cars (Ford Mustang, Mercury Capri). They have a mild steel construction, and use smooth flowing, 1-7/8 in. x 2 in. diameter STEPPED TUBES that provide higher torque across the entire RPM range. The smaller tube diameter at the exhaust port increases back-pressure at low-RPM to improve low-end torque from the line, or out of the corner, while the larger diamter tube segment produces more torque as you reach Wide-Open throttle.
The stout 3/8" header flanges ensure a great seal that will resist warping, and the high-flow 3 in. race collectors ensure unimpeded exhaust flow for maximum performance.
These headers have Hedman's durable, HTC polished-silver ceramic-metallic finish that withstands exhaust temperatures up to 1400 degrees F and won't "blue" like chrome. Hedman Husler confidently backs these headers with a One year warranty.
|
| Description_SHO |
EXHAUST HEADERS |
| Automatic Transmission - Column |
No |
| Air Conditioning |
Yes |
| Collector Diameter |
3 in. |
| Collector Attachment |
3 in. |
| Collector Style |
SLIP-ON |
| Automatic Transmission - Floor |
Yes |
| Bolts/Studs Included |
Yes |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Catalytic Converter(s) Included |
No |
| Collector Size |
3 in. |
| Exhaust System Dia |
3 in. |
| Contents |
One pair of headers, mounting hardware, O2 Bungs, gaskets, Instructions |
| Flange Style |
Standard |
| Gasket Or Seal Included |
Yes |
| Header Port Shape |
Round |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| E.O. # |
No |
| Header Construction |
MILD STEEL- Standard-Duty |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Head Style |
Factory Profile |
| Cylinder Head Port Shape |
Round |
| Crossover Pipe Included |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Flange Thickness |
0.375 in. |
| Header Material |
Mild Steel |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Engine |
Chevy LS Series |
| Header Style |
Long Tube |
| Reducers Included |
Yes |
| Primary Tube Diameter (in) |
1.875 in. x 2 in. |
| Package Contents |
One pair of headers, mounting hardware, O2 Bungs, gaskets, Instructions |
| Primary Tube Gauge |
18g |
| Power Steering |
Yes |
| Reducer Outlet Size |
3 in. |
| Product Type |
Headers |
| Motor Mounts Included |
No |
| Replacement Head Flange Gasket |
18495 |
| Replacement Gasket |
18495 |
| Material |
Mild Steel |
| O2 Sensors Included |
No |
| Manual Transmission - Column |
No |
| O2 Provision |
No |
| Manual Transmission - Floor |
Yes |
| Notes |
82-93 Mustang Fox Body Chev. LS Swap Headers |
| Installation Hardware Included |
Yes |
| Port Style |
Round |
| Quantity |
Sold as a set. |
| Tube Size |
1-7/8 in. x 2 in. |
| Tube Design |
Standard |
| Vehicle Family |
FOX-Body (Ford) 1982-93 |
| Tube Length |
Long Tubes |
| Weld-Up |
No |
| Tube Style |
Long Tubes |
| Tuned |
No |
| with EGR |
No |
| Transmission Compatibility |
Automatic Transmission |
| Y-Pipe Included |
No |
| with A.I.R. System |
No |
| Tube Material Thickness |
18g |
| Title |
HEDMAN HUSLER HEDDERS LS INTO 1982-93 FORD FOX BODY (COUGAR, MUSTANG, THUNDERBIRD) HEADERS; 1-7/8 IN. X 2 IN. DIAMETER, STEPPED LONG TUBE; HTC POLISHED SILVER CERAMIC-COATED, MILD STEEL |
| Tube Diameter |
1-7/8 in. x 2 in. |
| Length |
21.0000 |
| Width |
13.0000 |
| Height |
47.0000 |
| Weight |
70.0000 |
