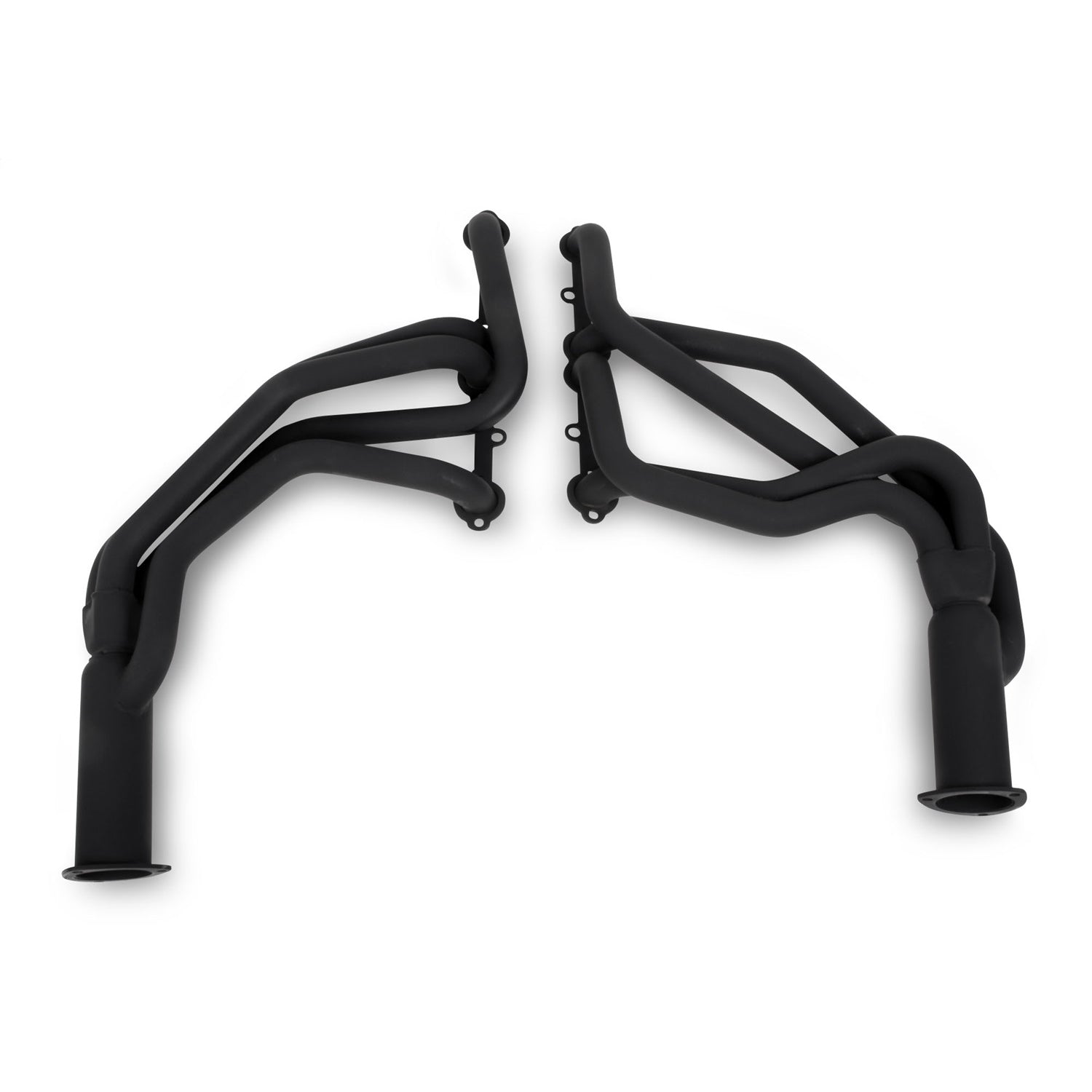

FLOWTECHs Afterburner Turbo Chamber Headers represent the first new major design change in exhaust technology in decades. This designs combines the race-proven 4 into 1 design with the torque managing capabilities of a Tri-Y header. The turbo chamber helps smooth out exhaust turbulence for increased performance and a broad power curve. This header is coated in a high temperature electrostatic gray finish.
Specifications:
| Description_ASC |
Do not fit angle plug heads.
Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommends using cast iron exhaust manifolds or old headers to break in new engines to avoid coating damage. Please call Flowtech tech service at 270-781-9741 for additional information regarding ceramic coated exhaust products. The use of header wraps can cause the header tubes to crack or rust due to excessive heat and moisture build-up. Flowtech does not recommend the use of header wraps as this will void the warranty. |
| Description_DEF |
Exhaust Header |
| Description_DES |
Flowtech Afterburner Headers - Painted |
| Description_EXT |
1973-1974 Chevy/GMC Pick-Up 1/2, 3/4, 1-Ton, 2WD, 1973-1974 Blazer/Jimmy/Suburban 2WD: 283-400, Tube Size 1.625", Collector Size 3" |
| Description_INV |
HDR 73-74 CHEVY/GMC TRK 2WD |
| Description_FAB |
Horsepower and Torque increased over conventional header design |
| Description_FAB |
Big 3" secondary collector for reduced back pressure |
| Description_FAB |
Tuned-length primary tubes combine with Velocity Tube to smooth out exhaust pulses |
| Description_FAB |
Patented Velocity Tube increases cylinder scavenging |
| Description_FAB |
All hardware and premium gaskets included for a complete installation |
| Description_SHO |
Exhaust Header |
| Description_MKT |
FLOWTECHs Afterburner Turbo Chamber Headers represent the first new major design change in exhaust technology in decades. This designs combines the race-proven 4 into 1 design with the torque managing capabilities of a Tri-Y header. The turbo chamber helps smooth out exhaust turbulence for increased performance and a broad power curve. This header is coated in a high temperature electrostatic gray finish. |
| Engine |
Chevrolet Small Block Gen I |
| Header Style |
Long Tube |
| Warning |
California Proposition 65 |
| Clearance Category |
Exhaust |
| Coated Finish |
Painted |
| Collector Tube Size |
3.000 in. |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collector Diameter |
3.000 in. |
| Engine Make/Size |
Chevy Small Block (262-400) |
| Port Shape |
Round |
| Tube Diameter |
1.625 in. |
| Tube Direction |
Down Swept |
| WARNING CA Proposition 65 |
Yes |
| Bolt size |
3/8-16 x 3/4 |
| Brand |
Flowtech |
| Header Finish |
Black Paint |
| Product Type |
Headers |
| Tube Material |
Mild Steel |
| Sale Category |
Exhaust |
| Application |
Automotive |
| Finish |
Black Paint |
| Material |
Mild Steel |
| Primary Tube Diameter |
1.625 in. |
| CARB (California) Compliant |
No |
| Emission Code |
4 |
| Primary Tube Dia. |
1-5/8 inch |
| Discount Percentage |
26-50% |
| Length |
14.0000 |
| Width |
15.0000 |
| Height |
40.0000 |
| Weight |
31.0000 |
