FLOWTECH headers are precision engineered and leak tested to get maximum performance and fuel economy from your engine. Each header is formed from specially selected .049 cold roll flash controlled tubing, and features FLOWTECHs exclusive, thick, mandrel-formed Power Plenum collector. All ports are precisely fitted and finished with sturdy, leak-proof O-ringed port seals, and all FLOWTECH headers include all mounting hardware including bolts, nuts and premium gaskets. FLOWTECH headers are available with either a high-quality satin black paint finish or with a specially formulated, NASA-developed silver luster ceramic coating for rust and corrosion resistance.
Specifications:
| Description_ASC |
NOTE: Will not fit with A.I.R. injection pump.
NOTE: It may be necessary to raise the automotive column cross shaft linkage by rotating the mounting brackets on the frame and
transmission 180┬║.
NOTE: Will not fit vehicles with power steering.
Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommends using cast iron exhaust manifolds or old headers to break in new engines to avoid coating damage. Please call Flowtech tech service at 270-781-9741 for additional information regarding ceramic coated exhaust products. The use of header wraps can cause the header tubes to crack or rust due to excessive heat and moisture build-up. Flowtech does not recommend the use of header wraps as this will void the warranty. |
| Description_DEF |
Exhaust Header |
| Description_DES |

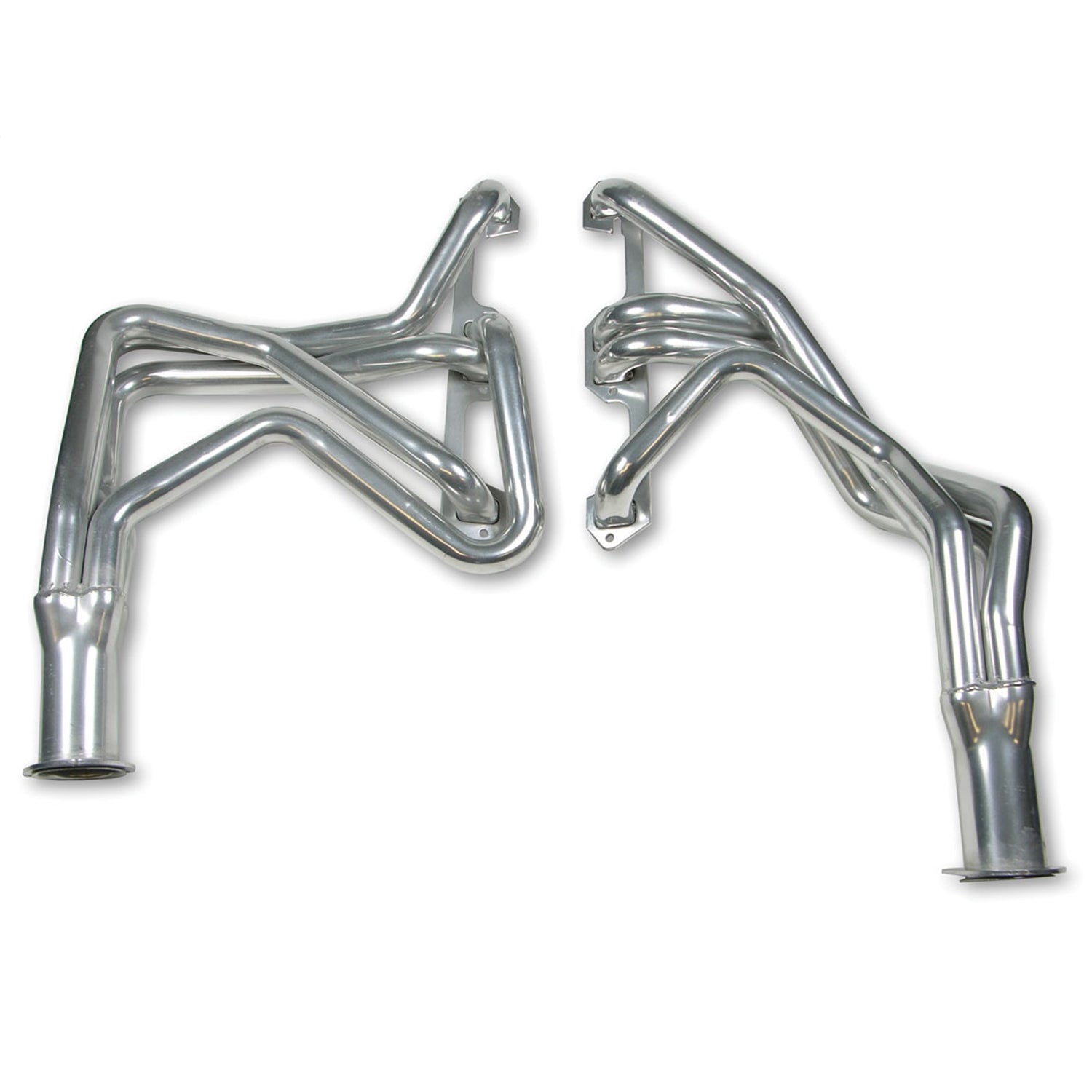

Flowtech Long Tube Header - Ceramic Coated |
| Description_INV |
HDR CRMCIC 67-74 MOPAR PASS |
| Description_EXT |
Fits 1967-1974 Barracuda/Challenger, 1966-1974 Charger/Road Runner, 1967-1974 GTX/RT/Super Bee/Belvedere/Satellite/Coronet, 1967-1974 Duster/Valliant/Dart/Demon: 273-360, Tube Size 1.625", Collector Size 3" |
| Description_FAB |
Improved Exhaust Scavenging for Increased Performance |
| Description_FAB |
Leak Test For Max Performance |
| Description_FAB |
Ceramic Headers |
| Description_FAB |
Rust And Corrosion Resistance |
| Description_FAB |
Mandrel-Formed Power Plenum |
| Description_FAB |
Leakproof O-Ringed Port Seals |
| Description_FAB |
Include All Mounting Hardware |
| Description_KEY |
mopar; dodge; plymouth; chrysler; barracuda; challenger; charger; road; runner; gtx; rt; super; bee; belvedere; satellite; coronet; duster; valliant; duster; dart; demon; small; block; header |
| Description_SHO |
Exhaust Header |
| Description_MKT |
FLOWTECH headers are precision engineered and leak tested to get maximum performance and fuel economy from your engine. Each header is formed from specially selected .049 cold roll flash controlled tubing, and features FLOWTECHs exclusive, thick, mandrel-formed Power Plenum collector. All ports are precisely fitted and finished with sturdy, leak-proof O-ringed port seals, and all FLOWTECH headers include all mounting hardware including bolts, nuts and premium gaskets. FLOWTECH headers are available with either a high-quality satin black paint finish or with a specially formulated, NASA-developed silver luster ceramic coating for rust and corrosion resistance. |
| CARB (California) Compliant |
No |
| Engine Make/Size |
Mopar 318-360 |
| WARNING CA Proposition 65 |
Yes |
| Primary Tube Dia. |
1-5/8 inch |
| Application |
Automotive |
| Collector Diameter |
3.000 in. |
| Primary Tube Diameter |
1.625 in. |
| Product Type |
Headers |
| Coated Finish |
Metallic Ceramic |
| Collector Tube Size |
3.000 in. |
| Material |
Mild Steel |
| Port Shape |
Round |
| Tube Direction |
Down Swept |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Engine |
Chrysler Small Block LA |
| Header Style |
Long Tube |
| Warning |
California Proposition 65 |
| Tube Diameter |
1.625 in. |
| Bolt size |
5/16-18 x 3/4 |
| Brand |
Flowtech |
| Emission Code |
4 |
| Header Finish |
Silver Ceramic |
| Tube Material |
Mild Steel |
| Length |
12.1000 |
| Width |
22.5000 |
| Height |
38.7000 |
| Weight |
32.6000 |
