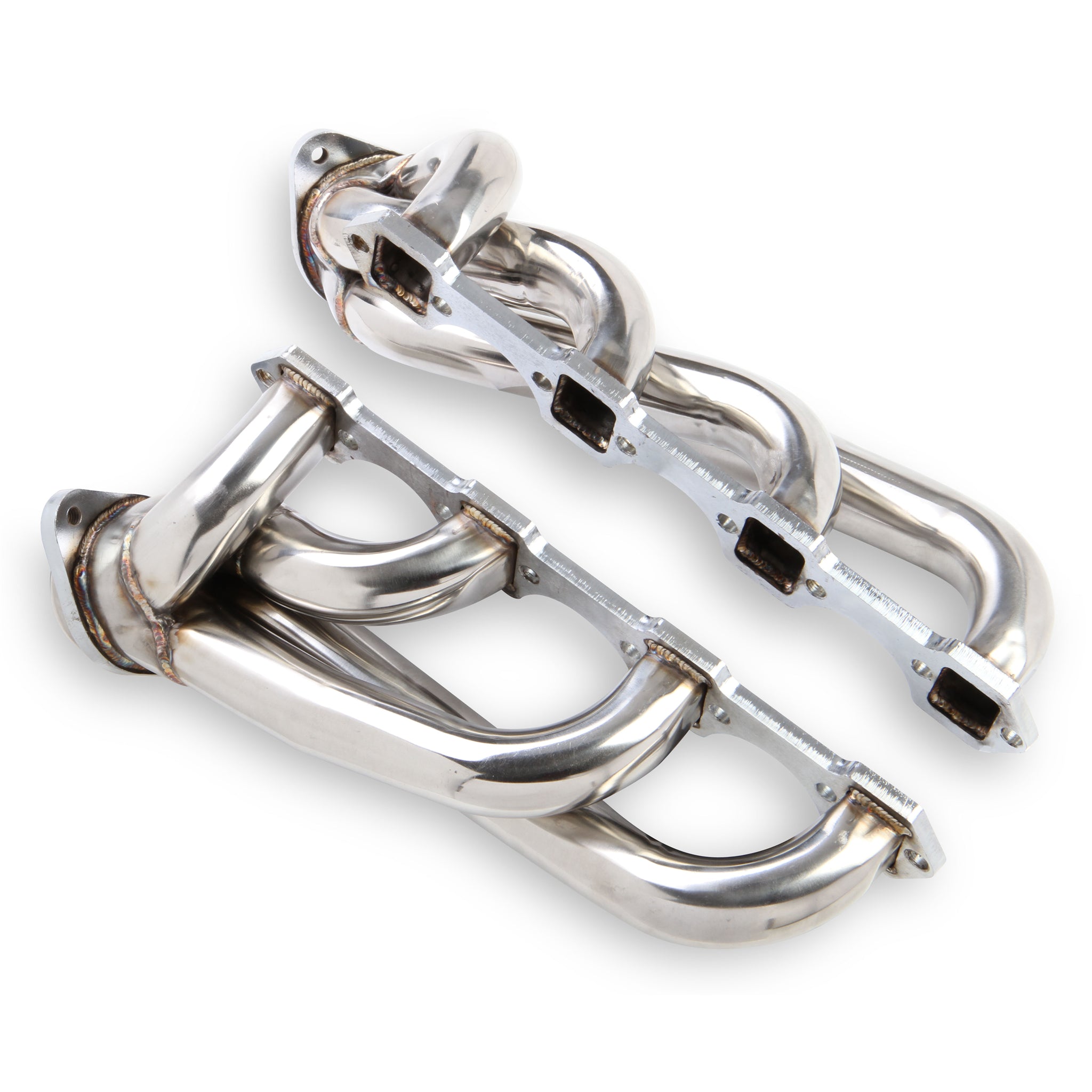

Flowtech Headers are the perfect blend of quality, performance, and value. These 1-3/4 in. shorty style performance headers fit the very popular 5.0L V8 for the Fox-Body Mustang platform. The 1-3/4 in. tube size is the perfect upgrade for stroker motors and engines that have limited clearance issues and still require a free flowing header.
Specifications:
| Description_DEF |
Exhaust Header |
| Description_DES |
Flowtech Shorty Headers - Polished |
| Description_EXT |
Shorty Headers; 1 3/4 in. Primary Tubing; 3 in. Collector; 304 Stainless Steel; Polished; |
| Description_INV |
79-93 FORD MUSTANG 5.0, 1-3/4 SHORTY HDR |
| Description_FAB |
Mandrel-bent 304 Stainless Steel tubes provide consistent tubing diameters for smooth flow and increased exhaust velocity |
| Description_FAB |
Heavy duty 16-gauge tubing for increased strength and durability |
| Description_FAB |
Smooth transition, 1-3/4" diameter primary tubes are used for increased exhaust flow increasing performance and improving throttle response |
| Description_FAB |

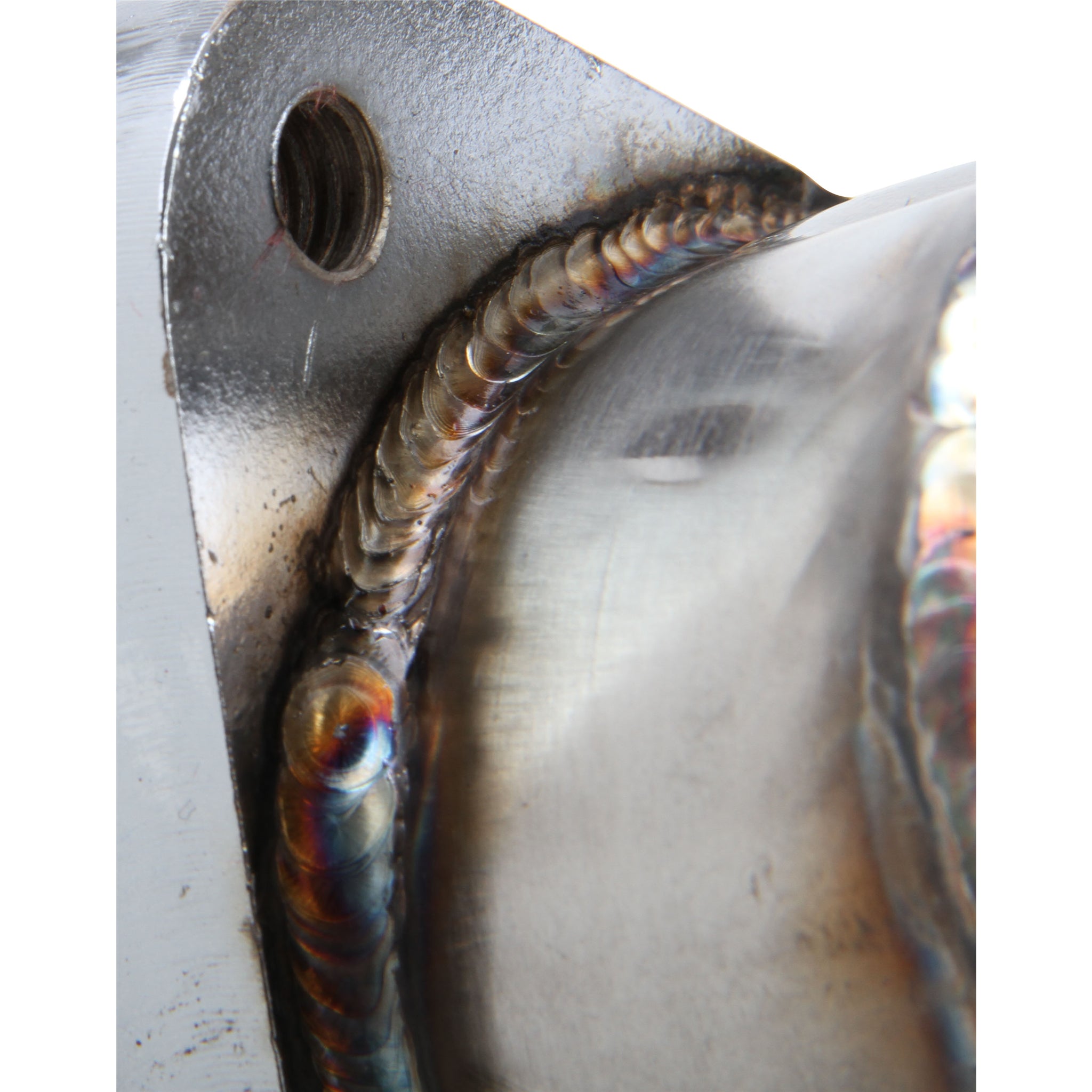

OE style 2-1/2" ball and socket collector connects to factory exhaust head pipe with no cutting or welding |
| Description_FAB |

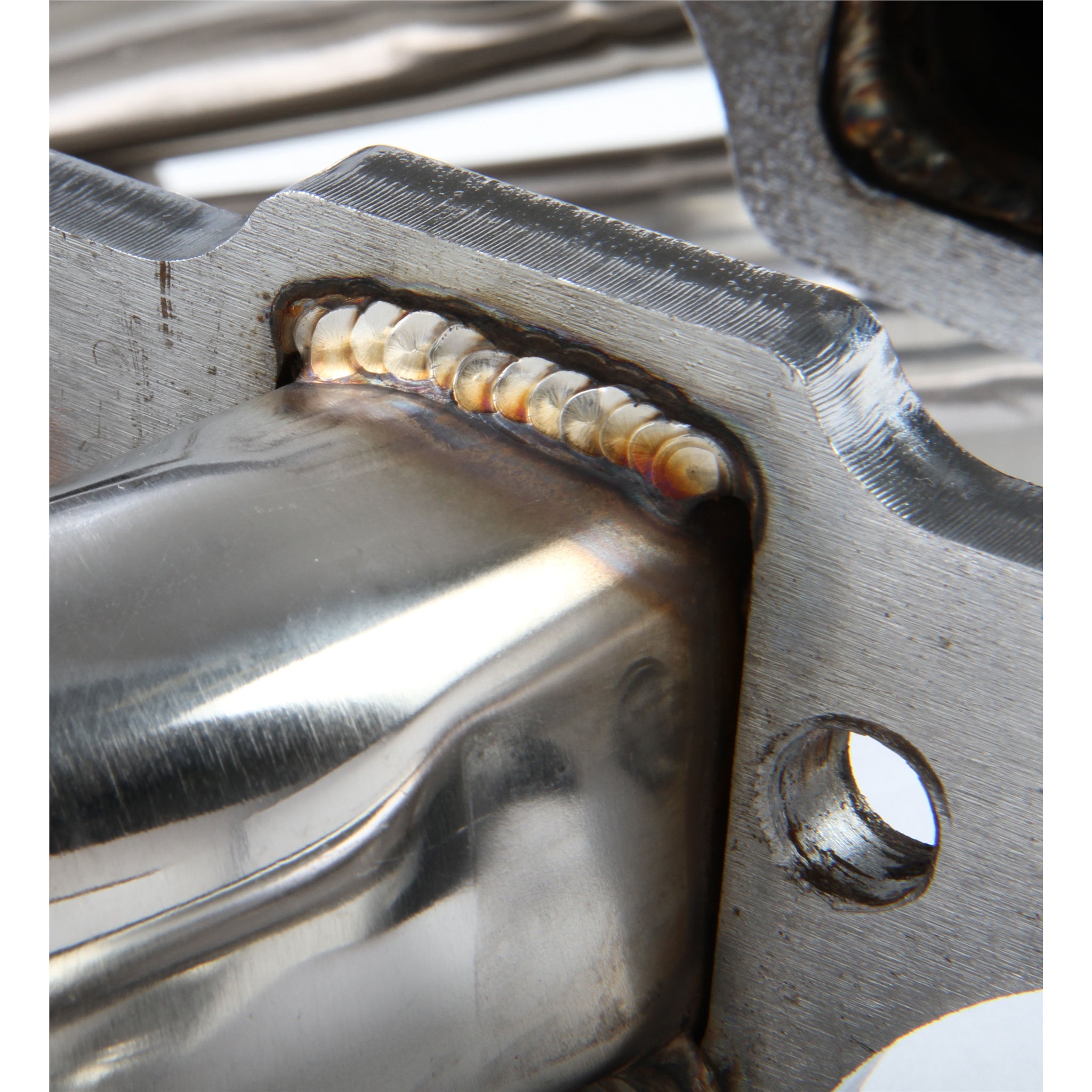

TIG-welded, machined 3/8" header flange for a leak-free seal and maximum strength |
| Description_FAB |
Premium aluminum header gaskets included |
| Description_FAB |
Available finishes include: High Temp Black Painted, Ceramic Coated and Polished |
| Description_FAB |
These headers are a must upgrade if you are using a cold air intake, cat-back exhaust system or performance cylinder heads |
| Description_KEY |
ford; mustang; 5.0l; 5.0; shorty; header; stainless; steel; race |
| Description_SHO |
Exhaust Header |
| Description_MKT |
Flowtech Headers are the perfect blend of quality, performance, and value. These 1-3/4 in. shorty style performance headers fit the very popular 5.0L V8 for the Fox-Body Mustang platform. The 1-3/4 in. tube size is the perfect upgrade for stroker motors and engines that have limited clearance issues and still require a free flowing header. |
| Port Shape |
Same As Port/Can Be Matched |
| Tube Direction |
Down Swept |
| Bolt size |
3/8-16 x 3/4 |
| Brand |
Flowtech |
| Engine |
Ford Small Block |
| Collector Tube Size |
3.000 in. |
| Emission Code |
4 |
| Header Finish |
Polished |
| Application |
Automotive |
| Coated Finish |
Chrome |
| Engine Make/Size |
Chevy Small Block |
| Finish |
Polished |
| Material |
304 Stainless Steel |
| Primary Tube Diameter |
1.750 in. |
| Tube Diameter |
1.750 in. |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB (California) Compliant |
No |
| Header Style |
Shorty |
| Primary Tube Dia. |
1-3/4 inch |
| Product Type |
Headers |
| Warning |
California Proposition 65 |
| Length |
10.0000 |
| Width |
12.0000 |
| Height |
21.0000 |
| Weight |
14.0000 |
