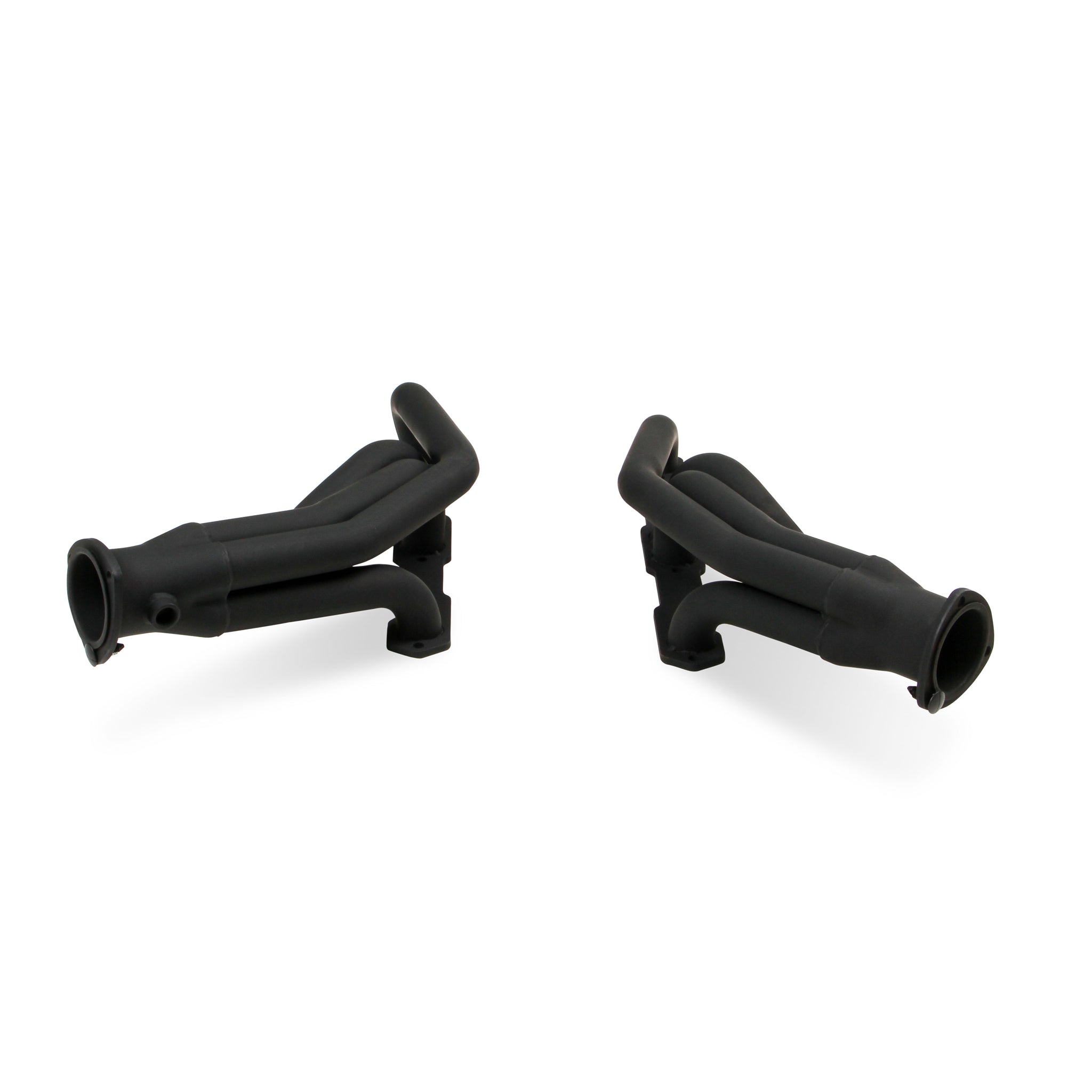

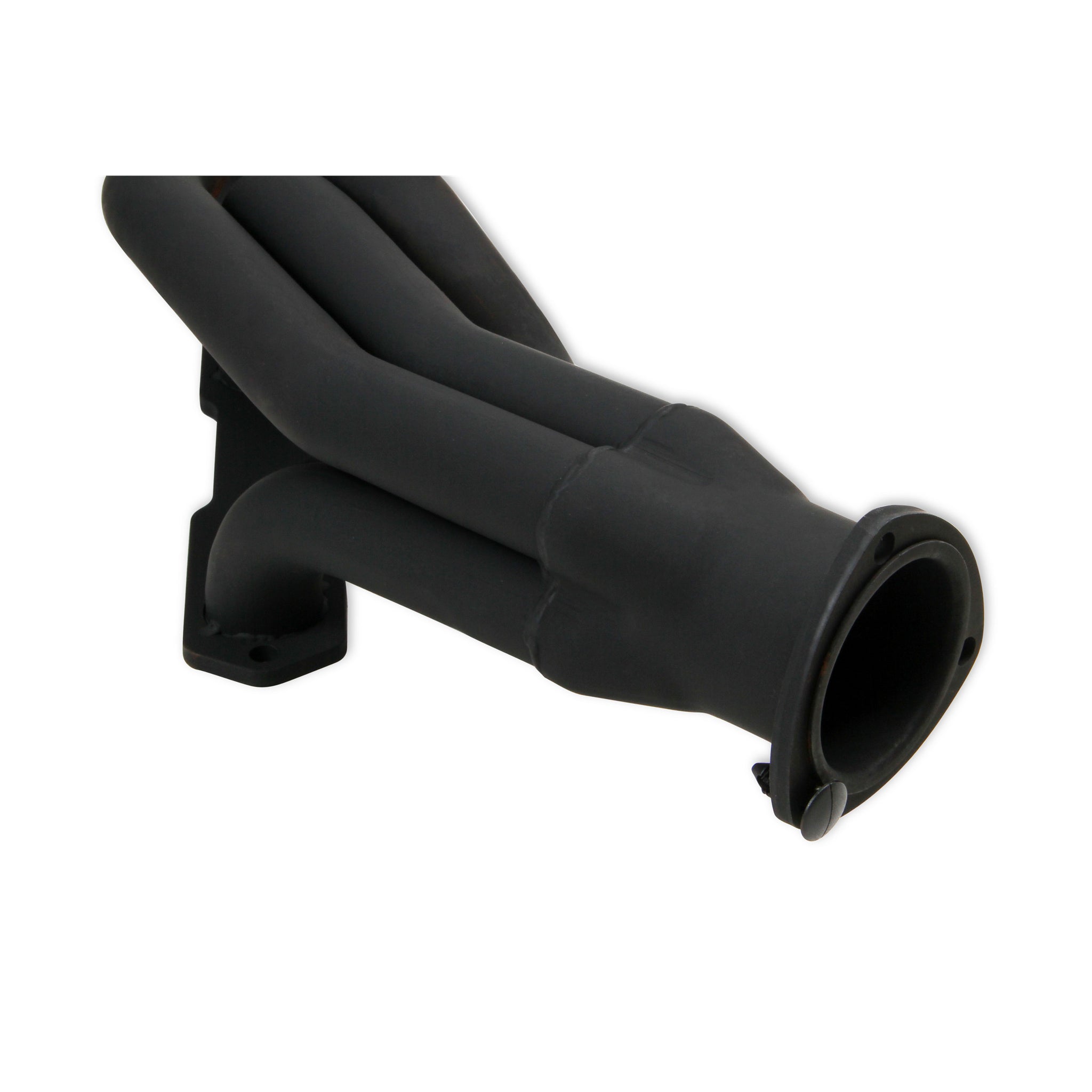

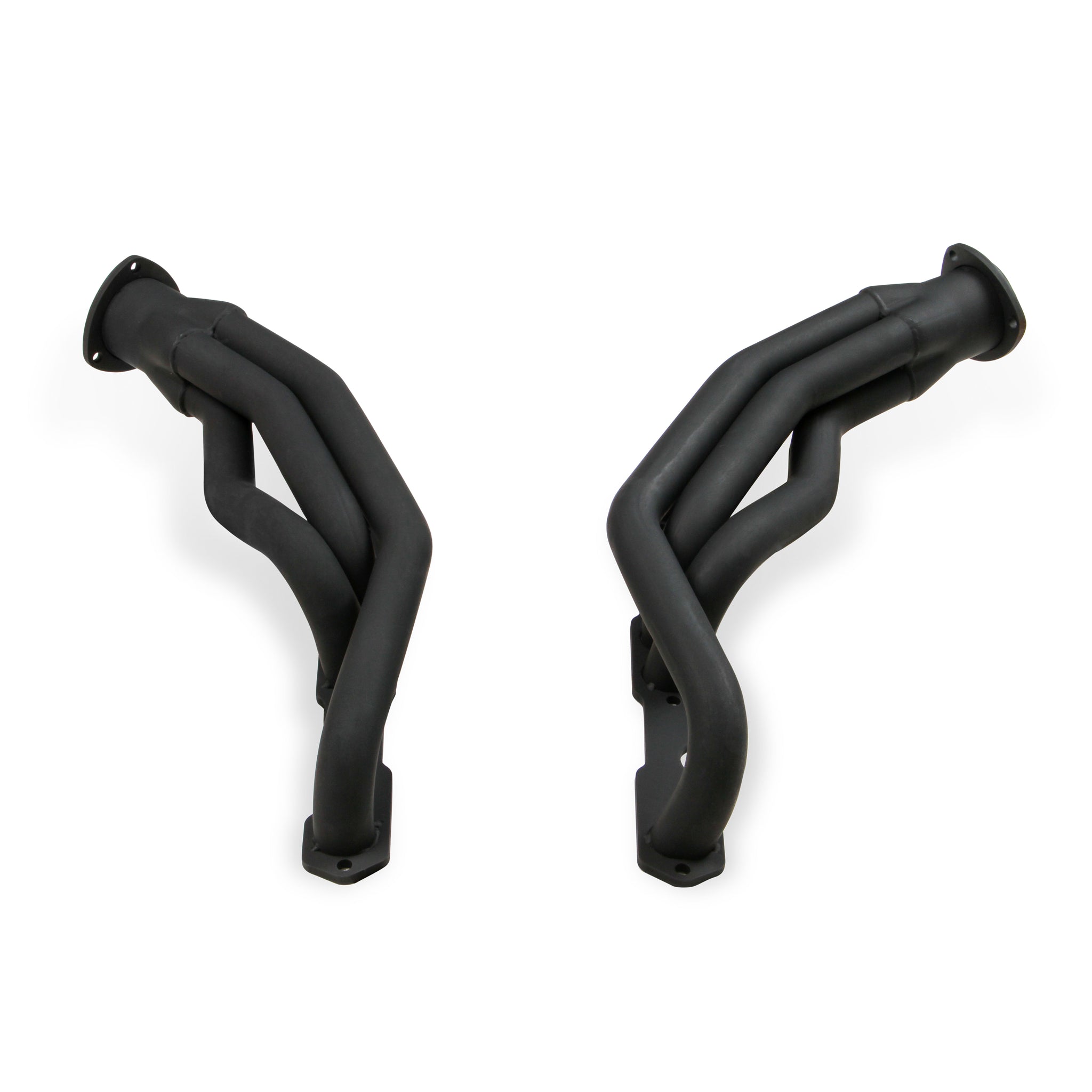

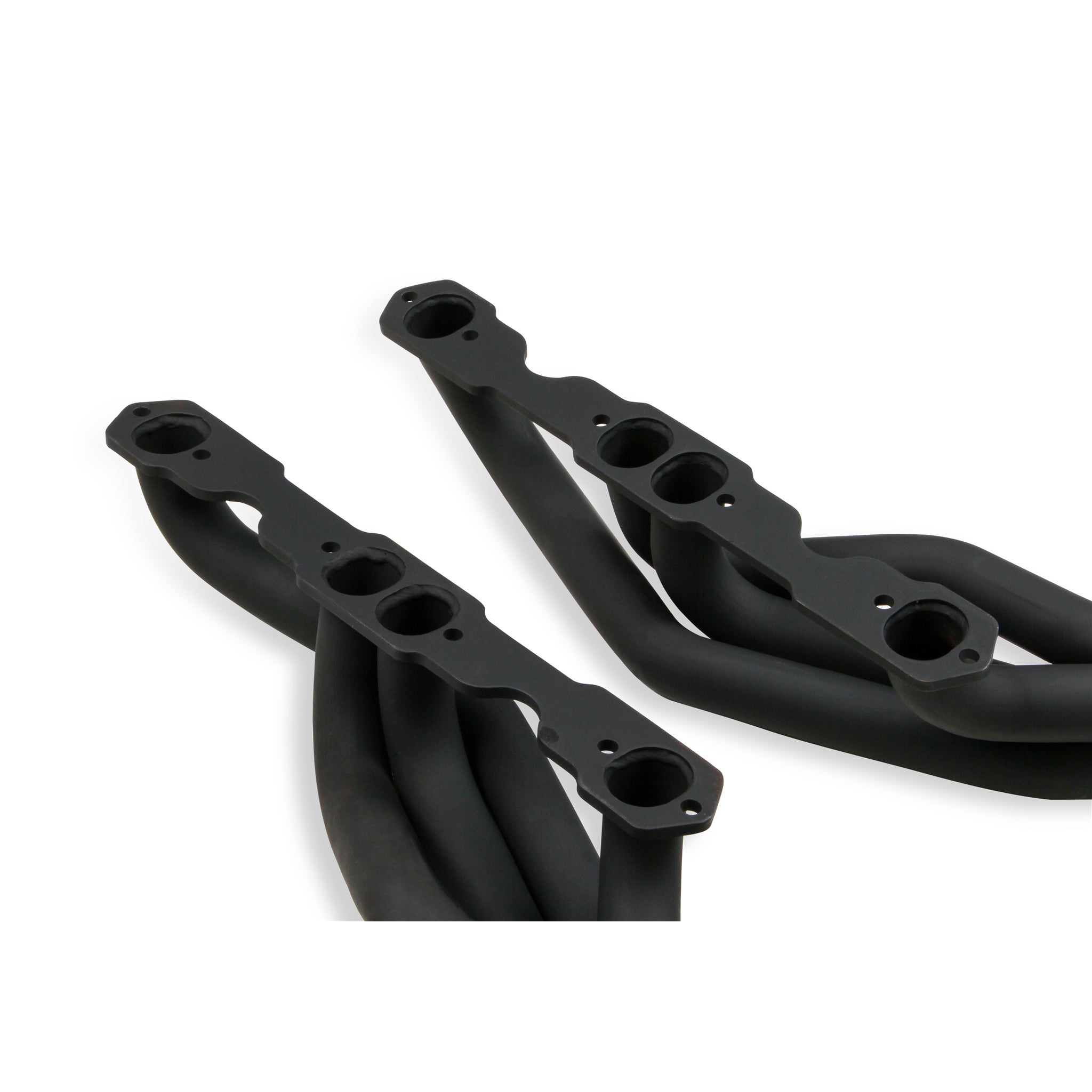

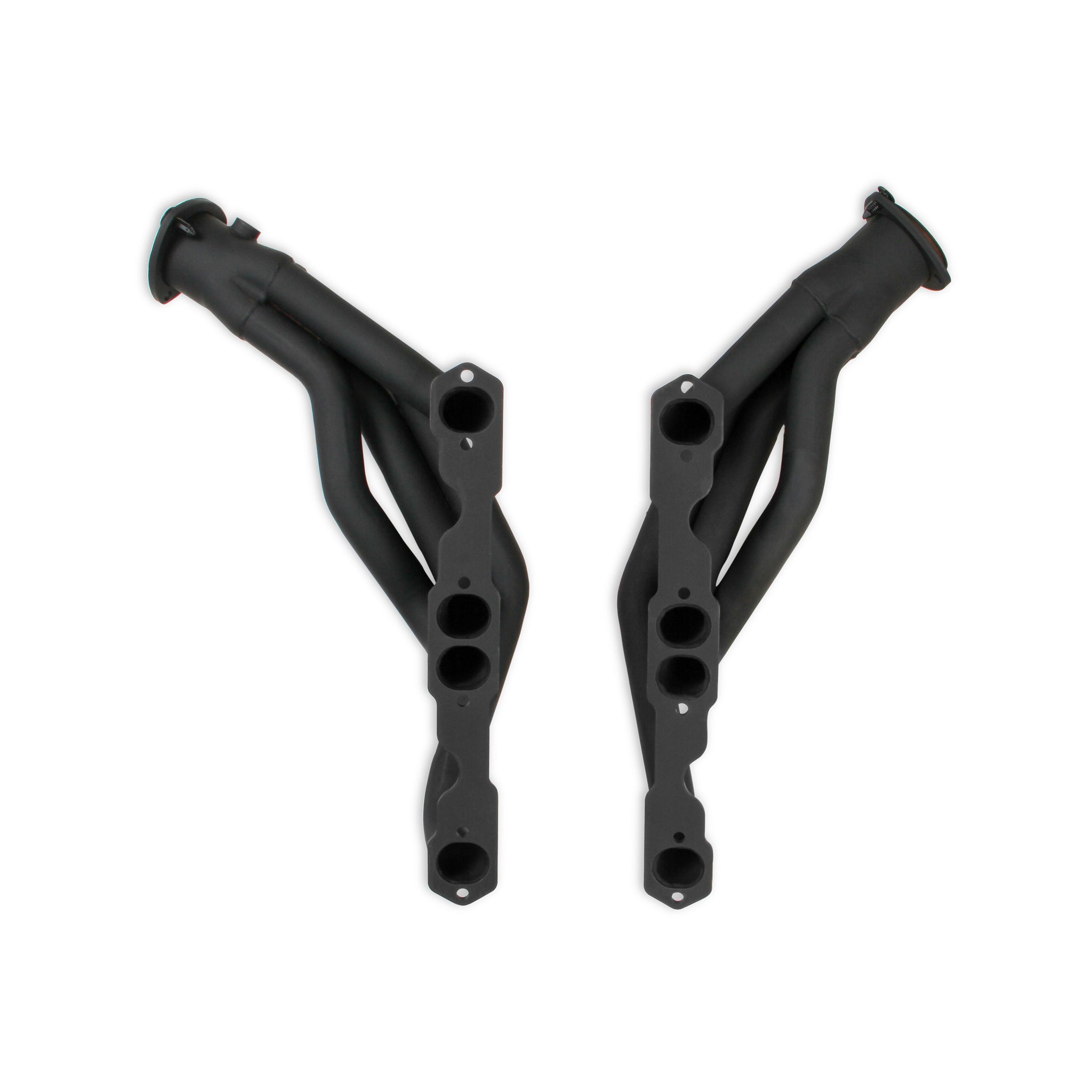

Flowtech headers are the perfect combination of performance and value. Flowtech shorty headers are precision engineered using mandrel bent tubing, formed collectors and 5/16" flanges with sealing rings for a leak-free seal. All mounting hardware and gaskets are included for a simple installation. This header is coated in a high heat resistant black paint for a stealthy appearance.
Specifications:
| Description_ASC |

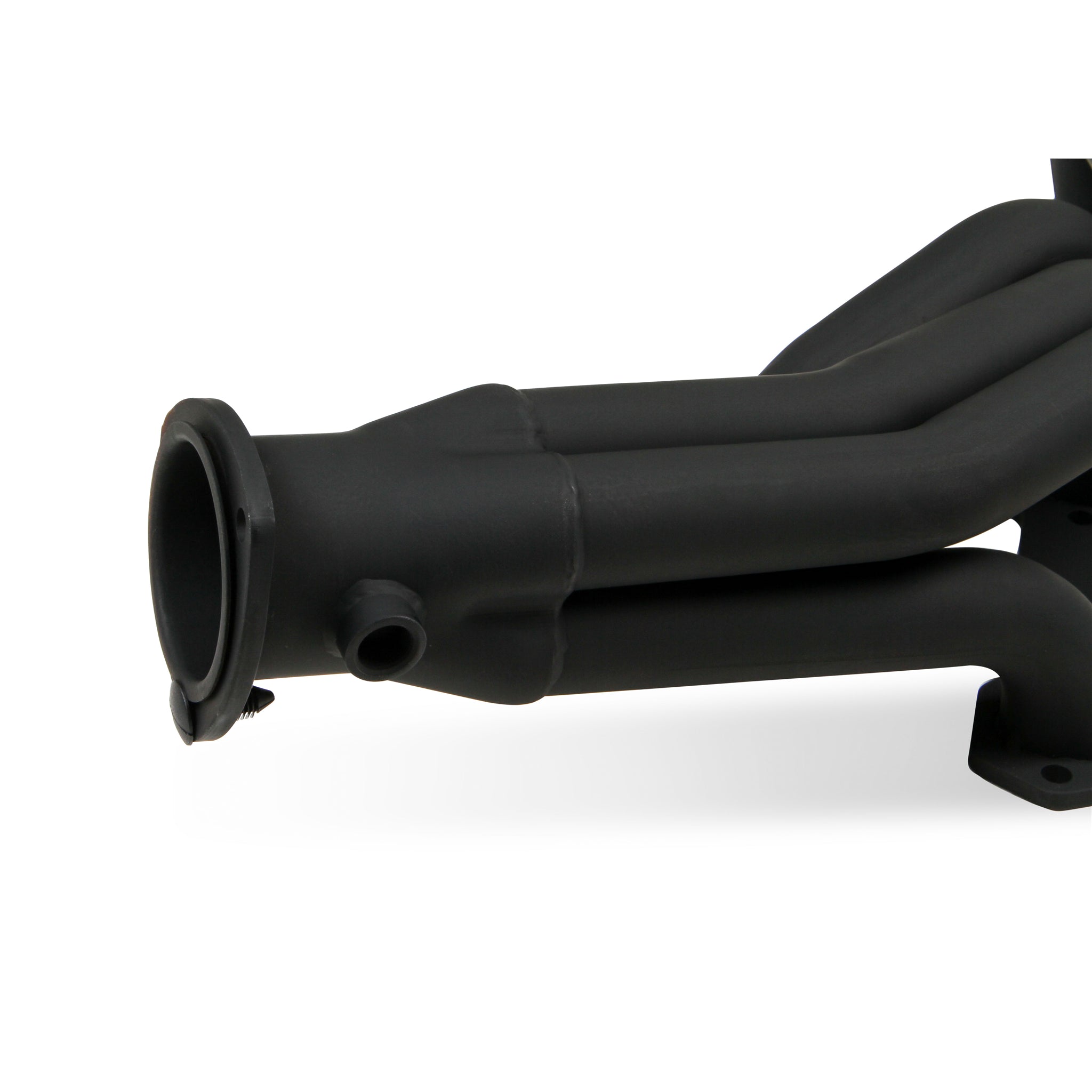

Do not fit angle plug heads.FLOWTECH,Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommends using cast iron exhaust manifolds or old headers to break in new engines to avoid coating damage. Please call Flowtech tech service at 270-781-9741 for additional information regarding ceramic coated exhaust products. FLOWTECH,FLOWTECH,The use of header wraps can cause the header tubes to crack or rust due to excessive heat and moisture build-up. Flowtech does not recommend the use of header wraps as this will void the warranty. FLOWTECH,FLOWTECH,NOTE: This header is equipped with a fitting to accept an oxygen sensor. Should you choose to install an O2 sensor, completion of the hole bore through the tube wall must be performed by a drill and/or air powered rotary file. |
| Description_DES |
Flowtech Shorty Headers - Black Painted |
| Description_EXT |
1988-1995 Chevy/GMC Truck 2WD & 4WD, 1500/2500/3500 (except 1988-1991 1-ton dually models): 5.0L - 5.7L, Tube Size 1.625", Collector Size 3" |
| Description_INV |
LTS CHEVY PU 88-95 BLAZER 92-95 |
| Description_FAB |
Leak Test For Max Performance |
| Description_FAB |
Mandrel-Formed Power Plenum |
| Description_FAB |
Leakproof O-Ringed Port Seals |
| Description_FAB |

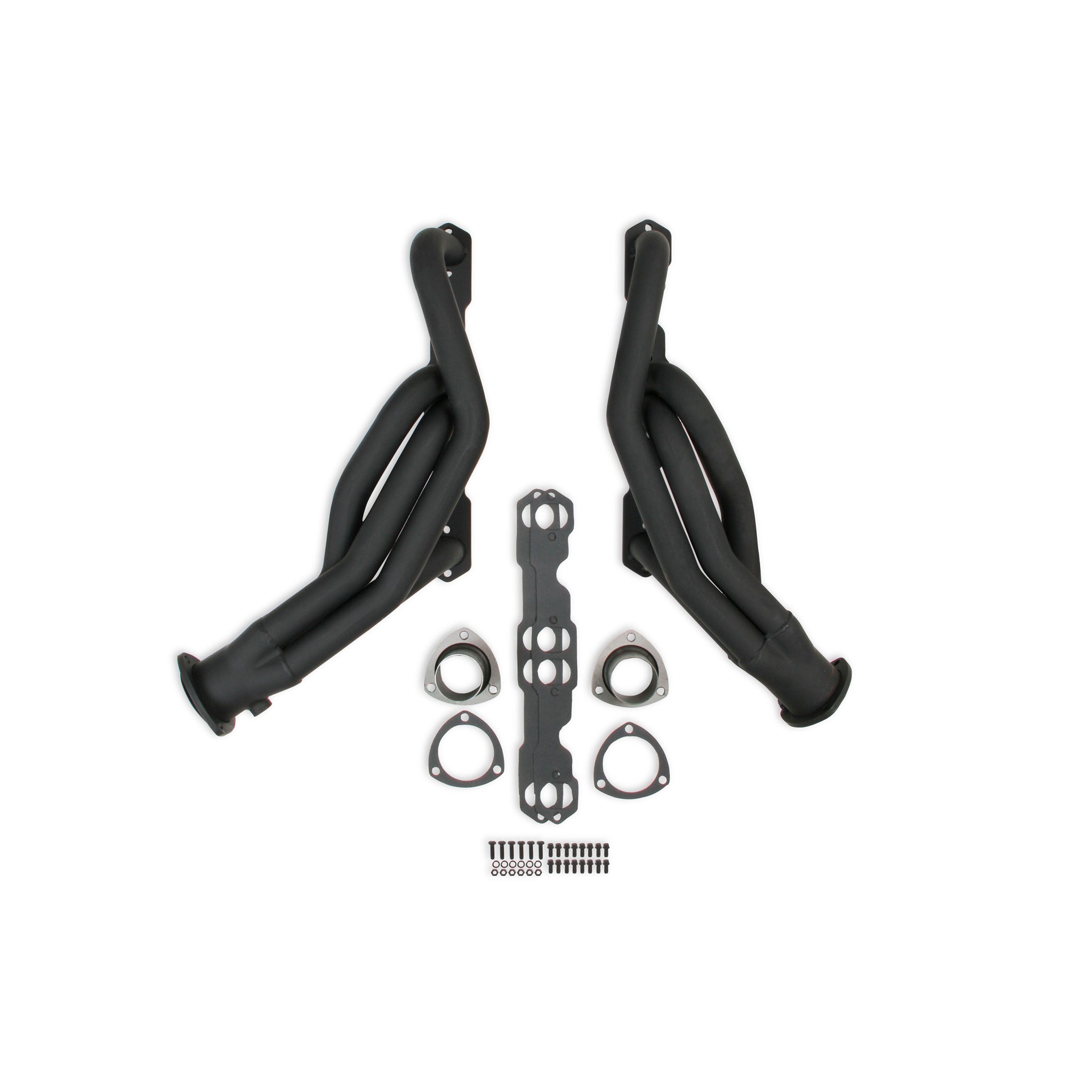

Include All Mounting Hardware |
| Description_FAB |
Constructed of .049 cold roll flash mild steel tubing |
| Description_FAB |
Precision engineered for fit and performance |
| Description_MKT |
Flowtech headers are the perfect combination of performance and value. Flowtech shorty headers are precision engineered using mandrel bent tubing, formed collectors and 5/16" flanges with sealing rings for a leak-free seal. All mounting hardware and gaskets are included for a simple installation. This header is coated in a high heat resistant black paint for a stealthy appearance. |
| CARB (California) Compliant |
No |
| Warning |
California Proposition 65 |
| Primary Tube Dia. |
1-5/8 inch |
| Product Type |
Headers |
| Bolt size |
3/8-16 x 3/4 |
| Brand |
Flowtech |
| Collector Diameter |
3.00 inch |
| Engine |
Chevrolet Small Block Gen I |
| Header Finish |
Black Paint |
| Header Flange Thickness (in) |
5/16 inch |
| Header Style |
Shorty |
| Tube Material |
Mild Steel |
| Emission Code |
4 |
| Length |
11.7000 |
| Width |
11.5000 |
| Height |
28.0000 |
| Weight |
20.9500 |
