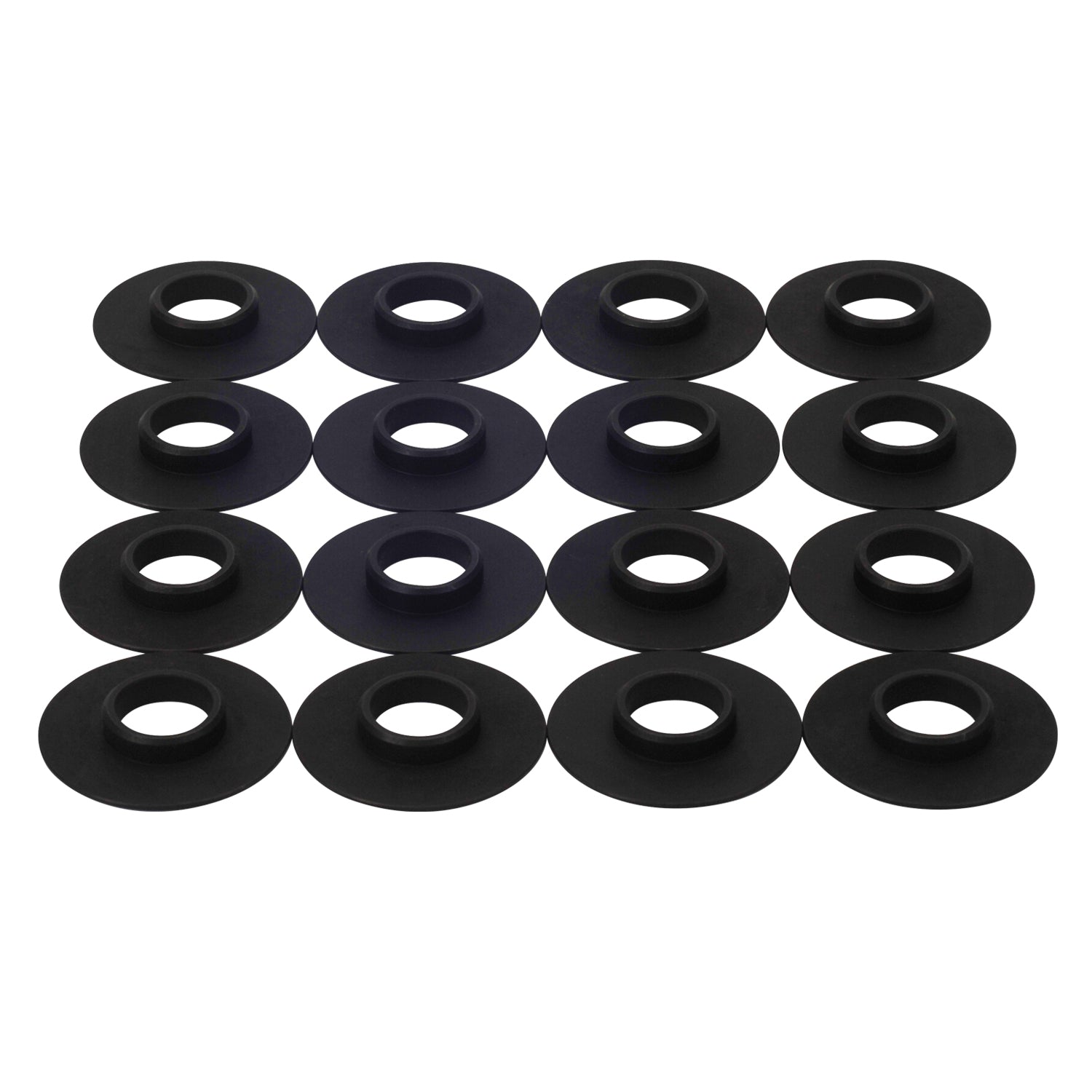

The new Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for applications that require the use of hardened valve spring seat locators. This includes all of the complete Edelbrock cylinder heads that use the 1.54-inch Dual Valve Springs #5823 for solid roller lifter camshafts such as the Big-Block Chevy Performer RPM and the 460 Ford Performer RPM cylinder heads. These valve spring seat locators have a thickness of .060 inch and will provide a hardened barrier between the valve springs and the aluminum cylinder heads while positively locating the base of the valve spring.
Specifications:
| Description_ABR |
Spr Seat Loc |
| Description_DEF |
Engine Valve Spring Cap |
| Description_LAB |
Edelbrock Spring Seat Locator Kit #5799 (set of 16) |
| Description_INV |
Edelbrock Spring Seat Locator Kit #5799 |
| Description_EXT |
The Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for cylinder head applications that require the use of hardened valve spring seat locators. |
| Description_MKT |
The new Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for applications that require the use of hardened valve spring seat locators. This includes all of the complete Edelbrock cylinder heads that use the 1.54-inch Dual Valve Springs #5823 for solid roller lifter camshafts such as the Big-Block Chevy Performer RPM and the 460 Ford Performer RPM cylinder heads. These valve spring seat locators have a thickness of .060 inch and will provide a hardened barrier between the valve springs and the aluminum cylinder heads while positively locating the base of the valve spring. |
| Description_SLA |
The new Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for applications that require the use of hardened valve spring seat locators. This includes all of our complete cylinder heads that use the 1.54-inch Edelbrock Dual Valve Springs #5823 for solid roller lifter camshafts such as the Big-Block Chevy Performer RPM and the 460 Ford Performer RPM cylinder heads. These valve spring seat locators have a thickness of .060 inch and will provide a hardened barrier between the valve springs and the aluminum cylinder heads while positively locating the base of the valve spring. |
| Description_TRA |
Valve Seal Kit #9758 is recommended. A proper valve spring compressor is required to remove and reinstall the valve springs. The removal of the valve springs and the installation of the spring seats should be done on one cylinder at a time with the piston at Top Dead Center to prevent the valves from falling into the cylinder with the valve springs removed. |
| Finish |
Black Oxide |
| Thickness |
0.60 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Inside Diameter |
0.570 |
| Grade Type |
Performance |
| Outside Diameter |
1.520 |
| Quantity |
Set of 16 |
| Recommended Use |
Use With Valve Seal Kit #9758 and Valve Spring Kit #5823 |
| Material |
Steel |
| Length |
6.0000 |
| Width |
8.0000 |
| Height |
10.0000 |
| Weight |
1.0000 |
