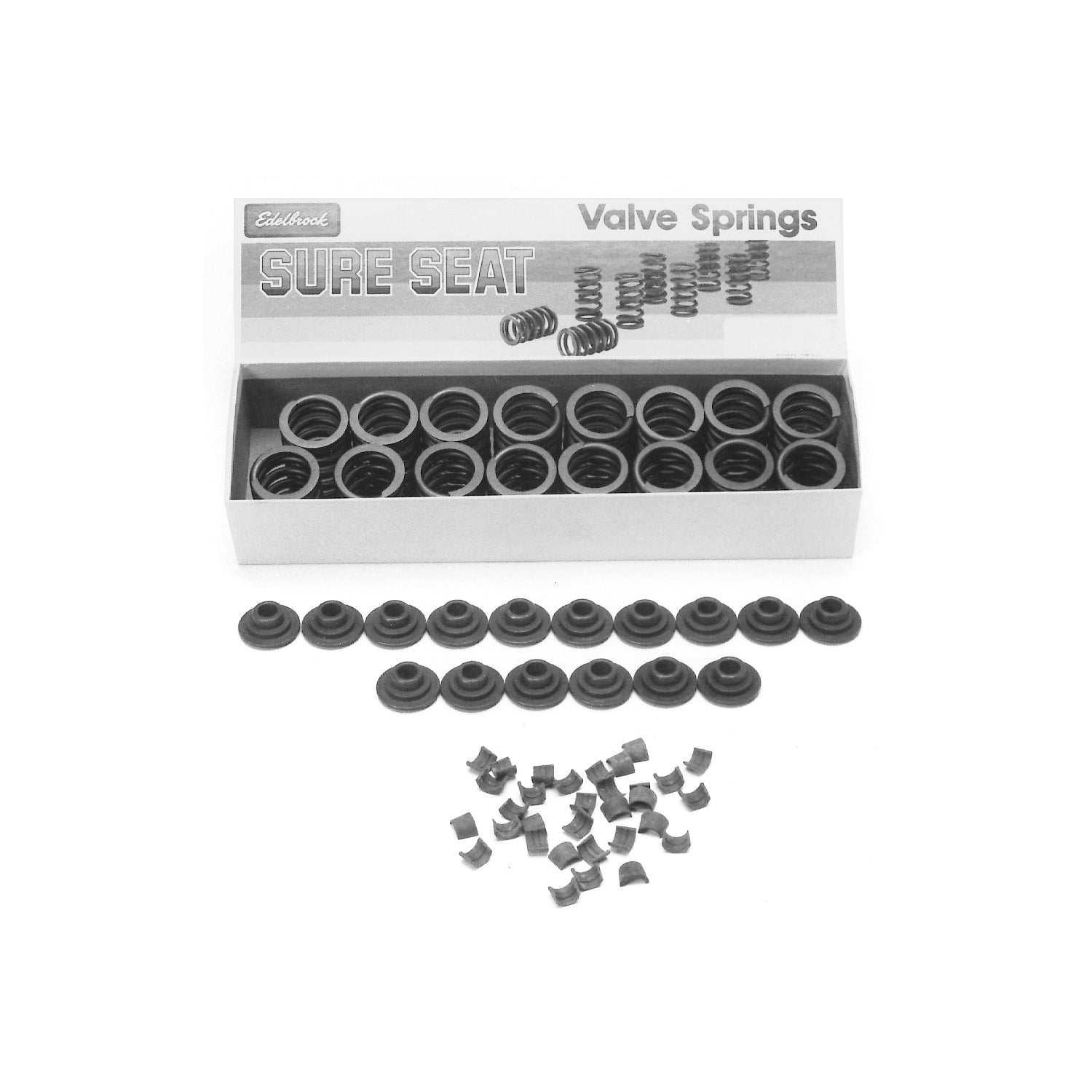

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160"
Specifications:
| Description_ABR |
Valve Spring |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Valve Spring Kit |
| Description_EXT |
Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. Set of 16. |
| Description_LAB |
Complete Sure Seat Valve Spring Kit for Chevy 262-400 V8 1957-95 |
| Description_INV |
Edelbrock Engine Valve Spring Kit |
| Description_MKT |
Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160" |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Damper Spring Included |
Yes |
| Quantity |
Kit |
| Inside Diameter |
0.880 |
| Material |
Chromium Silicon |
| Outside Diameter |
1.265 |
| Retainers Included |
Yes |
| Springs Per Valve |
Single |
| Installed Height |
1.700 |
| Open Pressure |
285 |
| Spring Open Height |
0.490 |
| Installed Pressure |
110 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spring Type |
Cylindrical |
| Locks Included |
Yes |
| Coil Bind Height |
1.160 |
| Camshaft Type |
Hydraulic Flat Tappet |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
12.0000 |
| Weight |
4.0000 |
