COMP Cams 7228TS-KIT GM LS Conical Valve Spring Kit w/ Tool Steel Retainers

2 sold in last 8 days
COMP Cams
ds_BDQQ_7228TS-KIT
Engine Valve Spring Kit
$933.60
customers are viewing this product
COMP Cams 26055-16 Race Sportsman 1.585
COMP Cams 26055-16 Race Sportsman 1.585" OD Beehive Springs
$635.71
COMP Cams 7228-16 Race Street 1.290
COMP Cams 7228-16 Race Street 1.290" OD Conical Springs
$700.17
COMP Cams 7228TS-KIT GM LS Conical Valve Spring Kit w/ Tool Steel Retainers
Details

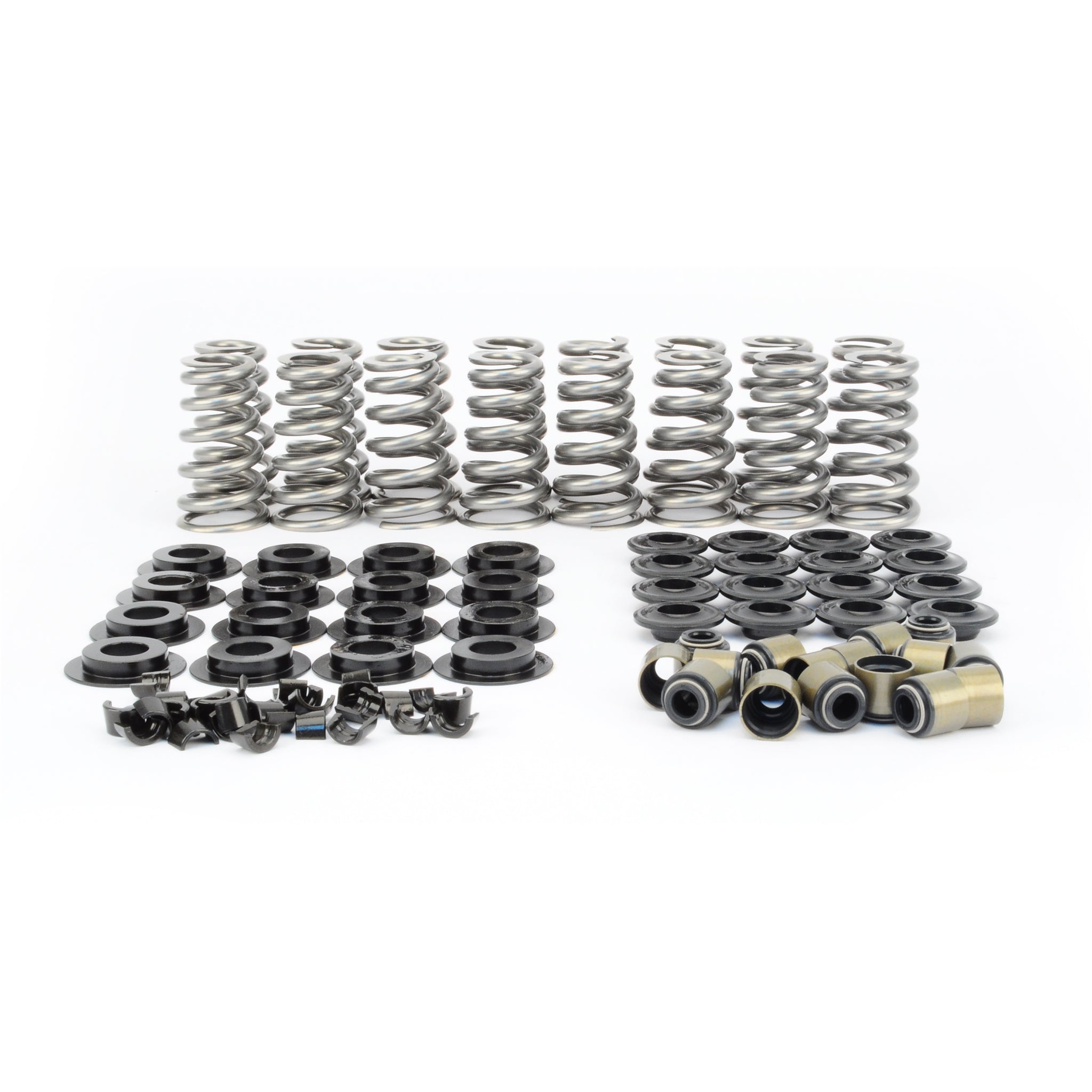

Featuring our innovative natural damping conical valve springs for increased RPM, this LS spring kit includes tool steel retainers, spring seats, seals and locks for a complete kit that can handle .615" lift from aggressive roller cams.

Specifications:

Description_ASC Available with chromemoly steel retainers under 7228CS-KIT.
Description_DEF Engine Valve Spring Kit
Description_DES GM LS Conical Valve Spring Kit w/ Tool Steel Retainers
Description_INV Conical LS Spring Kit Tool Stl
Description_EXT Featuring our innovative natural damping conical valve springs for increased RPM, this LS spring kit includes tool steel retainers, spring seats, seals and locks for a complete kit that can handle .615" lift from aggressive roller cams.
Description_KEY GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Description_SHP None
Description_SHO ConLSSprngTSKit
California Proposition 65 WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Seat Height 1.8
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? Yes, but must meet tailpipe emission standards for year of vehicle.
Outer Top Spring Outside Diameter 1.03
Outer Bottom Spring Inside Diameter 0.918
Seat Pressure 136
C.A.R.B. E.O. Number N/A
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Retainer Material Tool Steel
Spring Rate 440
Outer Top Spring Inside Diameter 0.662
Outer Bottom Spring Outside Diameter 1.286
Maximum Valve Lift 0.615
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Coil Bind Height 1.125
Amazon ASIN B00S3JQRRU
C.A.R.B. Exempt for On-Road Vehicles? Yes
Number of Springs 1
Title GM LS Conical Valve Spring Kit w/ Tool Steel Retainers
C.A.R.B. Exemption Reason No impact on pollution output of vehicle.
Length 3.0000
Width 6.0000
Height 12.0000
Weight 3.0000
